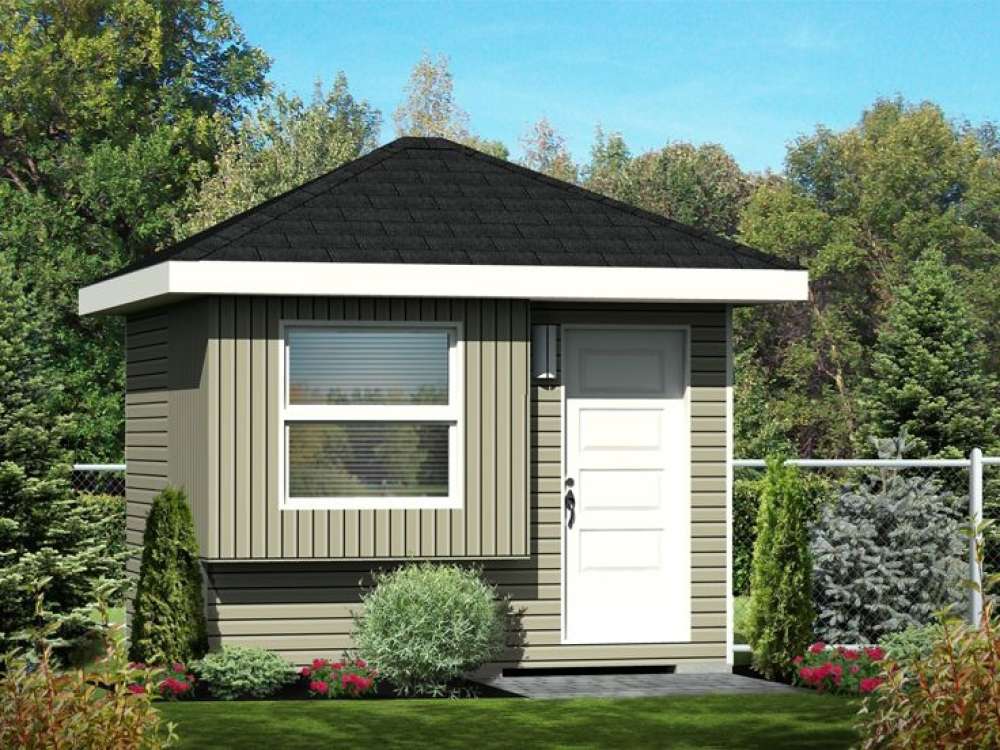

Garden Shed Plan, 072S-0024
Garden Shed Plan, 072S-0024
Floor Plan, 072G-0024
Floor Plan, 072G-0024

Plan 072S-0024

Click to enlarge. Views may vary slightly from working drawings. Refer to floor plan for actual layout.

Garden Shed Plan, 072S-0024
Floor Plan, 072G-0024

Multi-Size Garden Shed

Plan Details

Heated Sq. Ft.
  Total  0 sq. ft.

Dimensions
  Width  8 ft. 0 in.
  Depth  8 ft. 0 in.

Ceiling Heights
  First Floor  7 ft. 6 in.

Roof Pitch
  6/12 Main

Roof Framing
  Truss

Exterior Wall
  2x4

Foundation
  Wood

Plan Features

There are no features for this plan.

Plan Description

Garden shed designed for backyards and gardens in rural areas
Just right for storing the kids’ outdoor toys and pool equipment
Foundation/floor is 2x6 on concrete blocks
Plans include 15 sizes: 8x8x11-6 (64 sf) / 8x10x11-6 (80 sf) / 8x12x11-6 (96 sf) / 10x8x11-9 (80 sf) / 10x10x12 (100 sf) / 10x12x12 (120 sf) / 12x8x11-9 (96 sf) / 12x10x12-3 (120 sf) / 12x12x12-6 (144 sf) / 14x8x11-9 (112 sf) / 14x10x12-3 (140 sf) / 14x12x12-9 (168 sf) / 16x8x11-9 (128 sf) / 16x10x12-3 (160 sf) / 16x12x12-9 (192 sf)
Floor plan shown: 12’x10’
Plans designed to be printed on 8 ½” x 11” pages and include a material list


Order Plan


Complete construction drawing (excludes commercial plans) in electronic format for use by design professionals to make substantial changes to the blueprint. Comes with a copyright release granting legal permission to change the designer's original copyrighted house plan and reproduce it for construction. You must have CAD software to open a CAD file. Some CAD files can be emailed, while others must be shipped on a CD. Note: Some of our designers require customers to sign and return a licensing agreement before the plans are emailed or shipped.
$150.00

Electronic file of the construction drawing delivered by email to the customer usually within 24-48 hours of purchasing (during regular business hours.) Includes a copyright release to print the blueprints needed for construction. Copies can be printed on 8 1/2" x 11" sheets right from your computer or take the file to a blueprint shop and print full sized project plans for construction. Saves time and shipping costs. Note: Some of our designers require customers to sign and return a licensing agreement before the plans are emailed.
$60.00

Foundation

$0.00

Exterior Wall

$0.00


Processing and Shipping

Processing and shipping fees are calculated per plan, and not per total order. Rates are subject to change without notice.

Continental US Canada AK/HI *International
Regular - 8-12 business days n/a n/a n/a
Priority - 3-5 business days n/a n/a
Express - 1-2 business days n/a n/a n/a n/a

*Please Note: International orders may take up to 3 weeks for delivery.

.
