Horse Barn Plan with Apartment, 001B-0002

Plan 001B-0002
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

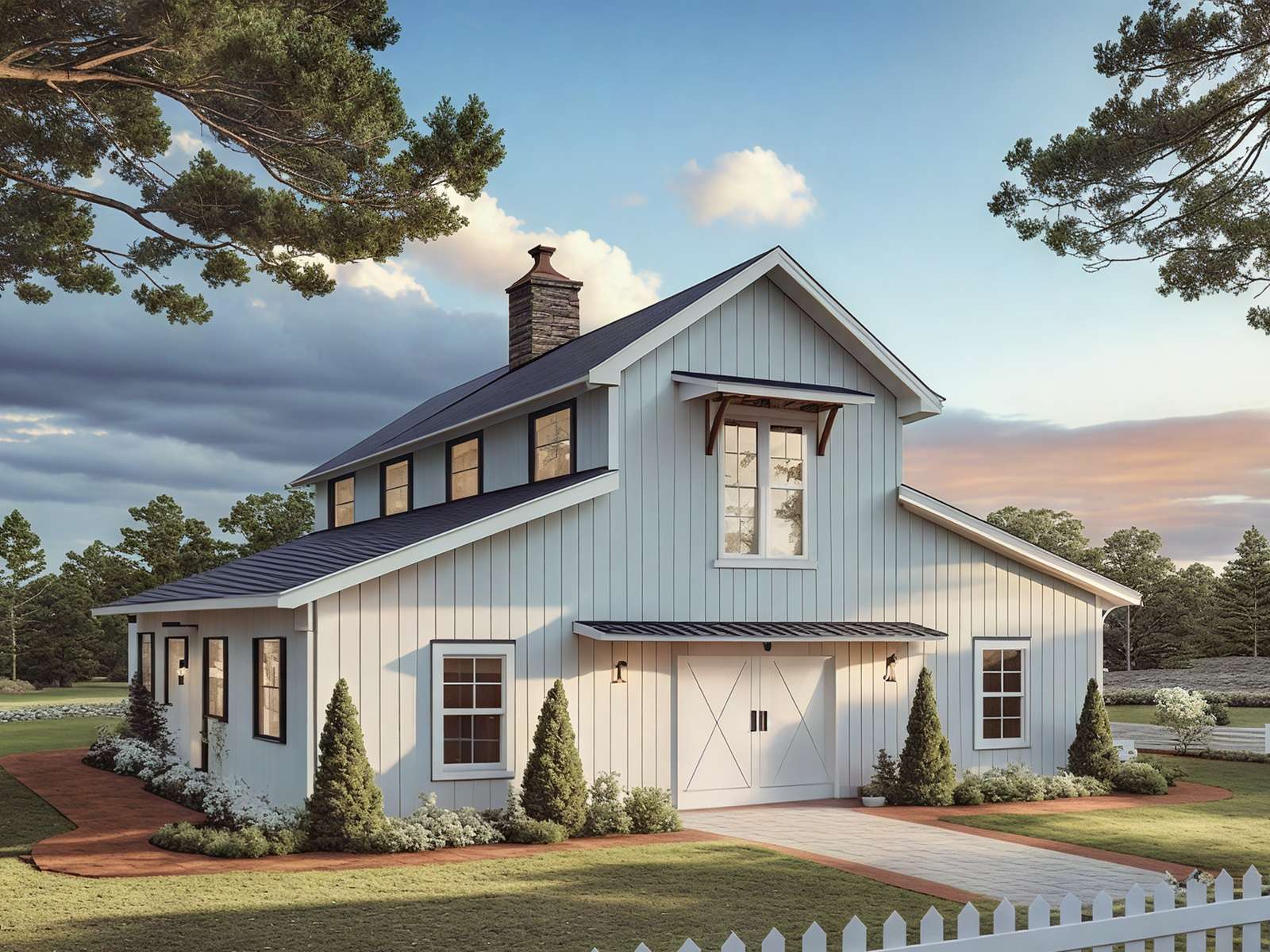

Classic horse barn plan includes comfortable apartment for a ranch or farm hand

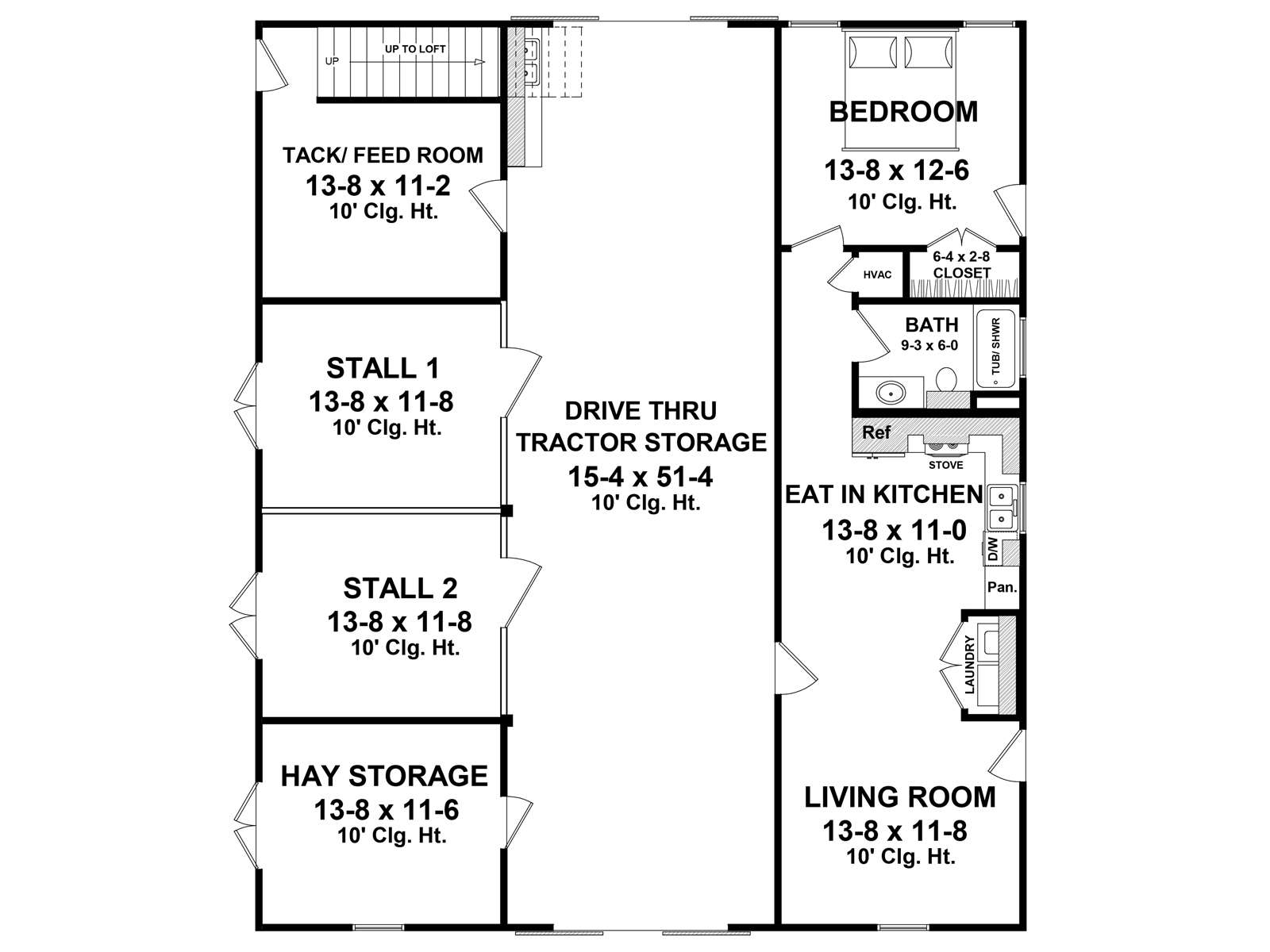

Floor plan reveals two horse stalls, a tack/feed room, drive-thru tractor port, hay loft and living quarters
The finished living space delivers one bedroom, one bath, open gathering space and laundry closet

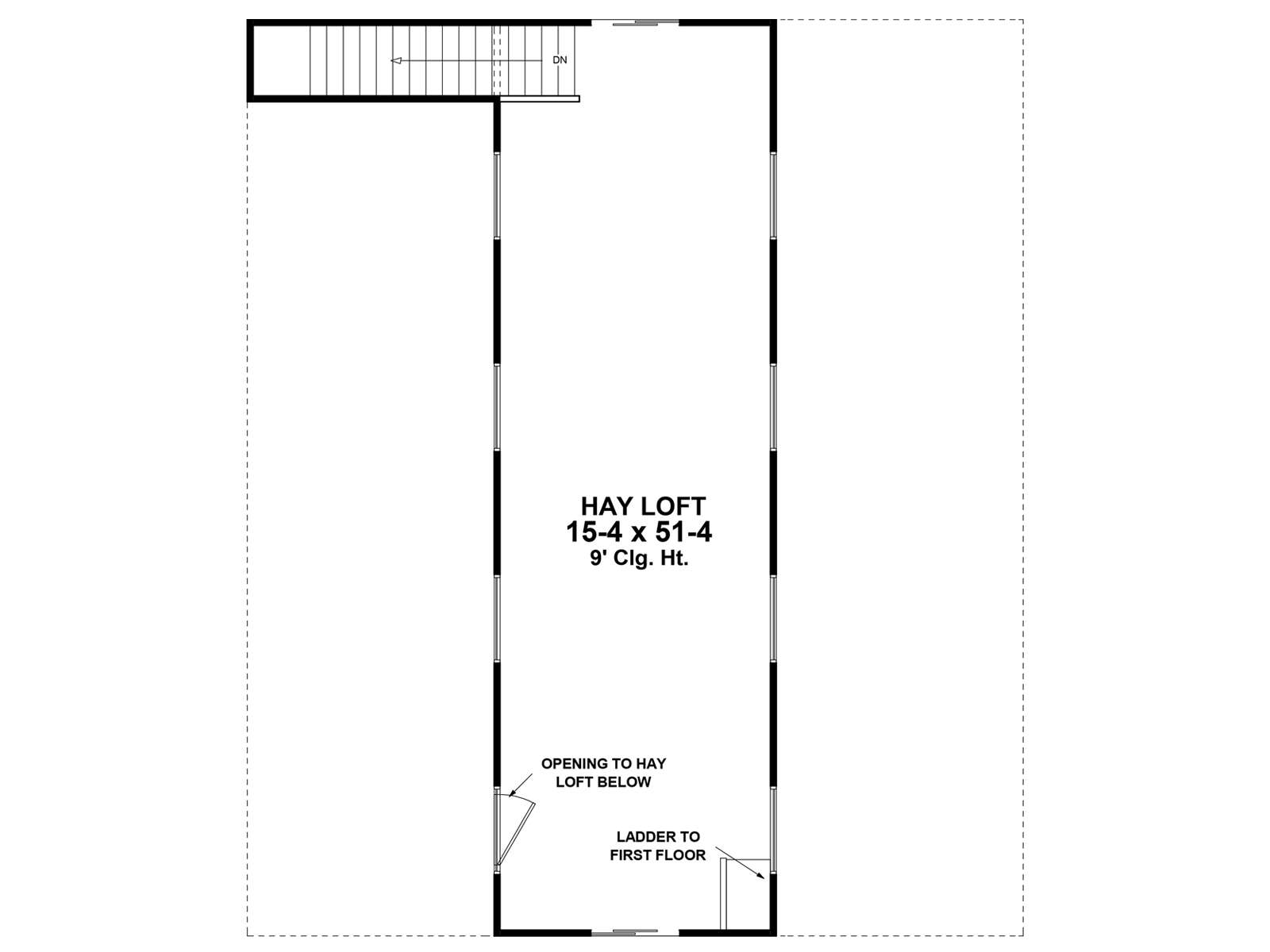

Second floor loft provides hay storage


Heated Square Feet
First Floor 741
Total 741
Unheated Square Feet
Loft 810
Outbuilding/Barn 1543
Bedrooms 1
Full Bathrooms 1
Width 44 ft. 0 in.
Depth 52 ft. 0 in.
Approximate Height 26 ft. 3 in.
Ceiling Height
First Floor 10 ft. 0 in.
Second Floor 9 ft. 0 in.
Roof Pitch 4.5/12 Main
Roof Pitch 8/12 Other
Roof Framing
  • Stick
Foundation Options
  • Slab
Exterior Wall Options
  • 2x4
Interior Features
  • Full/Half Bath
  • Laundry
  • Open floor plan

Classic horse barn plan includes comfortable apartment for a ranch or farm hand
Floor plan reveals two horse stalls, a tack/feed room, drive-thru tractor port, hay loft and living quarters
The finished living space delivers one bedroom, one bath, open gathering space and laundry closet
Second floor loft provides hay storage


Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $35 n/a n/a n/a
Priority 3 - 4 business days $50 n/a $70 n/a
Express 1 - 2 business days $70 n/a n/a n/a
Info

There are no reviews

View more
Add your review
Horse Barn Plan with Apartment

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$1,300.00

Additional Options

Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets are available for purchase within 90 days of the original house plan purchase. [less] [more]

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] [more]

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]
