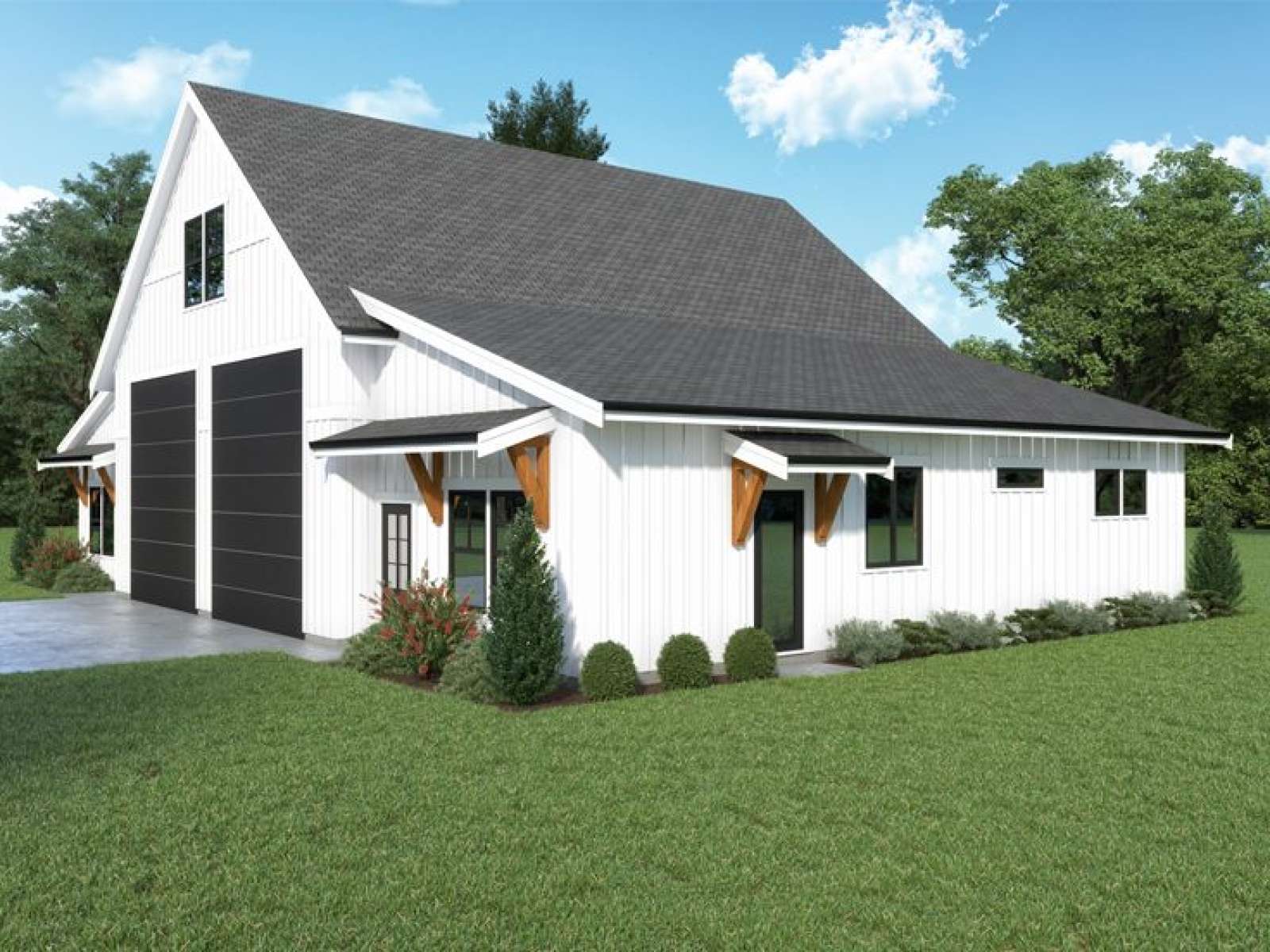

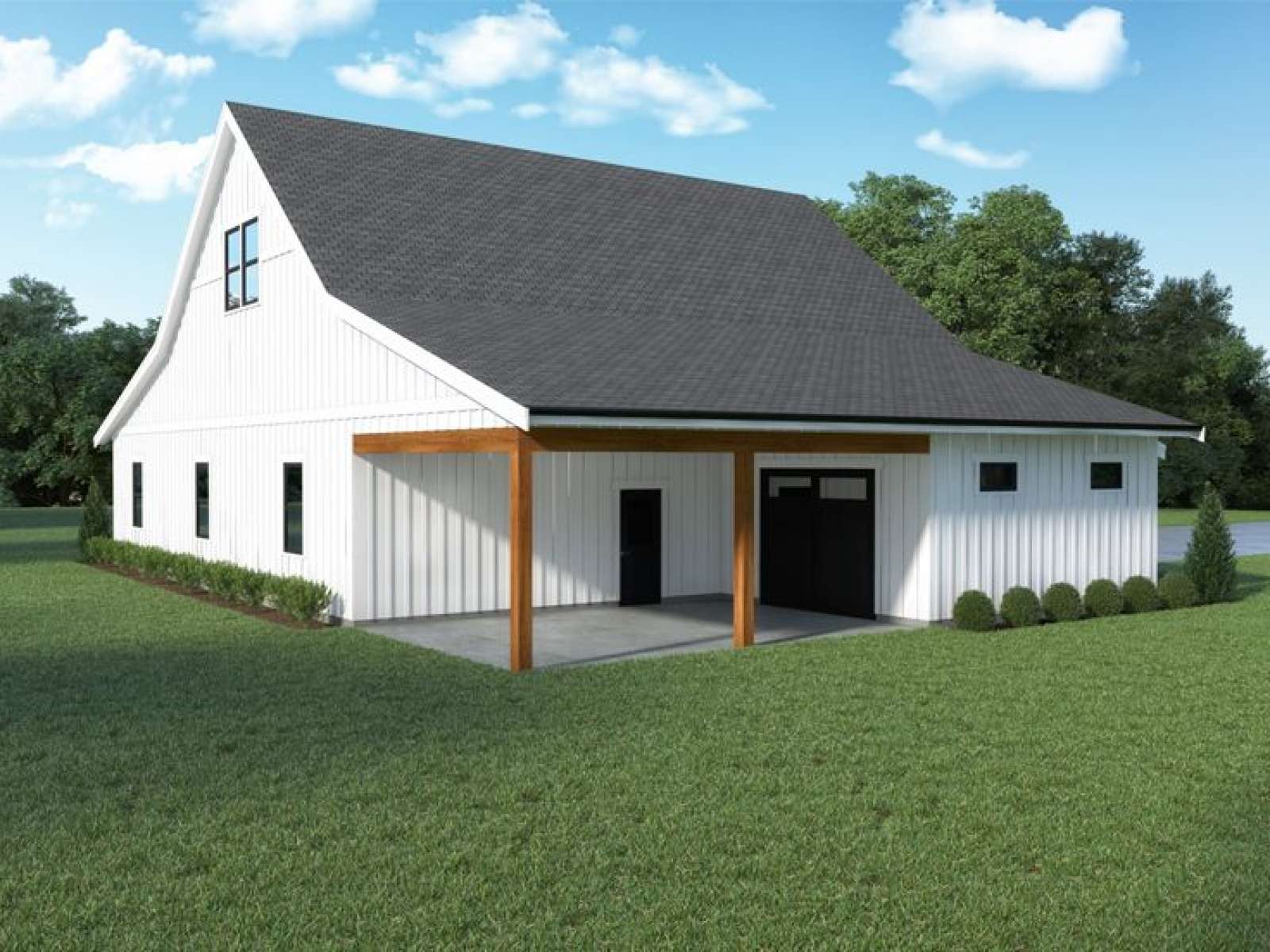

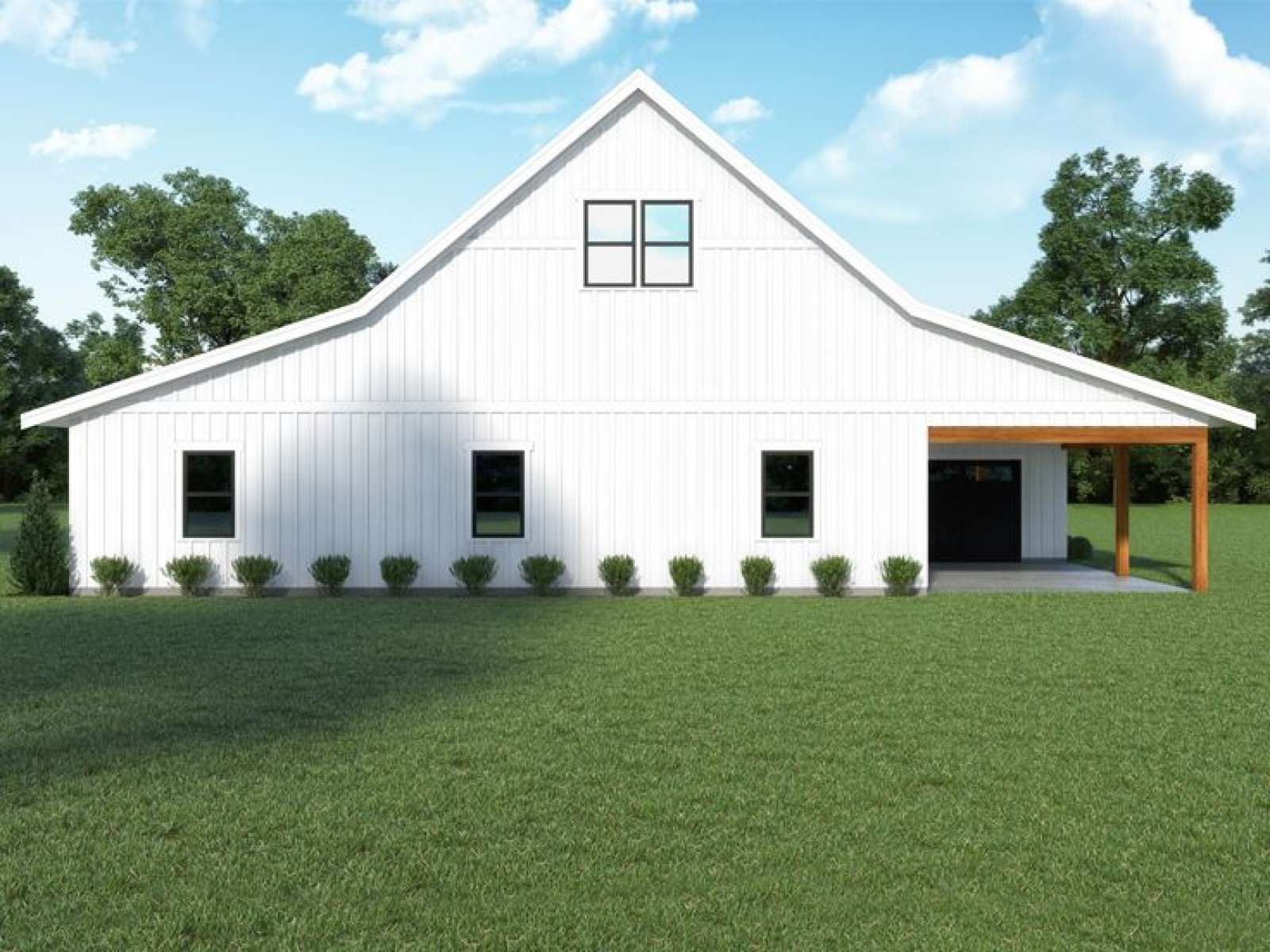

Garage Apartment Plan, 090G-0005
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Ceiling height of living space is 9’

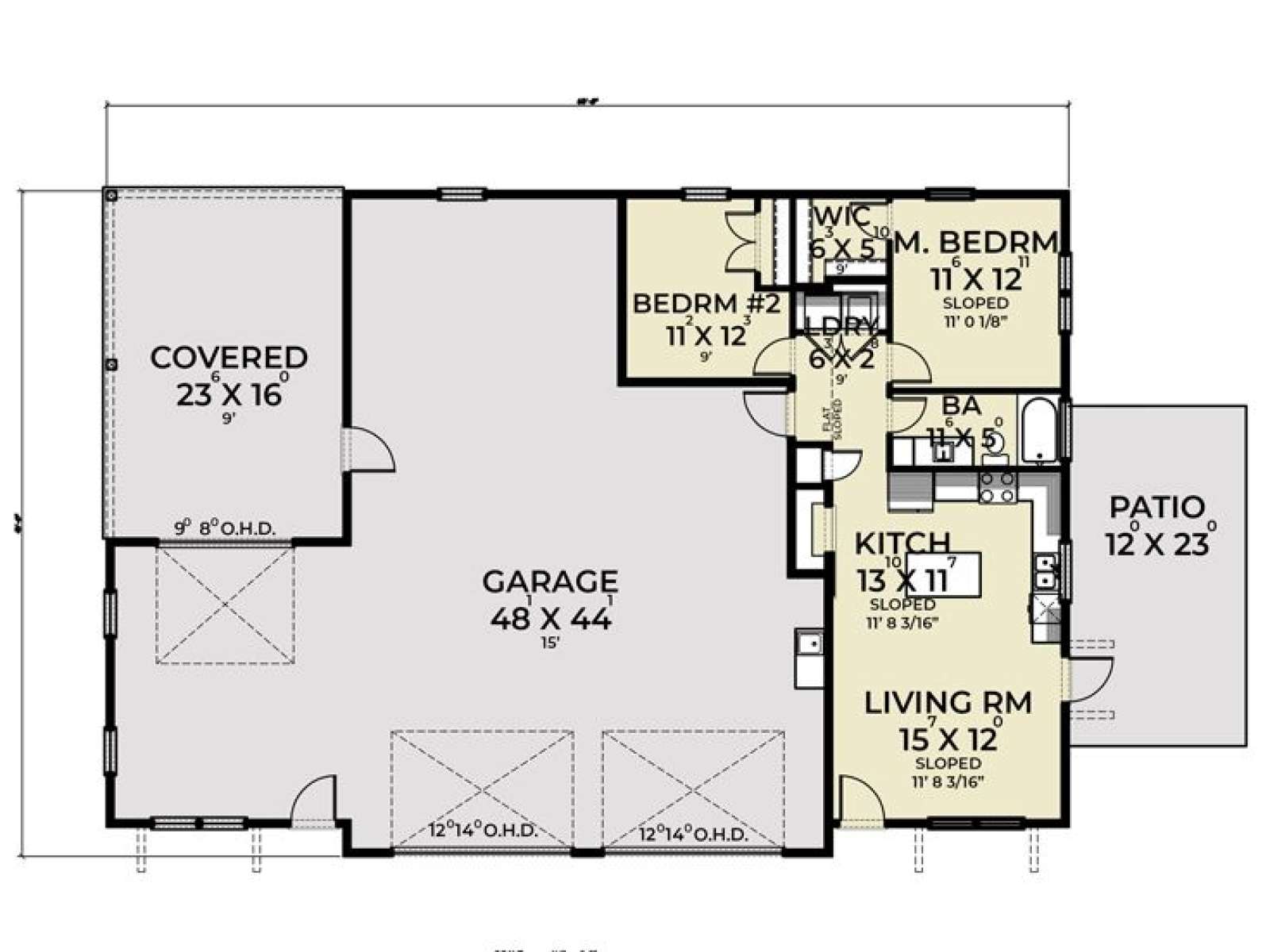

See floor plan for sloped ceilings and taller ceiling heights in the kitchen, living room, and master bedroom
Ceiling height of the garage is 15’
| Heated Square Feet | |
| First Floor | 924 |
| Total | 924 |
| Unheated Square Feet | |
| Garage | 1561 |
| Bedrooms | 2 |
| Full Bathrooms | 1 |
| Width | 65 ft. 0 in. |
| Depth | 45 ft. 0 in. |
| Approximate Height | 29 ft. 10 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Roof Pitch | 10/12 Main |
| Roof Pitch | 4/12 Other |
| Roof Framing |
|

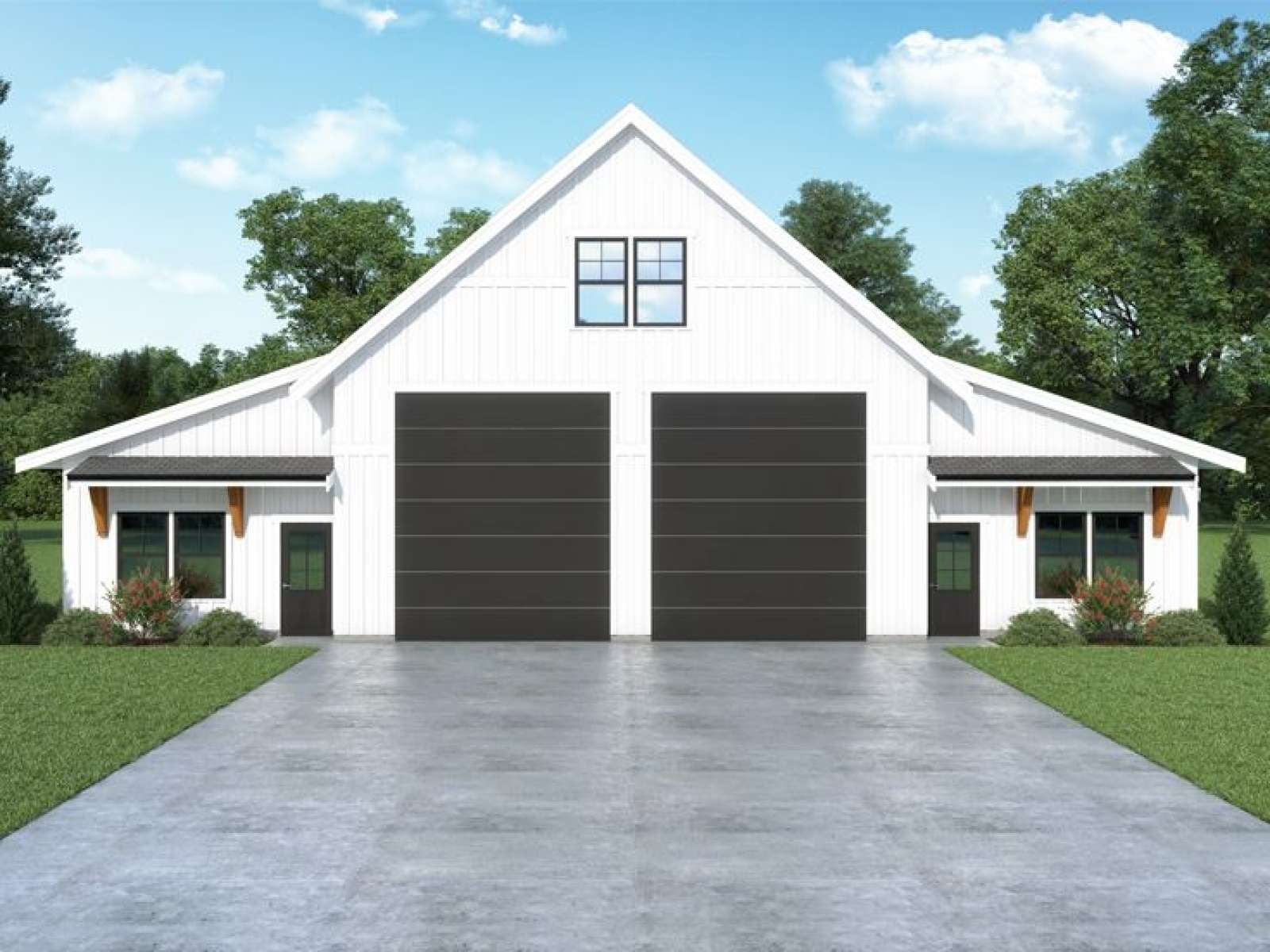

| Garage Door Size(s) | 12x14 (2) |
| Garage Door Size(s) | 9x8 |
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
Ceiling height of living space is 9’
See floor plan for sloped ceilings and taller ceiling heights in the kitchen, living room, and master bedroom
Ceiling height of the garage is 15’
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $30 | $50 | n/a | n/a |
| Priority 3 - 4 business days | $45 | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
