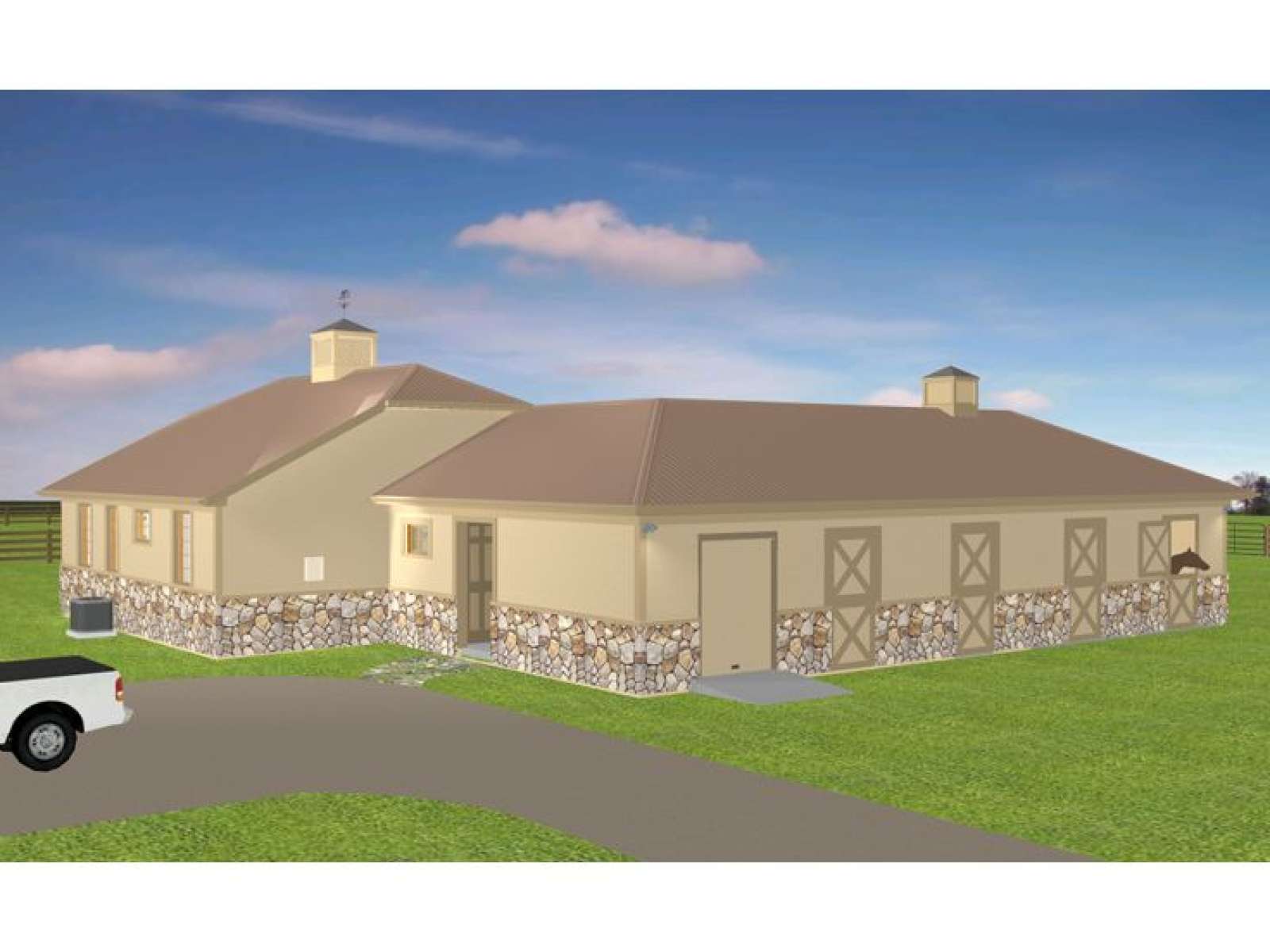

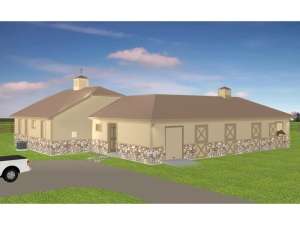

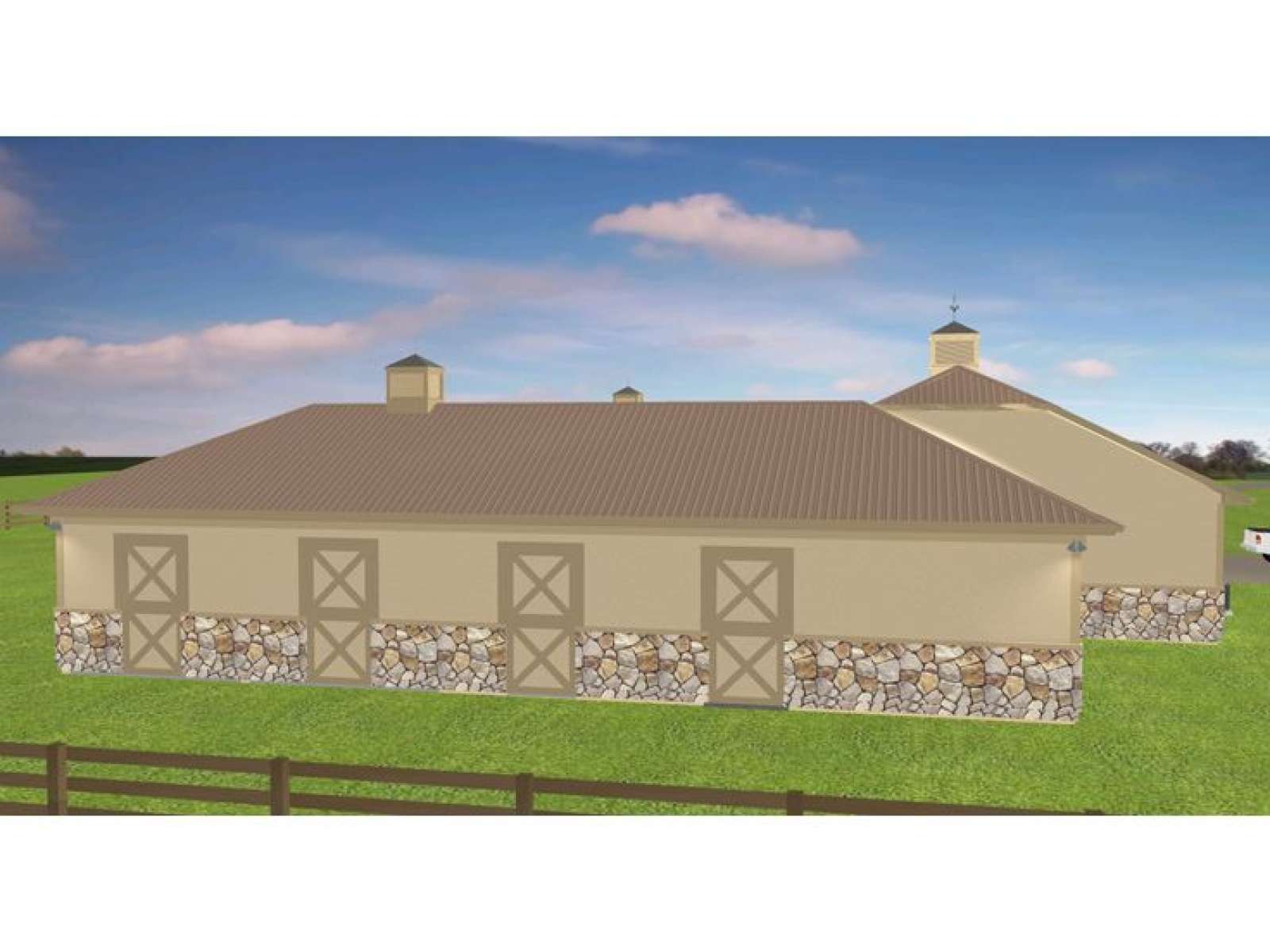

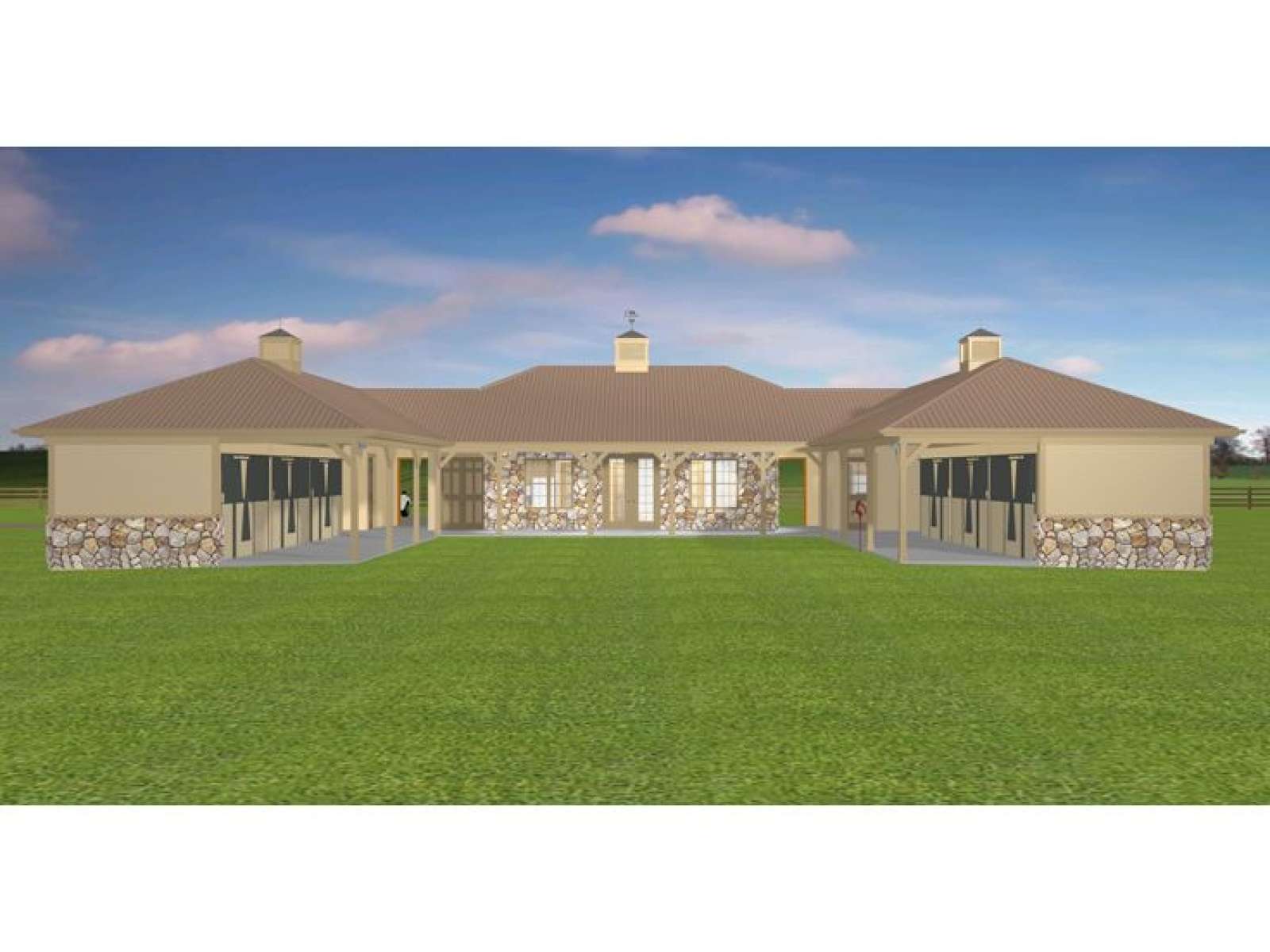

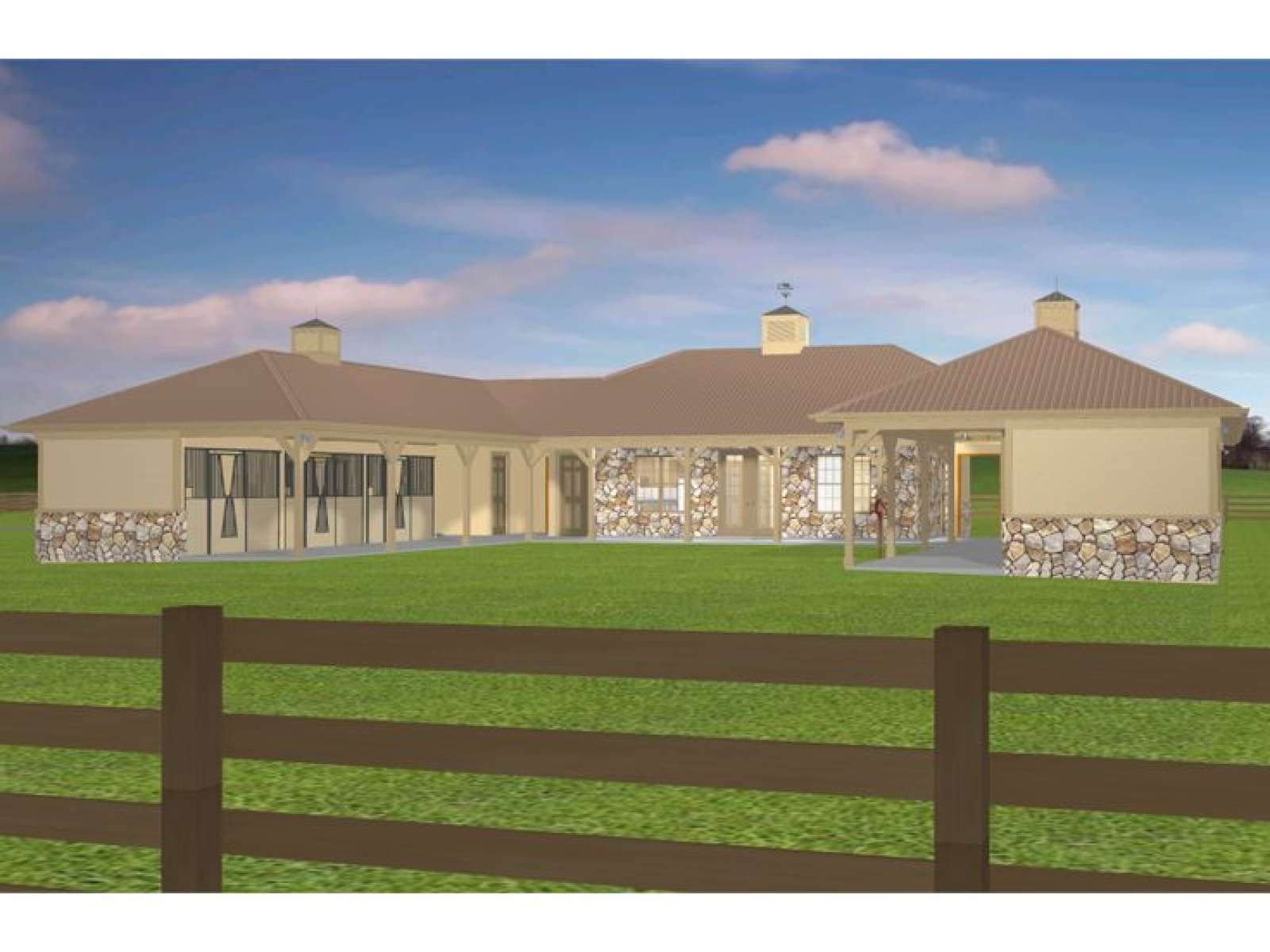

Horse Barn Plan, 087B-0009
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Listed overall height does not include the cupola
Roof framing is a combination of trusses and stick/conventional framing
Wall framing is 8” block for the barn/unfinished areas and the wall framing for the finished living space is 2x6

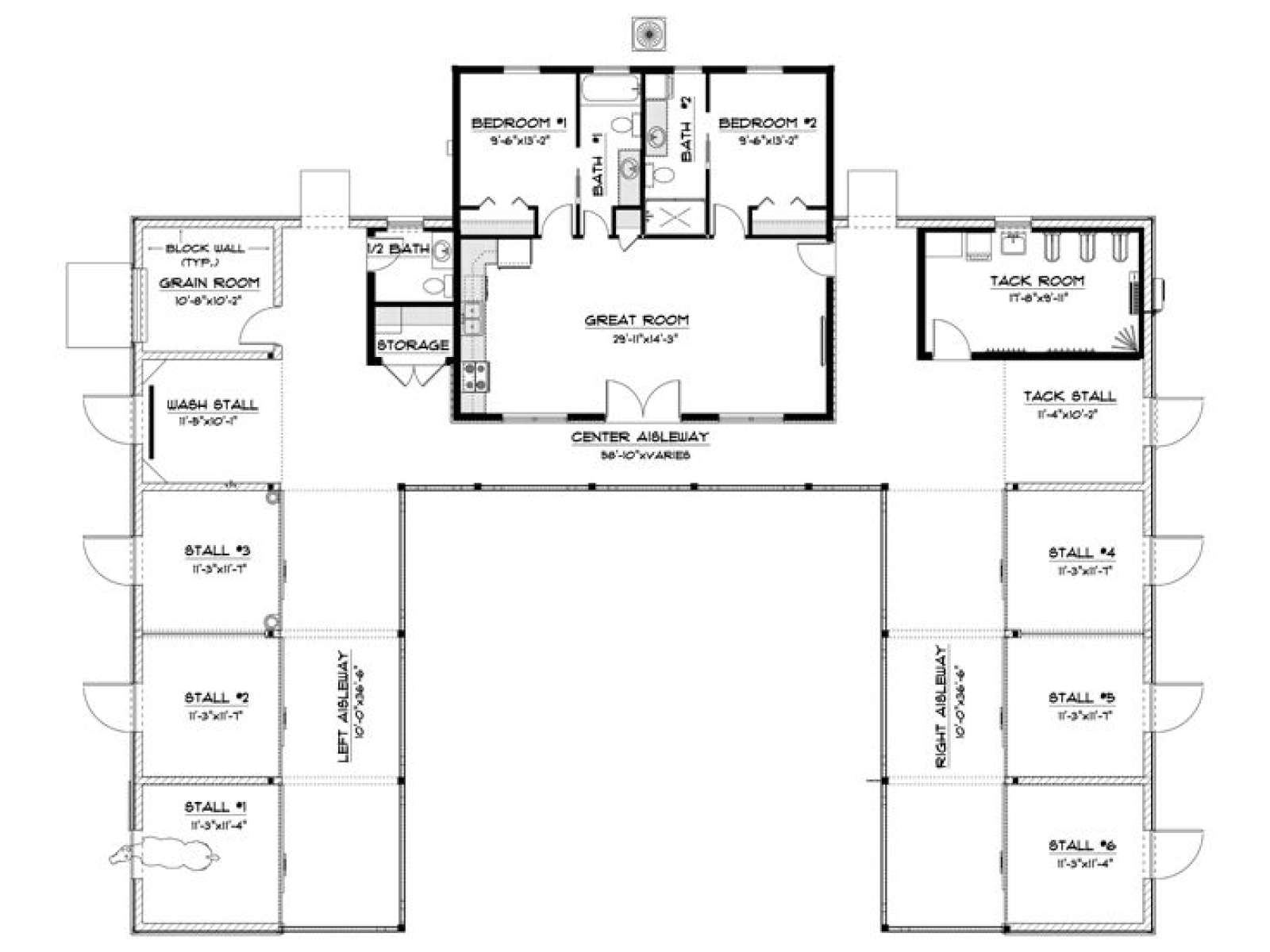

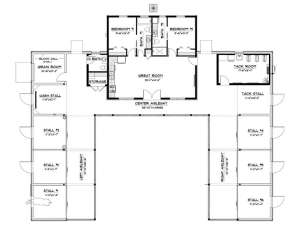

| Heated Square Feet | |
| First Floor | 1150 |
| Total | 1150 |
| Unheated Square Feet | |
| Outbuilding/Barn | 2641 |
| Bedrooms | 2 |
| Full Bathrooms | 2 |
| Half Bathrooms | 1 |
| Width | 83 ft. 0 in. |
| Depth | 70 ft. 6 in. |
| Approximate Height | 19 ft. 4 in. |
| Roof Pitch | 6/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Interior Features |
|
Listed overall height does not include the cupola
Roof framing is a combination of trusses and stick/conventional framing
Wall framing is 8” block for the barn/unfinished areas and the wall framing for the finished living space is 2x6
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $30 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $55 | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
