Barn Plan with Apartment, 087B-0004

Reverse All Images

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

First floor wall framing is 2x6 @ 16" OC, second floor wall framing is 2x4 @ 16" OC
Listed overall depth of 55'-9" does not include the stairs (this measurement is from the front of the covered walkway to the back of the deck)
Depth wall to wall is 37'-9"
Depth from the front over the covered walkway to the back of the stairs is 65'-7"

Heated Square Feet

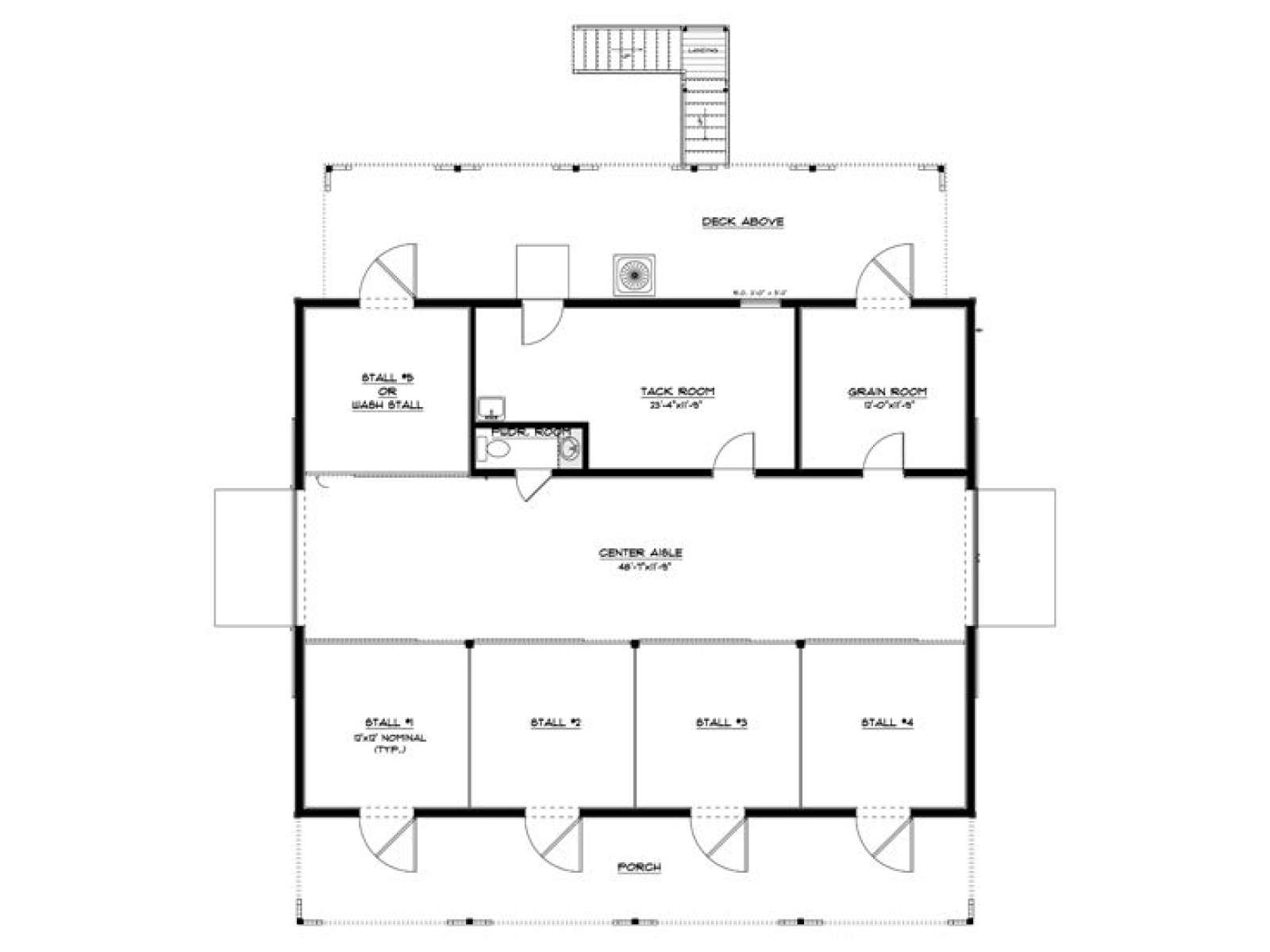

First Floor	316

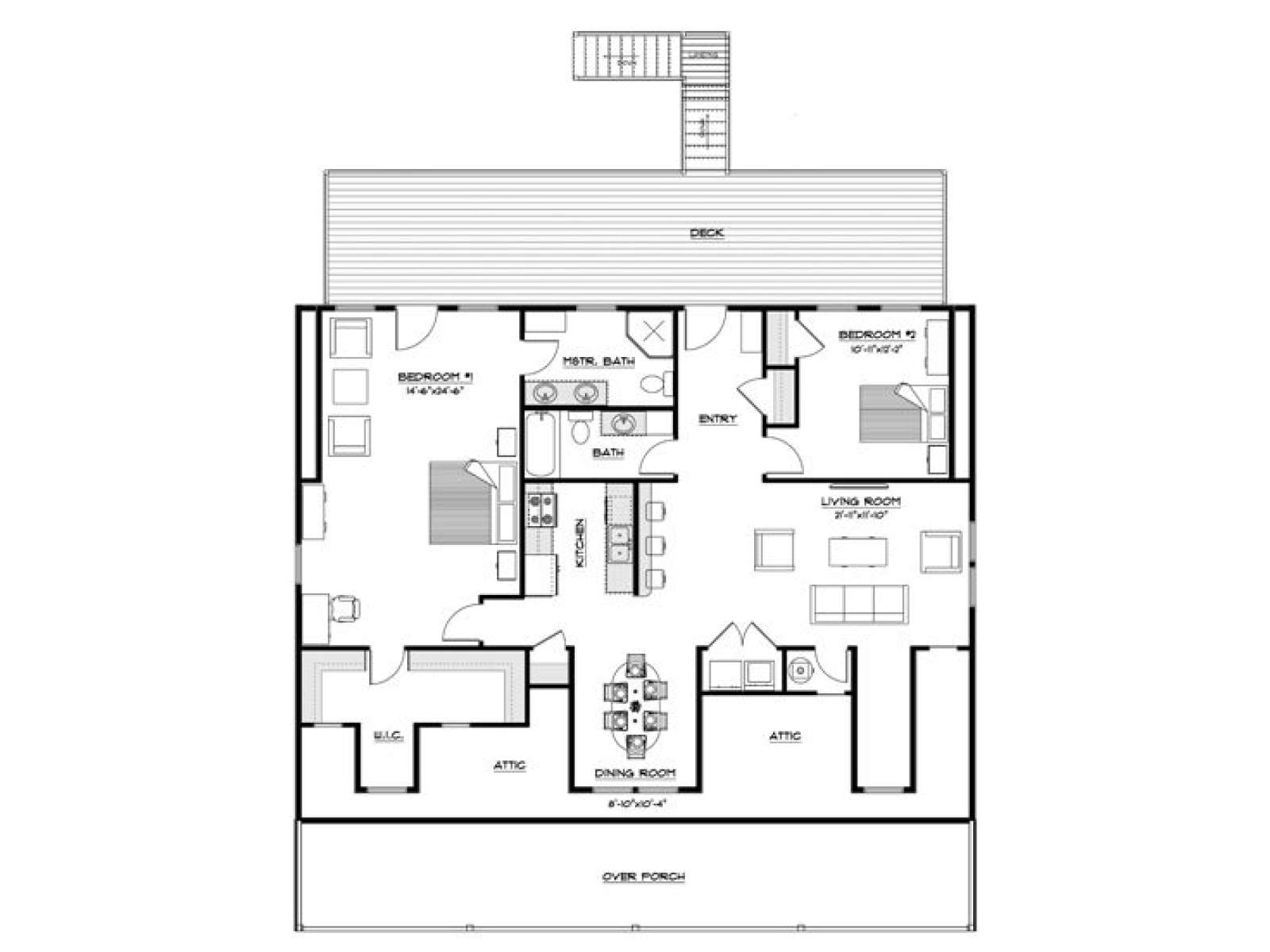

Second Floor	1569
Total	1885
Unheated Square Feet
Outbuilding/Barn	1566
Bedrooms	2
Full Bathrooms	2
Half Bathrooms	1
Width	45 ft. 7 in.
Depth	55 ft. 9 in.
Approximate Height	25 ft. 6 in.
Ceiling Height
First Floor	10 ft. 4 in.
Second Floor	9 ft. 1 in.
Roof Pitch	9/12 Main
Roof Pitch	10/12 Gable
Roof Pitch	3/12 Porch
Roof Framing	Stick
Foundation Options	Slab
Exterior Wall Options	2x6

Kitchen Features	Eating/Snack bar
Bedroom Features	Walk-in closet
Interior Features	Laundry Open floor plan Full/Half Bath
Exterior Features	Covered front porch Deck
Garage Features	Apartment Access - Exterior Stairs

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	$30	n/a	n/a	n/a
Priority 3 - 4 business days	$55	n/a	n/a	n/a
Express 1 - 2 business days	n/a	n/a	n/a	n/a

There are no reviews

Add your review

Horse Barn with Apartment

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Right Reading Reverse for Plan 087B-0004: $150.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]
