Pavilion Plan, 072X-0129
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Enjoy entertaining family and friends with this pavilion with outdoor kitchen
Roomy and comfortable, the design is large enough to accommodate a table and chairs
Perfect complement to your backyard pool
Blends well in any garden or backyard
Features a ceiling height of 9’

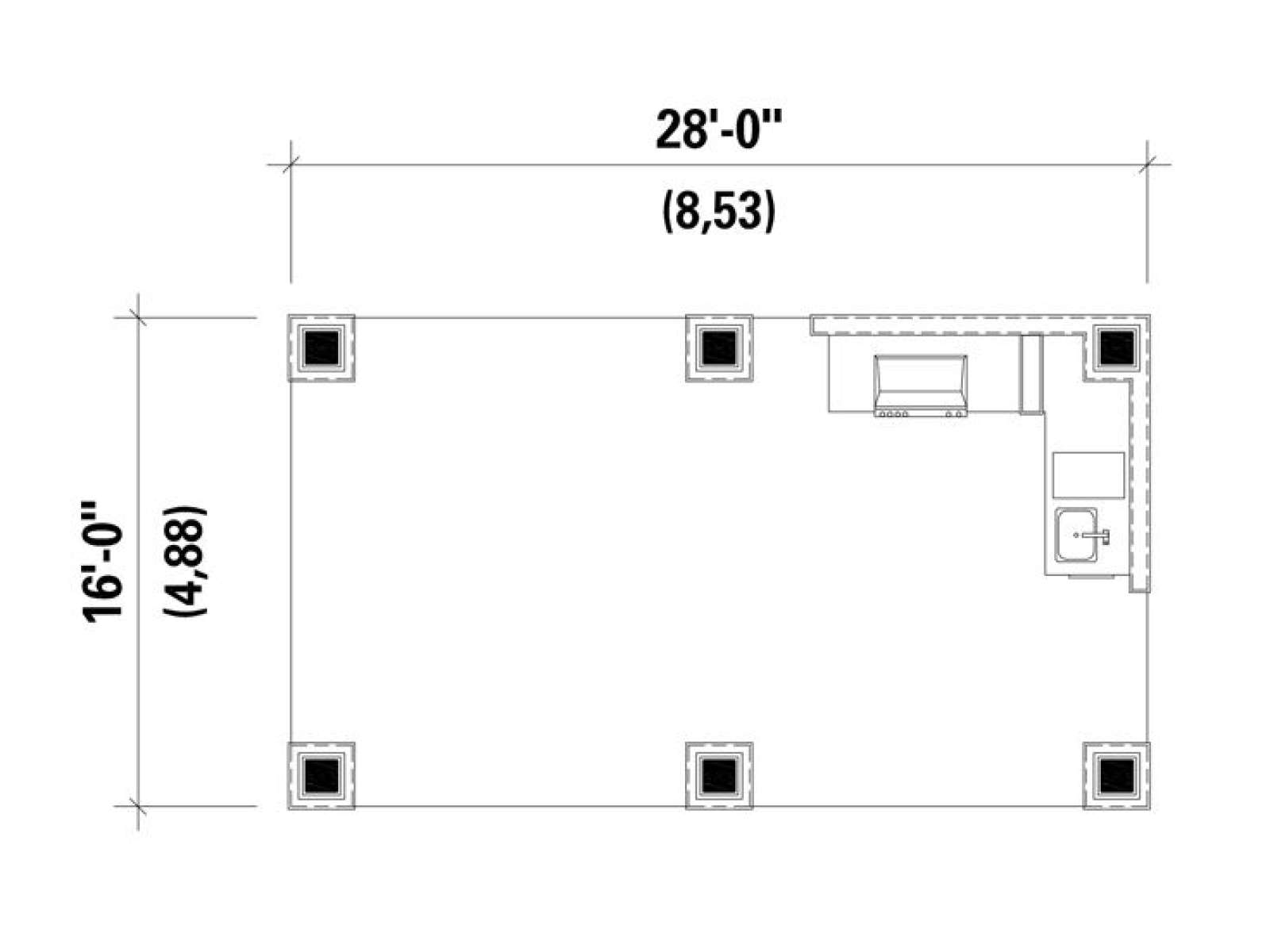

Overall dimensions: 28’ x 16’ x 14’-2”
Foundation is poured concrete pilaster
Material list included with construction drawings
Plans designed to be printed on 8 ½” x 11” pages
| Width | 28 ft. 0 in. |
| Depth | 16 ft. 0 in. |
| Approximate Height | 14 ft. 2 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Roof Pitch | 6/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Enjoy entertaining family and friends with this pavilion with outdoor kitchen
Roomy and comfortable, the design is large enough to accommodate a table and chairs
Perfect complement to your backyard pool
Blends well in any garden or backyard
Features a ceiling height of 9’
Overall dimensions: 28’ x 16’ x 14’-2”
Foundation is poured concrete pilaster
Material list included with construction drawings
Plans designed to be printed on 8 ½” x 11” pages
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | n/a | n/a | $100 | n/a |
| Priority 3 - 4 business days | $65 | $65 | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
