Storage Shed Plan, 072S-0003

Plan 072S-0003
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

Backyard storage shed plan with mansard roof
Window delivers natural light
Provides storage space for the family bikes, lawn and garden equipment and seasonal items
Blueprints include 15 sizes: 8’x8’, 8’x10’, 8’x12’, 10’x8’, 10’x10’, 10’x12’, 12’x8’, 12’x10’, 12x12’ 14’x8’, 14’x10’, 14’x12’, 16’x8’, 16’x10’, 16’x12’

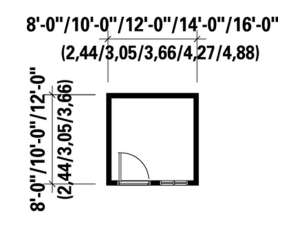

Floor plan pictured is size 8’x8’
Rendering pictured is size 14’x8’
Plans designed to be printed on 8 ½” x 11” pages

Width 8 ft. 0 in.
Depth 8 ft. 0 in.
Approximate Height 10 ft. 9 in.
Ceiling Height
First Floor 8 ft. 0 in.
Roof Framing
  • Truss
Foundation Options
  • Wood
Exterior Wall Options
  • 2x6

Backyard storage shed plan with mansard roof
Window delivers natural light
Provides storage space for the family bikes, lawn and garden equipment and seasonal items
Blueprints include 15 sizes: 8’x8’, 8’x10’, 8’x12’, 10’x8’, 10’x10’, 10’x12’, 12’x8’, 12’x10’, 12x12’ 14’x8’, 14’x10’, 14’x12’, 16’x8’, 16’x10’, 16’x12’

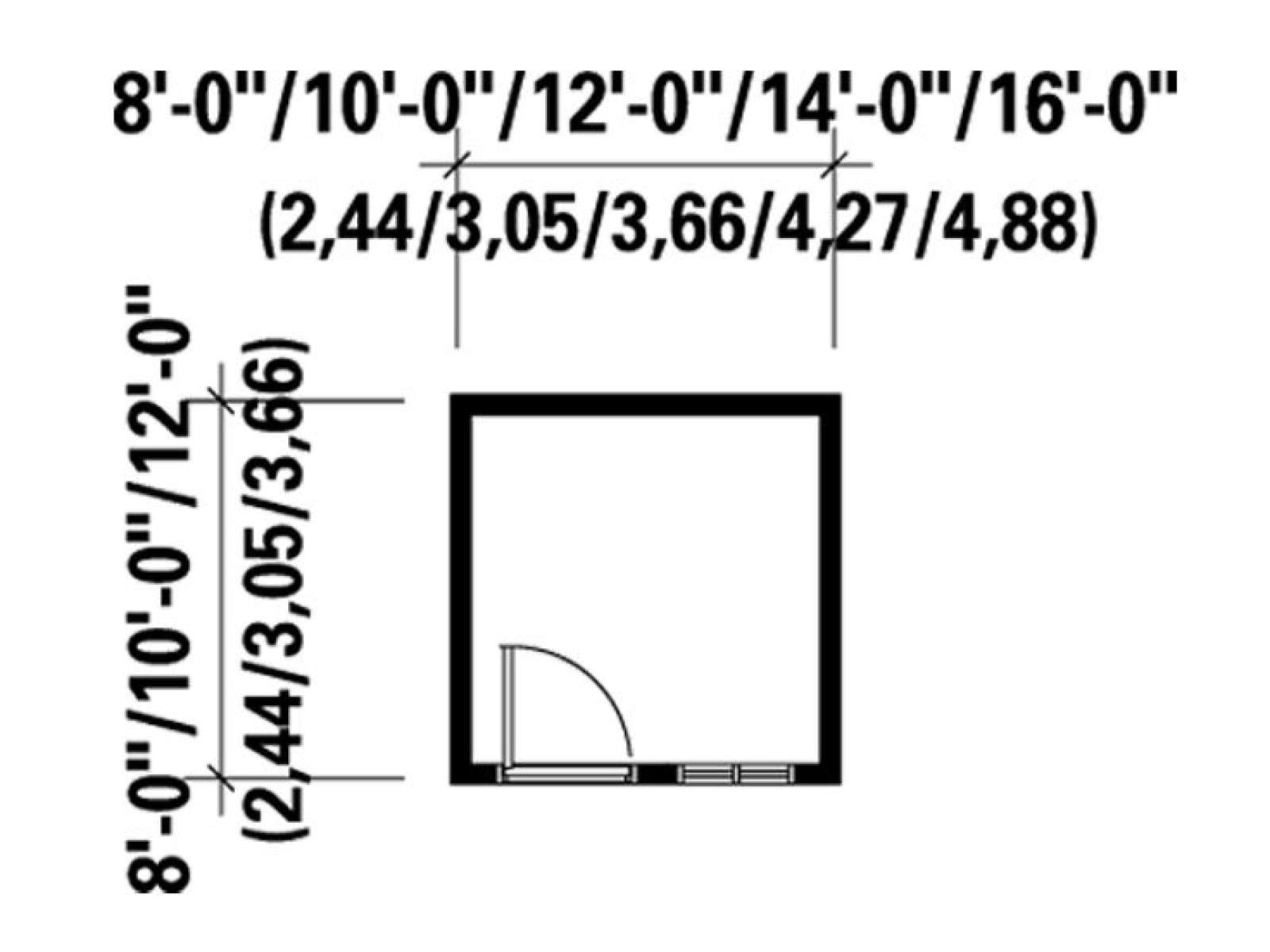

Floor plan pictured is size 8’x8’
Rendering pictured is size 14’x8’
Plans designed to be printed on 8 ½” x 11” pages

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days n/a n/a $100 n/a
Priority 3 - 4 business days $65 $65 n/a n/a
Express 1 - 2 business days n/a n/a n/a n/a
