Detached Garage Plan, 072G-0003
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

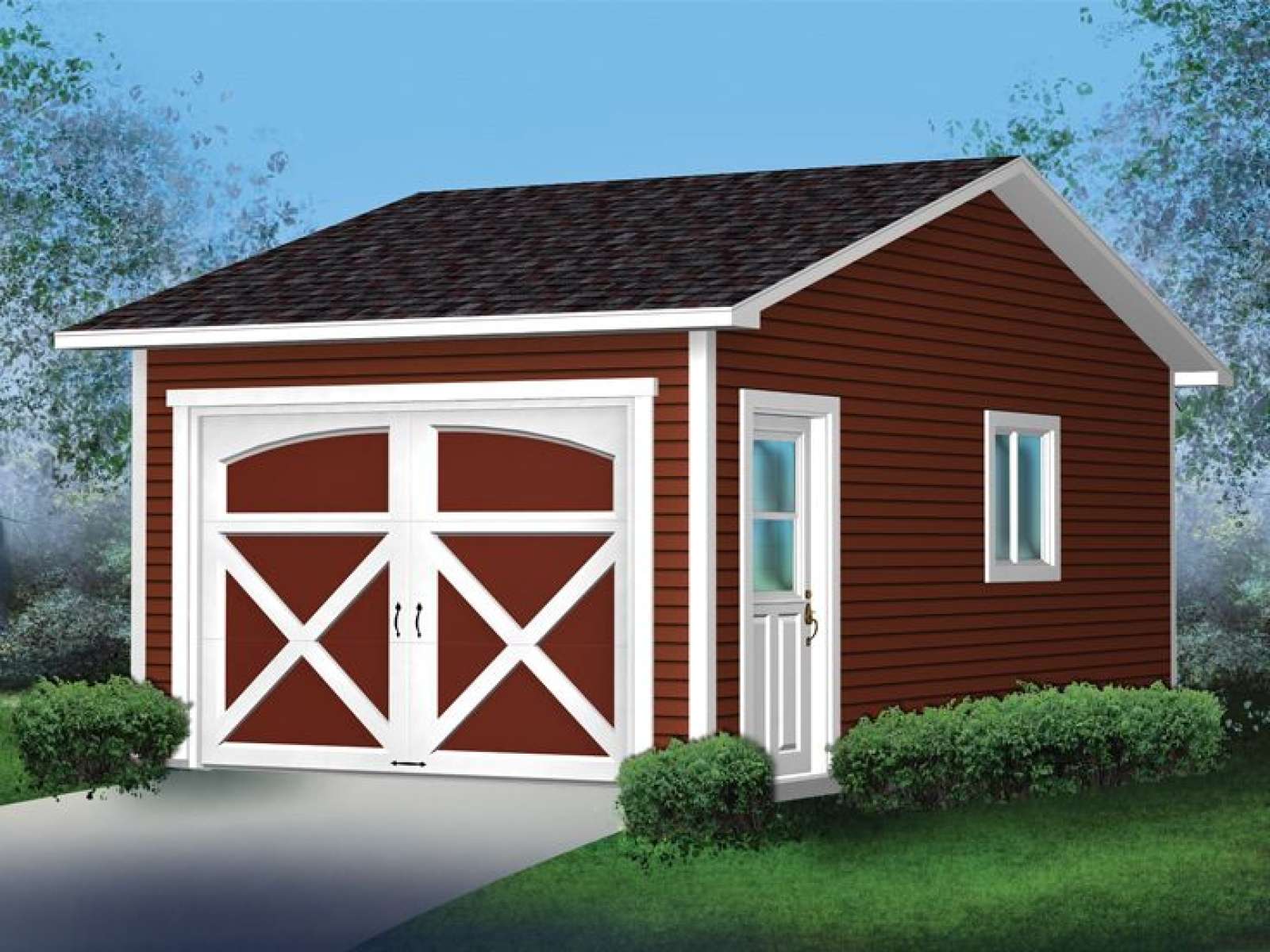

Detached garage plan with gable roof
Floor plan features multiple sizes allowing you to choose a 1-car garage or a 2-car garage to satisfy your needs
Traditional styling blends with many existing homes
Design includes a side-entry service door and window on the right side

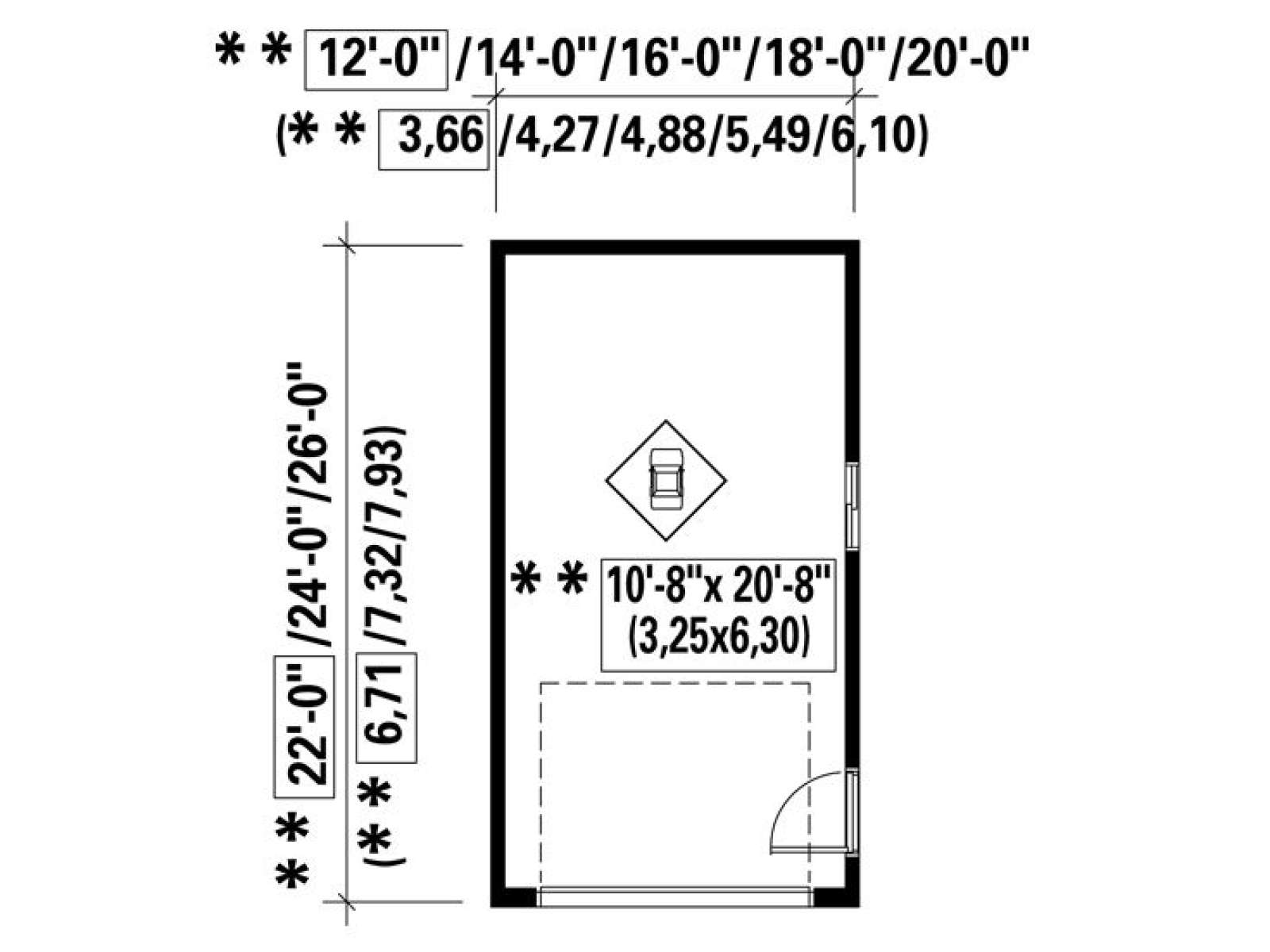

Blueprints include sizes: 12’x22’, 12’x24’, 12’x26’, 14’x22’, 14’x24’, 14’x26’, 16’x22’, 16’x24’, 16’x26’, 18’x22’, 18’x24’, 18’x26’, 20’x22’, 20’x24’, 20’x26’
Pictured: Size 12’x22’
Material list included for garage size 12’x22’
Plans designed to be printed on 8 ½” x 11” pages
| Width | 12 ft. 0 in. |
| Depth | 22 ft. 0 in. |
| Ceiling Height | |
| First Floor | 8 ft. 0 in. |
| Roof Pitch | 4/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Detached garage plan with gable roof
Floor plan features multiple sizes allowing you to choose a 1-car garage or a 2-car garage to satisfy your needs
Traditional styling blends with many existing homes
Design includes a side-entry service door and window on the right side
Blueprints include sizes: 12’x22’, 12’x24’, 12’x26’, 14’x22’, 14’x24’, 14’x26’, 16’x22’, 16’x24’, 16’x26’, 18’x22’, 18’x24’, 18’x26’, 20’x22’, 20’x24’, 20’x26’
Pictured: Size 12’x22’
Material list included for garage size 12’x22’
Plans designed to be printed on 8 ½” x 11” pages
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | n/a | n/a | $100 | n/a |
| Priority 3 - 4 business days | $65 | $65 | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
