Outdoor Kitchen, 066X-0006
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Rustic outdoor kitchen and dining pavilion is perfect for backyard meals and blends well with Northwestern and Craftsman-style homes
Vaulted ceiling offers an open airy feel
Kitchen offers 36" base cabinets, an adjustable metal grill with ash pan, and a cast concrete counter top and back splash
Per designer, roof system can be stick/conventionally framed or trussed based on local building codes and common practices/standards.
| Unheated Square Feet | |
| Other | 704 |

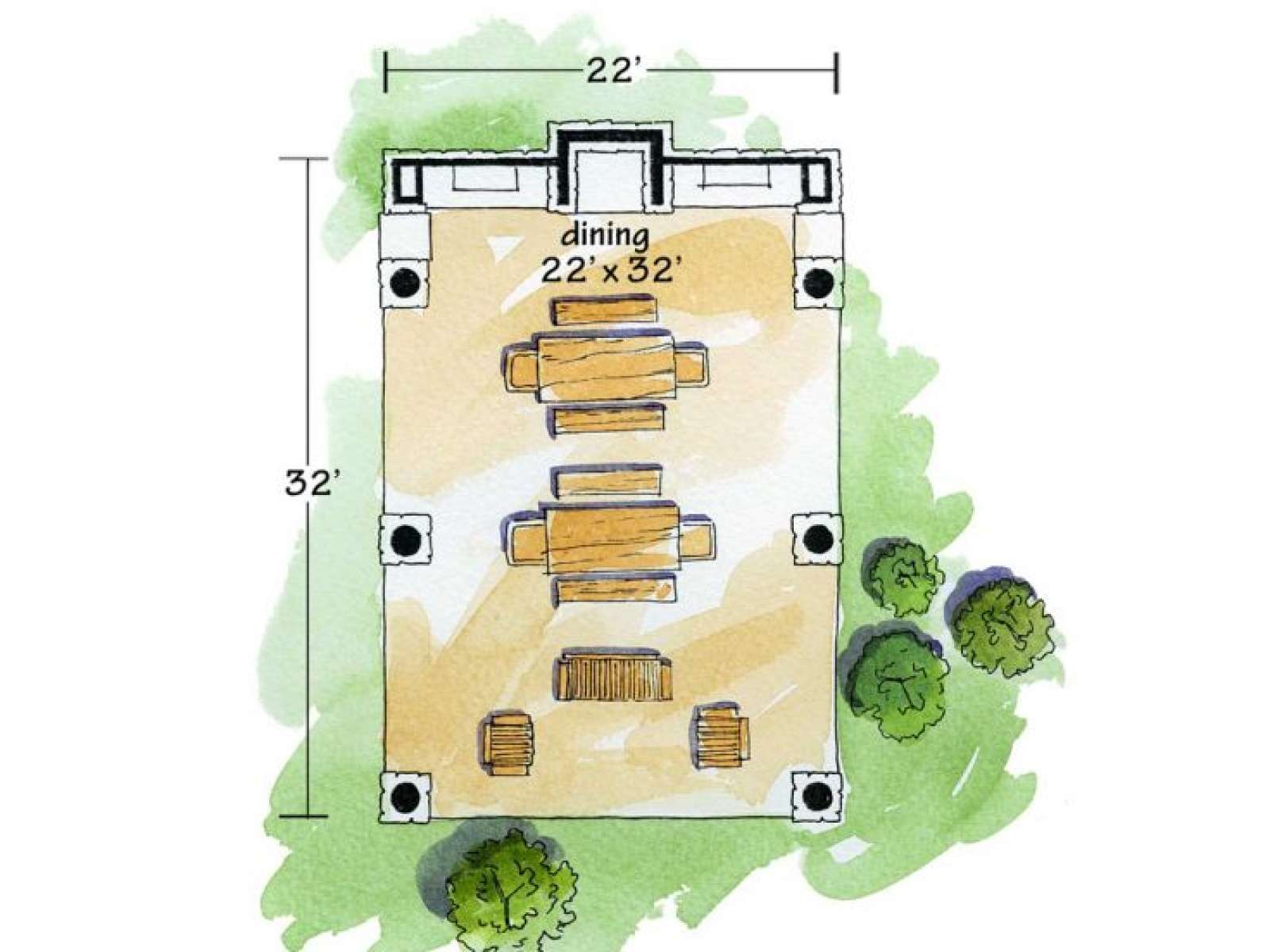

| Width | 22 ft. 0 in. |
| Depth | 33 ft. 4 in. |
| Approximate Height | 17 ft. 7 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Roof Pitch | 6/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Rustic outdoor kitchen and dining pavilion is perfect for backyard meals and blends well with Northwestern and Craftsman-style homes
Vaulted ceiling offers an open airy feel
Kitchen offers 36" base cabinets, an adjustable metal grill with ash pan, and a cast concrete counter top and back splash
Per designer, roof system can be stick/conventionally framed or trussed based on local building codes and common practices/standards.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | n/a | n/a | n/a | n/a |
| Priority 3 - 4 business days | n/a | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
