Screened Outdoor Kitchen, 066X-0003
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

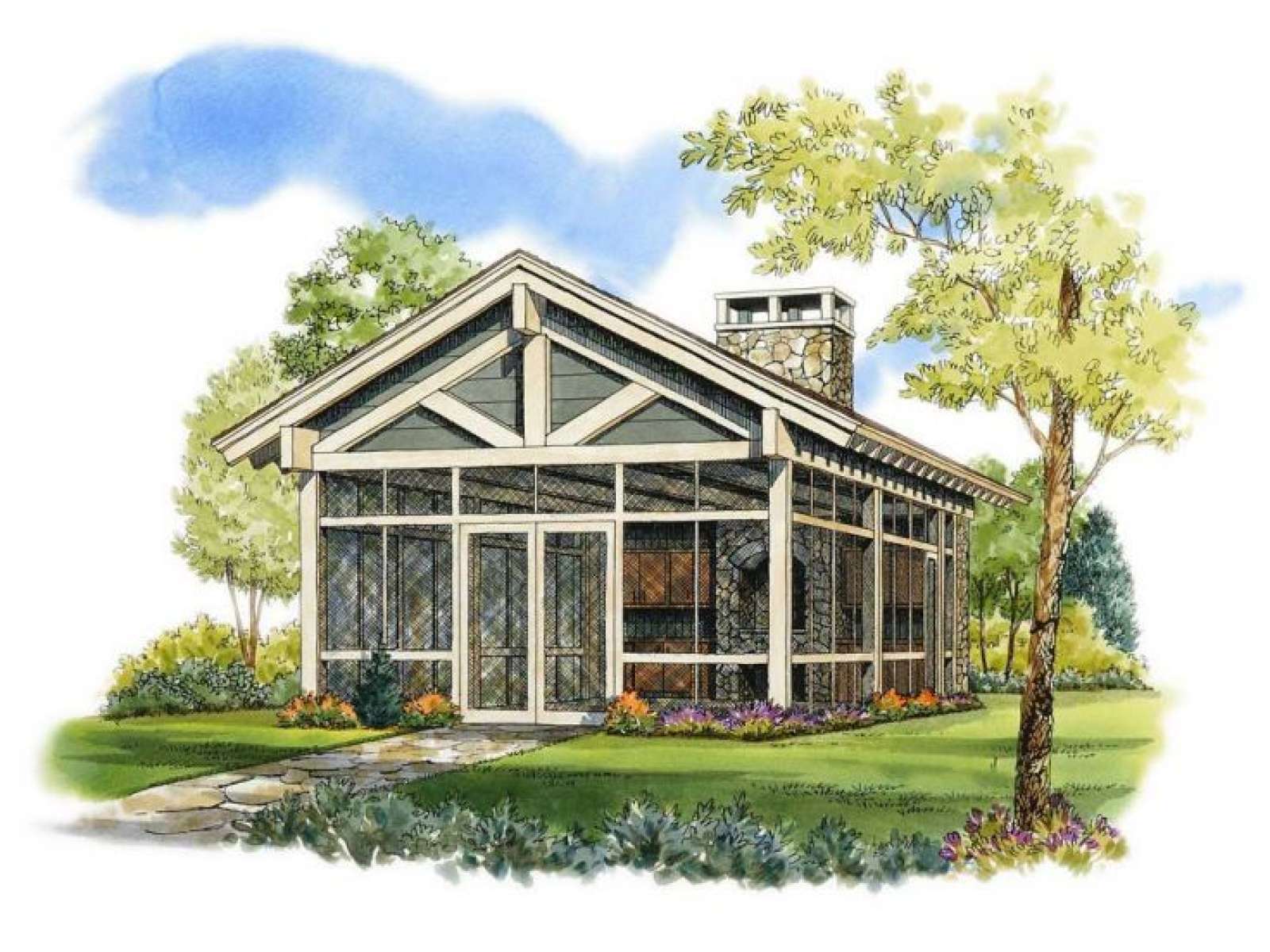

Gather friends and family for an outdoor meal with this screened outdoor kitchen
Kitchen offers 24" and 36" base/lower cabinets on both sides, two 30" upper cabinets on both sides, an adjustable metal grill with ash pan, and a cast concrete counter top and back splash
Features a vaulted ceiling
Per designer, roof system can be stick/conventionally framed or trussed based on local building codes and common practices/standards.

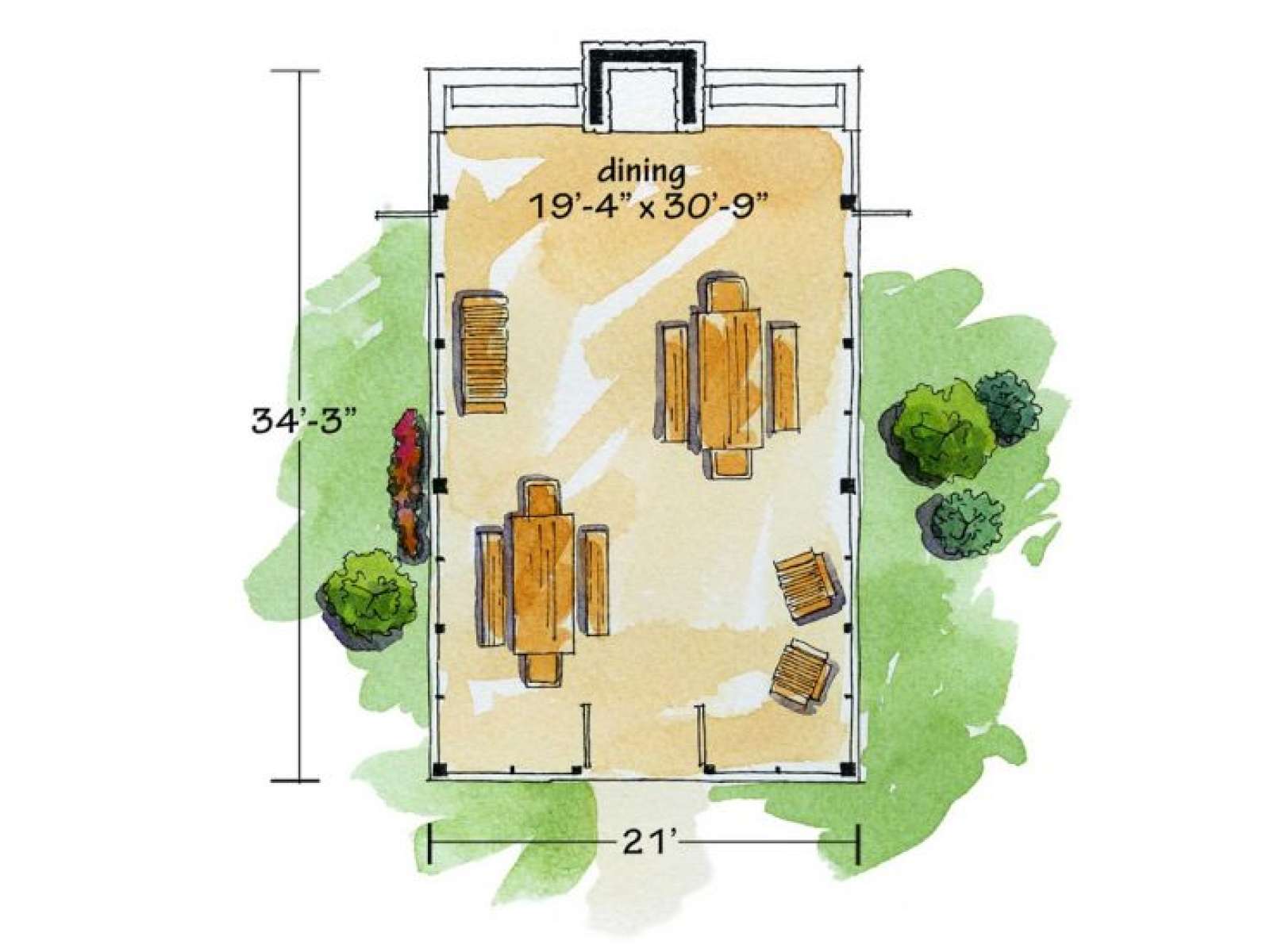

| Unheated Square Feet | |
| Other | 720 |
| Width | 21 ft. 0 in. |
| Depth | 35 ft. 6 in. |
| Approximate Height | 17 ft. 1 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Roof Pitch | 6/12 Main |
| Roof Framing |
|
| Foundation Options |
|
Gather friends and family for an outdoor meal with this screened outdoor kitchen
Kitchen offers 24" and 36" base/lower cabinets on both sides, two 30" upper cabinets on both sides, an adjustable metal grill with ash pan, and a cast concrete counter top and back splash
Features a vaulted ceiling
Per designer, roof system can be stick/conventionally framed or trussed based on local building codes and common practices/standards.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | n/a | n/a | n/a | n/a |
| Priority 3 - 4 business days | n/a | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
