Rustic Dining Pavilion, 066X-0002
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

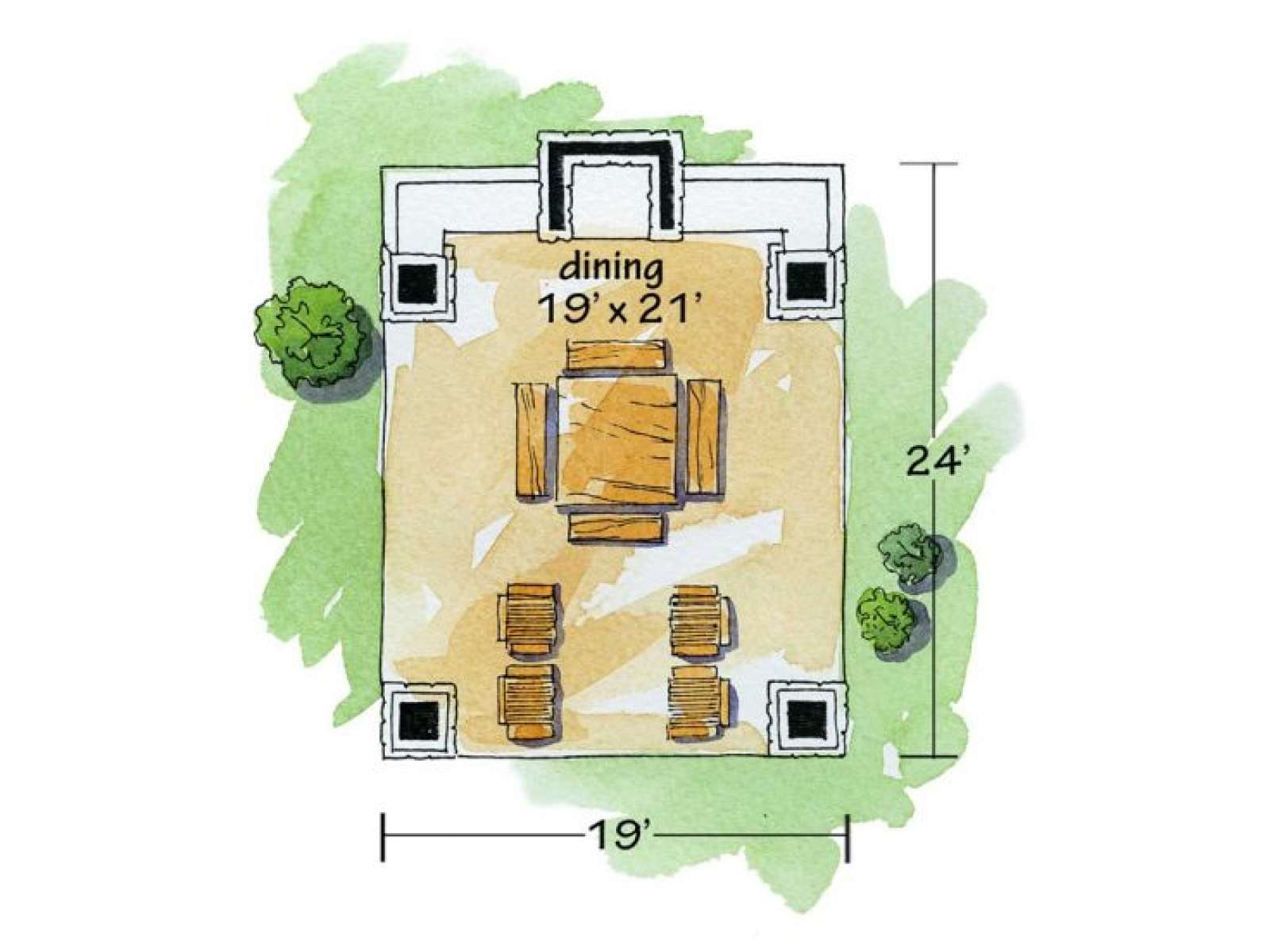

Enjoy summertime cookouts in the backyard or beside the lake with this dining pavilion
Kitchen offers 36" lower cabinets on both sides, an adjustable metal grill with ash pan, and a cast concrete counter top and back splash
Features a vaulted ceiling
Per designer, roof system can be stick/conventionally framed or trussed based on local building codes and common practices/standards.
| Unheated Square Feet | |
| Other | 456 |
| Width | 19 ft. 0 in. |
| Depth | 25 ft. 4 in. |
| Approximate Height | 17 ft. 2 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Roof Pitch | 6/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Enjoy summertime cookouts in the backyard or beside the lake with this dining pavilion
Kitchen offers 36" lower cabinets on both sides, an adjustable metal grill with ash pan, and a cast concrete counter top and back splash
Features a vaulted ceiling
Per designer, roof system can be stick/conventionally framed or trussed based on local building codes and common practices/standards.
