Horse Barn Plan, 066B-0002
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Small horse barn with loft will compliment your farm or ranch

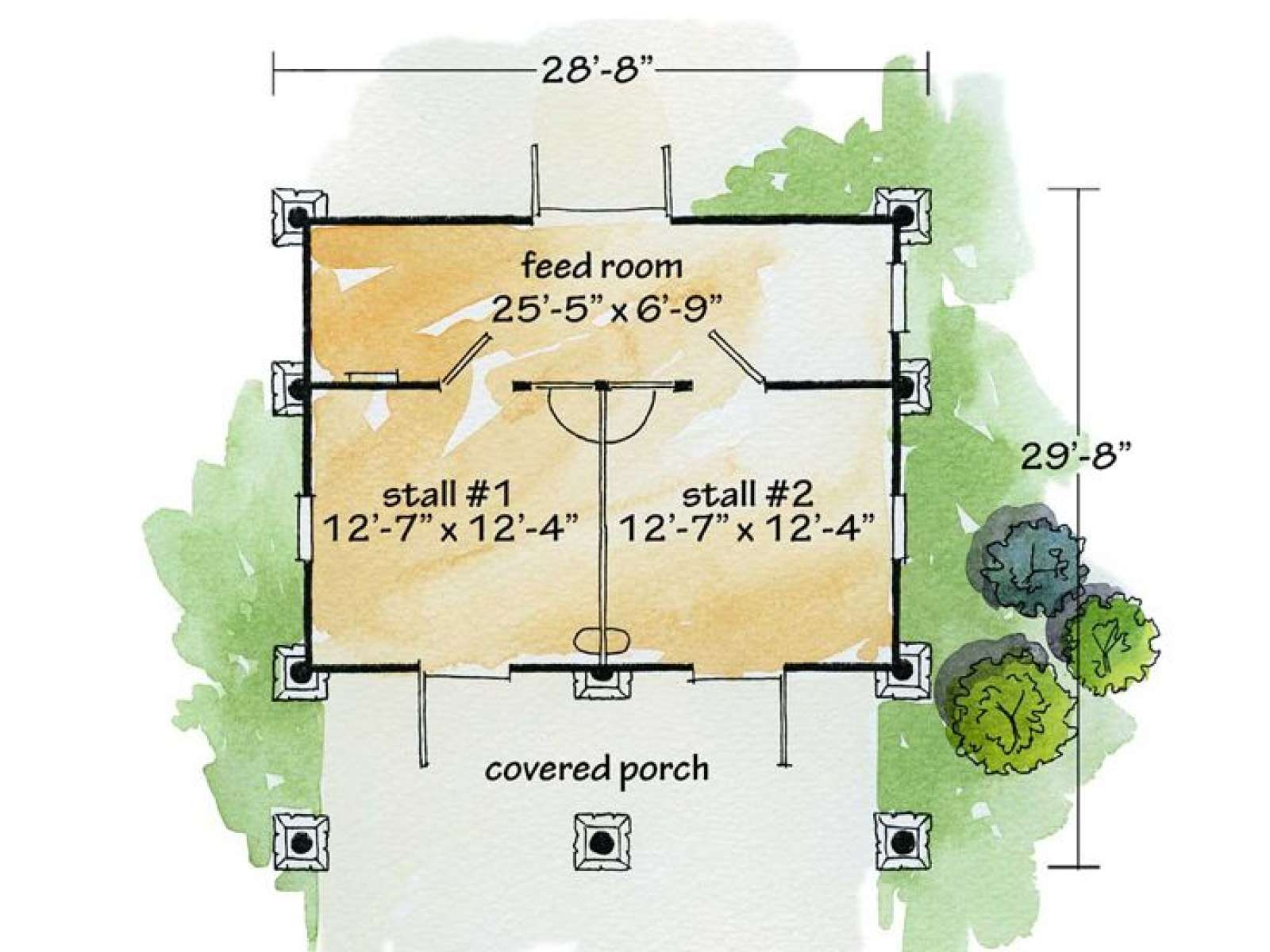

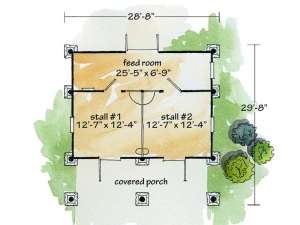

Two horse stalls and a feed room accommodate a pair of horses

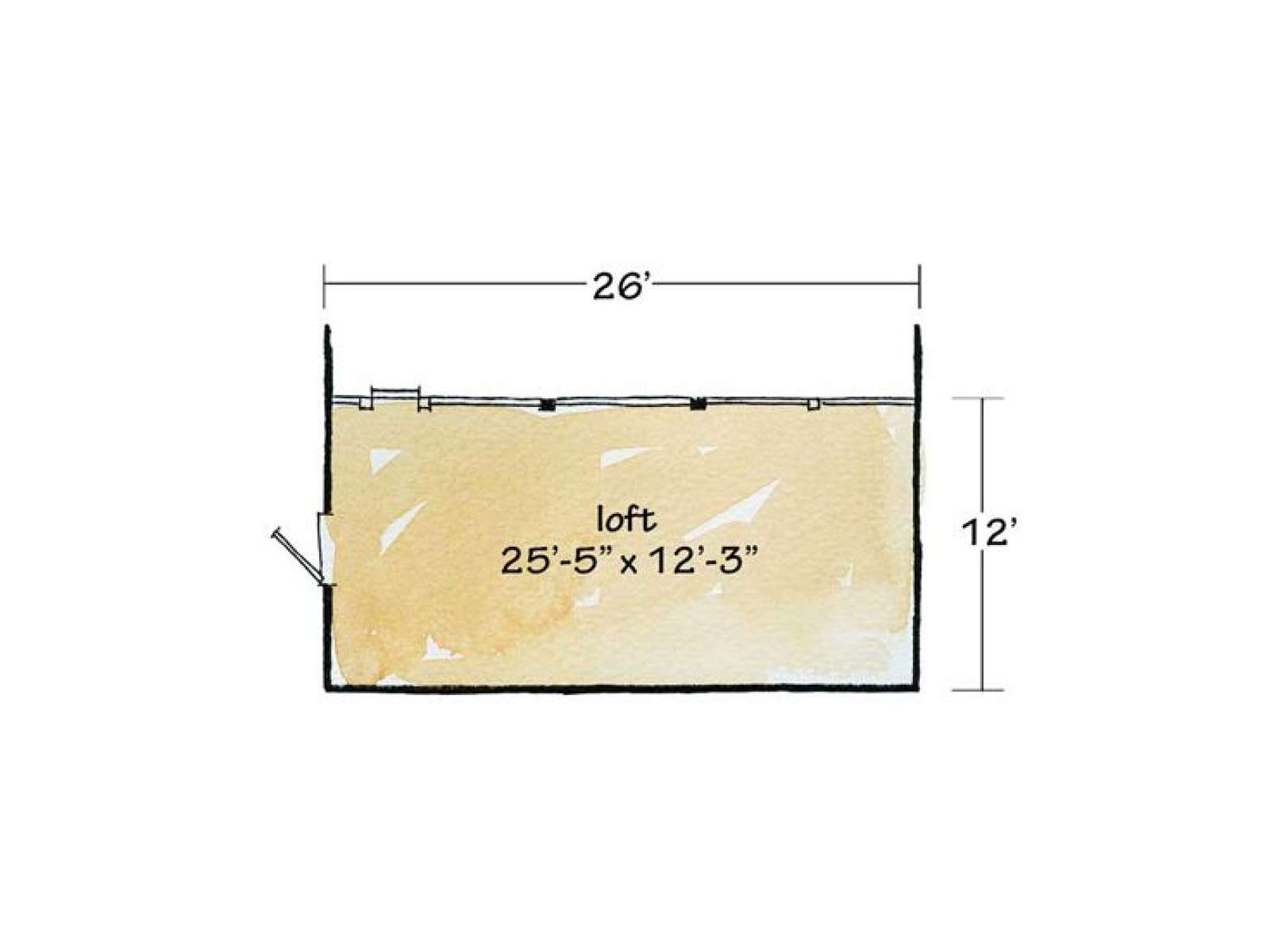

Storage space above in the loft
Per designer, roof system can be stick/conventionally framed or trussed based on local building codes and common practice
| Unheated Square Feet | |
| Loft | 335 |
| Outbuilding/Barn | 520 |
| Width | 28 ft. 8 in. |
| Depth | 29 ft. 8 in. |
| Approximate Height | 21 ft. 5 in. |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Small horse barn with loft will compliment your farm or ranch
Two horse stalls and a feed room accommodate a pair of horses
Storage space above in the loft
Per designer, roof system can be stick/conventionally framed or trussed based on local building codes and common practice
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | n/a | n/a | n/a | n/a |
| Priority 3 - 4 business days | n/a | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
