Pavilion Plan, 065X-0003

Plan 065X-0003
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

Plans call for spot footings with 4x4 posts, a stone base, and decorative columns

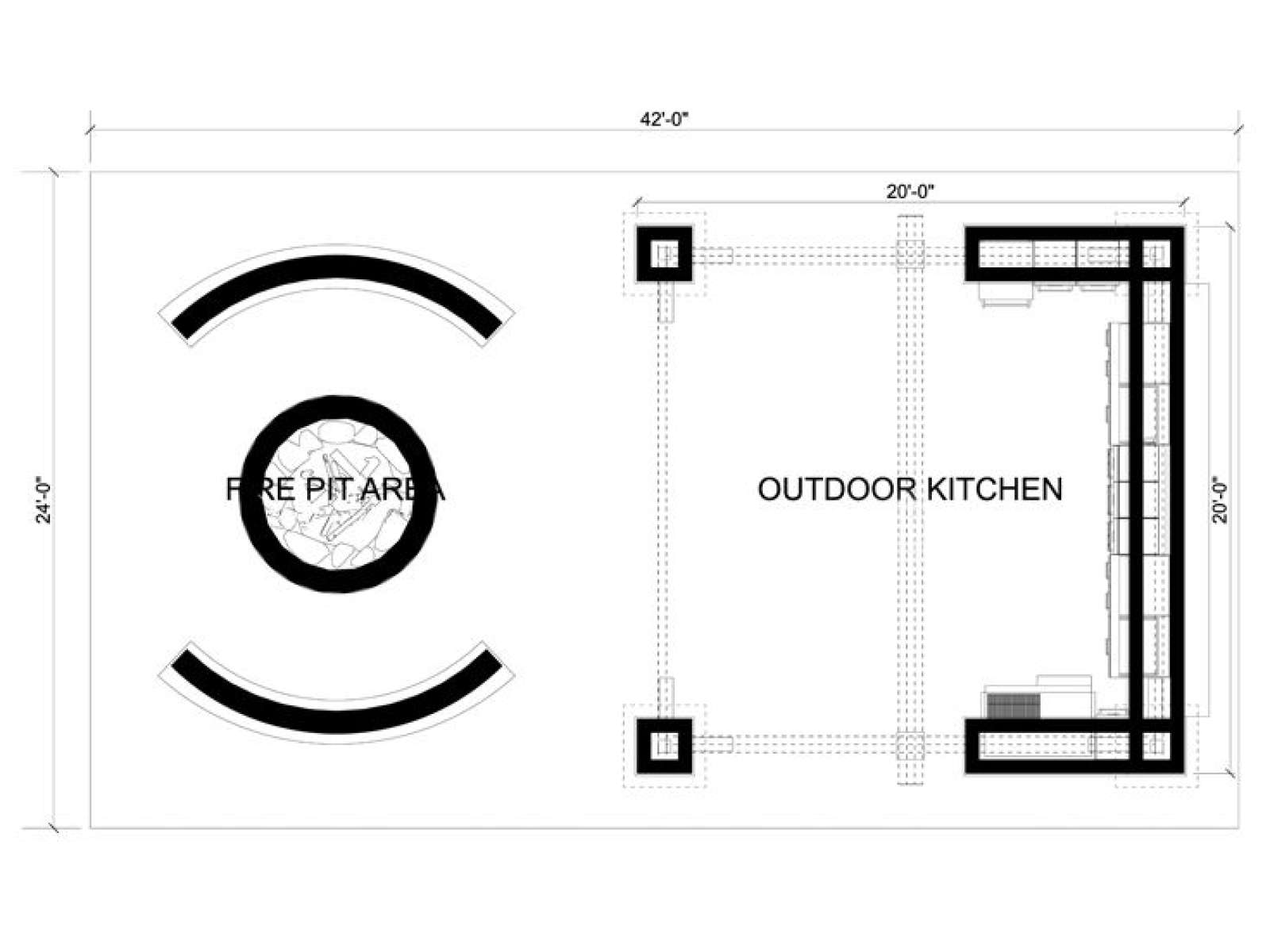

Width 42 ft. 0 in.
Depth 24 ft. 0 in.
Approximate Height 18 ft. 6 in.
Roof Pitch 8/12 Main
Roof Framing
  • Truss
Foundation Options
  • Other
Exterior Wall Options
  • Posts

Plans call for spot footings with 4x4 posts, a stone base, and decorative columns

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $25 $45 n/a n/a
Priority 3 - 4 business days $40 $90 $55 n/a
Express 1 - 2 business days $55 n/a n/a n/a
Info

There are no reviews

View more
Add your review

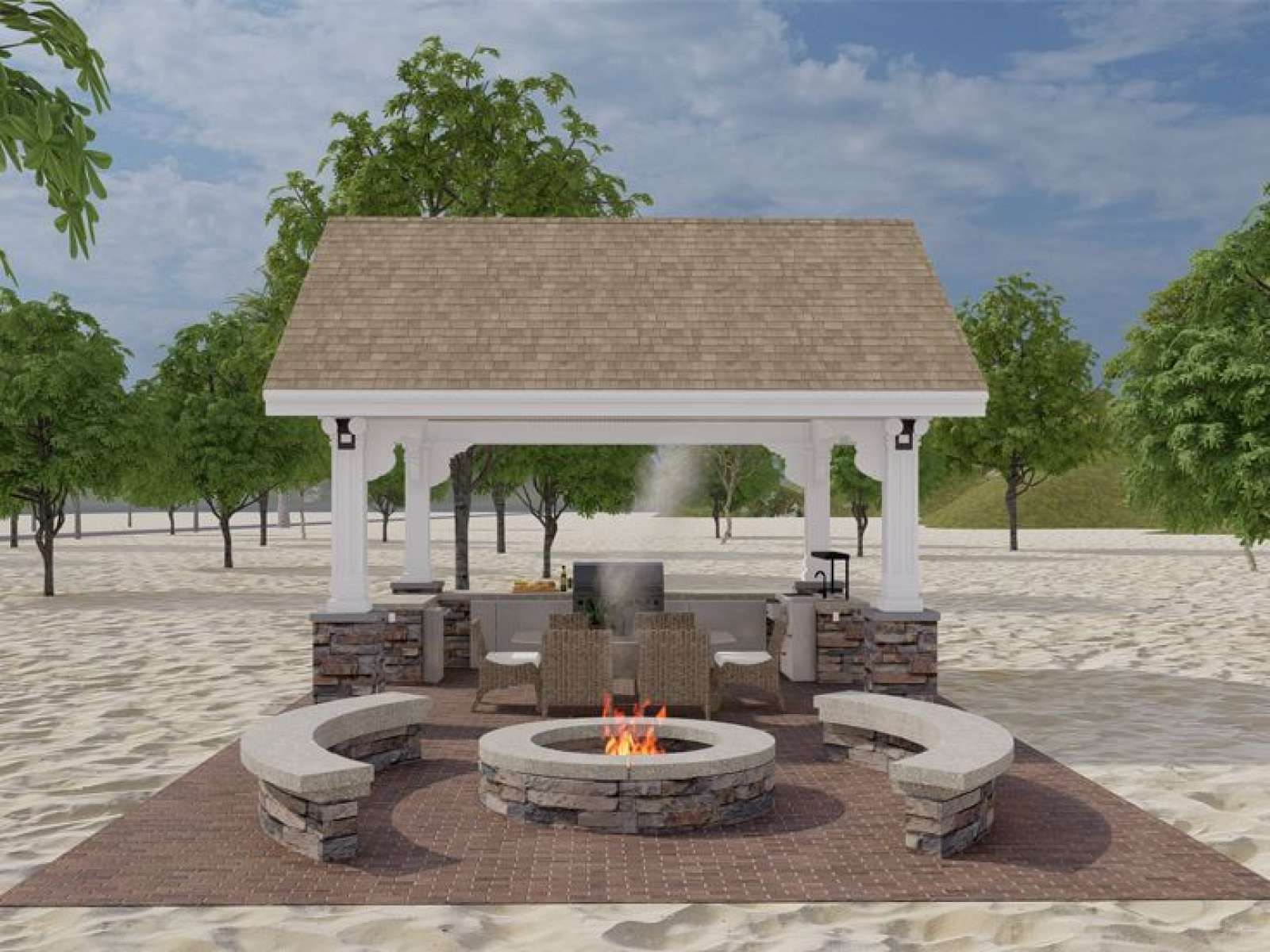

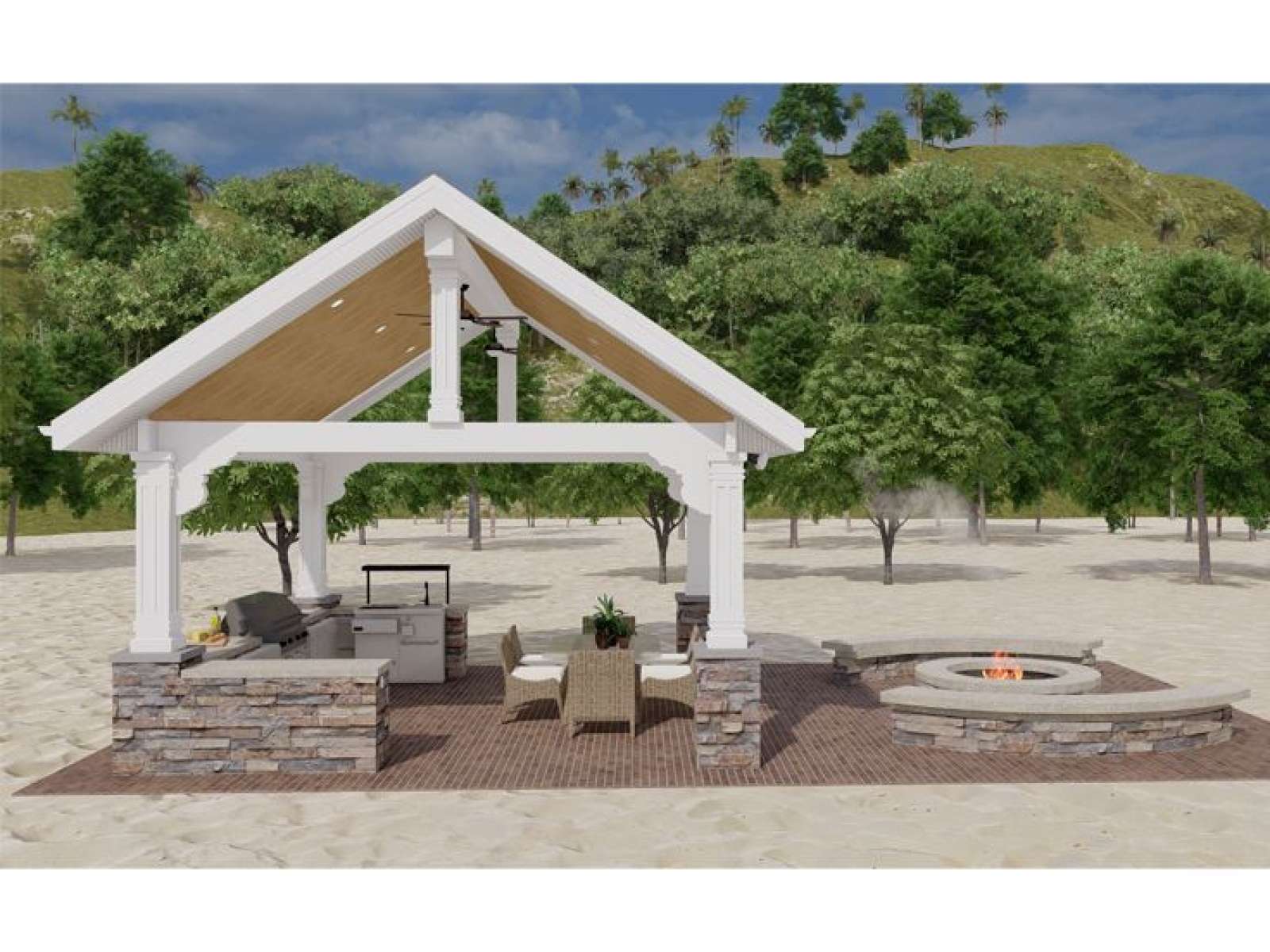

Outdoor Kitchen with Fire Pit

Starting at

$750.00

* See notes and purchase restrictions below

Additional Options

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]

Attention:

No structural information is included with this design. We recommend using a local professional to size footings, rebar, headers, beams, etc.
