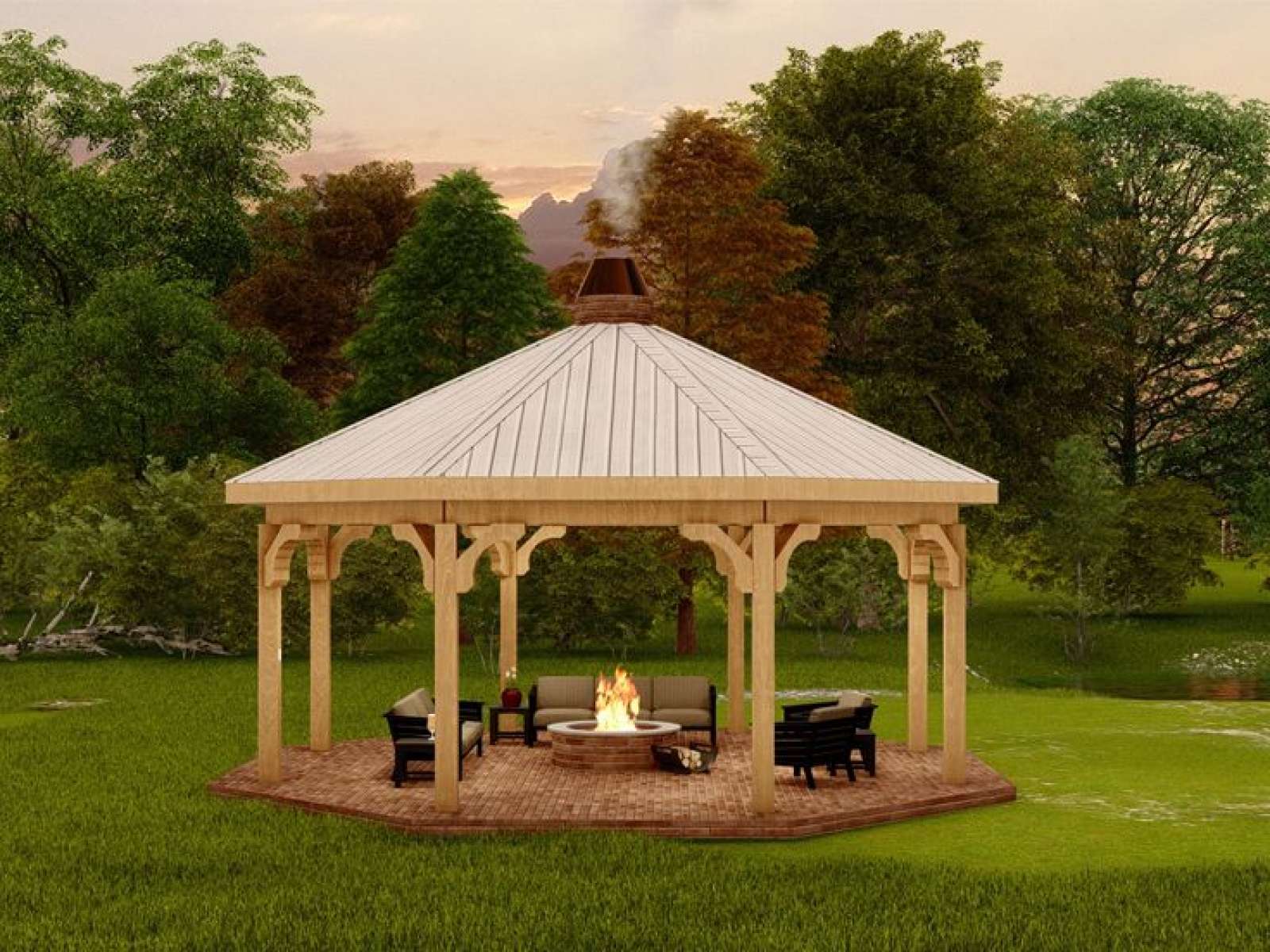

Gazebo Plan, 065X-0002
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
The overall width and depth from column to column is 22’-9”
The listed overall height is measured to the top of the chimney
The overall height measured to the top of the roof is 16’-10”

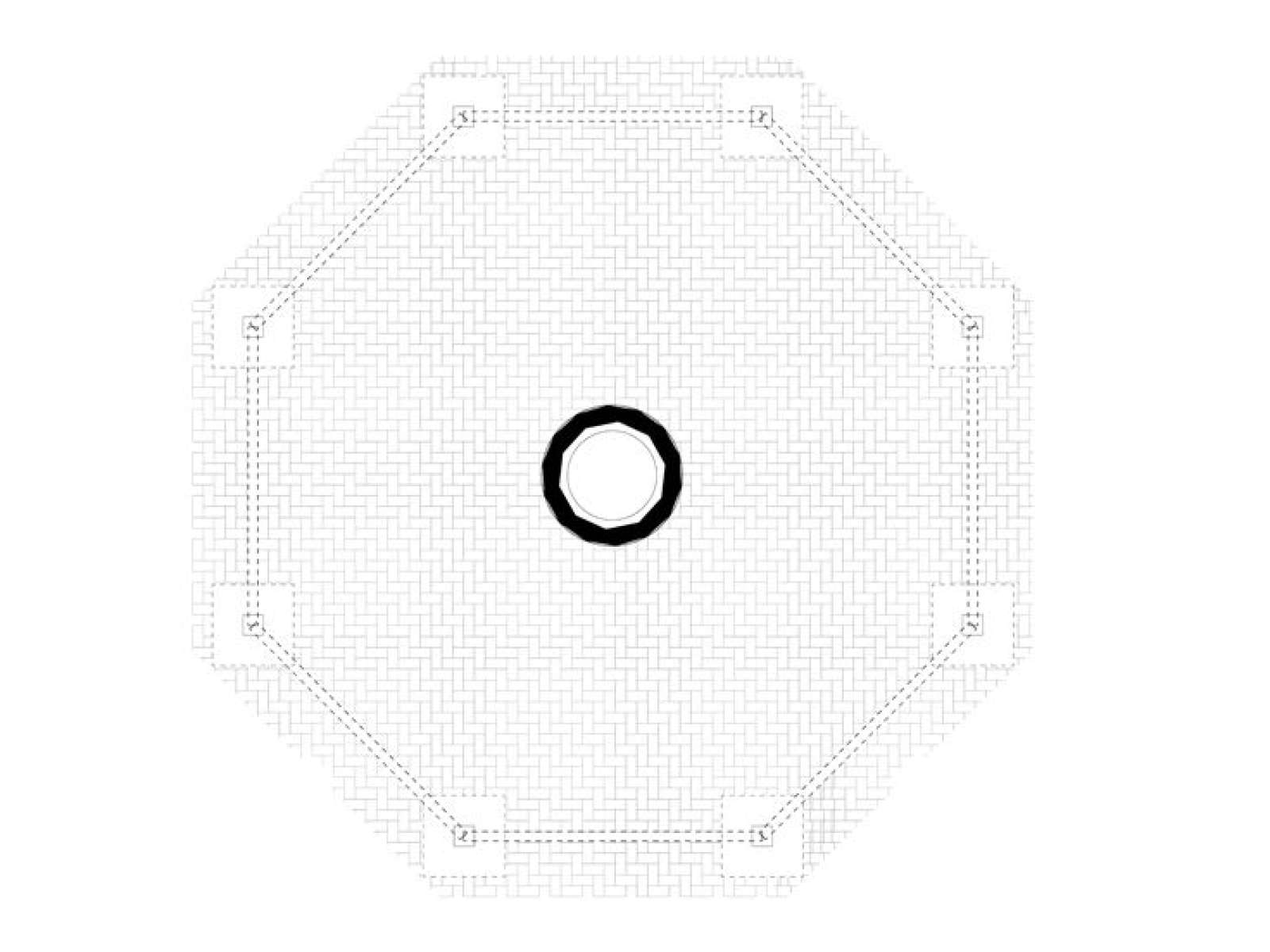

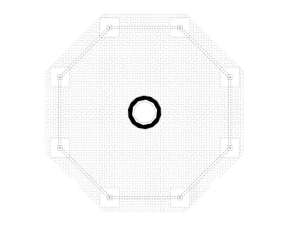

Plans call for spot footings and pavers for the base
| Width | 22 ft. 9 in. |
| Depth | 22 ft. 9 in. |
| Approximate Height | 19 ft. 2 in. |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
The overall width and depth from column to column is 22’-9”
The listed overall height is measured to the top of the chimney
The overall height measured to the top of the roof is 16’-10”
Plans call for spot footings and pavers for the base
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | $45 | n/a | n/a |
| Priority 3 - 4 business days | $40 | $90 | $55 | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
