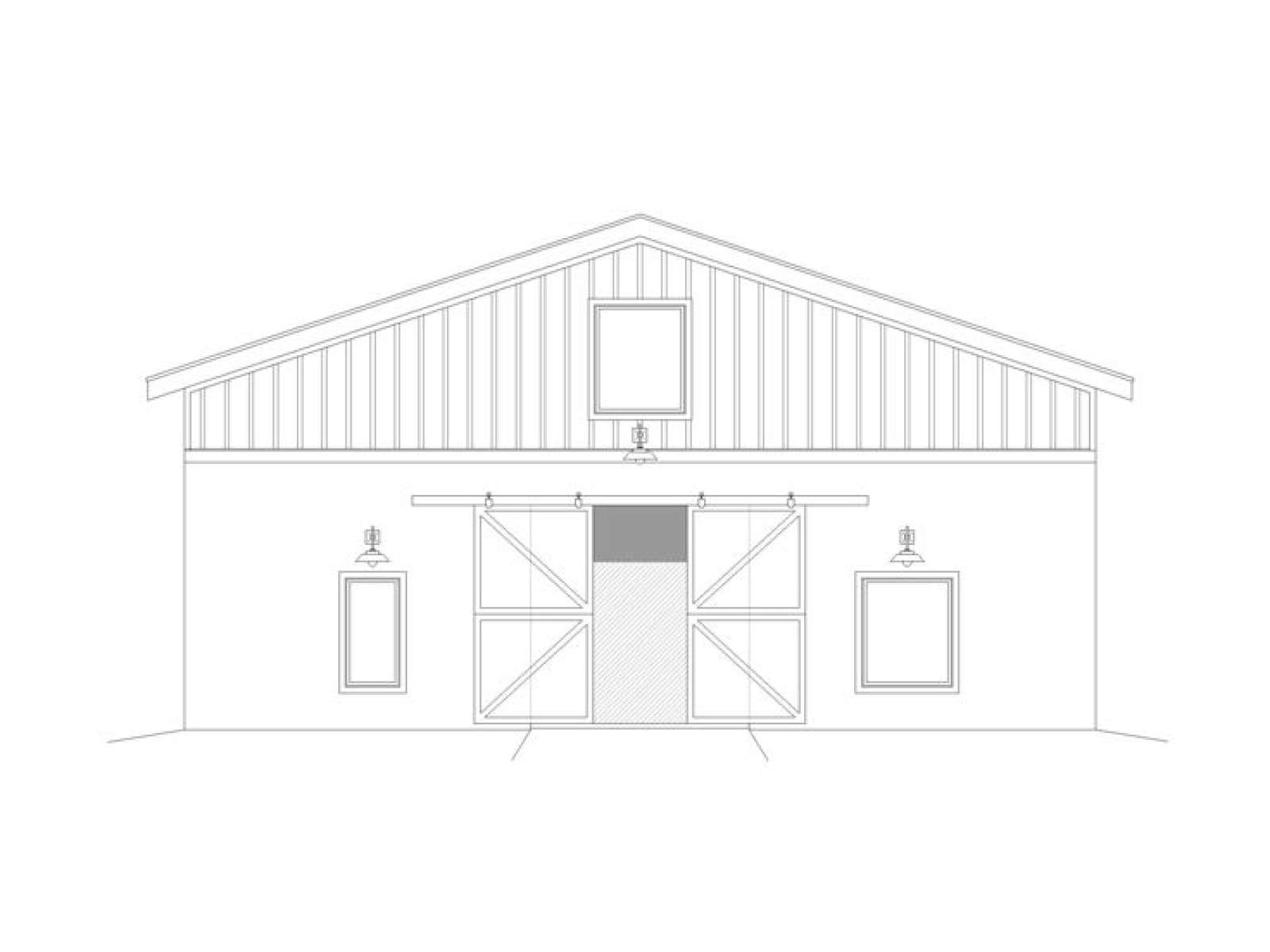

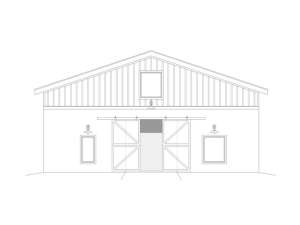

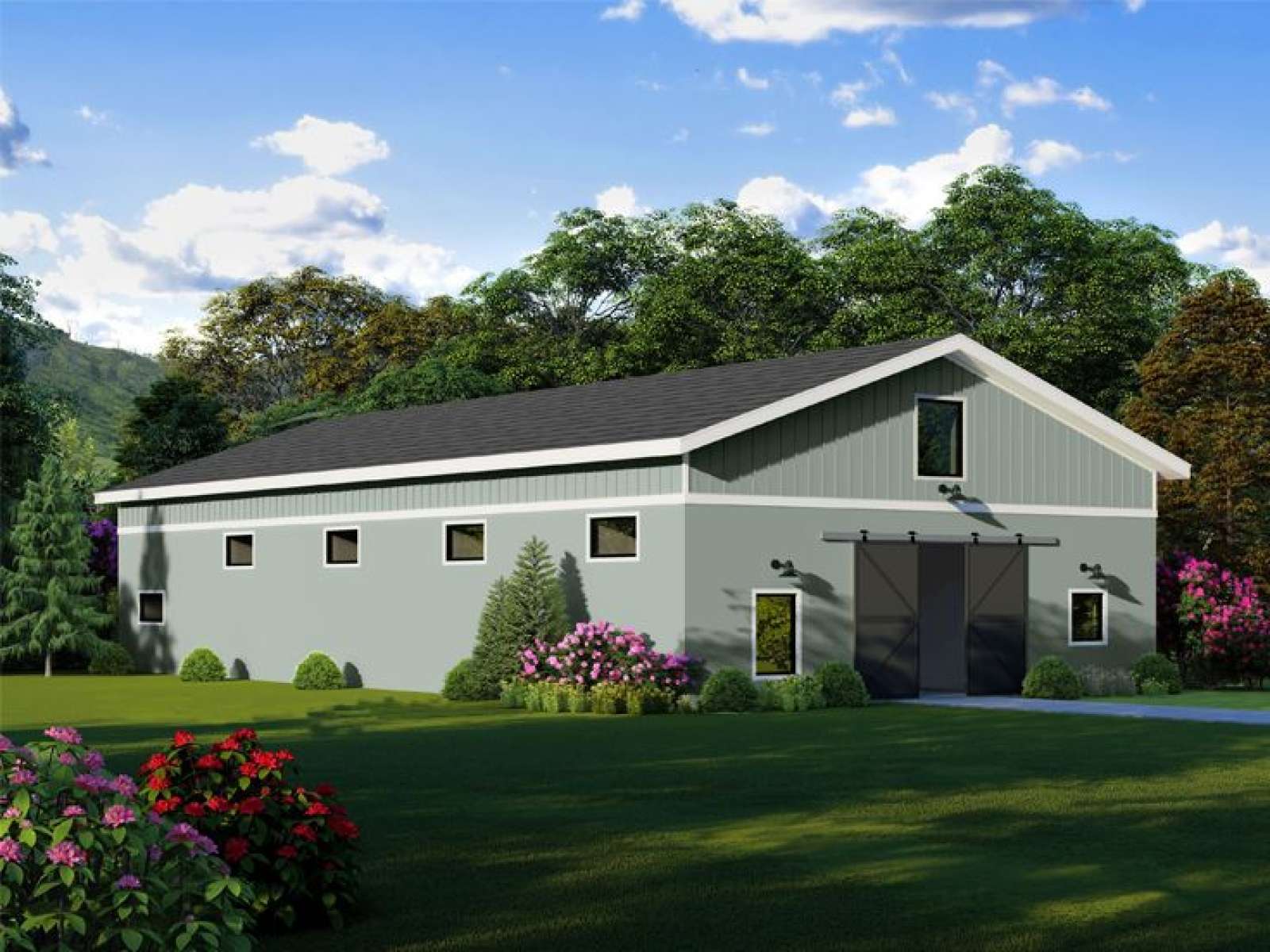

Outbuilding Plan, 062B-0020
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Enclosed spaces: 1777 sf, 9’ ceiling height
Open spaces: 3223 sf, vaulted ceiling slopes up from 18’ to 25’-10”

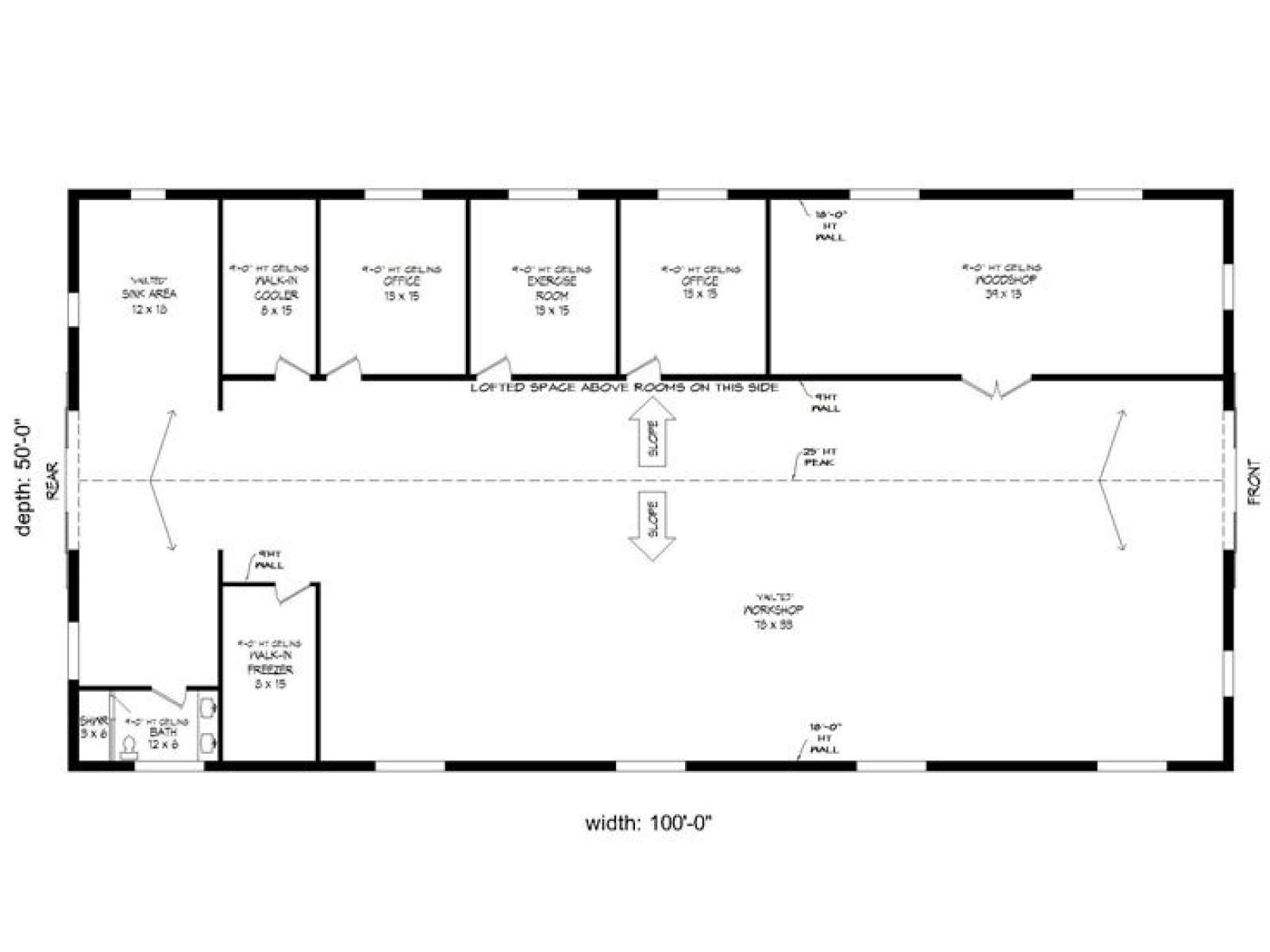

Lofted space (over the enclosed spaces as indicated on floor plan): 1777 sf
Exterior walls are concrete block
| Full Bathrooms | 1 |
| Width | 100 ft. 0 in. |
| Depth | 50 ft. 0 in. |
| Approximate Height | 28 ft. 4 in. |
| Roof Pitch | 4/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Enclosed spaces: 1777 sf, 9’ ceiling height
Open spaces: 3223 sf, vaulted ceiling slopes up from 18’ to 25’-10”
Lofted space (over the enclosed spaces as indicated on floor plan): 1777 sf
Exterior walls are concrete block
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | n/a | $55 | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
