Outbuilding Plan, 062B-0001

Reverse All Images

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

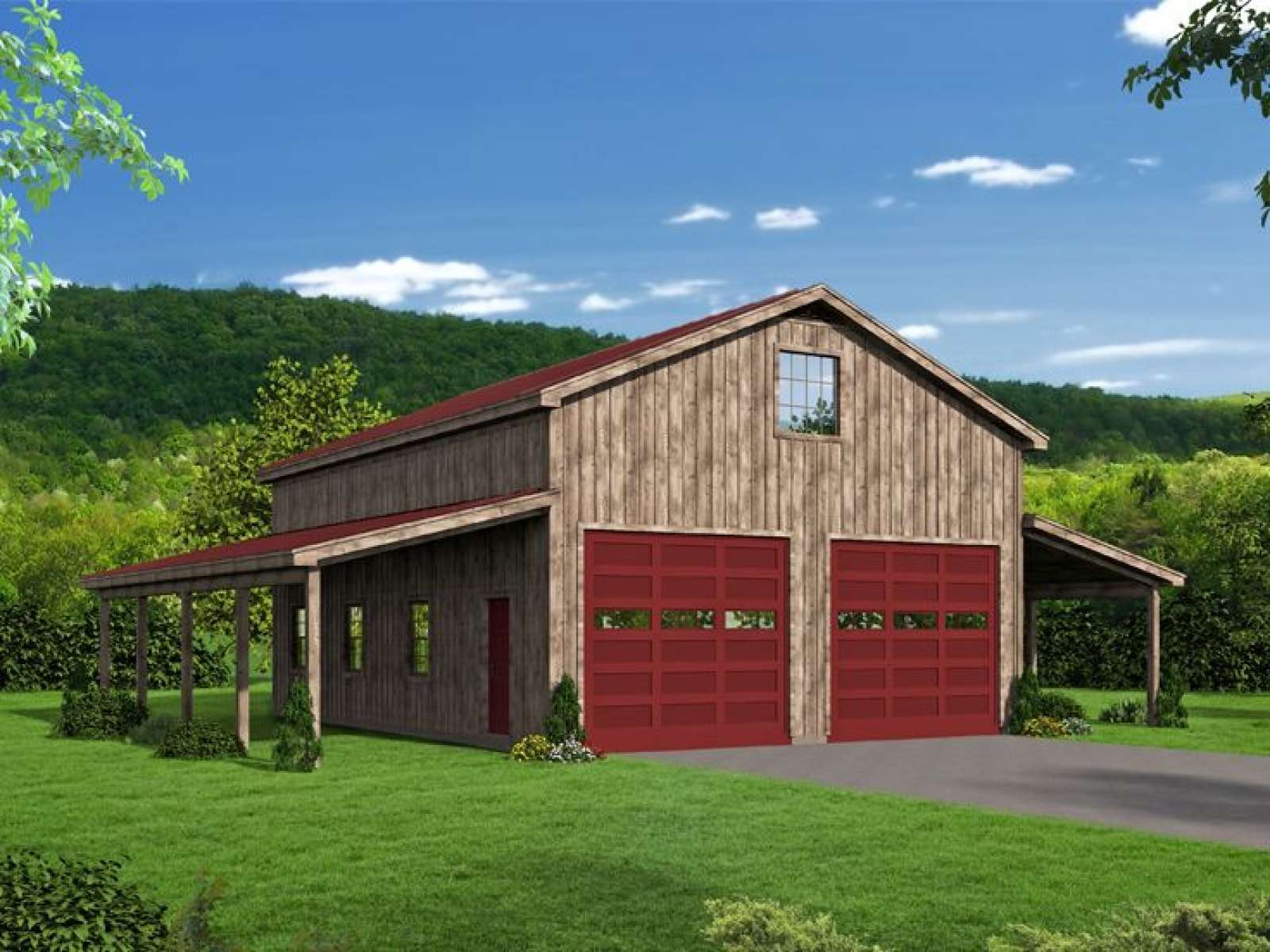

Outbuilding plan with loft can be used as a barn, garage, or storage space

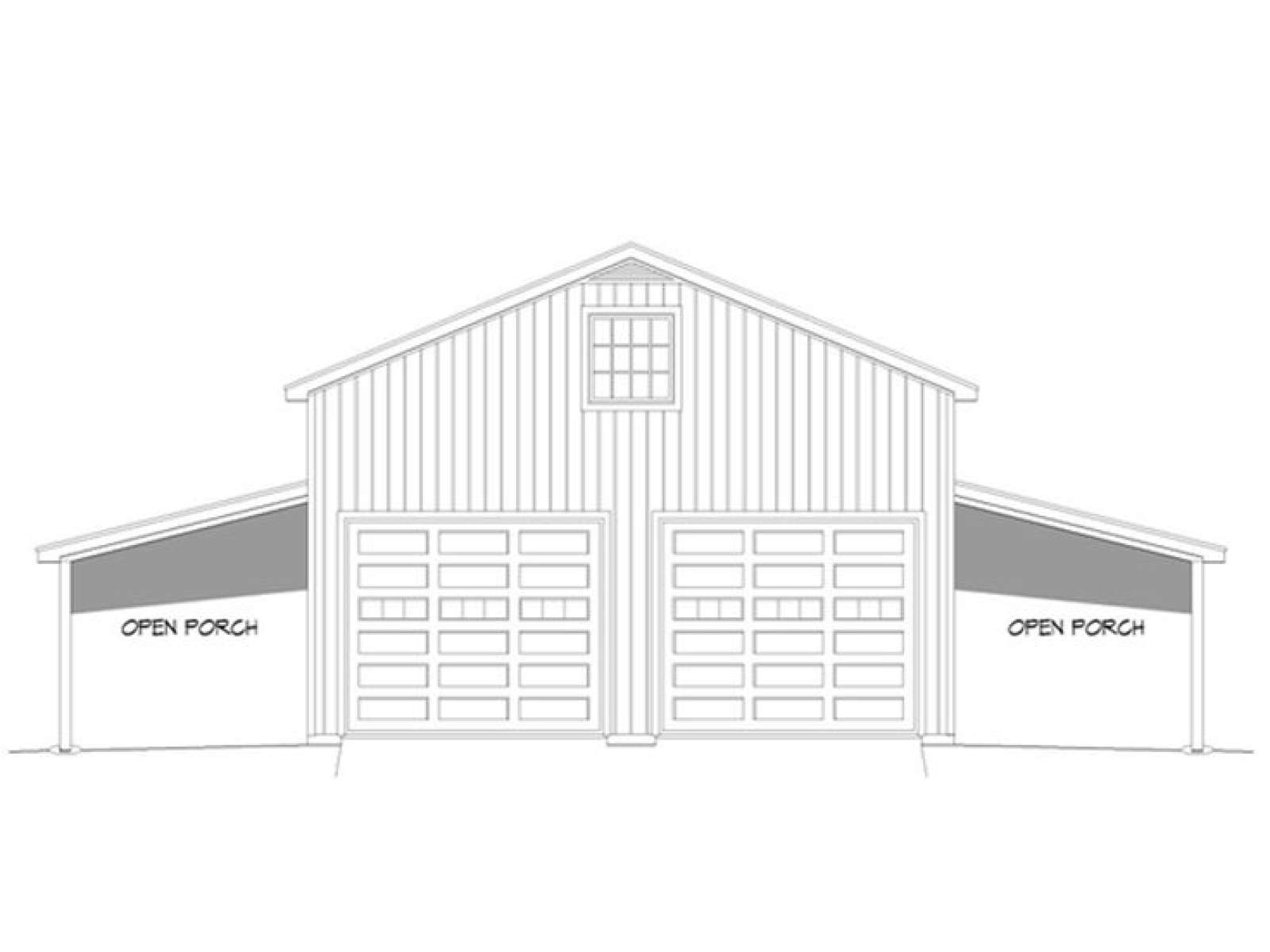

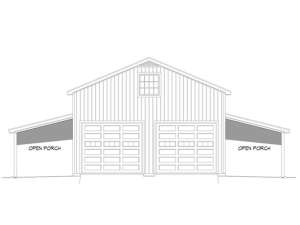

Features two covered porches (12’ wide each porch) and an extra deep bay on the left side of the barn are deep enough for storing a wagon or boat and trailer

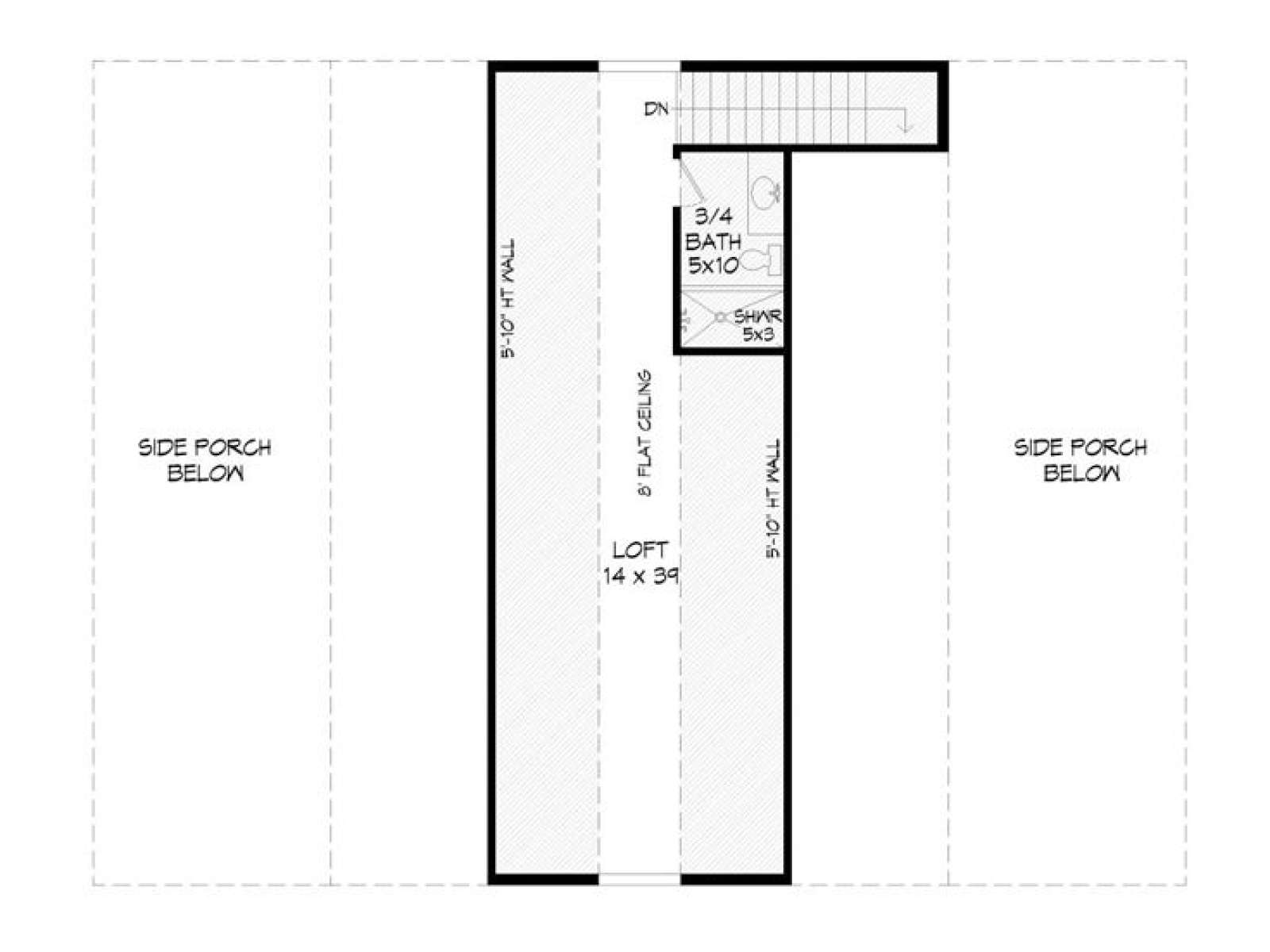

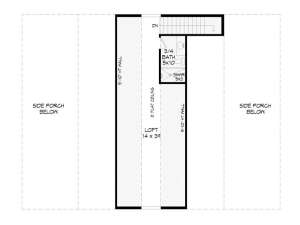

Convenient features include interior stairs, loft and full bath

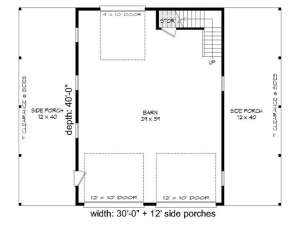

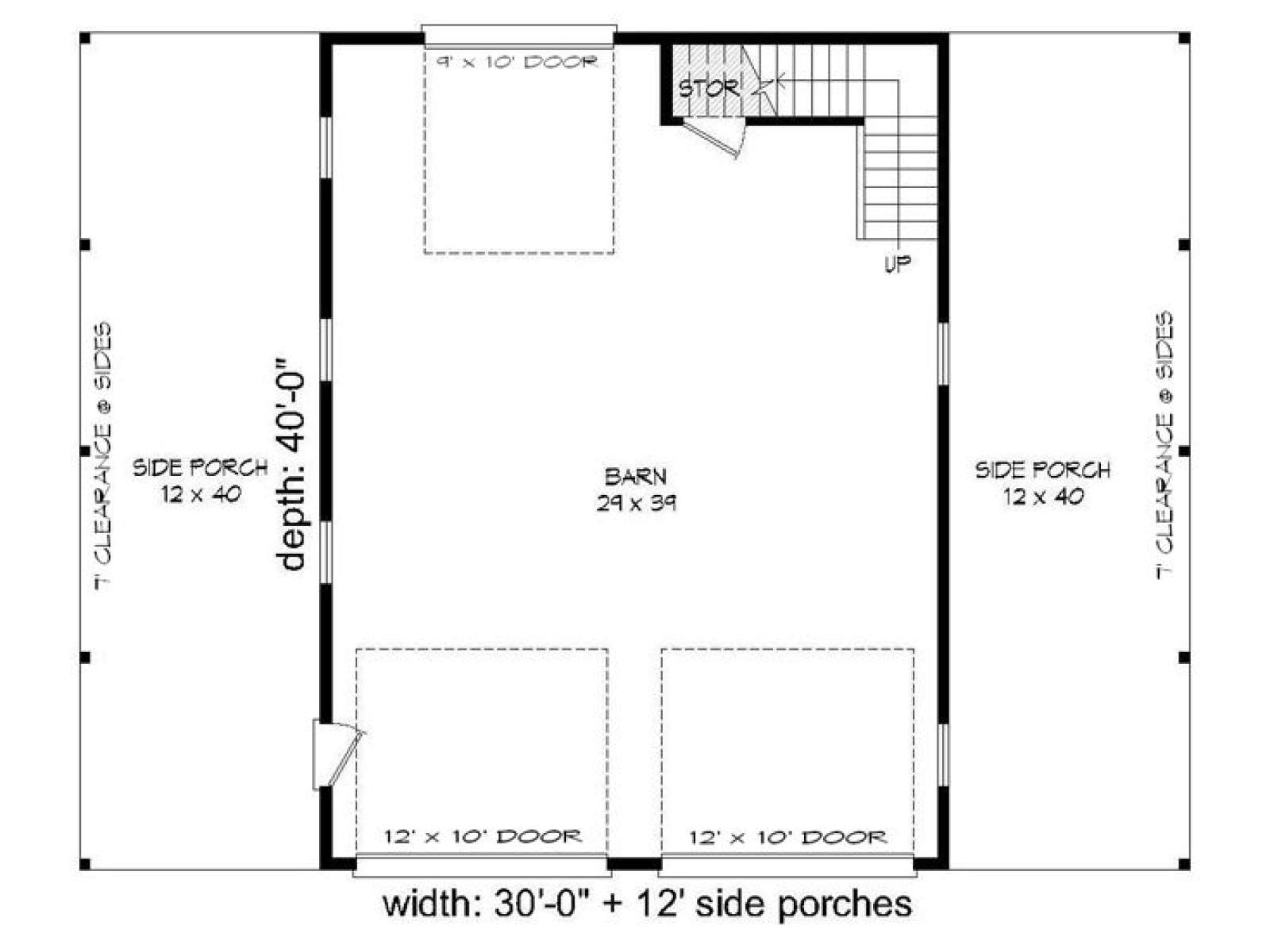

Width of structure is 30’ at the walls of the building, it is 54’ wide including side porches
See similar plan 062B-0035

Unheated Square Feet
Loft	606
Outbuilding/Barn	1200
Porch(es)	920
Full Bathrooms	1
Width	54 ft. 0 in.
Depth	40 ft. 0 in.
Approximate Height	22 ft. 10 in.
Ceiling Height
First Floor	12 ft. 0 in.
Second Floor	8 ft. 0 in.
Roof Pitch	5/12 Main
Roof Framing	Truss
Foundation Options	Slab
Exterior Wall Options	2x6

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	$25	n/a	n/a	n/a
Priority 3 - 4 business days	$40	n/a	$55	n/a
Express 1 - 2 business days	$55	n/a	n/a	n/a

There are no reviews

Add your review

Barn Plan with Loft

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Material List for Plan 062B-0001: $295.00

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] …[more]

Right Reading Reverse for Plan 062B-0001: $200.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]
