Deck Plan, 057X-0049
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

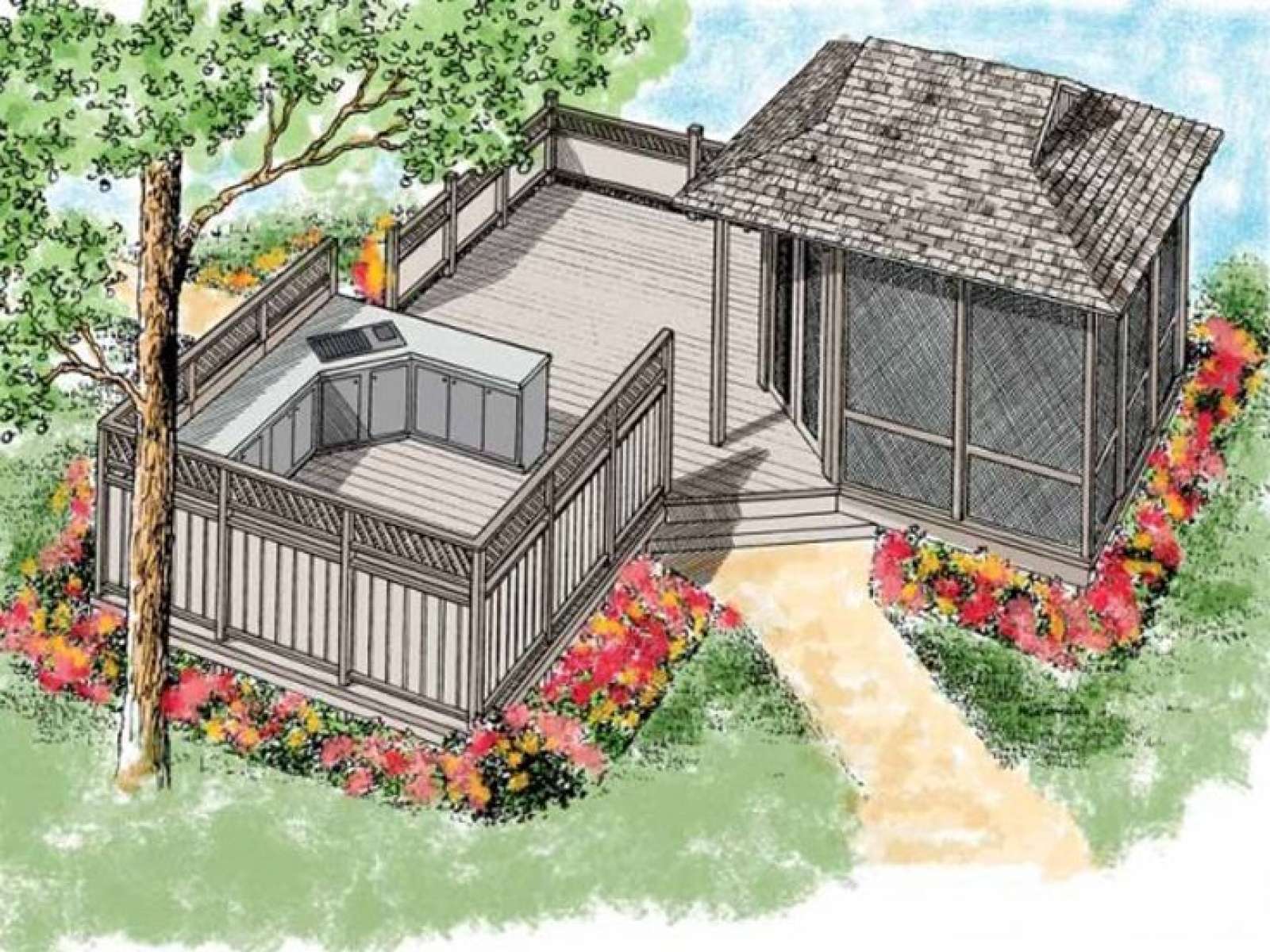

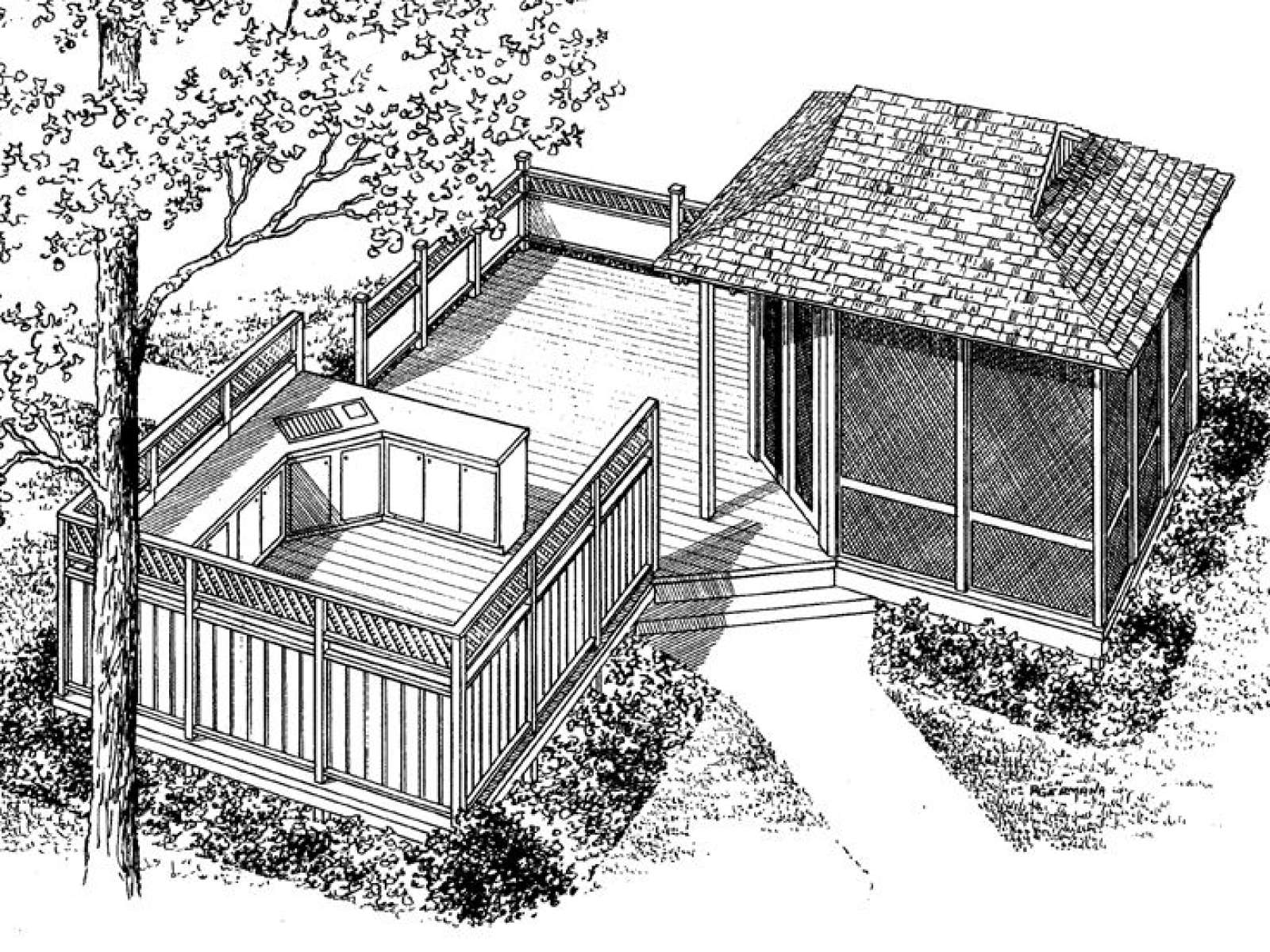

Free standing deck plan offers summer kitchen and screened dining area
Ideal entertainment space for your backyard
Kitchen makes it easy to serve and prepare outdoor meals
Privacy fence surrounding the outdoor kitchen is composed of siding and lattice
Screen porch offers an 8’ ceiling

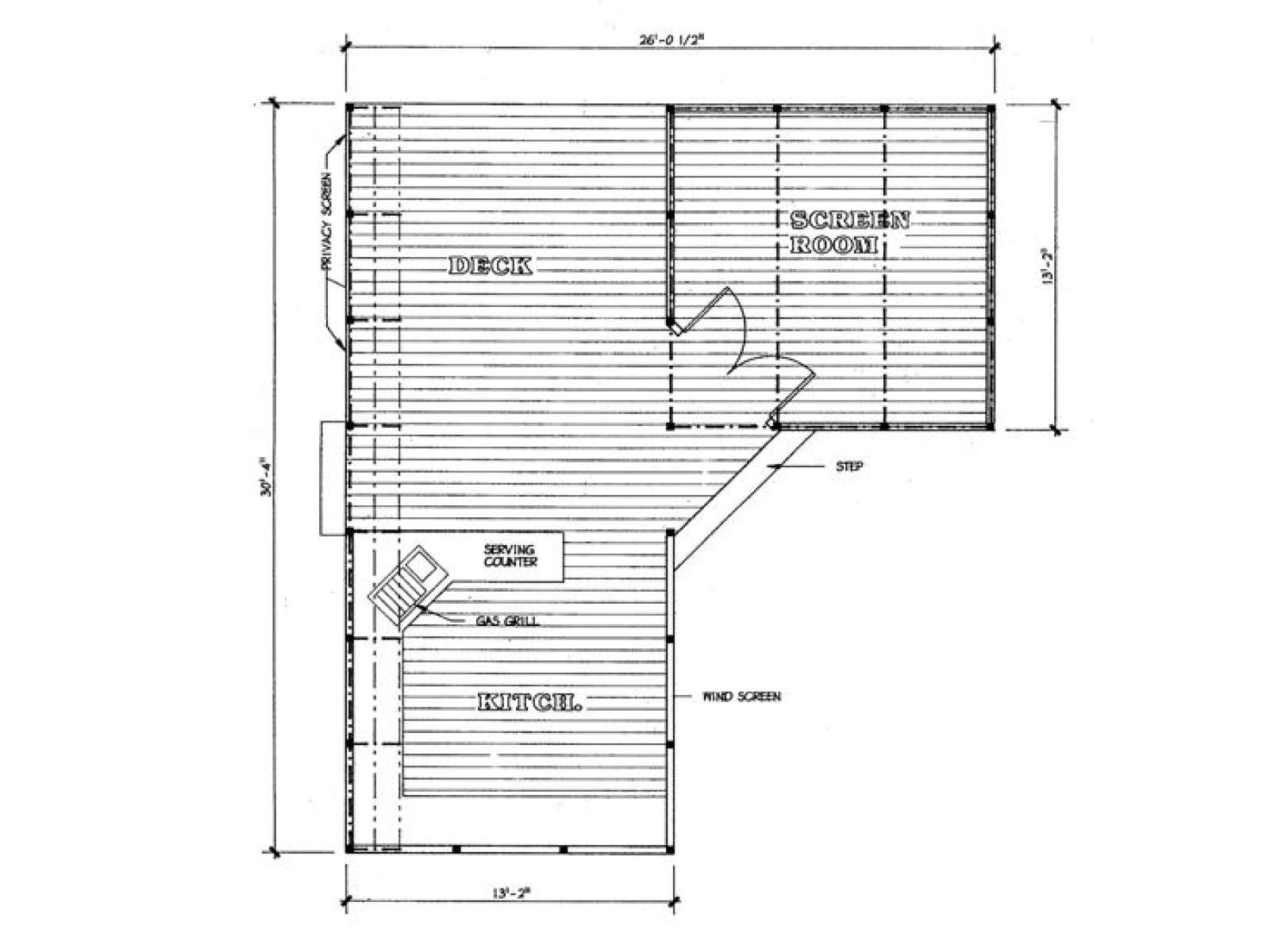

Overall dimensions: 26’-1” wide x 30’-4” deep x 13’-1” tall at screened room
Material list included with construction drawings
| Width | 26 ft. 1 in. |
| Depth | 30 ft. 4 in. |
| Approximate Height | 13 ft. 1 in. |
| Ceiling Height | |
| First Floor | 8 ft. 0 in. |
| Roof Pitch | 6/12 Main |
| Roof Framing |
|
Free standing deck plan offers summer kitchen and screened dining area
Ideal entertainment space for your backyard
Kitchen makes it easy to serve and prepare outdoor meals
Privacy fence surrounding the outdoor kitchen is composed of siding and lattice
Screen porch offers an 8’ ceiling
Overall dimensions: 26’-1” wide x 30’-4” deep x 13’-1” tall at screened room
Material list included with construction drawings
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | $90 | $90 | n/a |
| Express 1 - 2 business days | $75 | n/a | n/a | n/a |
