Play Structure Plan, 057X-0040

Plan 057X-0040
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

Give the kids a place to use their imaginations with this pirate ship play structure

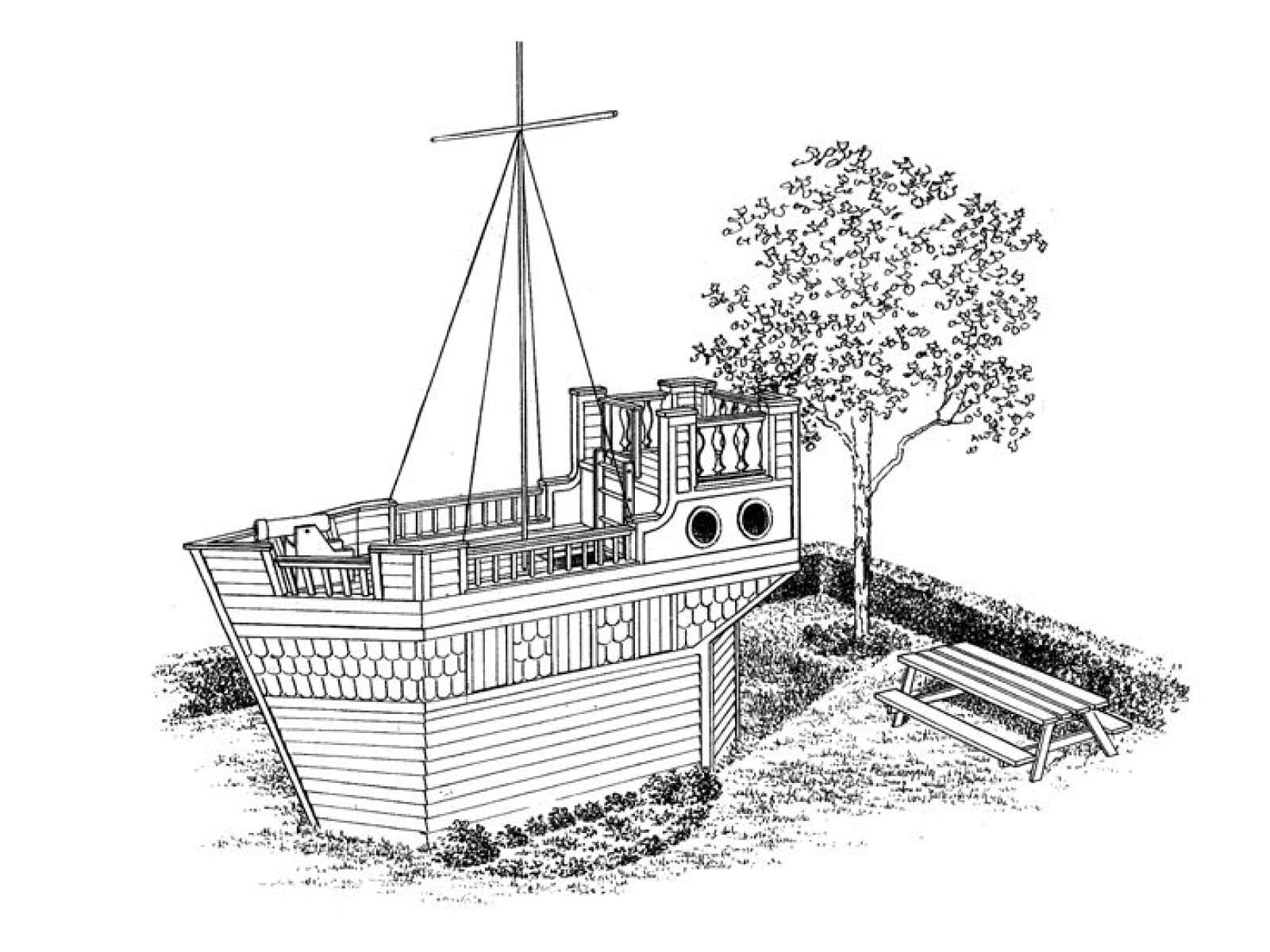

Design features a main deck, cannon, covered hatch, mast and ladder

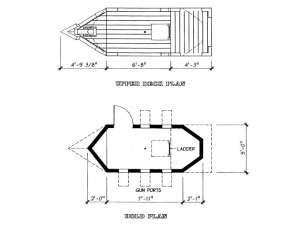

Blueprints include details for a slab foundation as well as a wood floor/base
Overall height is measured to the top of the mast
Material list included with construction drawings

Width 15 ft. 8 in.
Depth 5 ft. 0 in.
Approximate Height 20 ft. 0 in.
Roof Framing
  • N/A

Give the kids a place to use their imaginations with this pirate ship play structure
Design features a main deck, cannon, covered hatch, mast and ladder
Blueprints include details for a slab foundation as well as a wood floor/base
Overall height is measured to the top of the mast
Material list included with construction drawings

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $25 n/a n/a n/a
Priority 3 - 4 business days $40 $90 $90 n/a
Express 1 - 2 business days $75 n/a n/a n/a
