Pavilion Plan, 057X-0037
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

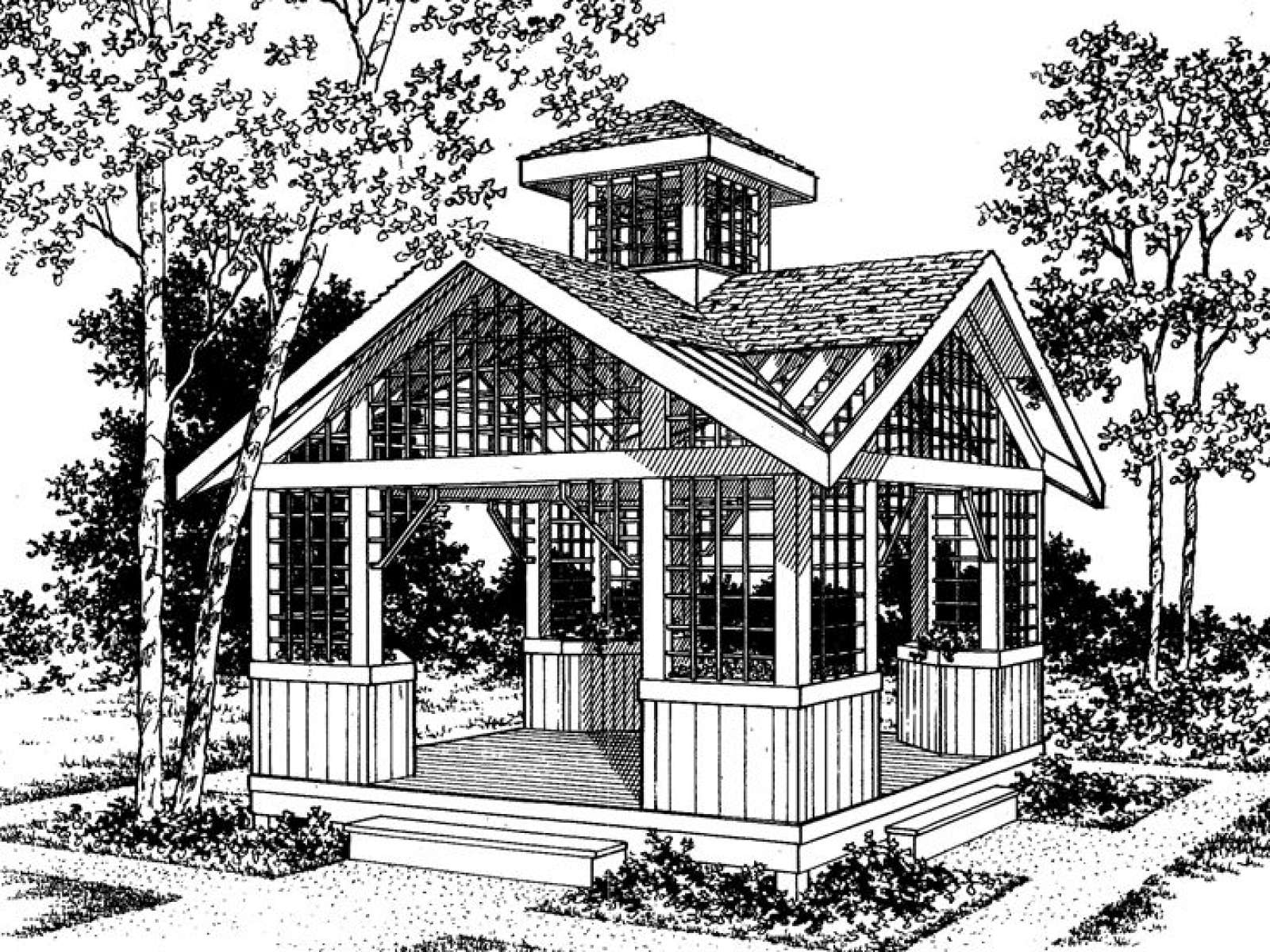

Square pavilion plan provides the perfect place to relax beside the lake
Plans call for a wood floor
Material list included with construction drawings

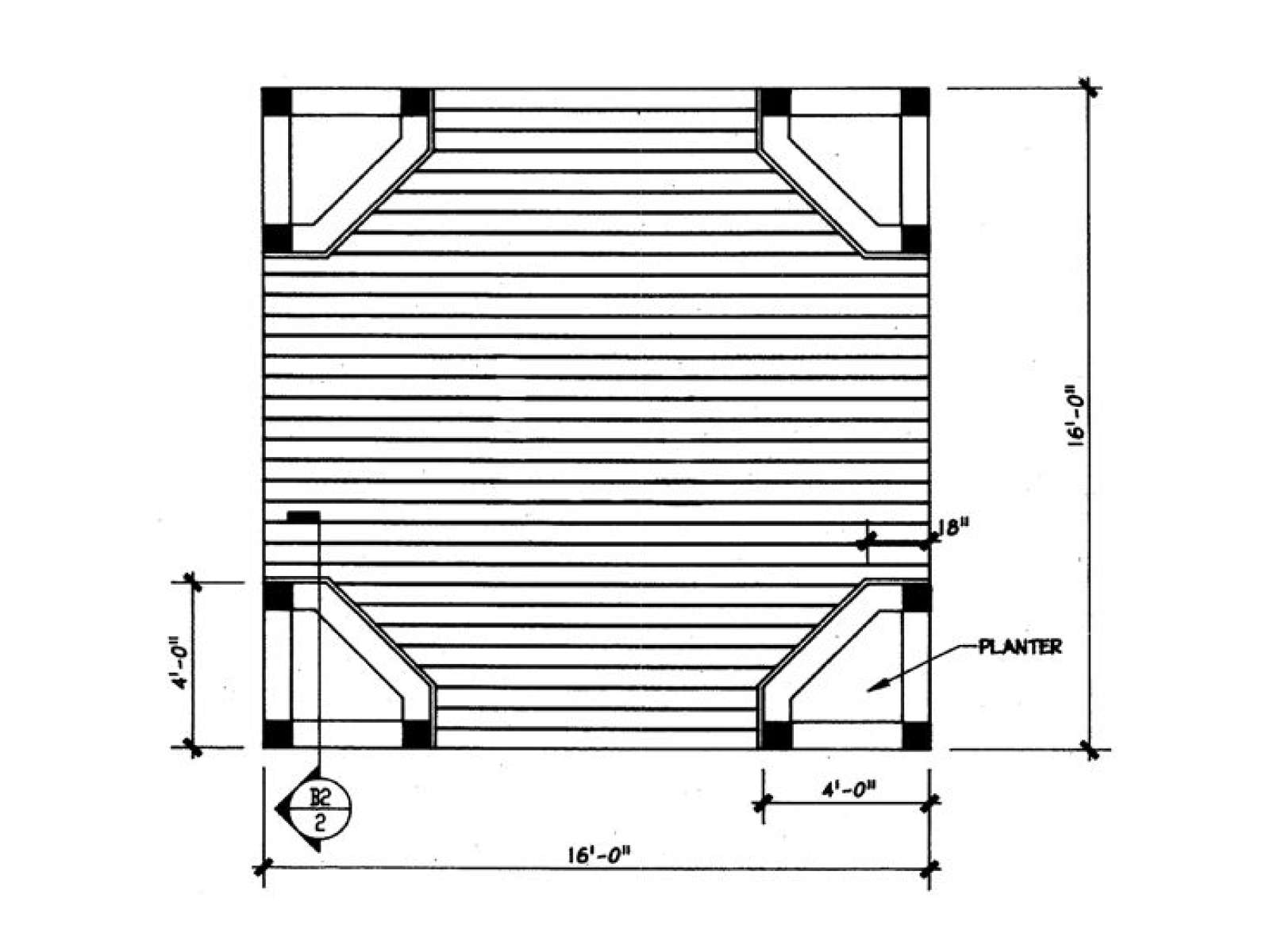

| Width | 16 ft. 0 in. |
| Depth | 16 ft. 0 in. |
| Approximate Height | 17 ft. 11 in. |
| Roof Pitch | 7/12 Main |
| Roof Framing |
|
Square pavilion plan provides the perfect place to relax beside the lake
Plans call for a wood floor
Material list included with construction drawings
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | $90 | $90 | n/a |
| Express 1 - 2 business days | $75 | n/a | n/a | n/a |
