Gazebo Plan, 057X-0035
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

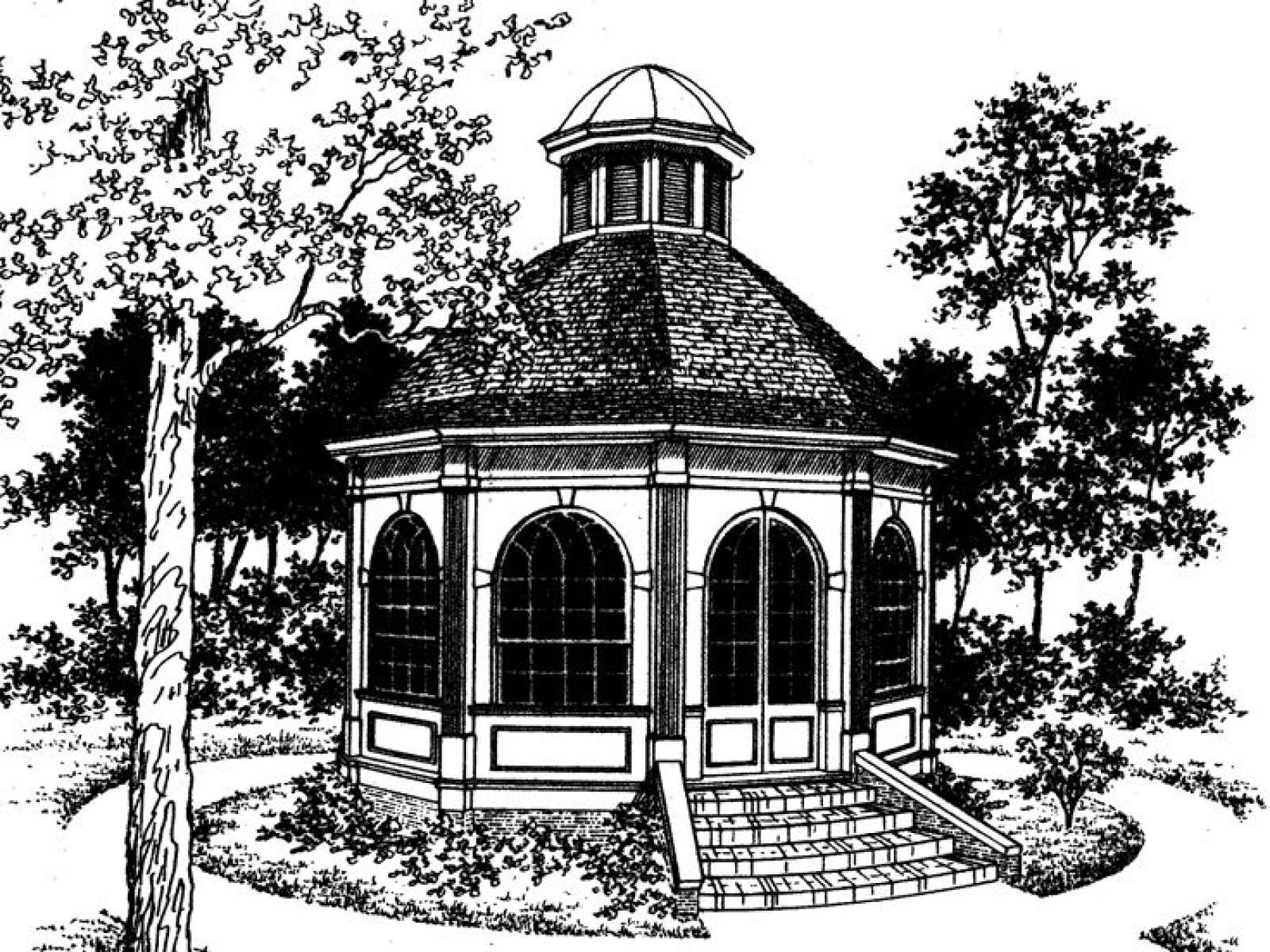

Enclosed gazebo plan features arch-topped windows filling the space with natural light
Two pairs of double doors offer easy access

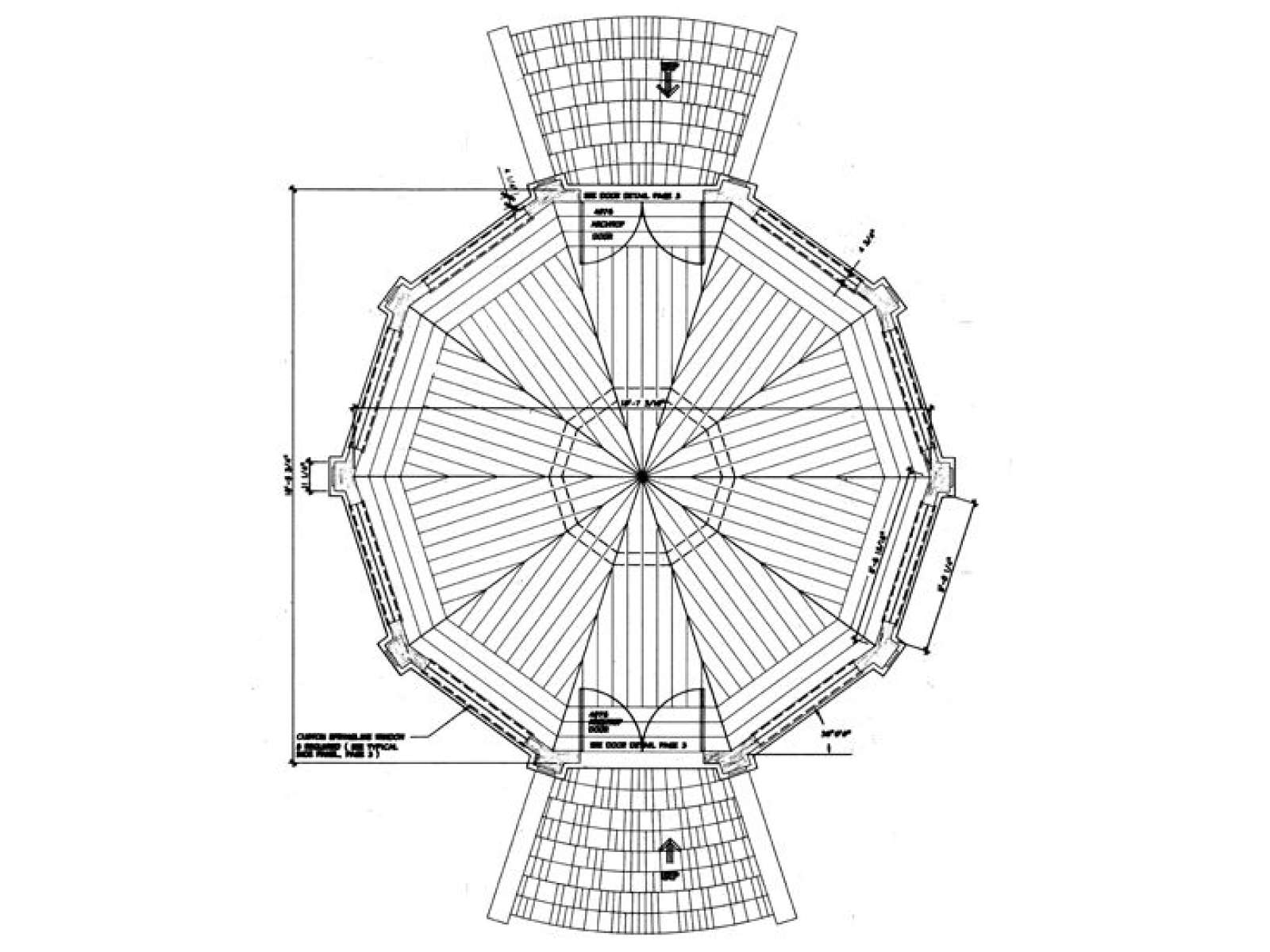

Plans call for a wood floor
Material list included with construction drawings
| Width | 19 ft. 10 in. |
| Depth | 19 ft. 10 in. |
| Approximate Height | 24 ft. 5 in. |
| Ceiling Height | |
| First Floor | 9 ft. 6 in. |
| Roof Framing |
|
Enclosed gazebo plan features arch-topped windows filling the space with natural light
Two pairs of double doors offer easy access
Plans call for a wood floor
Material list included with construction drawings
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | $90 | $90 | n/a |
| Express 1 - 2 business days | $75 | n/a | n/a | n/a |
