Gazebo Plan, 057X-0034
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

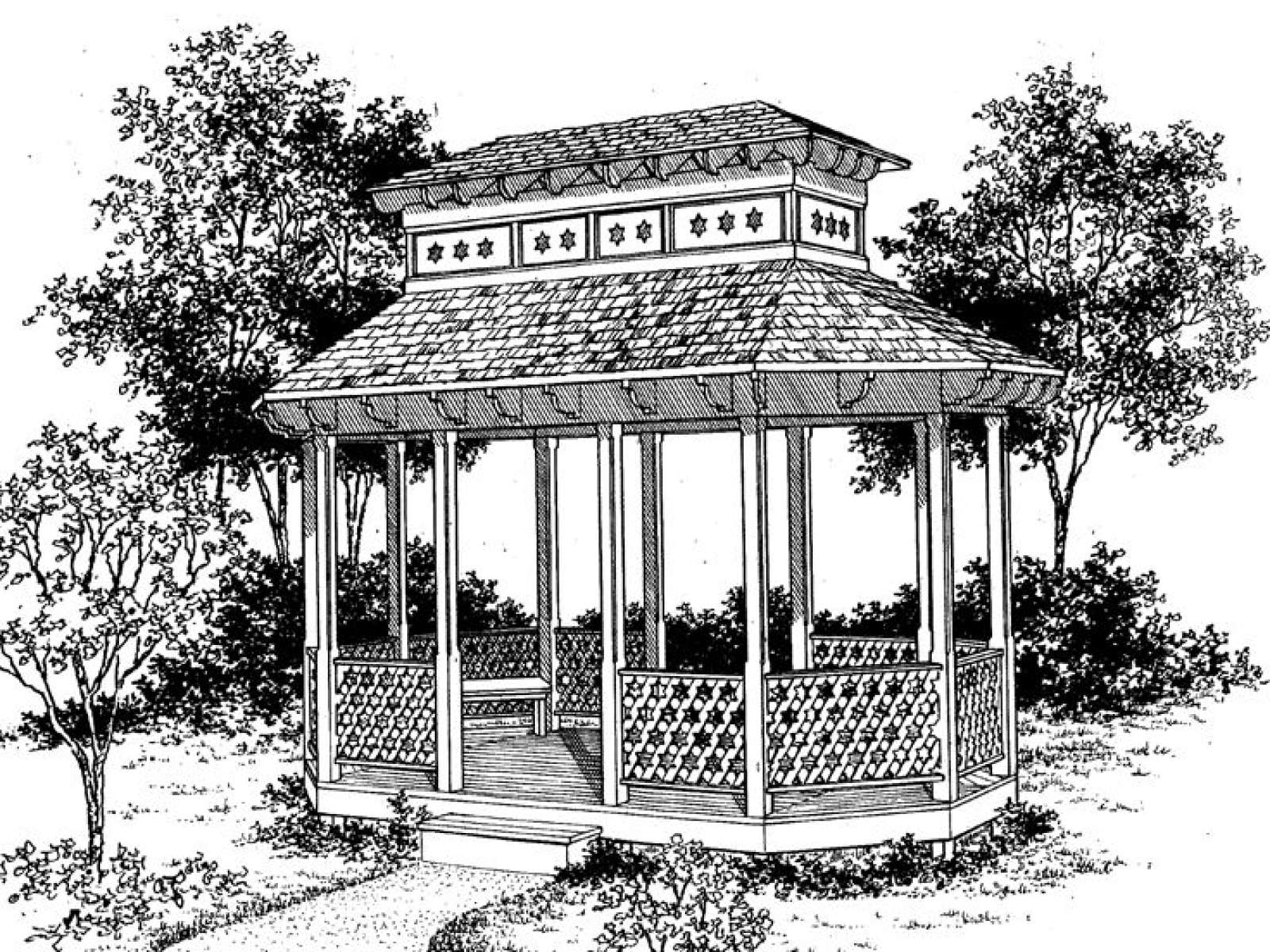

Gazebo features two benches for sitting and relaxing
Star lattice adds a patriotic touch (star lattice detail included)
Design offers two access points from the gazebo to the backyard or flower garden
Plans call for a wood floor
Plans call for 6”x6” posts
Material list included with construction drawings

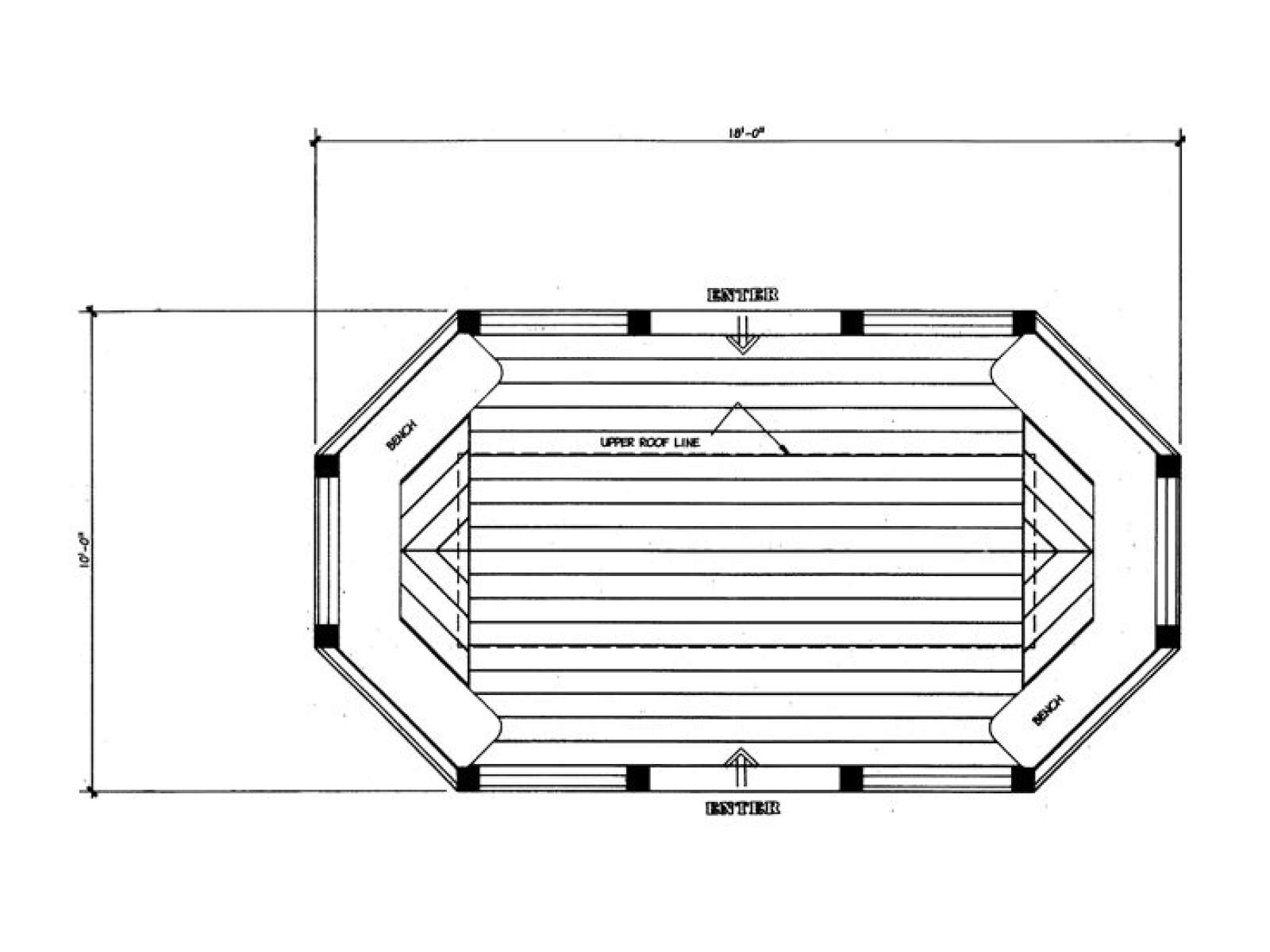

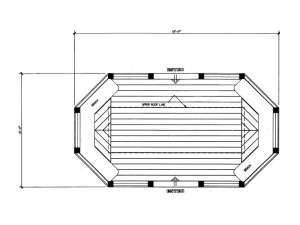

| Width | 18 ft. 0 in. |
| Depth | 10 ft. 0 in. |
| Approximate Height | 17 ft. 1 in. |
| Ceiling Height | |
| First Floor | 8 ft. 11 in. |
| Roof Pitch | 6/12 Main |
| Roof Framing |
|
Gazebo features two benches for sitting and relaxing
Star lattice adds a patriotic touch (star lattice detail included)
Design offers two access points from the gazebo to the backyard or flower garden
Plans call for a wood floor
Plans call for 6”x6” posts
Material list included with construction drawings
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | $90 | $90 | n/a |
| Express 1 - 2 business days | $75 | n/a | n/a | n/a |
