Gazebo Plan, 057X-0033
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

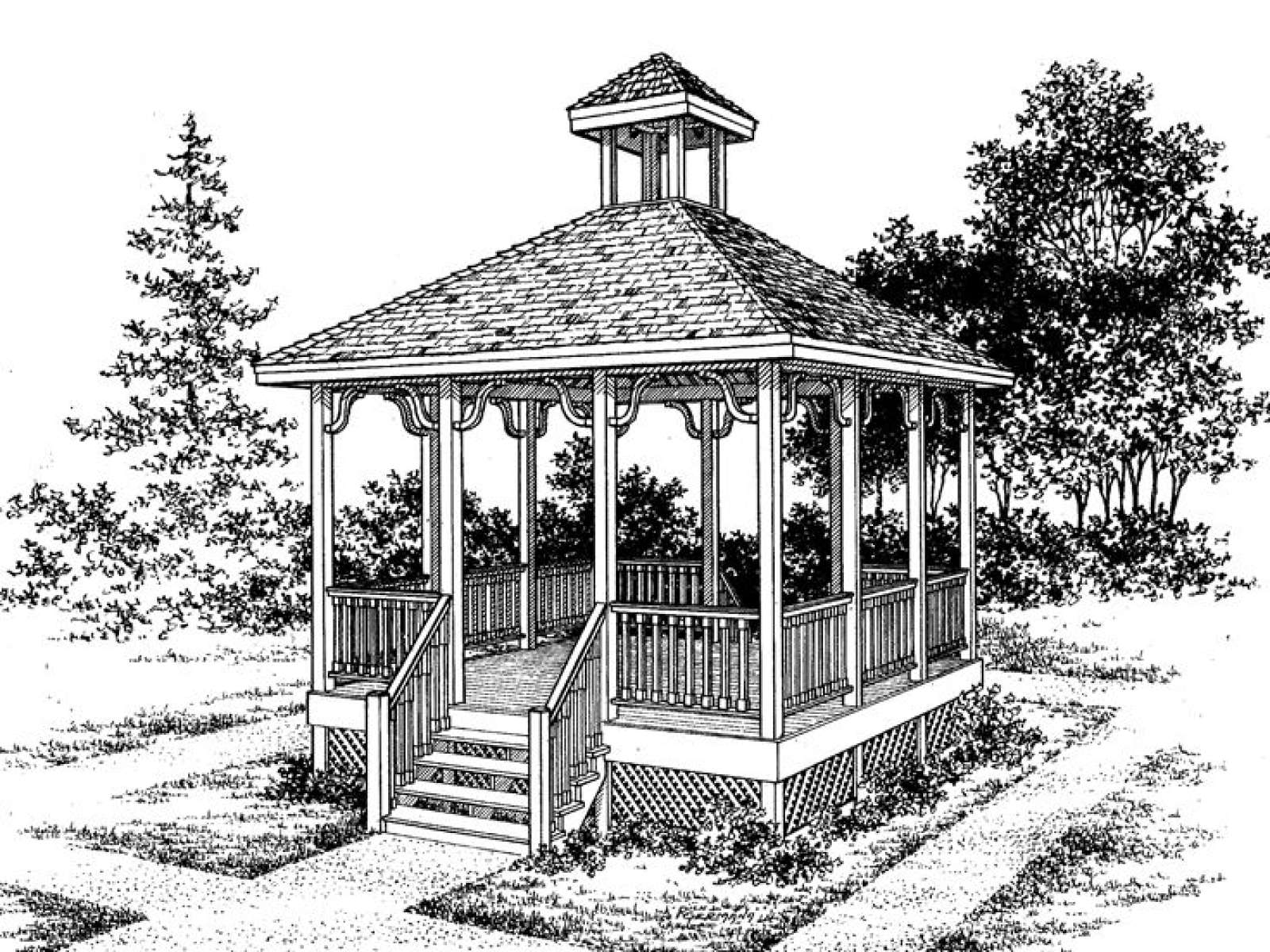

Charming gazebo plan features a cupola and two access points from gazebo to the yard

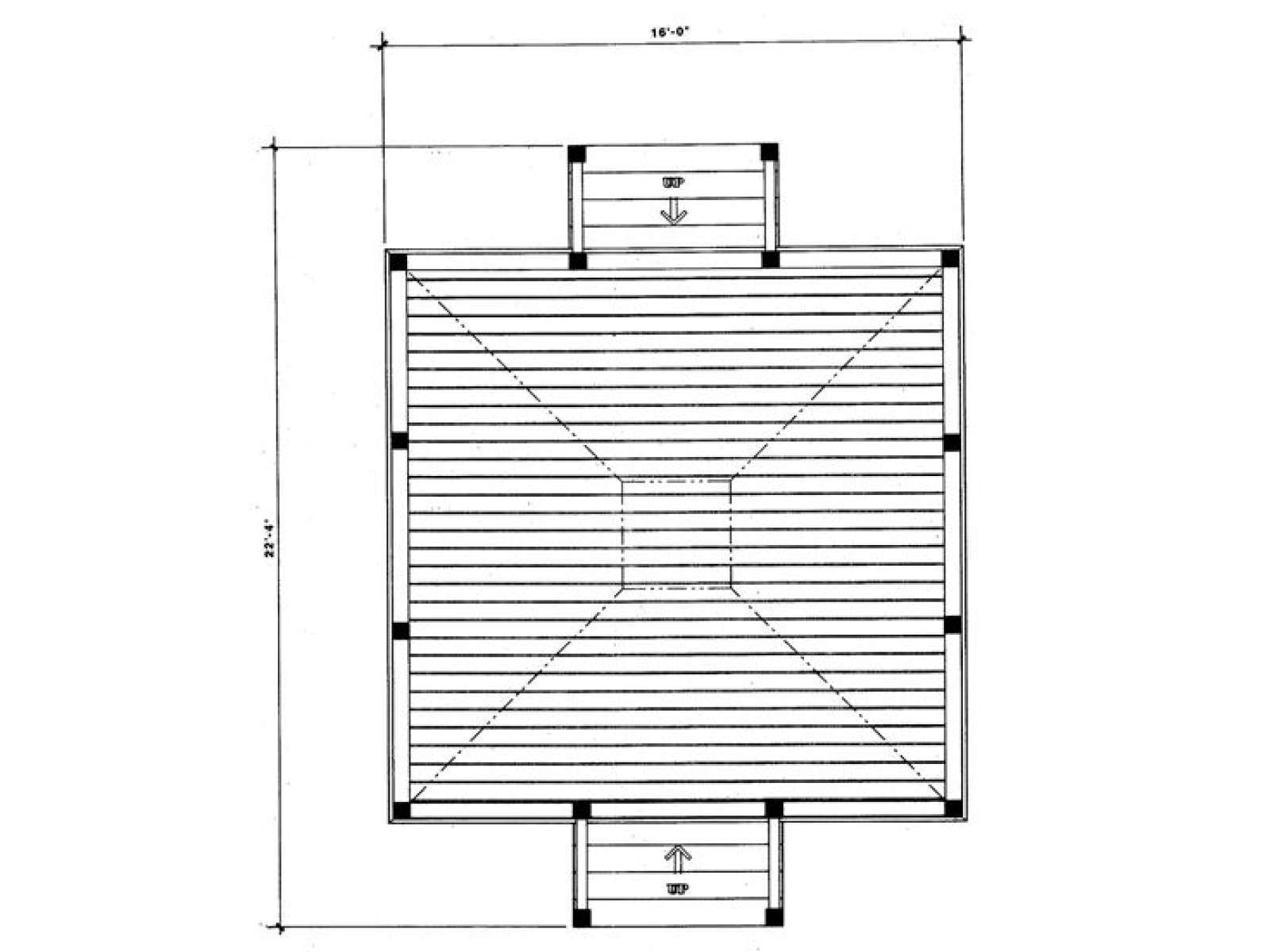

Overall dimensions without the stairs are 16’x16’
Overall height is measured to the top of the cupola
Plans call for a wood floor
Plans call for 6”x6” posts
Material list included with construction drawings
| Width | 16 ft. 0 in. |
| Depth | 22 ft. 4 in. |
| Approximate Height | 22 ft. 5 in. |
| Ceiling Height | |
| First Floor | 10 ft. 0 in. |
| Roof Pitch | 8/12 Main |
| Roof Framing |
|
Charming gazebo plan features a cupola and two access points from gazebo to the yard
Overall dimensions without the stairs are 16’x16’
Overall height is measured to the top of the cupola
Plans call for a wood floor
Plans call for 6”x6” posts
Material list included with construction drawings
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | $90 | $90 | n/a |
| Express 1 - 2 business days | $75 | n/a | n/a | n/a |
