Gazebo Plan, 057X-0028
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

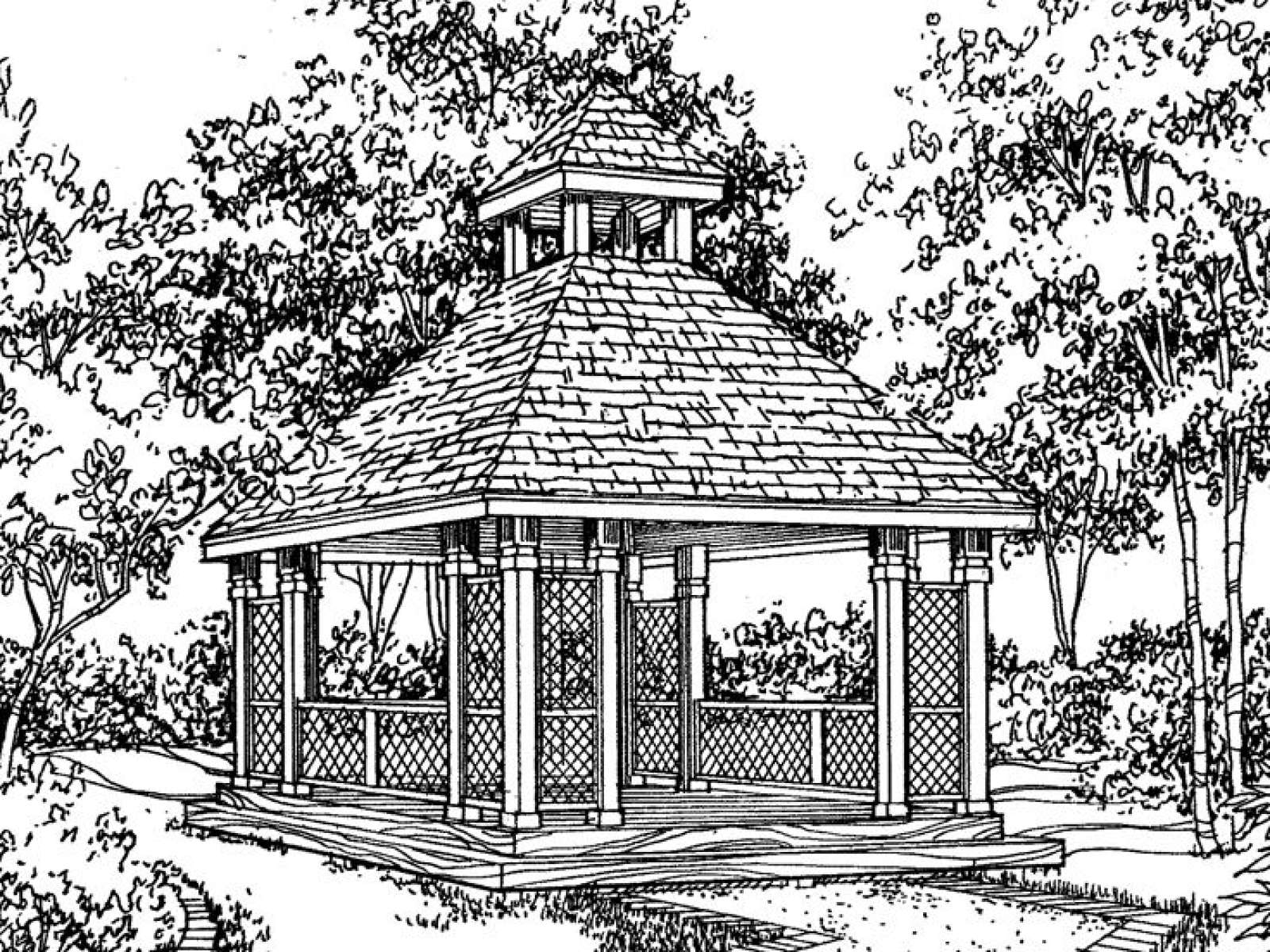

Square gazebo plan with cupola adds a touch of charm to your backyard
Relax in the shade or read a book on a sunny day
Overall height includes the cupola
Plans call for a wood floor on concrete piers
Material list included with construction drawings

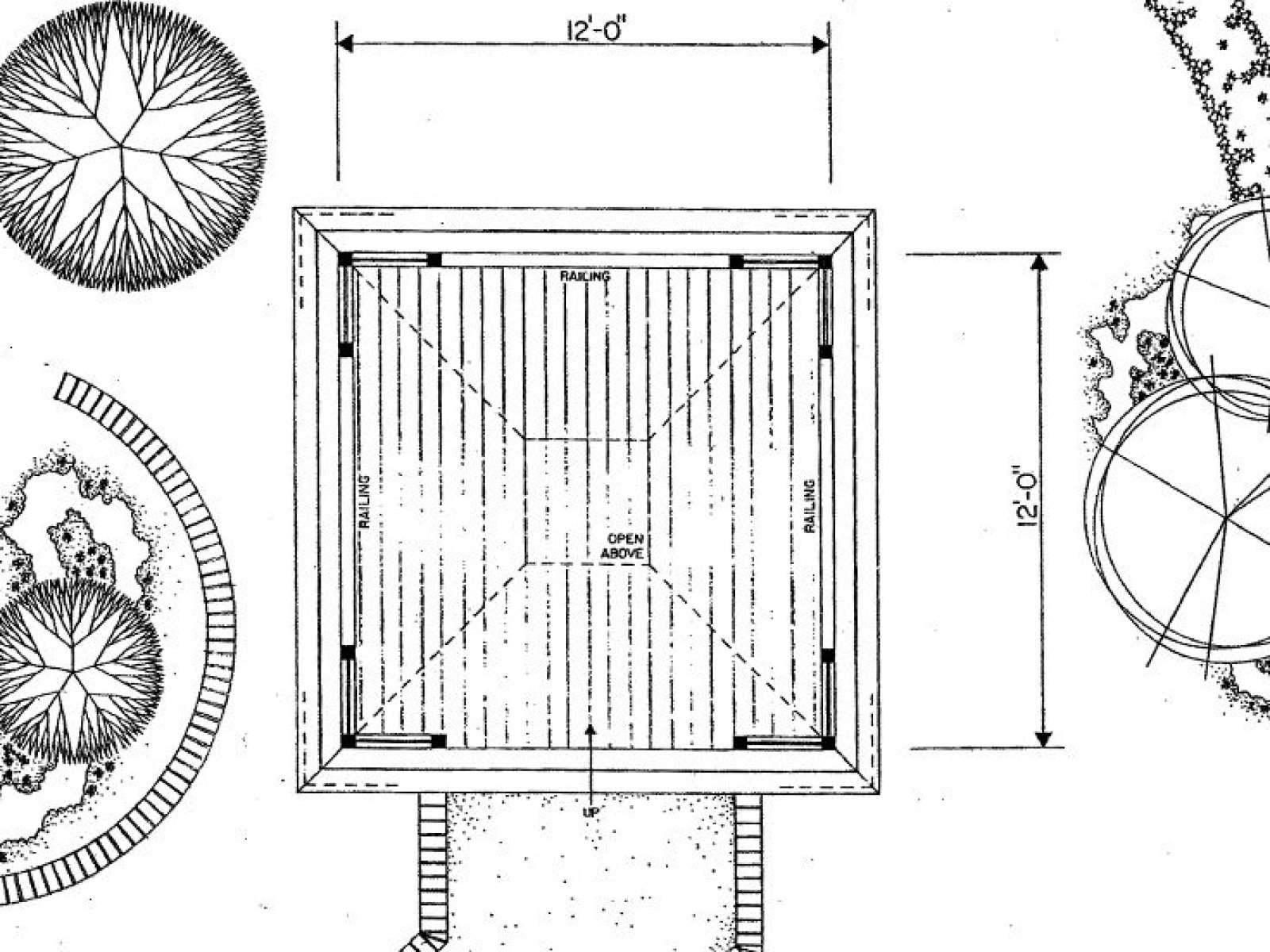

| Width | 12 ft. 0 in. |
| Depth | 12 ft. 0 in. |
| Approximate Height | 17 ft. 4 in. |
| Ceiling Height | |
| First Floor | 8 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Framing |
|
Square gazebo plan with cupola adds a touch of charm to your backyard
Relax in the shade or read a book on a sunny day
Overall height includes the cupola
Plans call for a wood floor on concrete piers
Material list included with construction drawings
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | $90 | $90 | n/a |
| Express 1 - 2 business days | $75 | n/a | n/a | n/a |
Featured Plans

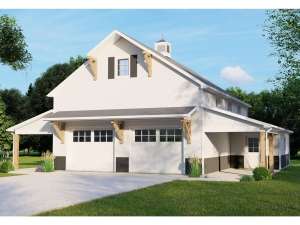

Horse Barn Plan with Apartment
Heated Sq. Ft. 741
Bedrooms 1
Full Baths 1
Half Baths 0
Width 44 ft. 0 in.
Depth 52 ft. 0 in.
Horse Barn Plan with Living Quarters
Heated Sq. Ft. 1846
Bedrooms 4
Full Baths 3
Half Baths 0
Width 55 ft. 0 in.
Depth 50 ft. 0 in.

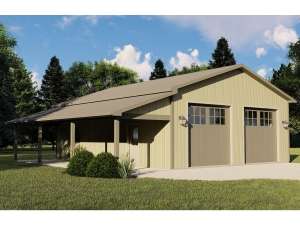

Carport or Pavilion with Storage Closet
