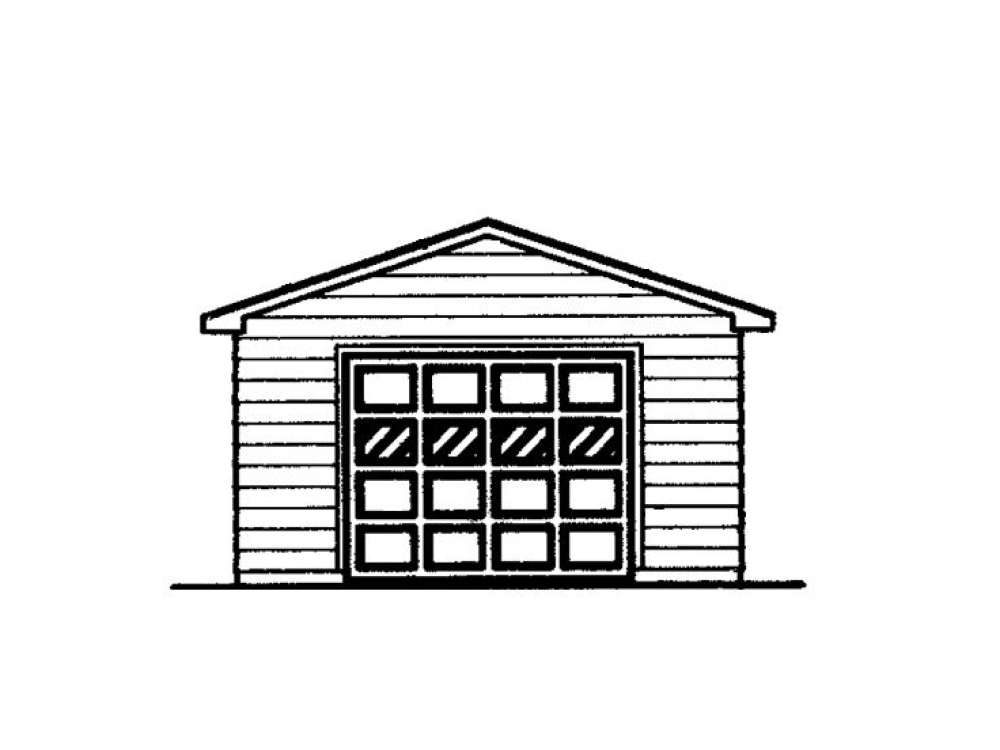

Single-Car Garage, 057G-0009
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
One-car garage plan ideal for extra parking or storage space for lawn and garden tools or patio furniture
Traditional style blends well with most homes
Compact size fits nicely in most backyards
Convenient side-entry service door
Material list included with construction drawings
| Unheated Square Feet | |
| Garage | 320 |

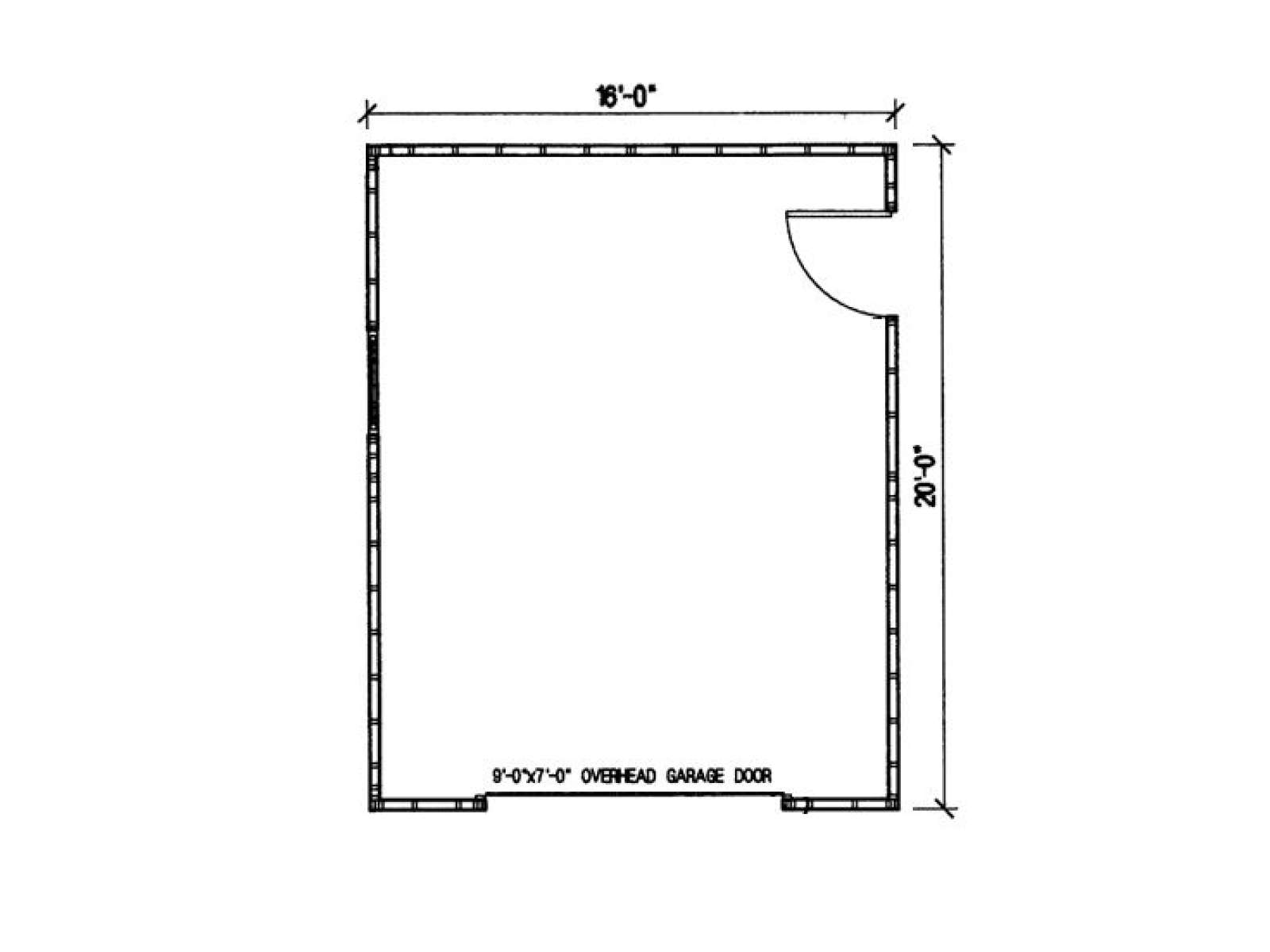

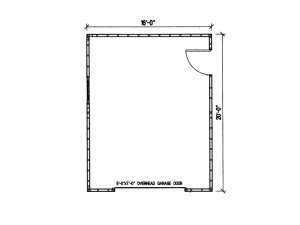

| Width | 16 ft. 0 in. |
| Depth | 20 ft. 0 in. |
| Approximate Height | 12 ft. 0 in. |
| Ceiling Height | |
| First Floor | 8 ft. 0 in. |
| Roof Pitch | 4/12 Main |
| Roof Framing |
|
| Garage Door Size(s) | 9x7 |
| Foundation Options |
|
| Exterior Wall Options |
|
One-car garage plan ideal for extra parking or storage space for lawn and garden tools or patio furniture
Traditional style blends well with most homes
Compact size fits nicely in most backyards
Convenient side-entry service door
Material list included with construction drawings
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | $90 | $90 | n/a |
| Express 1 - 2 business days | $75 | n/a | n/a | n/a |
