2-Car Garage Loft Plan, 057G-0001

Plan 057G-0001
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

Detached two-car garage plan with loft offers extra parking and storage space

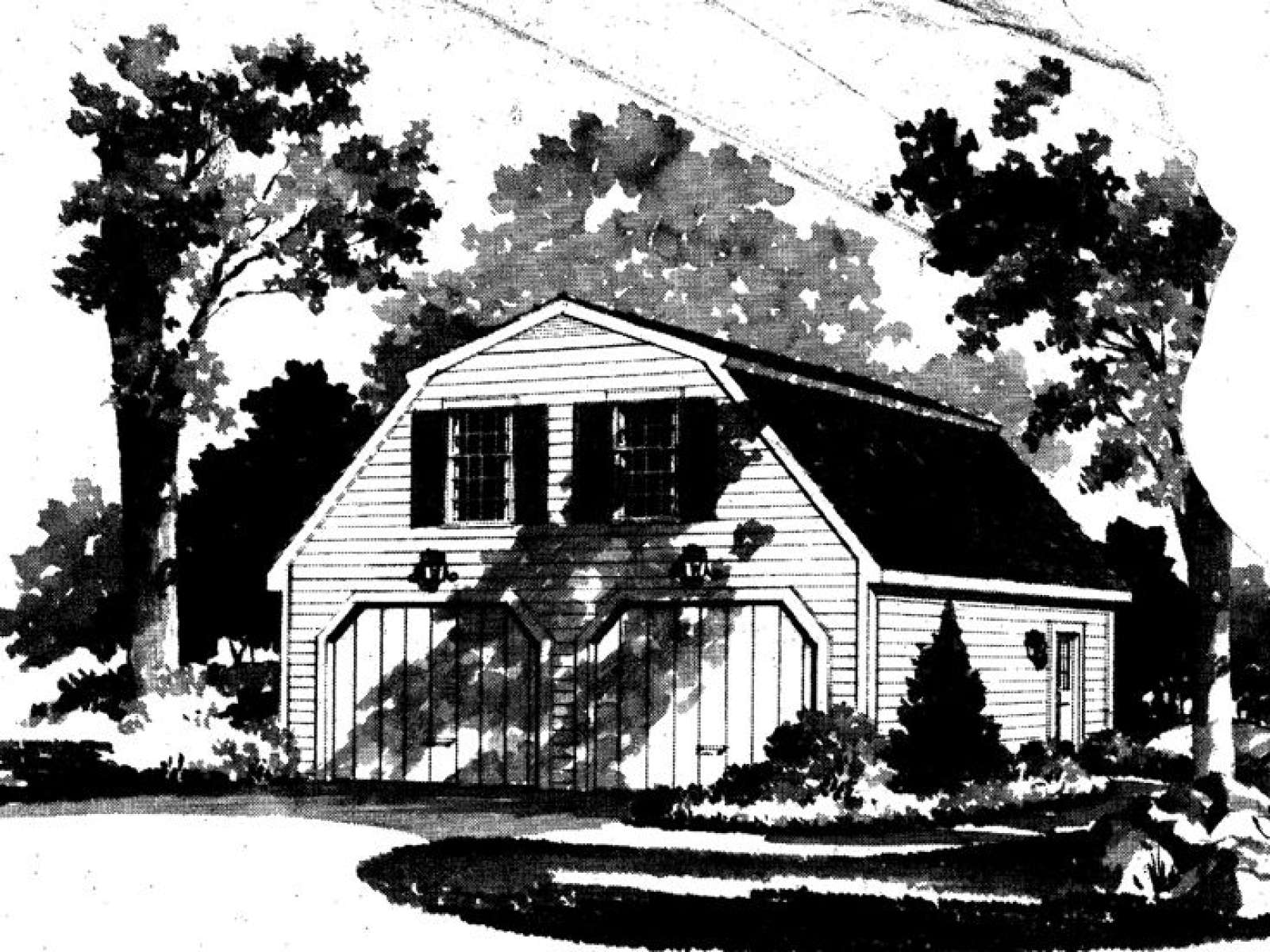

Gambrel roofline offers a barn-style look

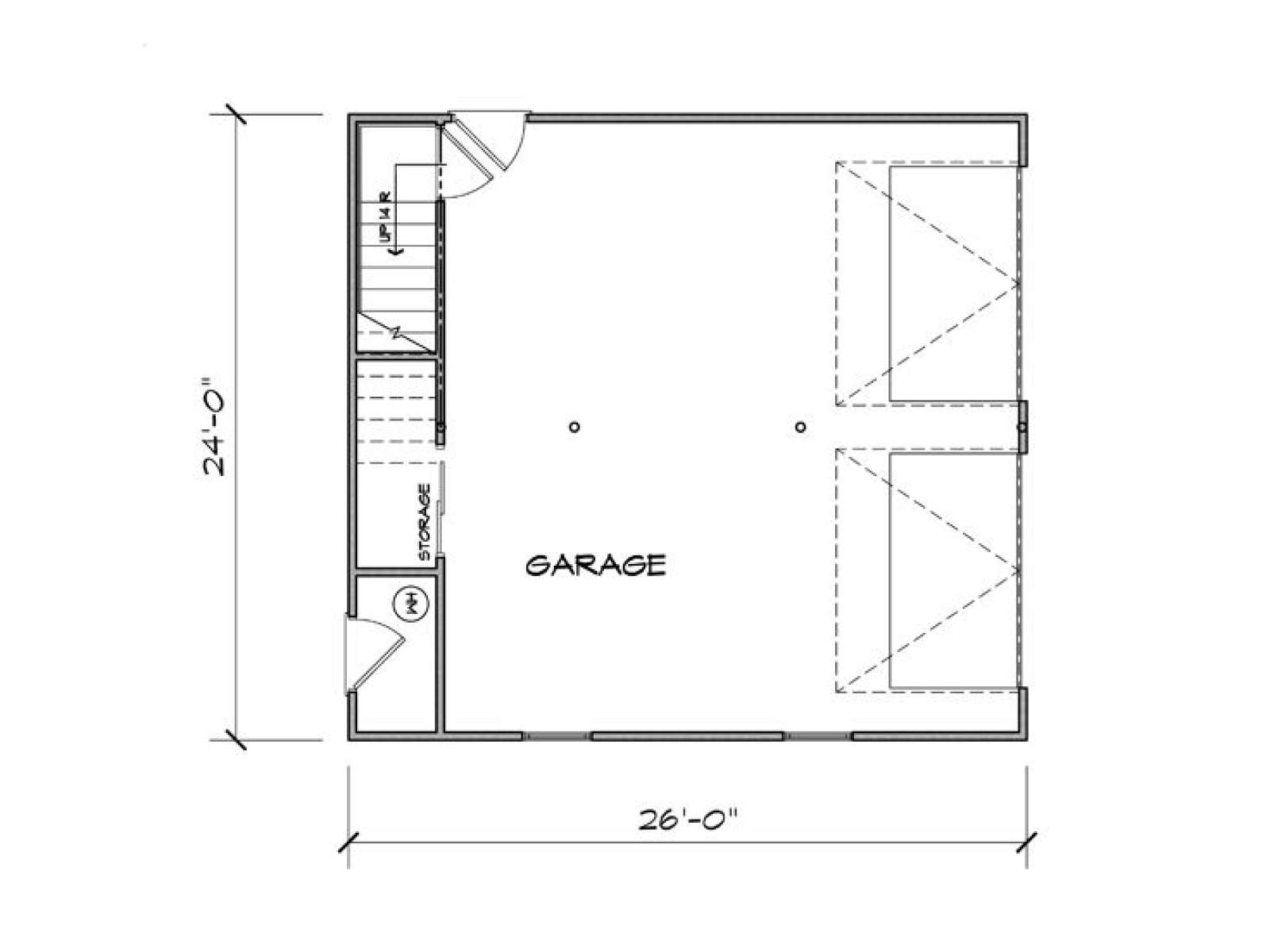

Storage area at the rear of the garage is ideal for lawn and garden tools

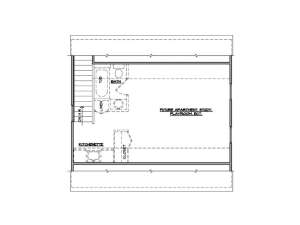

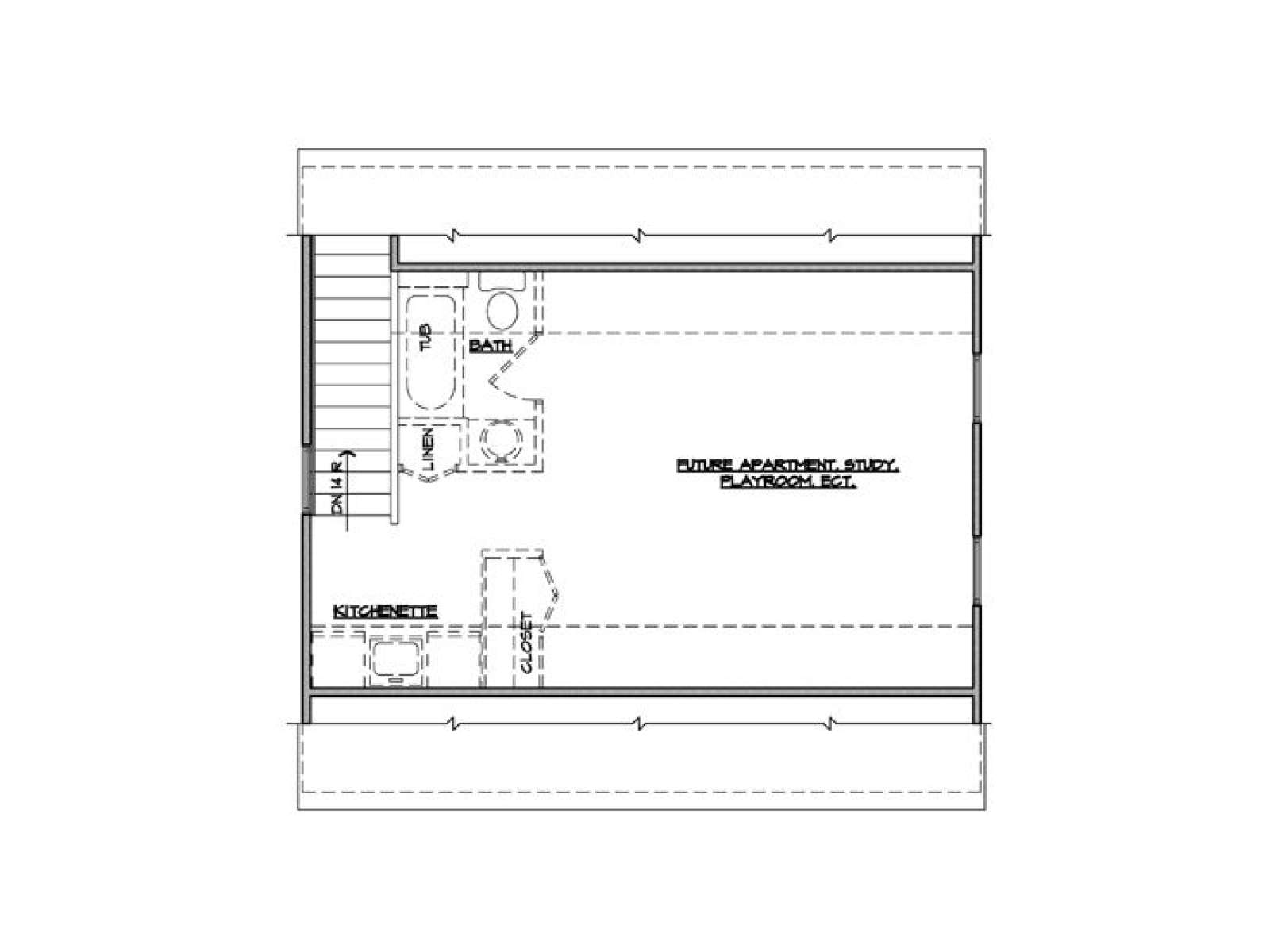

Loft area delivers 431 sf of storage space, but it can be converted to a future apartment with proposed bath and kitchenette

Unheated Square Feet
Garage 594
Loft 431
Width 24 ft. 0 in.
Depth 26 ft. 0 in.
Approximate Height 19 ft. 0 in.
Ceiling Height
First Floor 8 ft. 0 in.
Second Floor 7 ft. 7 in.
Roof Pitch 15/12 Main
Roof Pitch 5/12 Secondary
Roof Framing
  • Stick
Garage Door Size(s) 9x7 (2)
Foundation Options
  • Slab
Exterior Wall Options
  • 2x4
Garage Features
  • Apartment Access - Interior Stairs
  • Storage Space/Storage Closet/Attic

Detached two-car garage plan with loft offers extra parking and storage space
Gambrel roofline offers a barn-style look
Storage area at the rear of the garage is ideal for lawn and garden tools
Loft area delivers 431 sf of storage space, but it can be converted to a future apartment with proposed bath and kitchenette

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $25 n/a n/a n/a
Priority 3 - 4 business days $40 $90 $90 n/a
Express 1 - 2 business days $75 n/a n/a n/a
Info

There are no reviews

View more
Add your review
Garage with Gambrel Roof

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$495.00

Additional Options

Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are available for purchase within 90 days of the original purchase. [less] [more]

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] [more]
