Pavilion Plan, 052X-0005
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

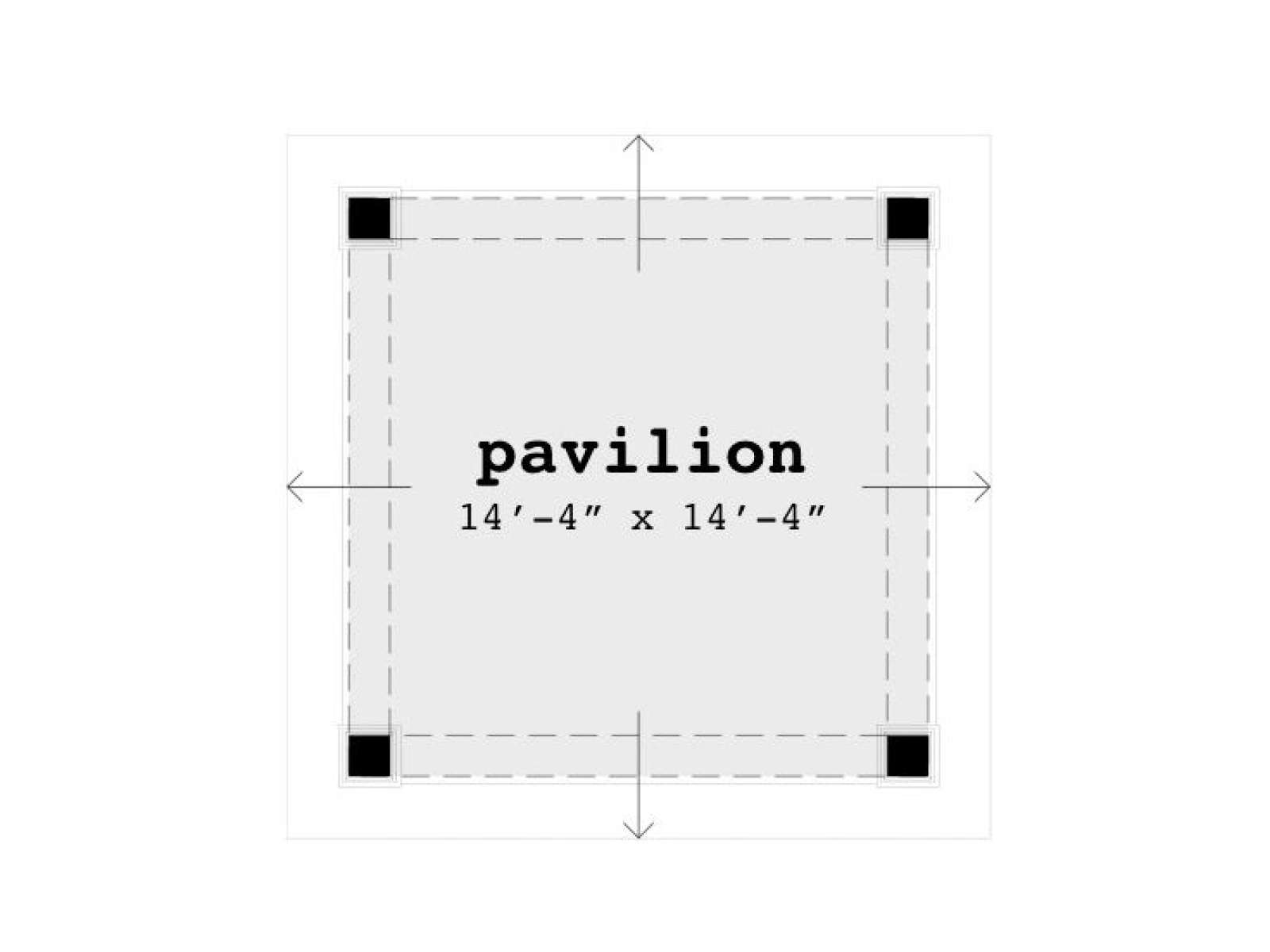

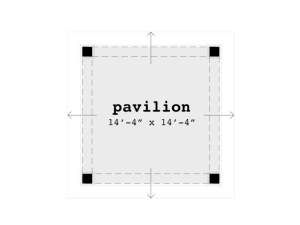

Picnic pavilion plan ideal beside a lake or pond
Provides a comfortable place to retreat from the sun
| Unheated Square Feet | |
| Other | 205 |
| Width | 17 ft. 0 in. |
| Depth | 17 ft. 0 in. |
| Approximate Height | 13 ft. 7 in. |
| Ceiling Height | |
| First Floor | 9 ft. 8 in. |
| Roof Pitch | 3.5/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Picnic pavilion plan ideal beside a lake or pond
Provides a comfortable place to retreat from the sun
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | n/a | n/a | n/a | n/a |
| Priority 3 - 4 business days | n/a | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
