RV Garage Plan, 051G-0124

Plan 051G-0124
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

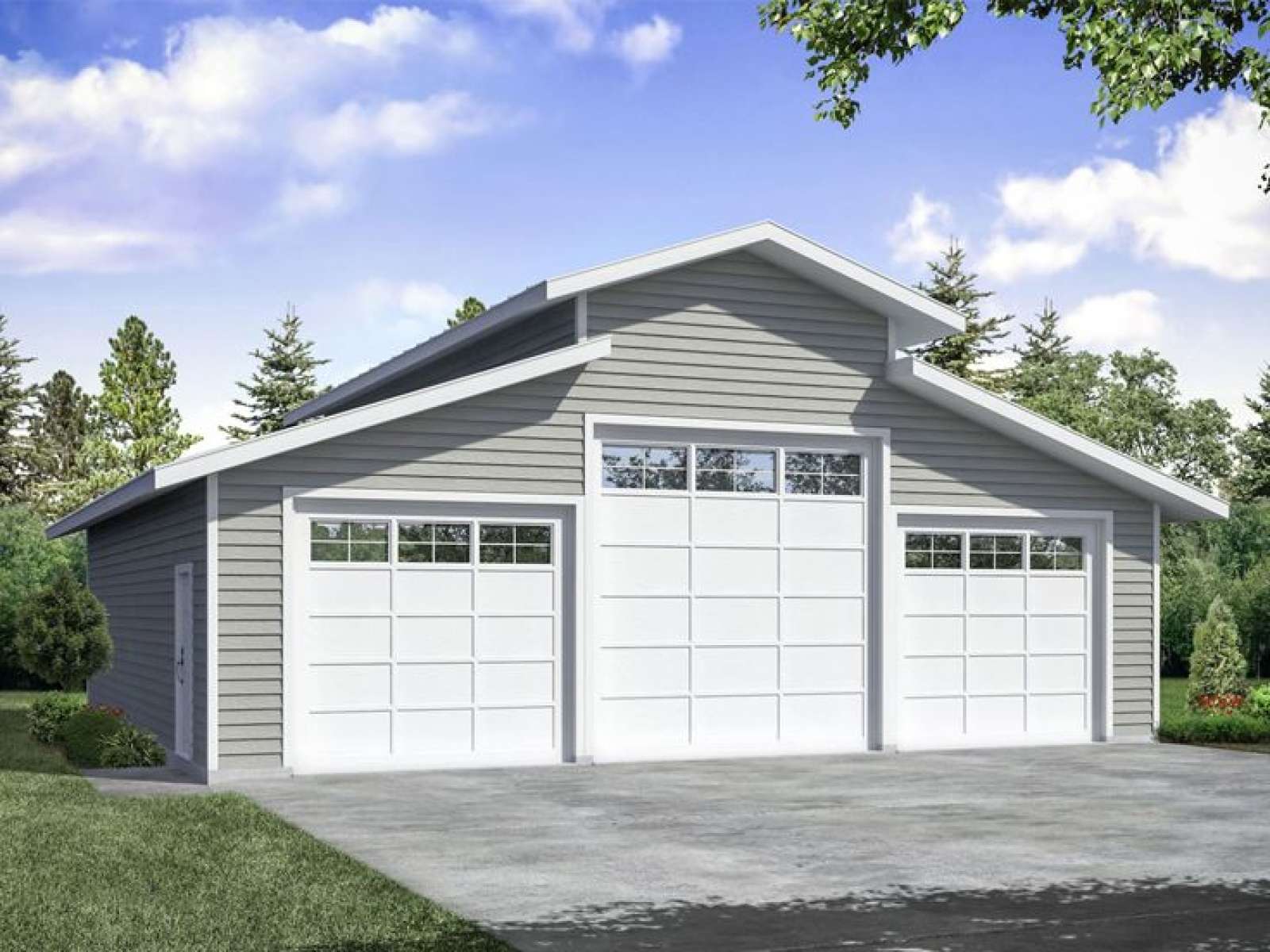

Outbuilding plan or over-sized RV garage is flexible enough to handle a variety of needs
Well suited for up to four cars plus your RV, boat, or motor home
Open floor plan is just right for farm equipment and other machinery
Adaptable for use as workshop or home-based business

Unheated Square Feet
Garage 1600
Width 40 ft. 0 in.
Depth 40 ft. 0 in.
Approximate Height 20 ft. 5 in.
Ceiling Height
First Floor 10 ft. 0 in.
Roof Pitch 4/12 Main
Roof Framing
  • Stick
Garage Door Size(s) 12x12
Garage Door Size(s) 10x9 (2)
Foundation Options
  • Slab
Exterior Wall Options
  • 2x6

Outbuilding plan or over-sized RV garage is flexible enough to handle a variety of needs
Well suited for up to four cars plus your RV, boat, or motor home
Open floor plan is just right for farm equipment and other machinery
Adaptable for use as workshop or home-based business

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $30 n/a n/a n/a
Priority 3 - 4 business days $70 n/a n/a n/a
Express 1 - 2 business days n/a n/a n/a n/a
Info

There are no reviews

View more
Add your review

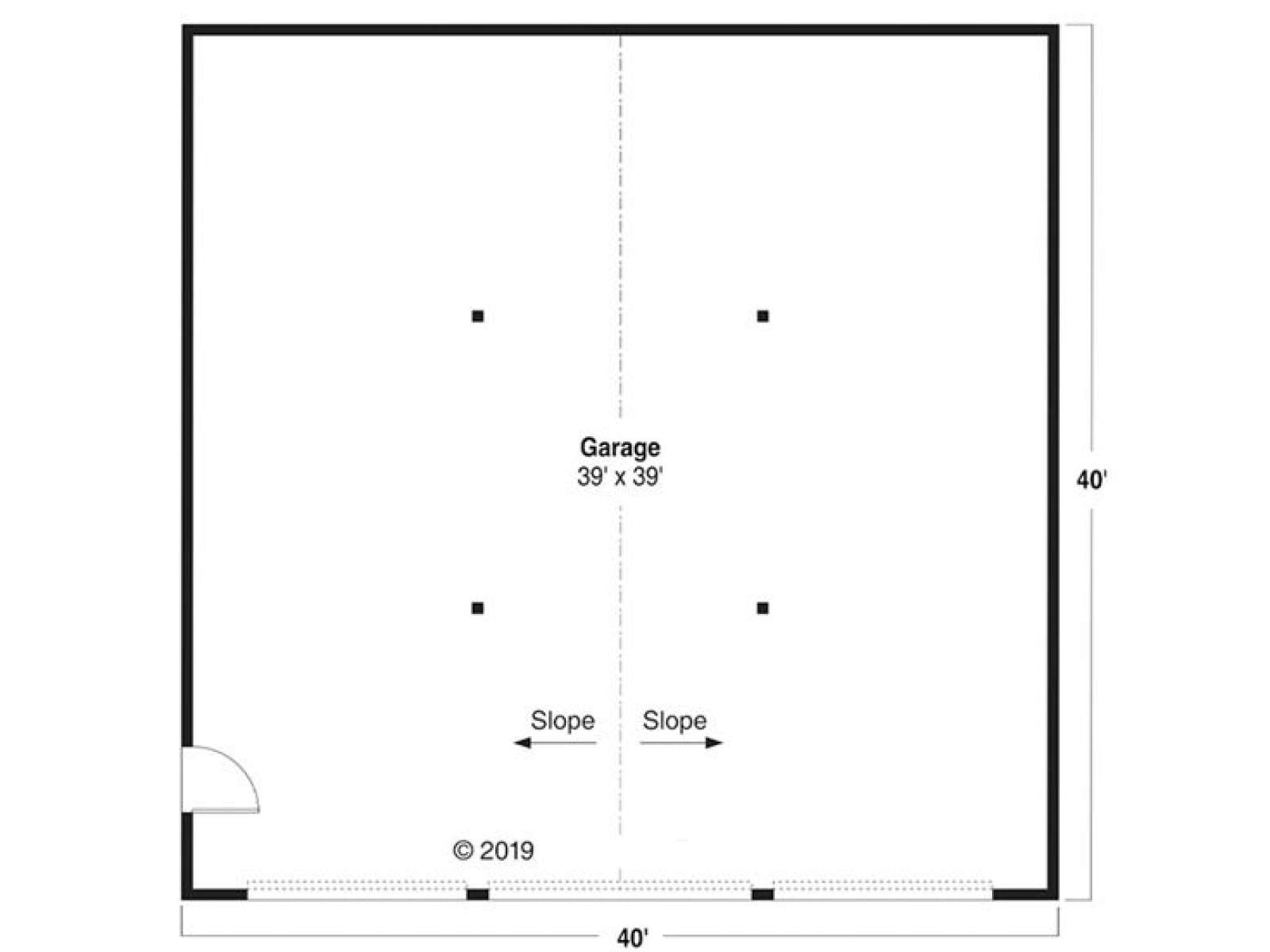

40'x40' Outbuilding

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$605.00

Additional Options

Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are available for purchase within 90 days of the original purchase. [less] [more]

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]
