Garage or Outbuilding Plan, 051G-0116

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

Add functionality to your property with this outbuilding or garage plan
Sliding barn door lends easy access to the oversize garage which is deep enough for storing a boat

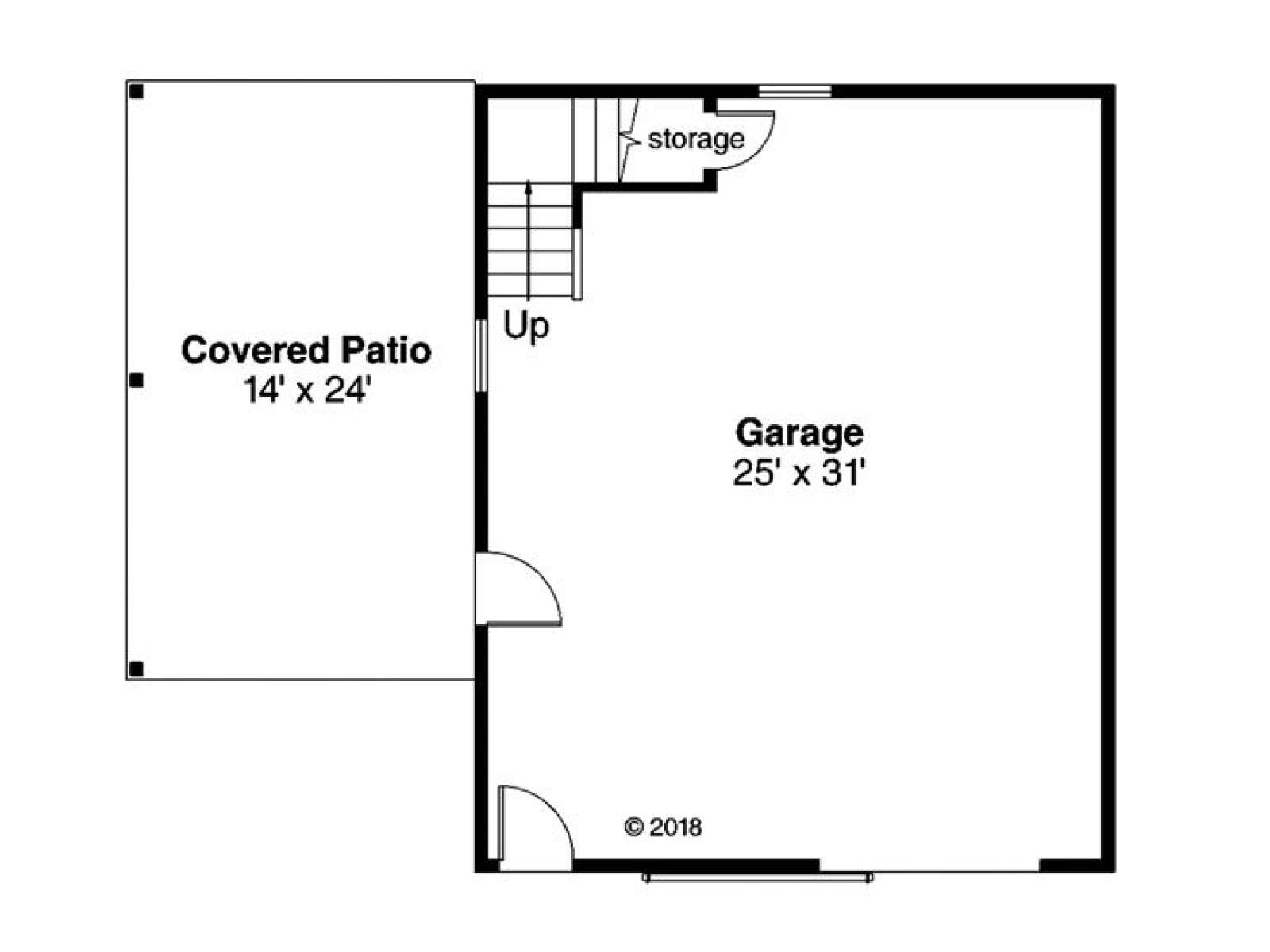

Enjoy grilling and relaxing on the covered patio

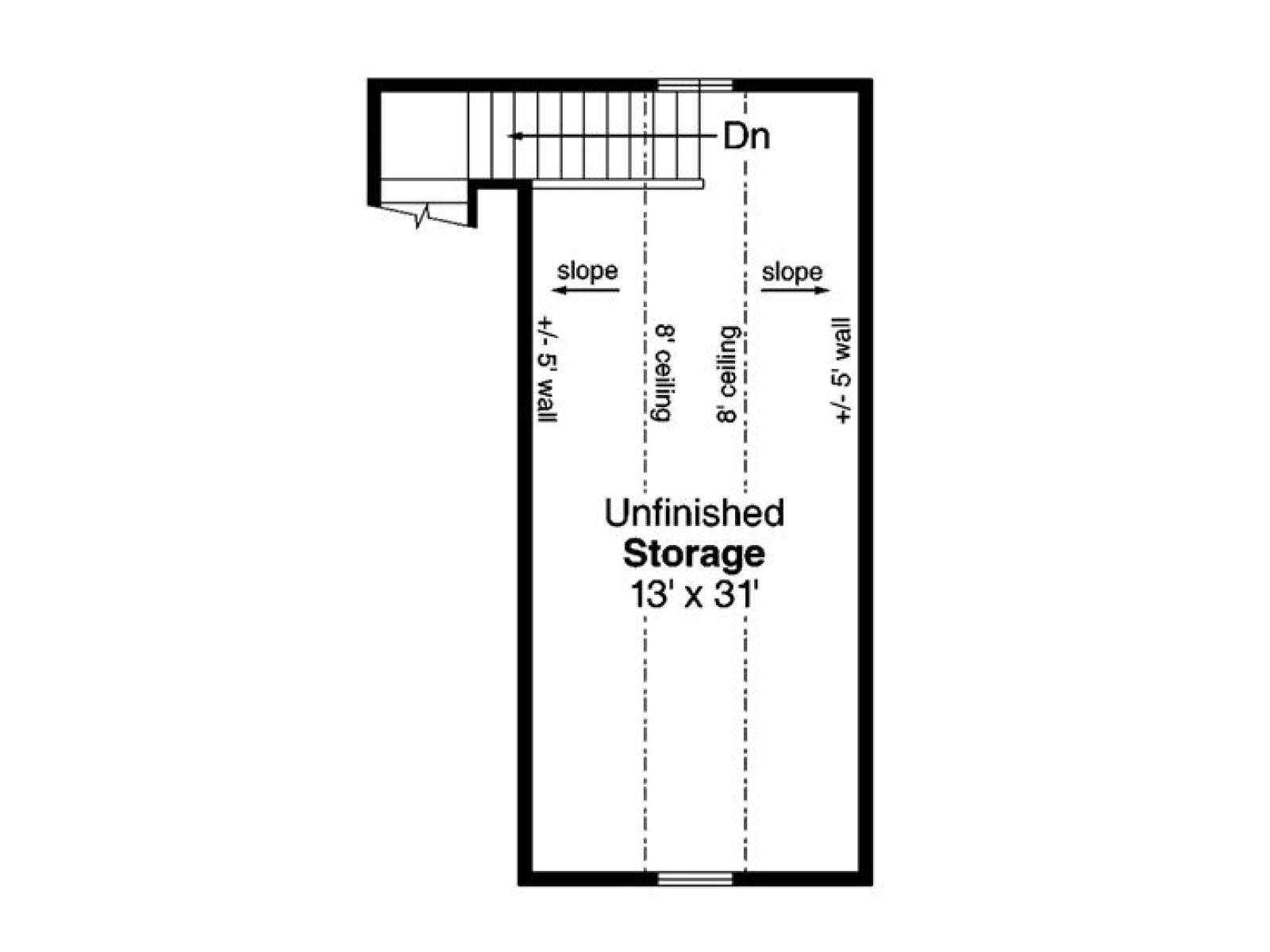

Unfinished loft is suitable for seasonal items or basement and attic overflow

Unheated Square Feet
Garage	832
Loft	419
Width	40 ft. 0 in.
Depth	32 ft. 0 in.
Approximate Height	20 ft. 9 in.
Ceiling Height
First Floor	9 ft. 0 in.
Second Floor	8 ft. 0 in.
Roof Pitch	6/12 Main
Roof Framing	Stick and Truss
Garage Door Size(s)	9x8
Foundation Options	Slab
Exterior Wall Options	2x6

Exterior Features

Patio/Terrace/Lanai

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.
