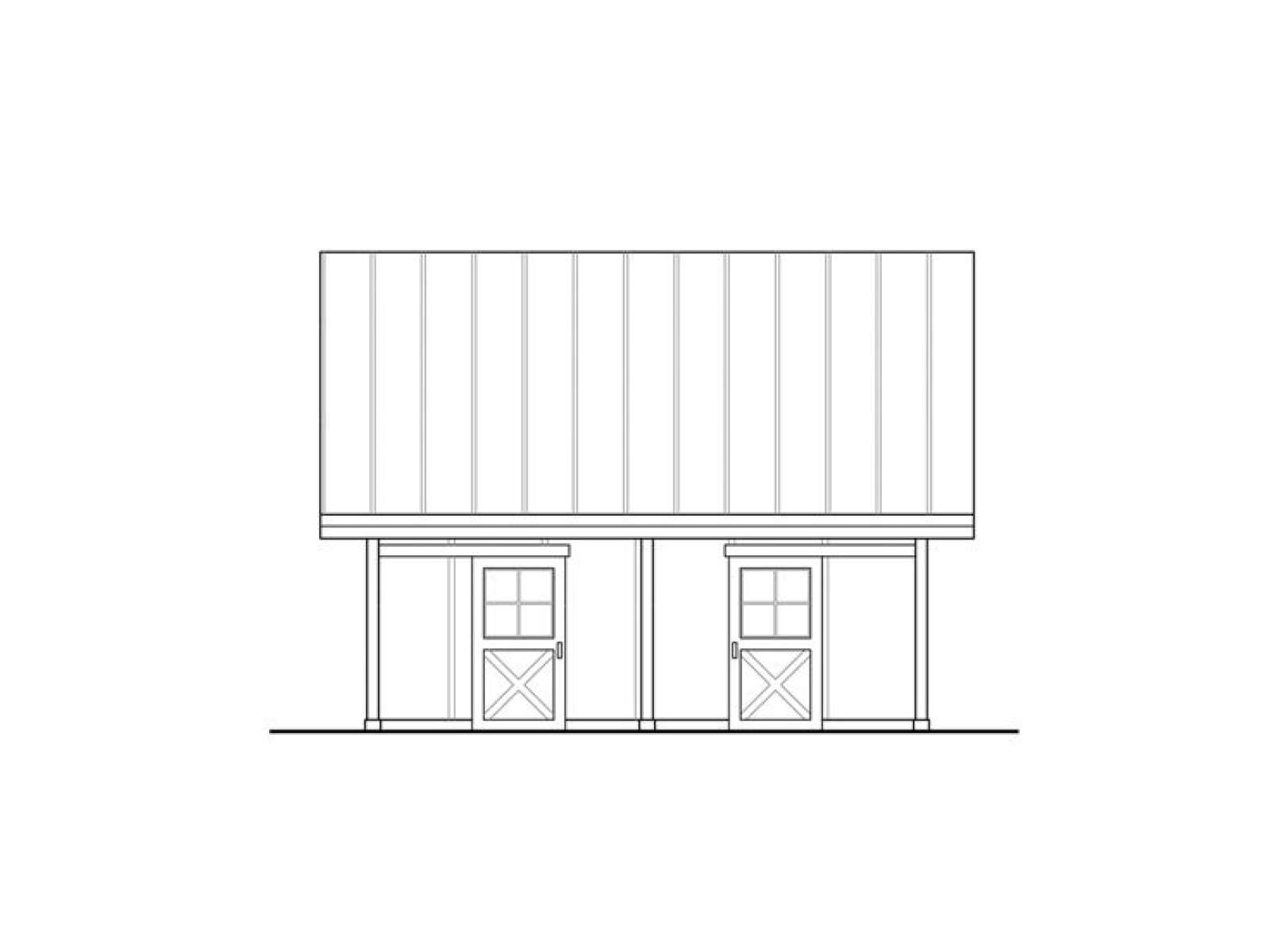

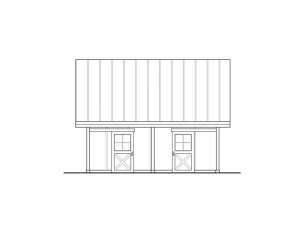

Barn Plan, Rear, 051B-0004
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

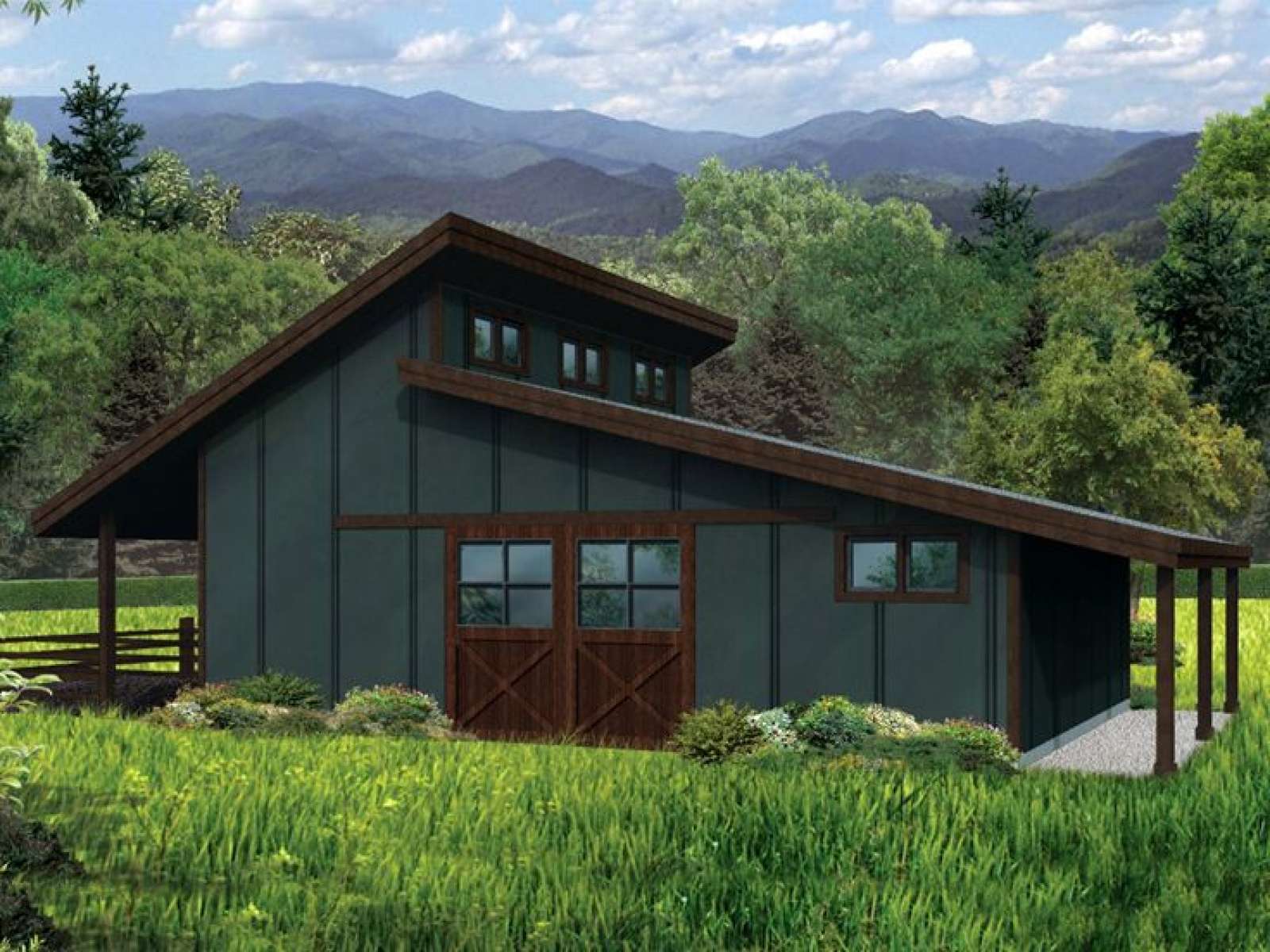

Horse barn plan showcases modern styling

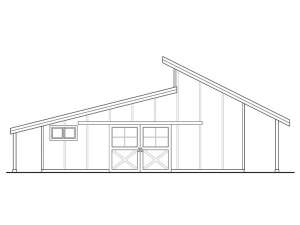

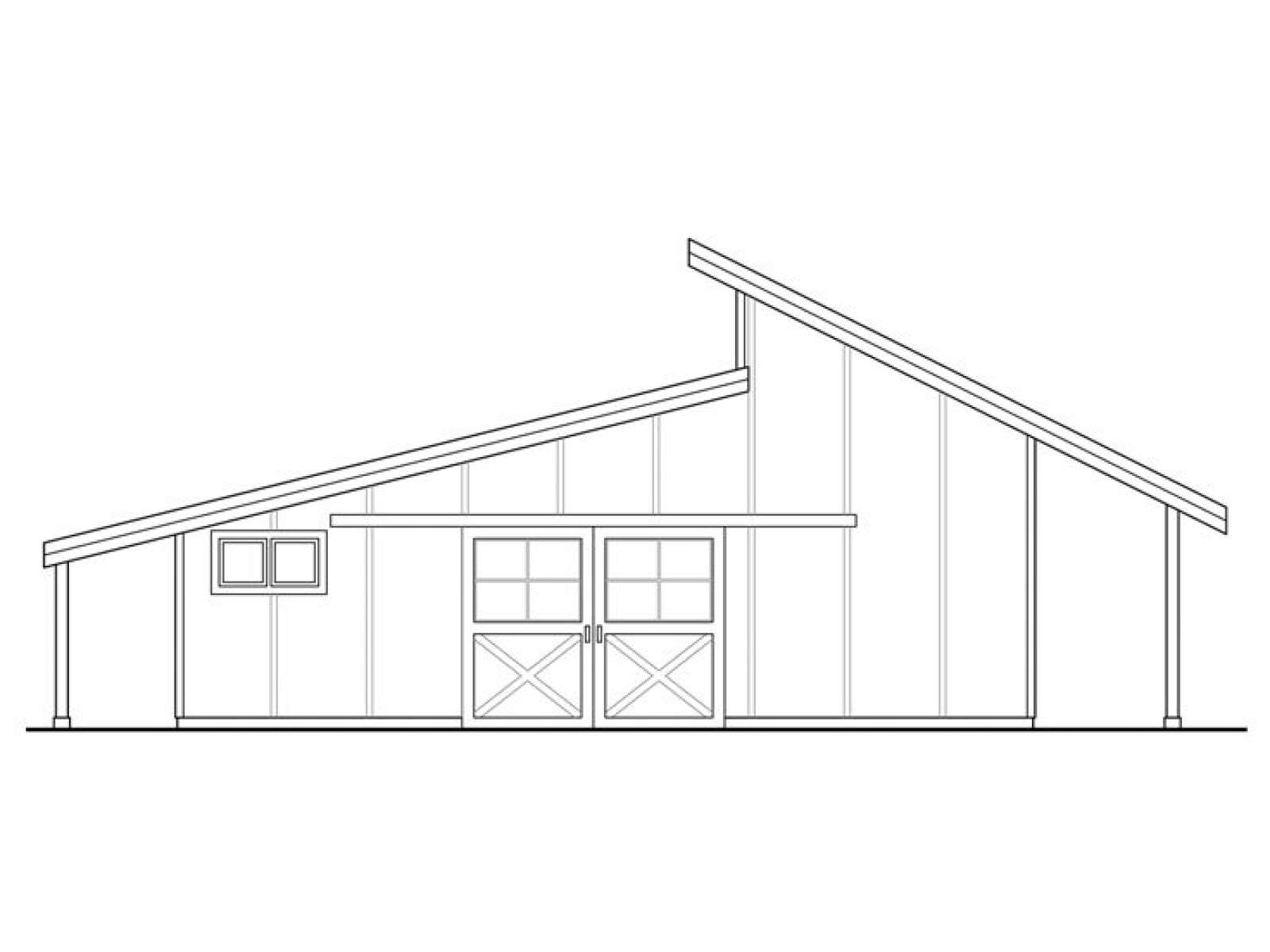

Sliding doors at both ends of the center aisle offer convenience and easy access to the interior

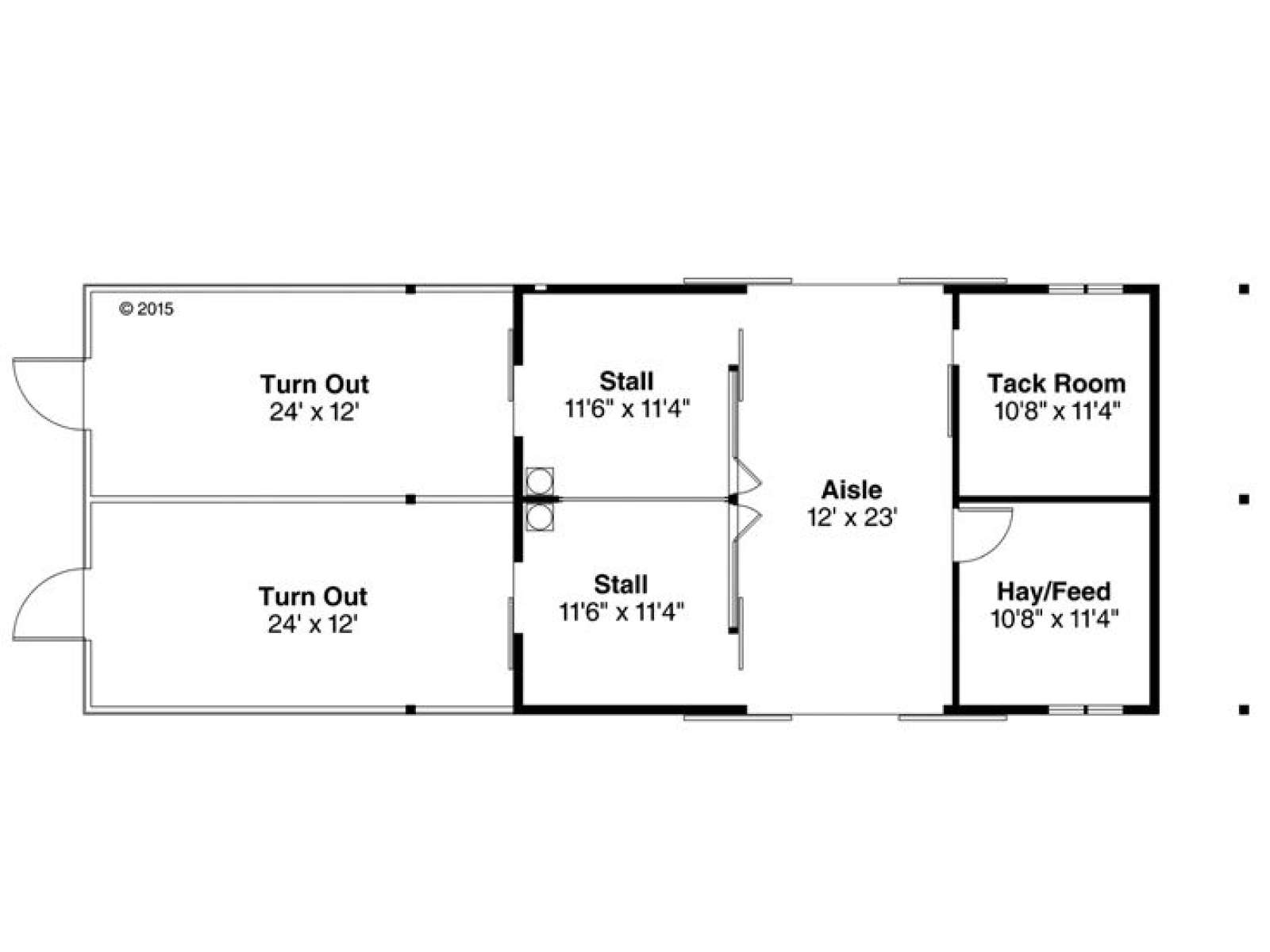

Floor plan features two horse stalls with turn outs, feed room, and tack room
| Unheated Square Feet | |
| Outbuilding/Barn | 864 |
| Width | 65 ft. 0 in. |
| Depth | 24 ft. 0 in. |
| Approximate Height | 20 ft. 7 in. |
| Ceiling Height | |
| First Floor | 8 ft. 0 in. |
| Roof Pitch | 3/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Horse barn plan showcases modern styling
Sliding doors at both ends of the center aisle offer convenience and easy access to the interior
Floor plan features two horse stalls with turn outs, feed room, and tack room
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $30 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $70 | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
