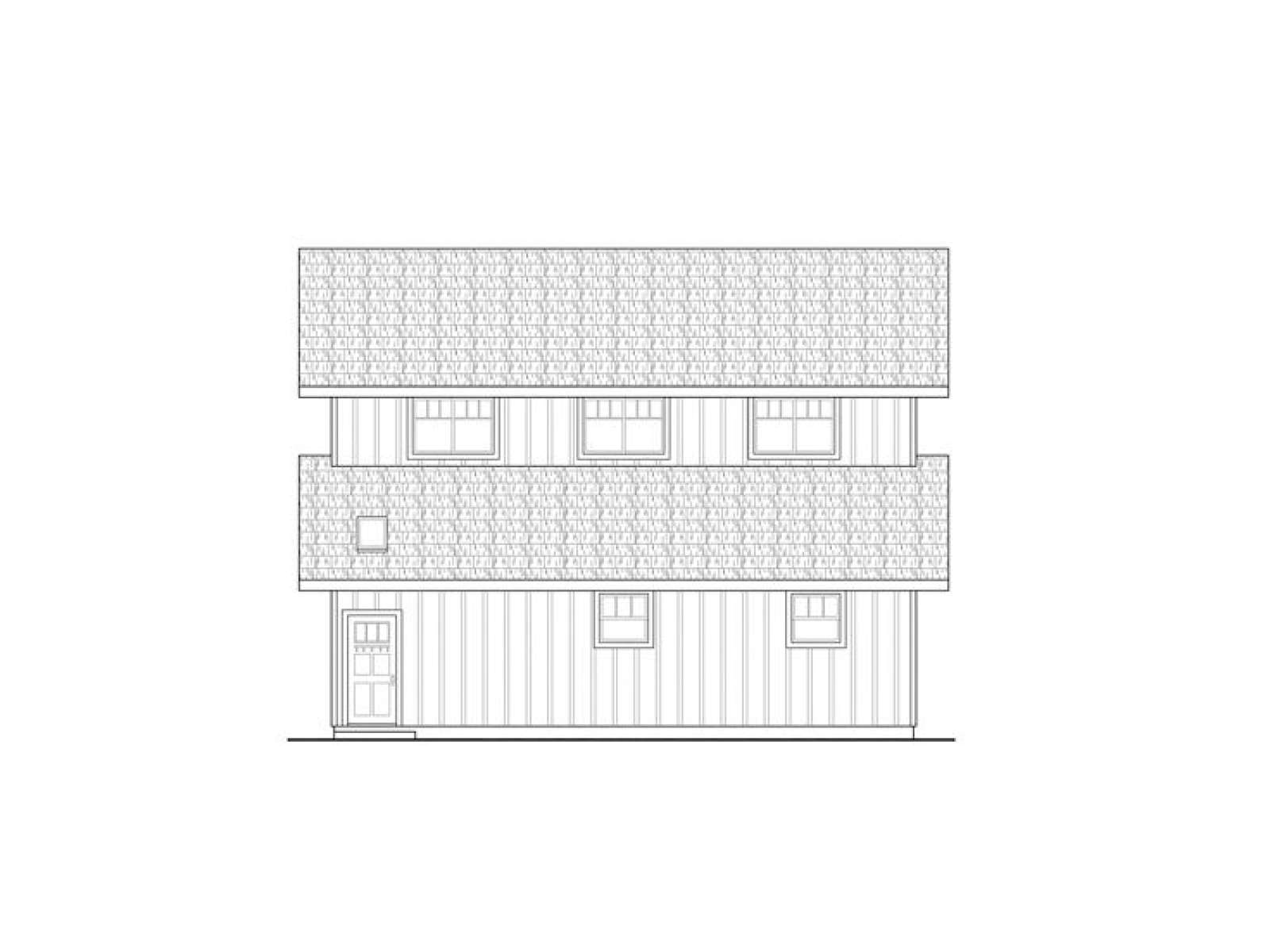

Barn Plan, 051B-0003
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Flexible barn plan adds functionality and storage to any rural piece of property

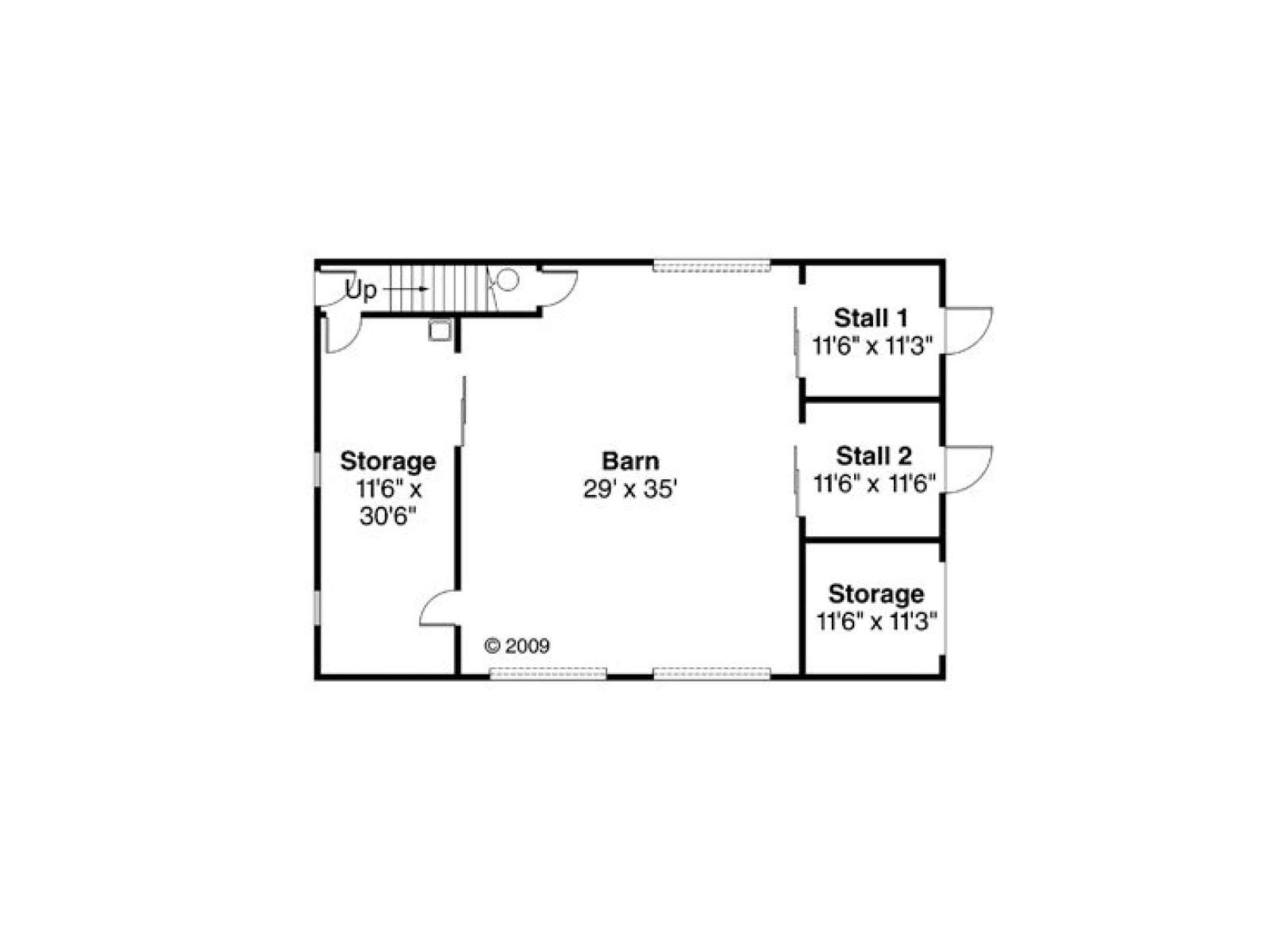

Barn area features two overhead doors suitable for storing horse trailers or other farm equipment and machinery
Two animal stalls accommodate horses
Two storage areas are suitable for tool storage or feed and tack

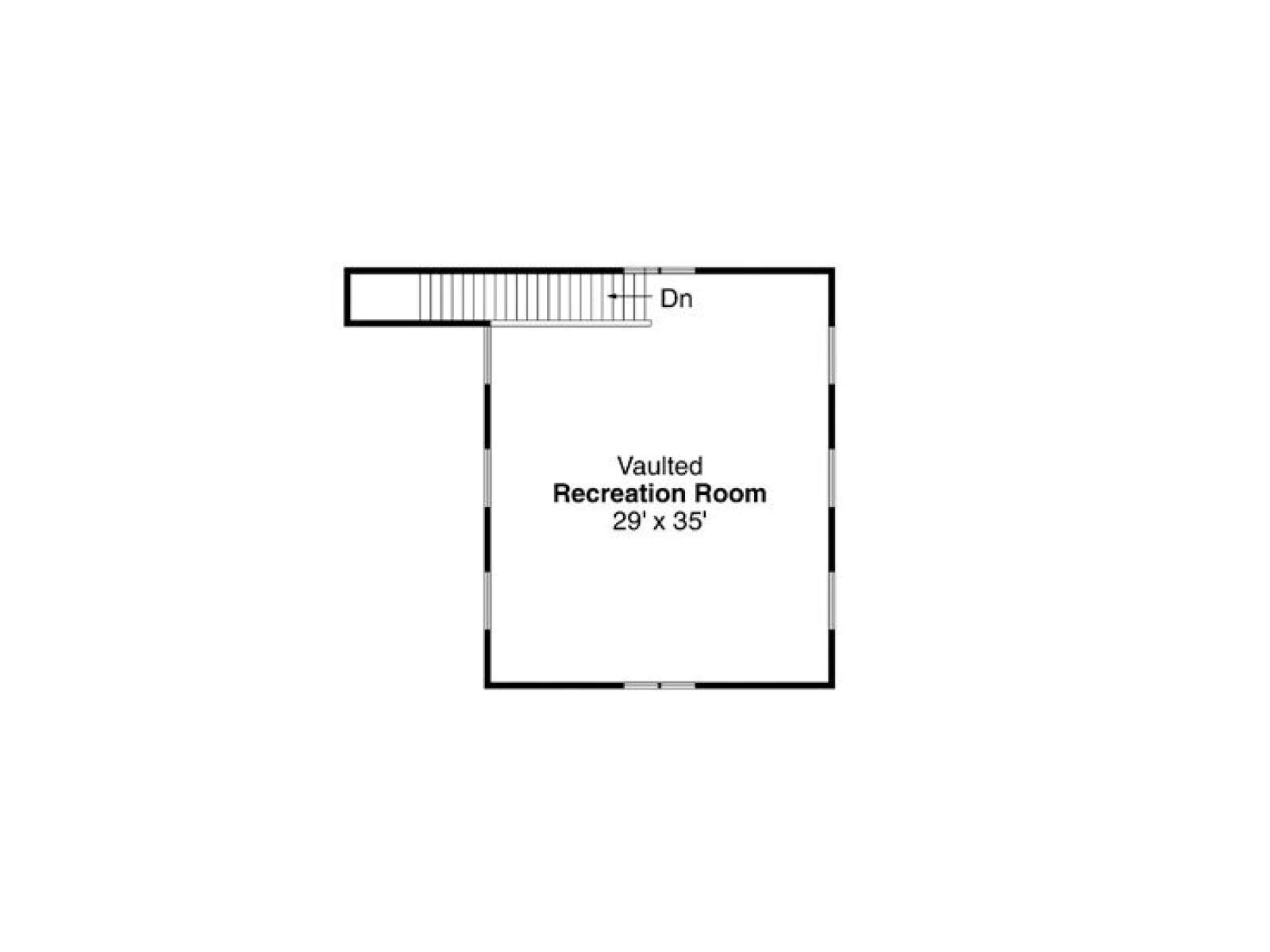

Upper level rec room can be used as a man cave or a game room for your farm hands to kick back and relax at the end of the day
| Heated Square Feet | |
| Second Floor | 1018 |
| Total | 1018 |
| Unheated Square Feet | |
| Outbuilding/Barn | 1944 |
| Width | 54 ft. 0 in. |
| Depth | 36 ft. 0 in. |
| Approximate Height | 30 ft. 4 in. |
| Ceiling Height | |
| First Floor | 12 ft. 0 in. |
| Roof Pitch | 6/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Flexible barn plan adds functionality and storage to any rural piece of property
Barn area features two overhead doors suitable for storing horse trailers or other farm equipment and machinery
Two animal stalls accommodate horses
Two storage areas are suitable for tool storage or feed and tack
Upper level rec room can be used as a man cave or a game room for your farm hands to kick back and relax at the end of the day
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
