Gazebo or Pavilion Plan, 050X-0008
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

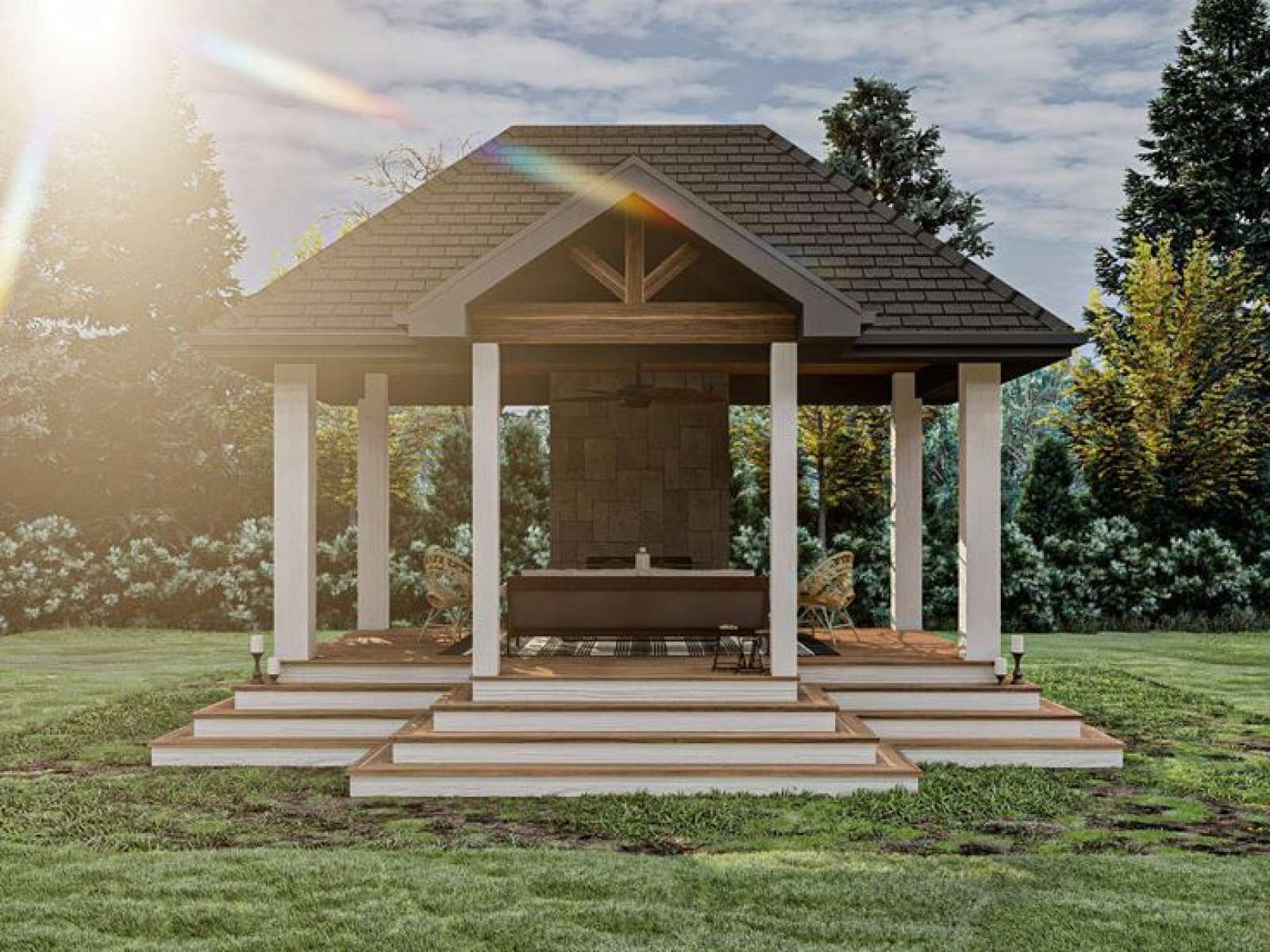

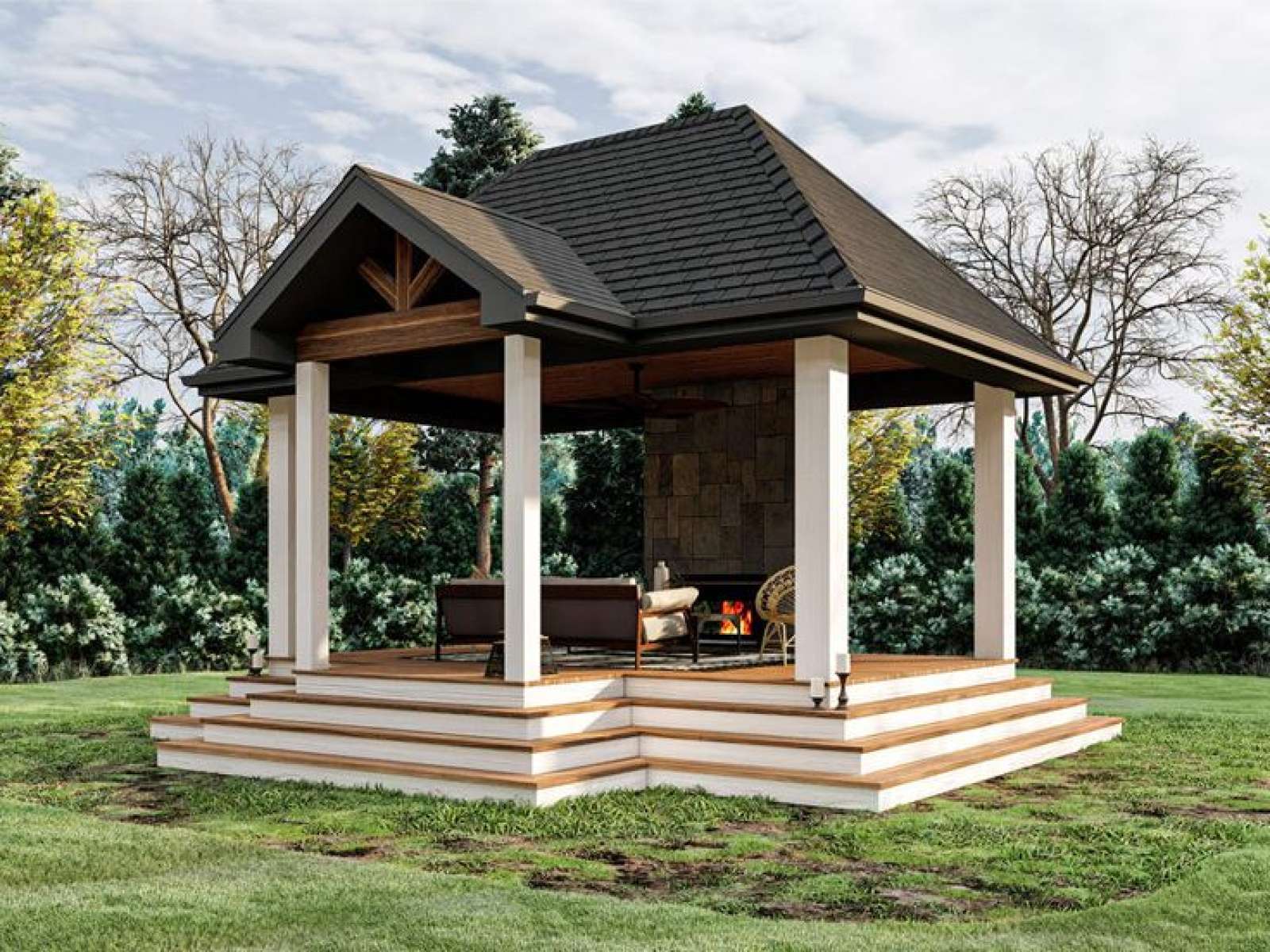

Charming gazebo will be the focal point of any backyard, flower garden or neighborhood park
Design features a fireplace making it a great place to relax during spring, summer, and fall
Plans call for 12x12 posts and a concrete pier foundation
| Unheated Square Feet | |
| Other | 272 |

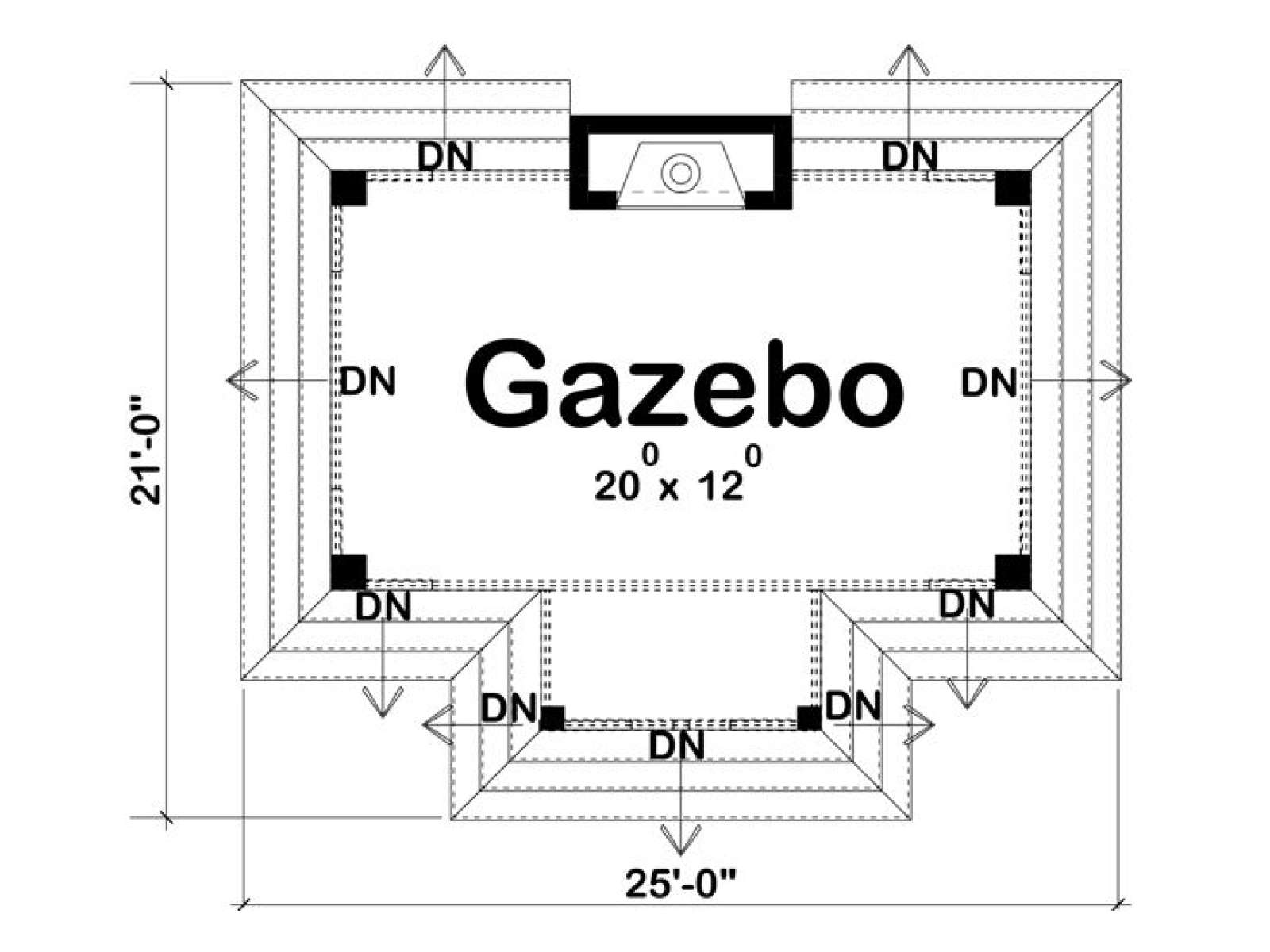

| Width | 25 ft. 0 in. |
| Depth | 21 ft. 0 in. |
| Approximate Height | 19 ft. 6 in. |
| Roof Pitch | 12/12 Main |
| Roof Pitch | 8/12 Other |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Special Features |
|
Charming gazebo will be the focal point of any backyard, flower garden or neighborhood park
Design features a fireplace making it a great place to relax during spring, summer, and fall
Plans call for 12x12 posts and a concrete pier foundation
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $30 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $70 | n/a | $90 | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
