Gazebo Plan, 050X-0002
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

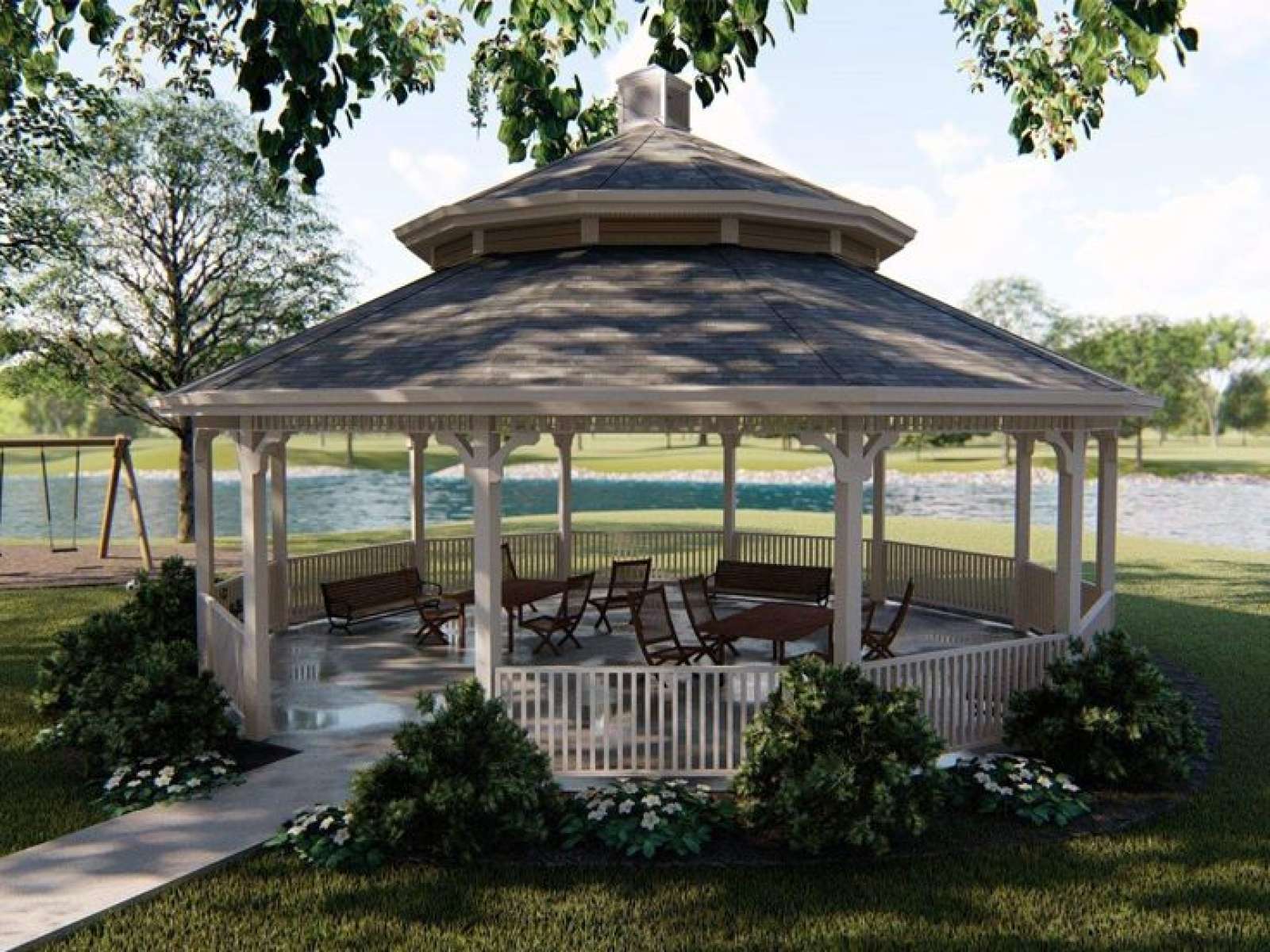

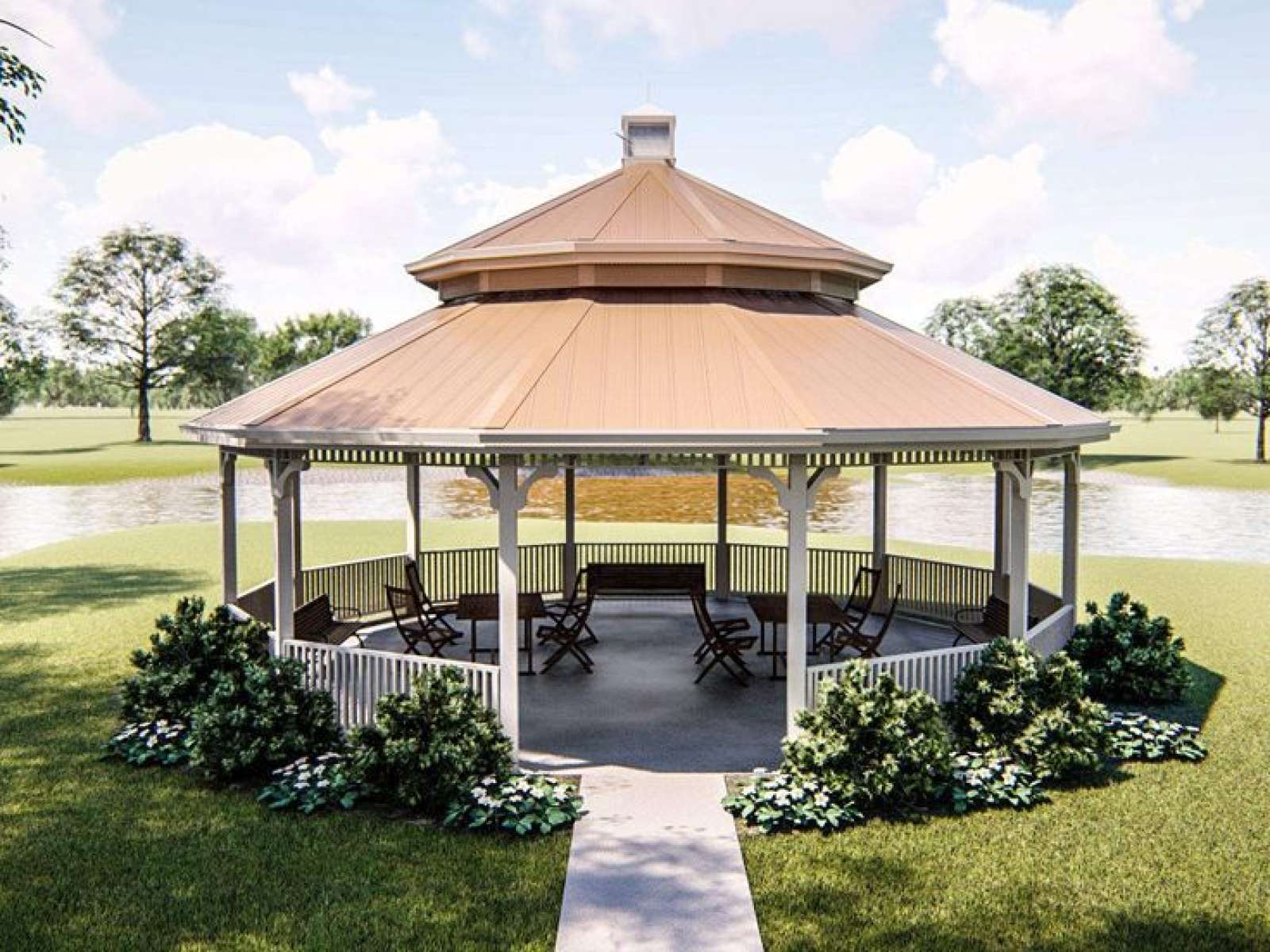

Large gazebo or pavilion plan is well suited for community parks and flower gardens
Decorative details add a touch of charm
Spacious enough to accommodate a few benches or a couple of picnic tables
Plans call for 8x8 posts and a concrete pier foundation
| Unheated Square Feet | |
| Other | 823 |

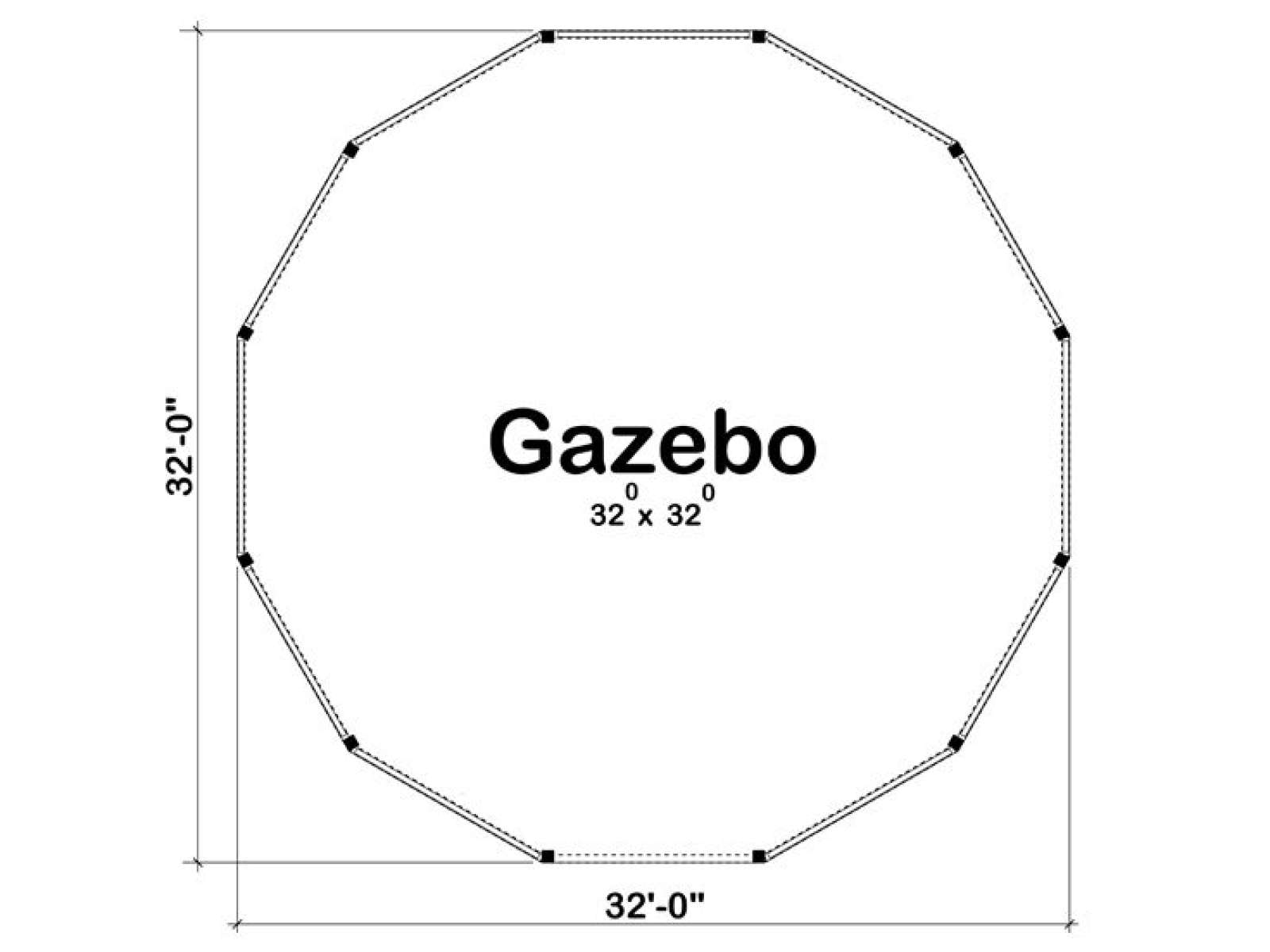

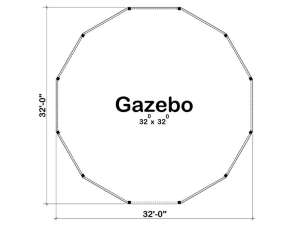

| Width | 32 ft. 0 in. |
| Depth | 32 ft. 0 in. |
| Approximate Height | 23 ft. 3 in. |
| Roof Pitch | 6/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Large gazebo or pavilion plan is well suited for community parks and flower gardens
Decorative details add a touch of charm
Spacious enough to accommodate a few benches or a couple of picnic tables
Plans call for 8x8 posts and a concrete pier foundation
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $30 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $70 | n/a | $90 | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
