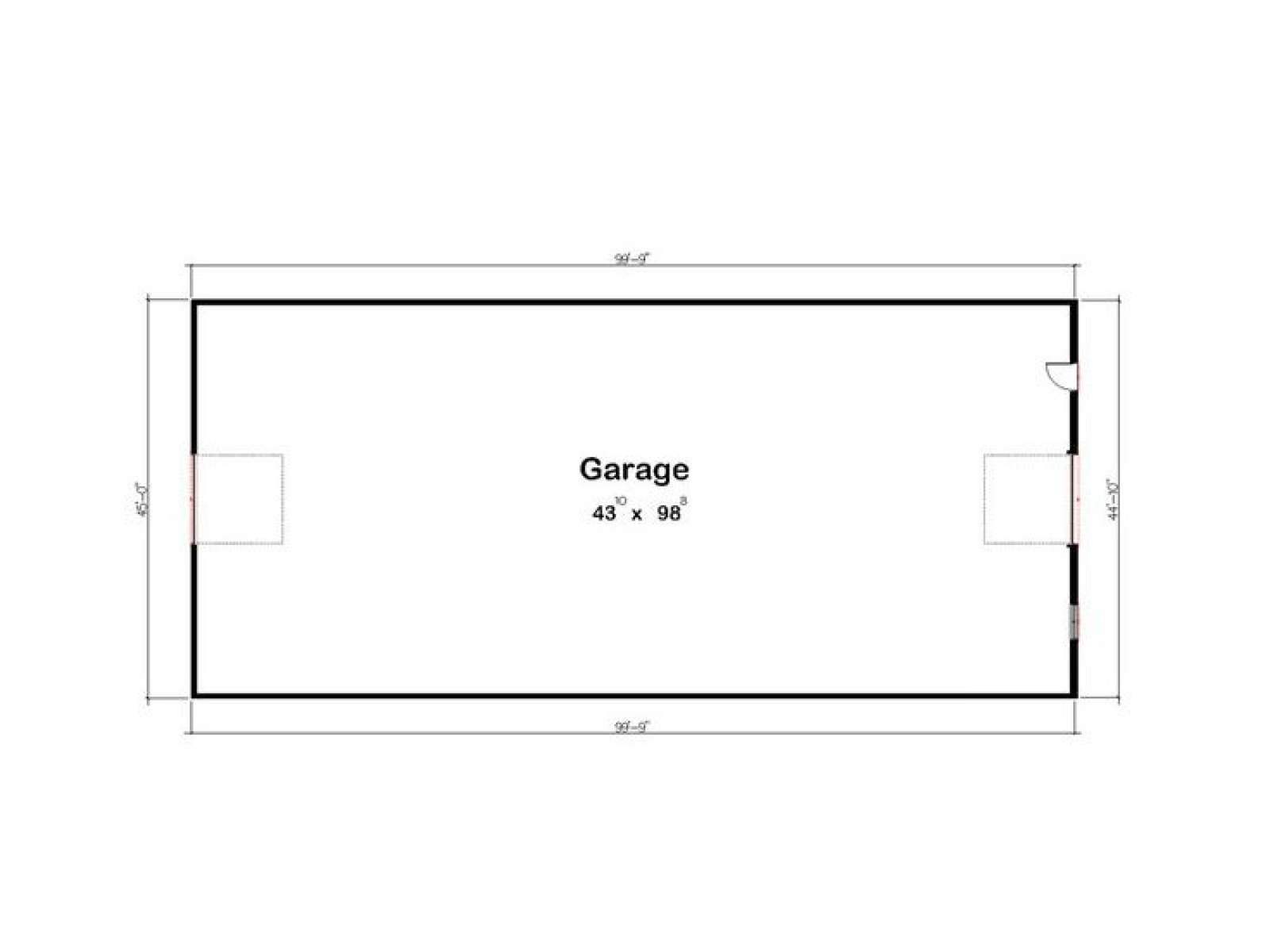

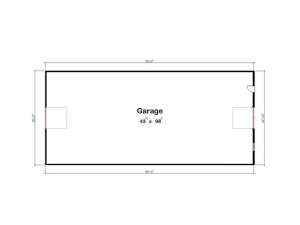

Drive-Thru Garage, 050G-0067

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

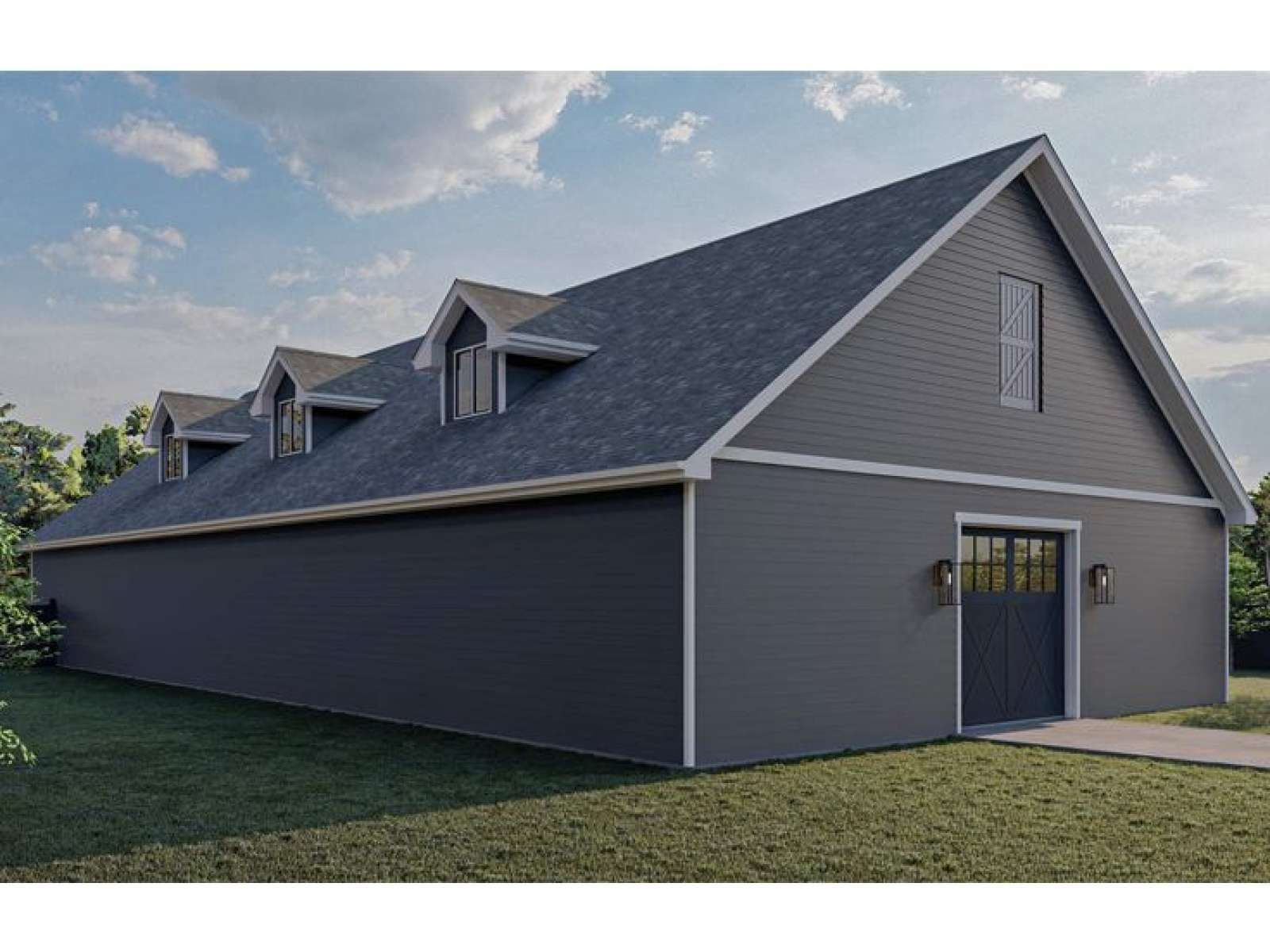

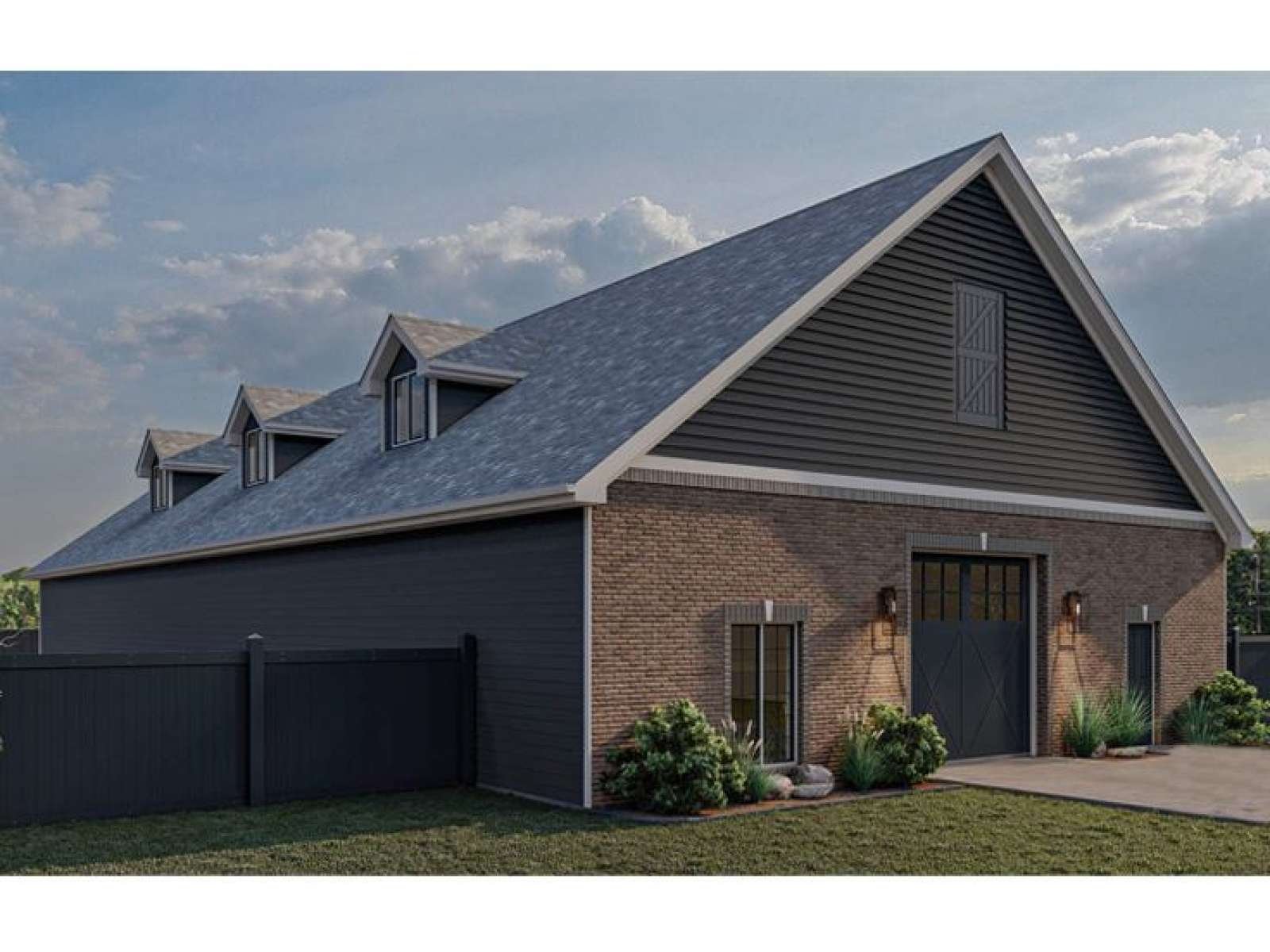

Over-sized drive-thru garage plan offers plenty of storage for vehicles and motorized equipment
Garage doors on each end make it is easy to pull vehicles straight through the garage
Ideal for parking 4 or more vehicles in tandem style or nicely accommodate s boat
Suitable for use as an outbuilding on any large piece of property

Unheated Square Feet
Garage	4439
Width	45 ft. 0 in.
Depth	100 ft. 1 in.
Approximate Height	29 ft. 7 in.
Ceiling Height
First Floor	12 ft. 0 in.
Roof Pitch	9/12 Main
Roof Framing	Truss
Foundation Options	Slab
Exterior Wall Options	2x6

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	$30	n/a	n/a	n/a
Priority 3 - 4 business days	$70	n/a	$90	n/a
Express 1 - 2 business days	n/a	n/a	n/a	n/a

There are no reviews

Add your review

Over-Sized Drive-Thru Garage

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Material List for Plan 050G-0067: $300.00

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] …[more]

Right Reading Reverse for Plan 050G-0067: $300.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]
