Outbuilding Plan, 050B-0001

Reverse All Images

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

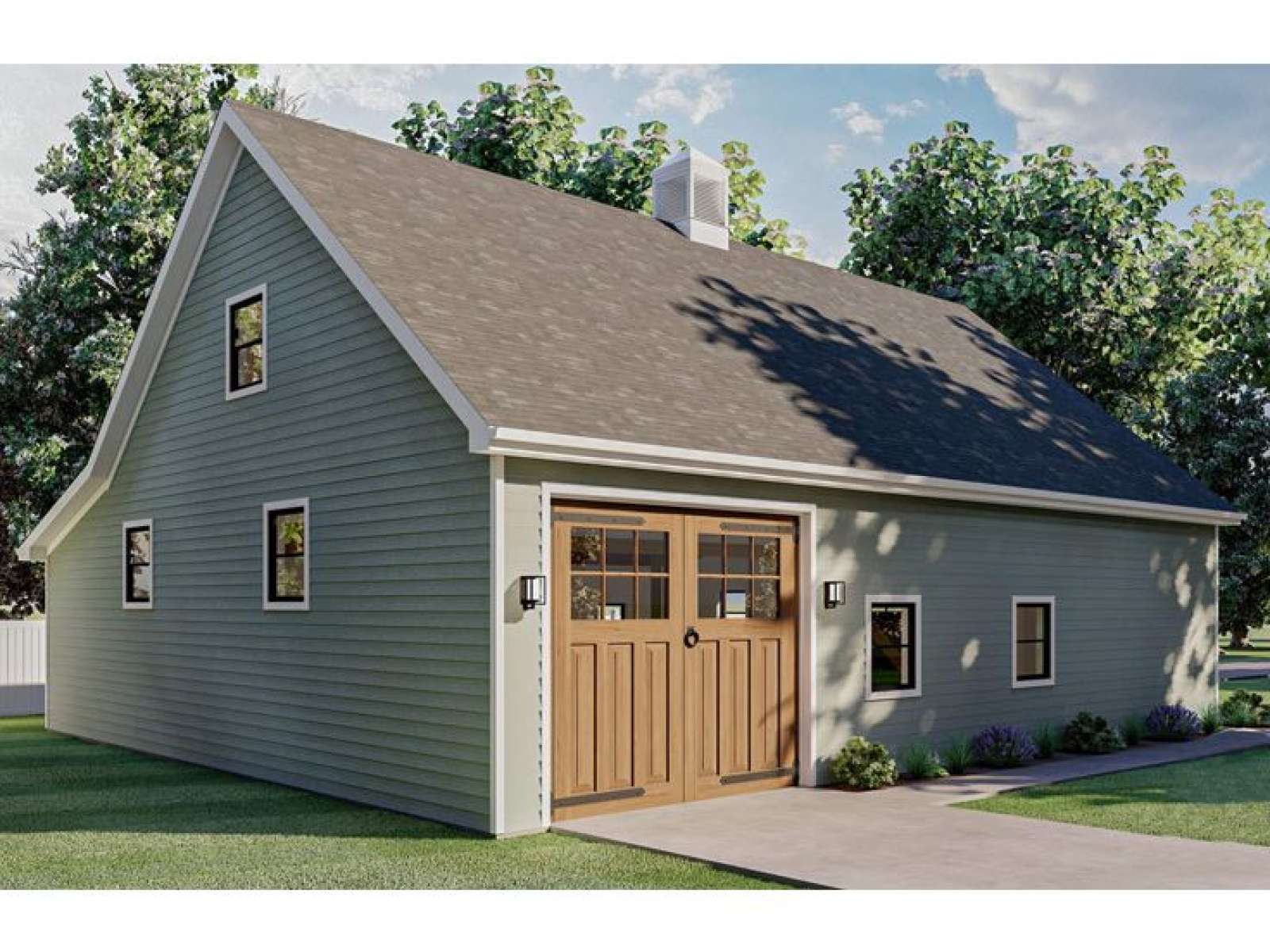

Versatile outbuilding plan with loft is suitable for a large piece of property
Suitable for use as a machine shed, workshop, storage area, garage or hobby space

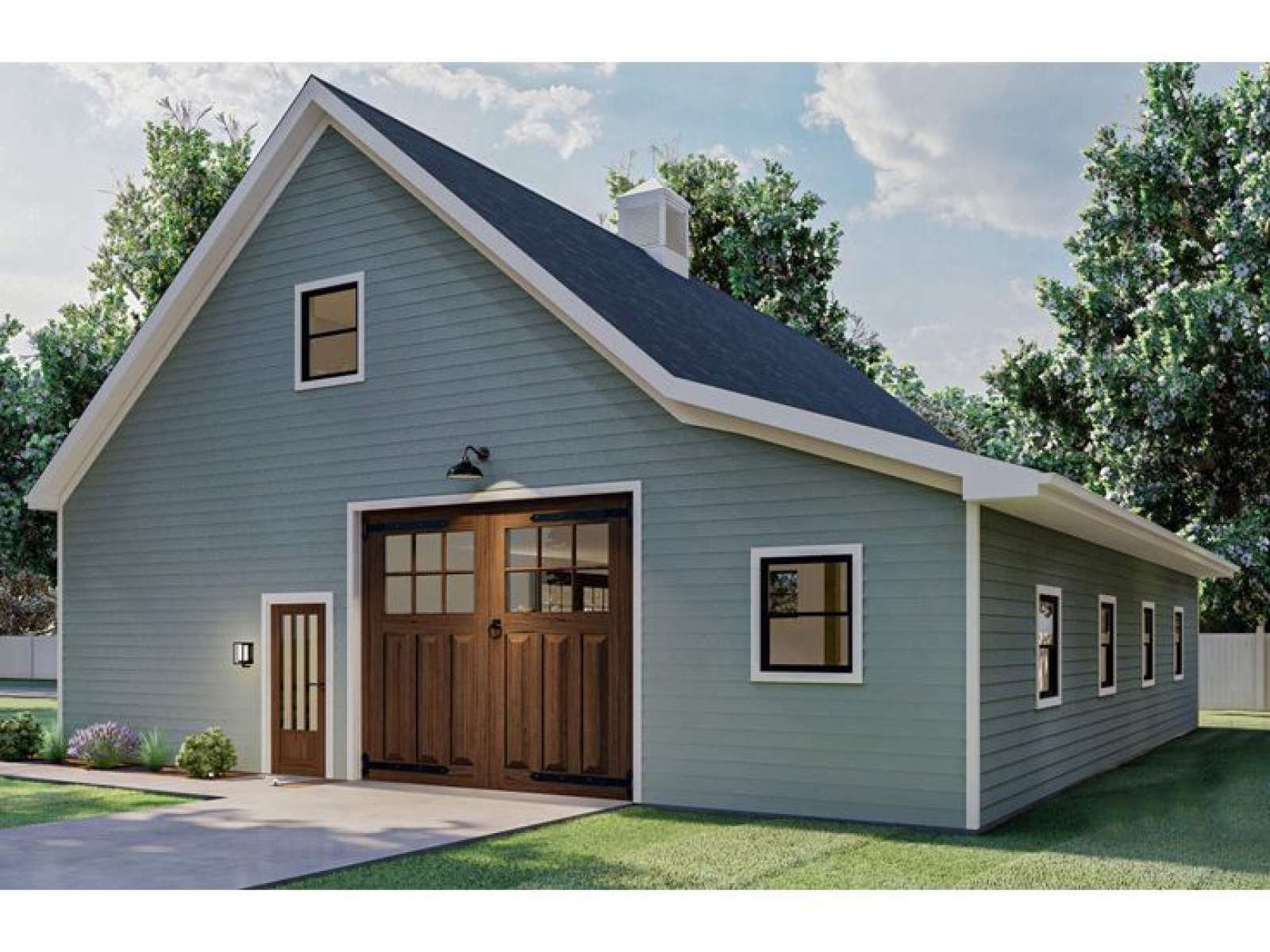

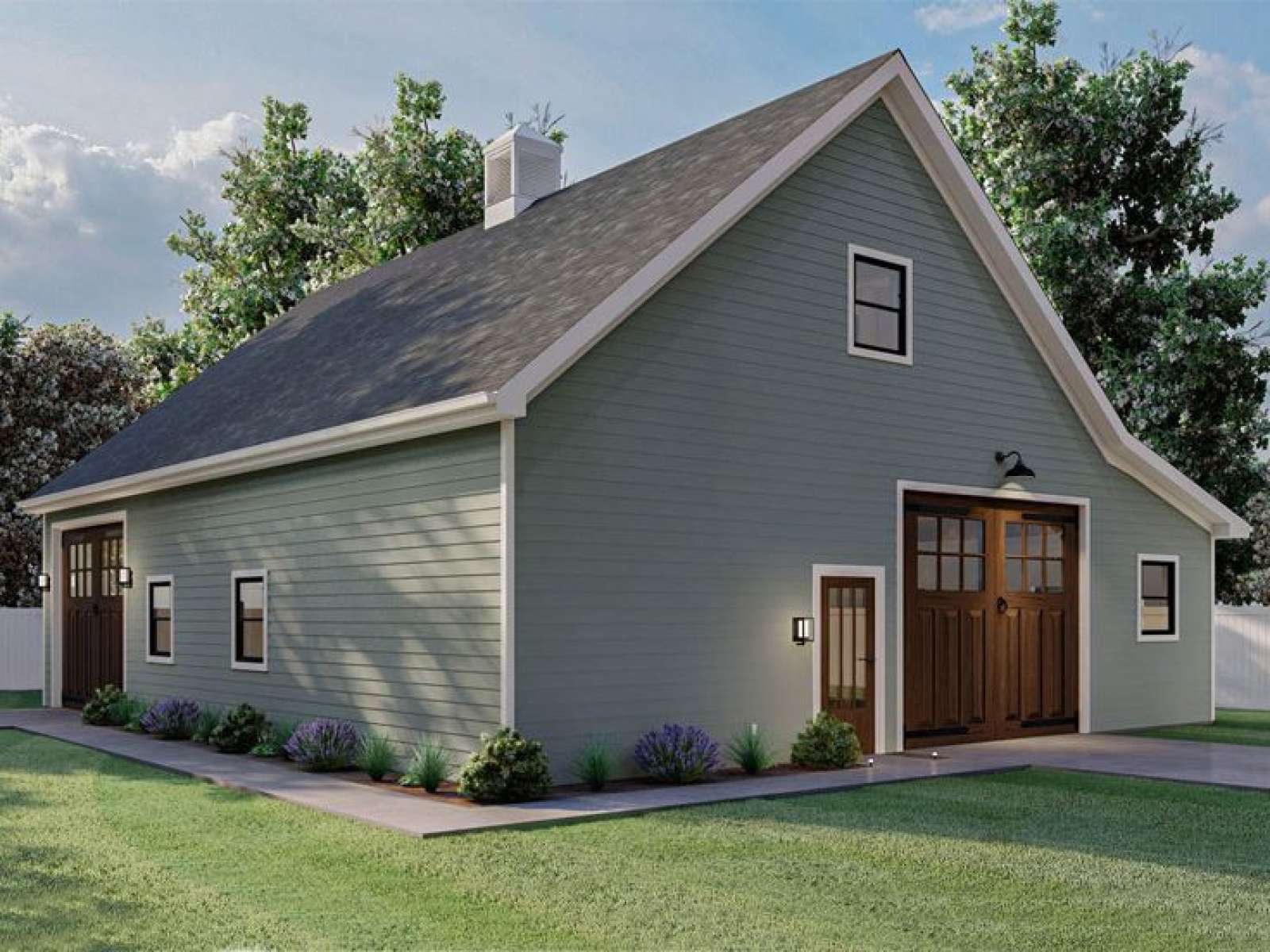

Features front and side sliding barn doors
Loft area with full baht is ideal for a home office, game room, or man cave
Adds value and functionality to your property

Unheated Square Feet

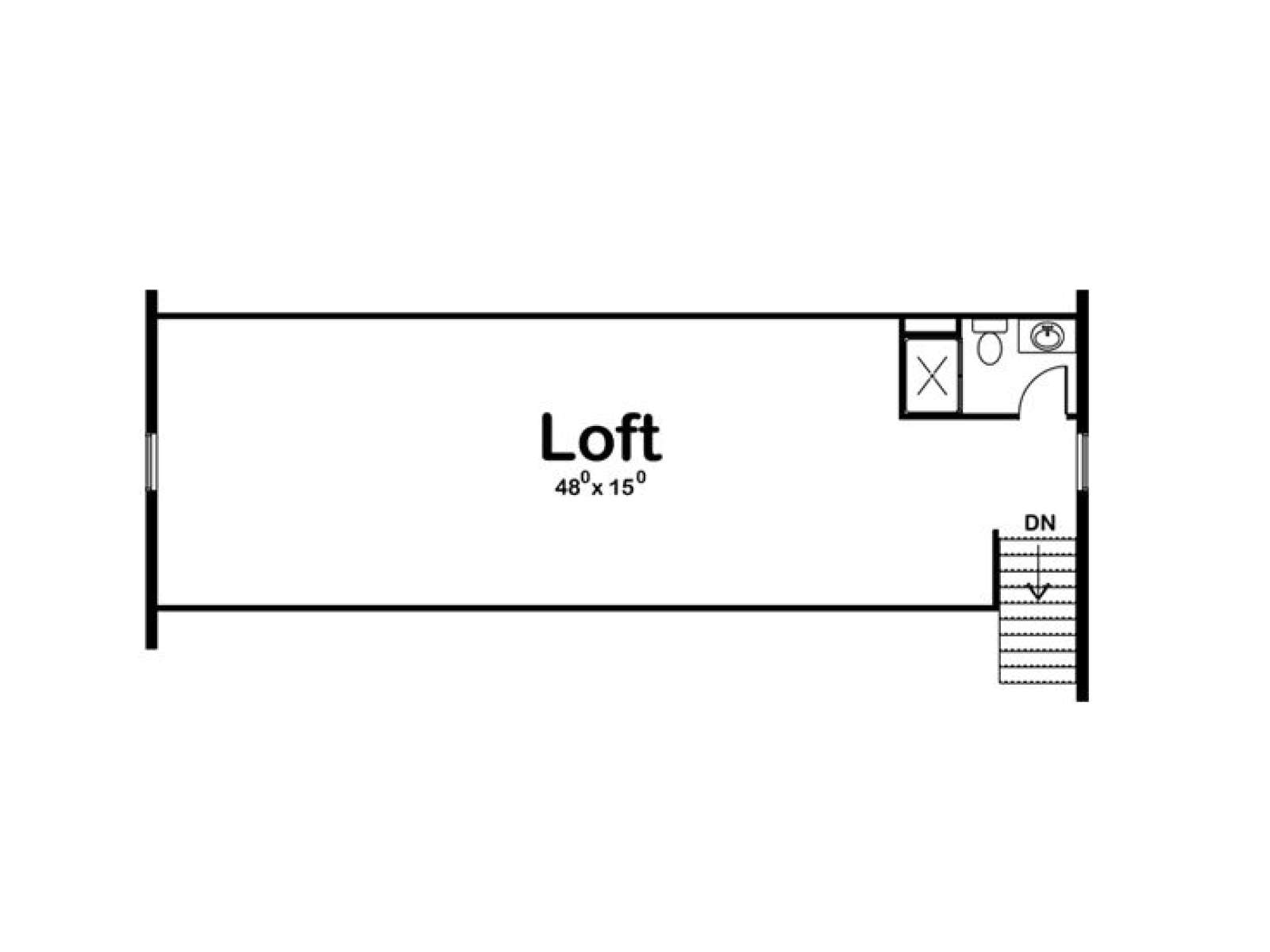

Loft	720

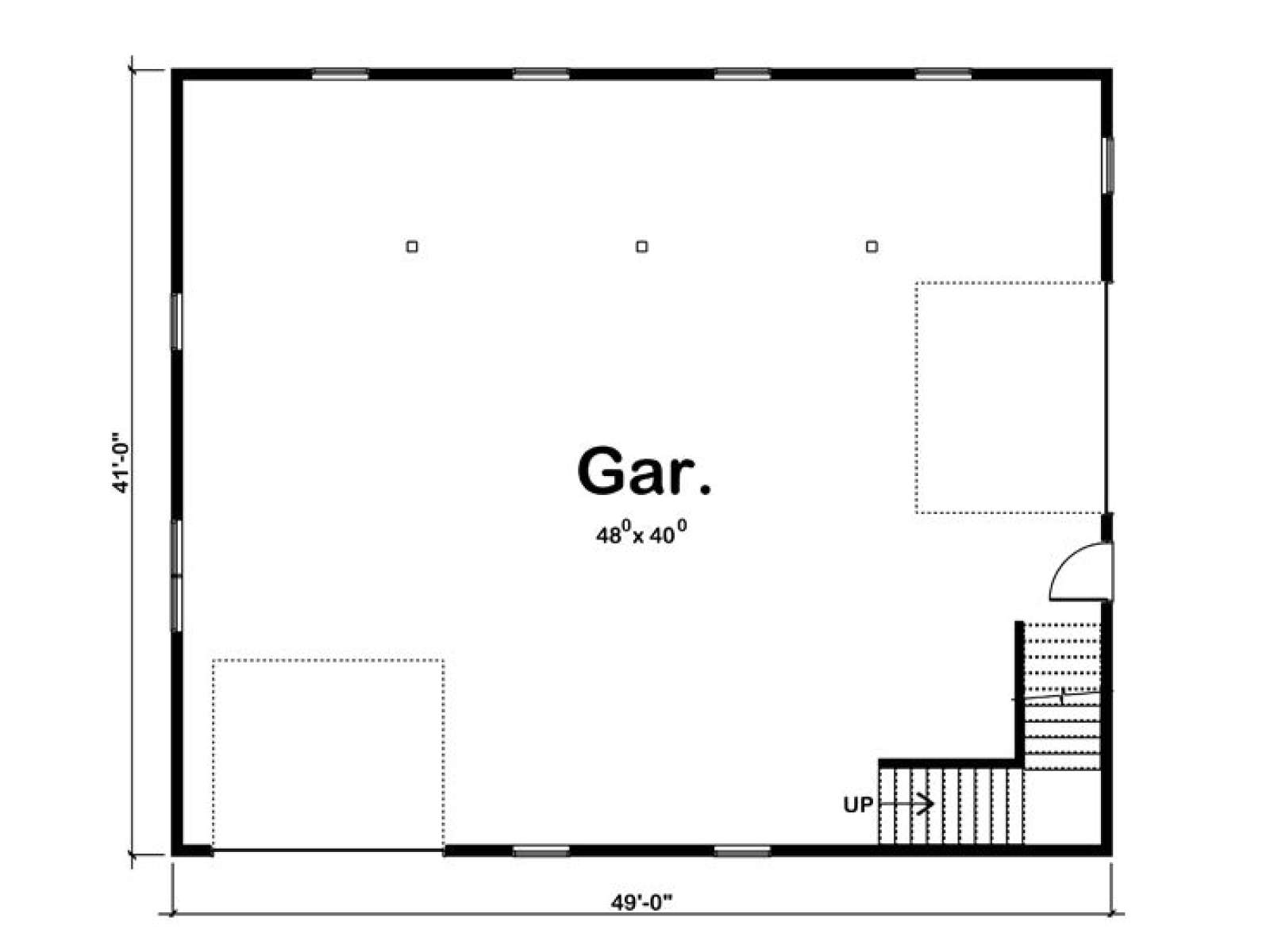

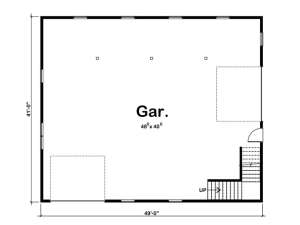

Outbuilding/Barn	2009
Full Bathrooms	1
Width	49 ft. 0 in.
Depth	41 ft. 0 in.
Approximate Height	27 ft. 3 in.
Ceiling Height
First Floor	11 ft. 0 in.
Second Floor	8 ft. 0 in.
Roof Pitch	10/12 Main
Roof Pitch	4/12 Secondary
Roof Framing	Truss
Foundation Options	Slab
Exterior Wall Options	2x6

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	$30	n/a	n/a	n/a
Priority 3 - 4 business days	$70	n/a	$90	n/a
Express 1 - 2 business days	n/a	n/a	n/a	n/a

There are no reviews

Add your review

Outbuilding with Loft

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Material List for Plan 050B-0001: $300.00

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] …[more]

Right Reading Reverse for Plan 050B-0001: $300.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]
