Arbor Plan, 047X-0035

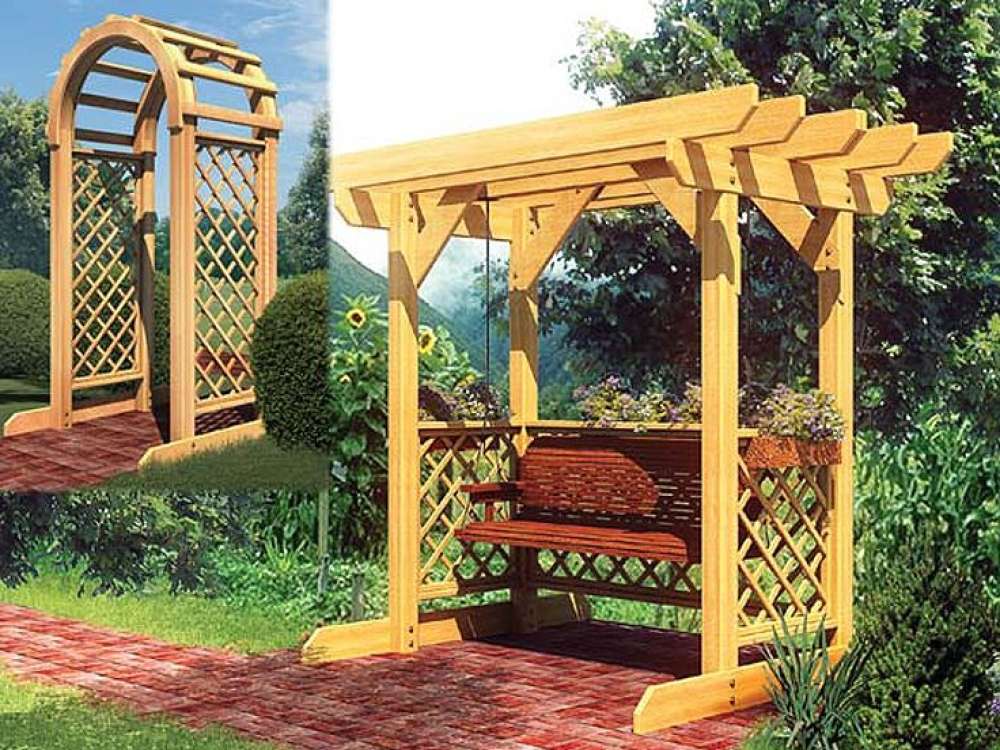

Swing and arched arbor plans ideal for a backyard garden or outdoor retreat
Arbor swing features optional planters and trellis roof
Arched arbor features decorative trim
Construction drawings for arbor swing include two sizes: 8’ wide x 2’ deep, 8’ wide x 4’ deep
Construction drawings for arched arbor include two sizes: 3’ wide x 2’ deep, 4’ wide x 2’ deep
| Roof Framing |
|
Swing and arched arbor plans ideal for a backyard garden or outdoor retreat
Arbor swing features optional planters and trellis roof
Arched arbor features decorative trim
Construction drawings for arbor swing include two sizes: 8’ wide x 2’ deep, 8’ wide x 4’ deep
Construction drawings for arched arbor include two sizes: 3’ wide x 2’ deep, 4’ wide x 2’ deep
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | $60 | n/a |
| Priority 3 - 4 business days | $40 | n/a | n/a | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
