Deck Plan, 047X-0017

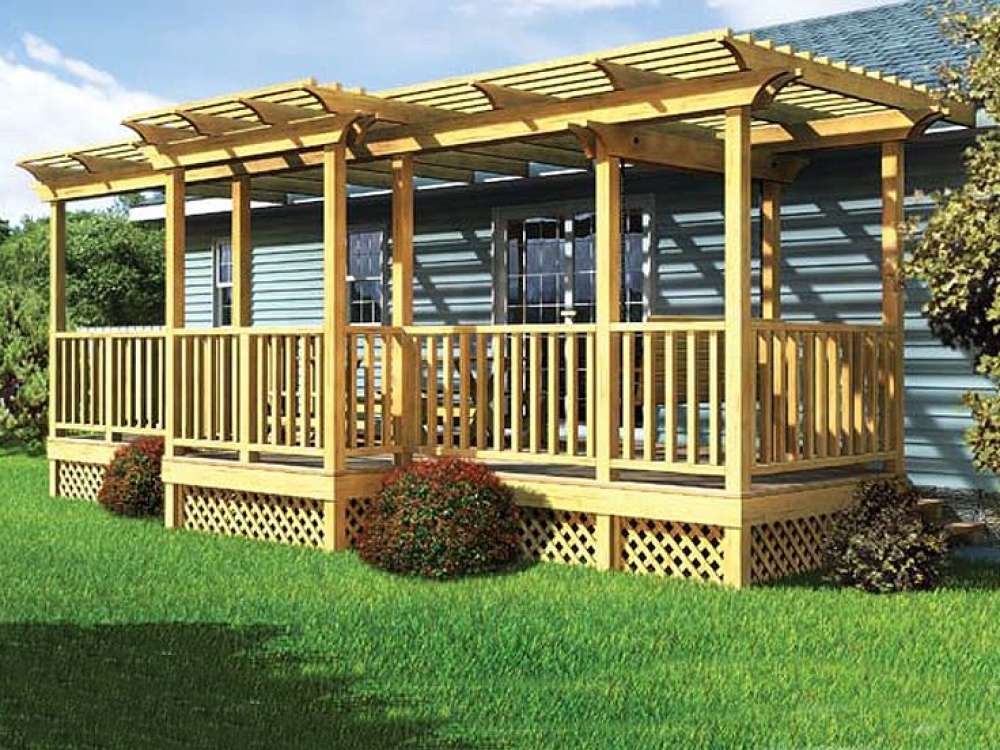

Add outdoor living space to your home with this deck plan
Provides plenty of shaded space beneath the optional trellis/pergola
Features room for a porch swing
Construction drawings include plans for stairs and railings, a full material list, and easy-to-follow instructions with details and diagrams
Construction drawings include 8 different deck sizes: 8’x12’, 8’x16’, 8’x20’, 8’x24’, 10’x12’, 10’x16’, 10’x20’, 10’x24’ (NOTE: The shortest side is listed first in the given dimensions.)
| Roof Framing |
|
Add outdoor living space to your home with this deck plan
Provides plenty of shaded space beneath the optional trellis/pergola
Features room for a porch swing
Construction drawings include plans for stairs and railings, a full material list, and easy-to-follow instructions with details and diagrams
Construction drawings include 8 different deck sizes: 8’x12’, 8’x16’, 8’x20’, 8’x24’, 10’x12’, 10’x16’, 10’x20’, 10’x24’ (NOTE: The shortest side is listed first in the given dimensions.)
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | $60 | n/a |
| Priority 3 - 4 business days | $40 | n/a | n/a | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
