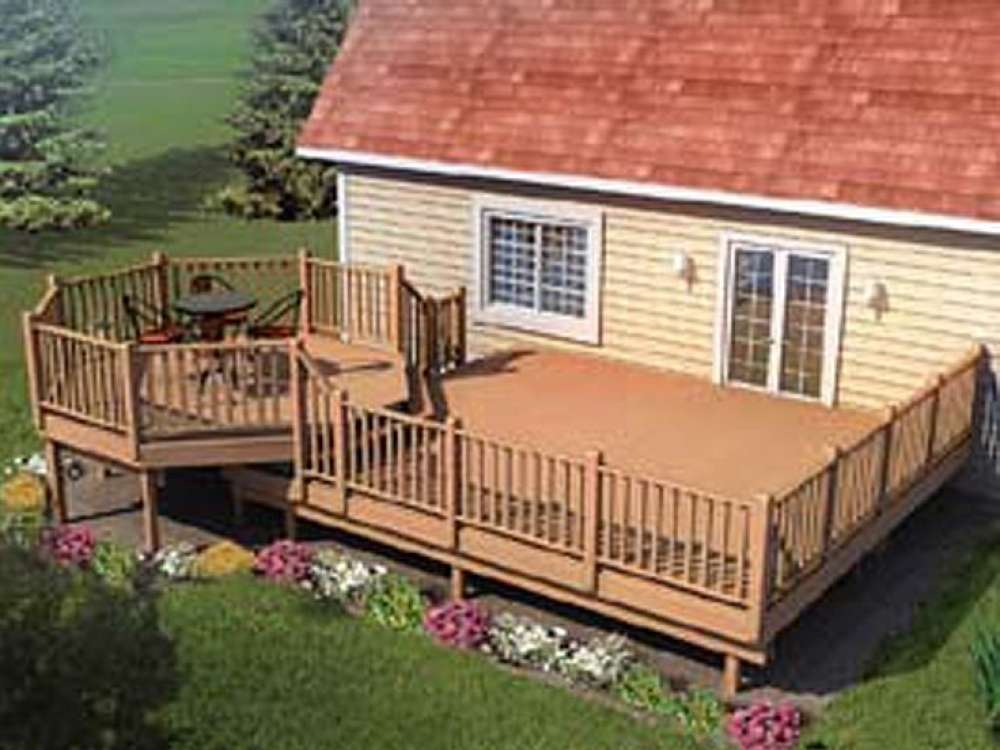

Picnic Deck Plan, 047X-0016
Deck plan designed for grilling and dining outdoors
Ideal for cookouts and entertaining
Octagon raised picnic area has a 10’ diameter
Construction drawings include plans for extra-wide railing and stairs
Lower deck can be built in 5 sizes (long side against the house): 12’x12’, 16’x12’, 20’x12’, 16’x14’, 20’x14’
| Roof Framing |
|
Deck plan designed for grilling and dining outdoors
Ideal for cookouts and entertaining
Octagon raised picnic area has a 10’ diameter
Construction drawings include plans for extra-wide railing and stairs
Lower deck can be built in 5 sizes (long side against the house): 12’x12’, 16’x12’, 20’x12’, 16’x14’, 20’x14’
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | $60 | n/a |
| Priority 3 - 4 business days | $40 | n/a | n/a | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
