Storage Shed Plan, 047S-0005
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

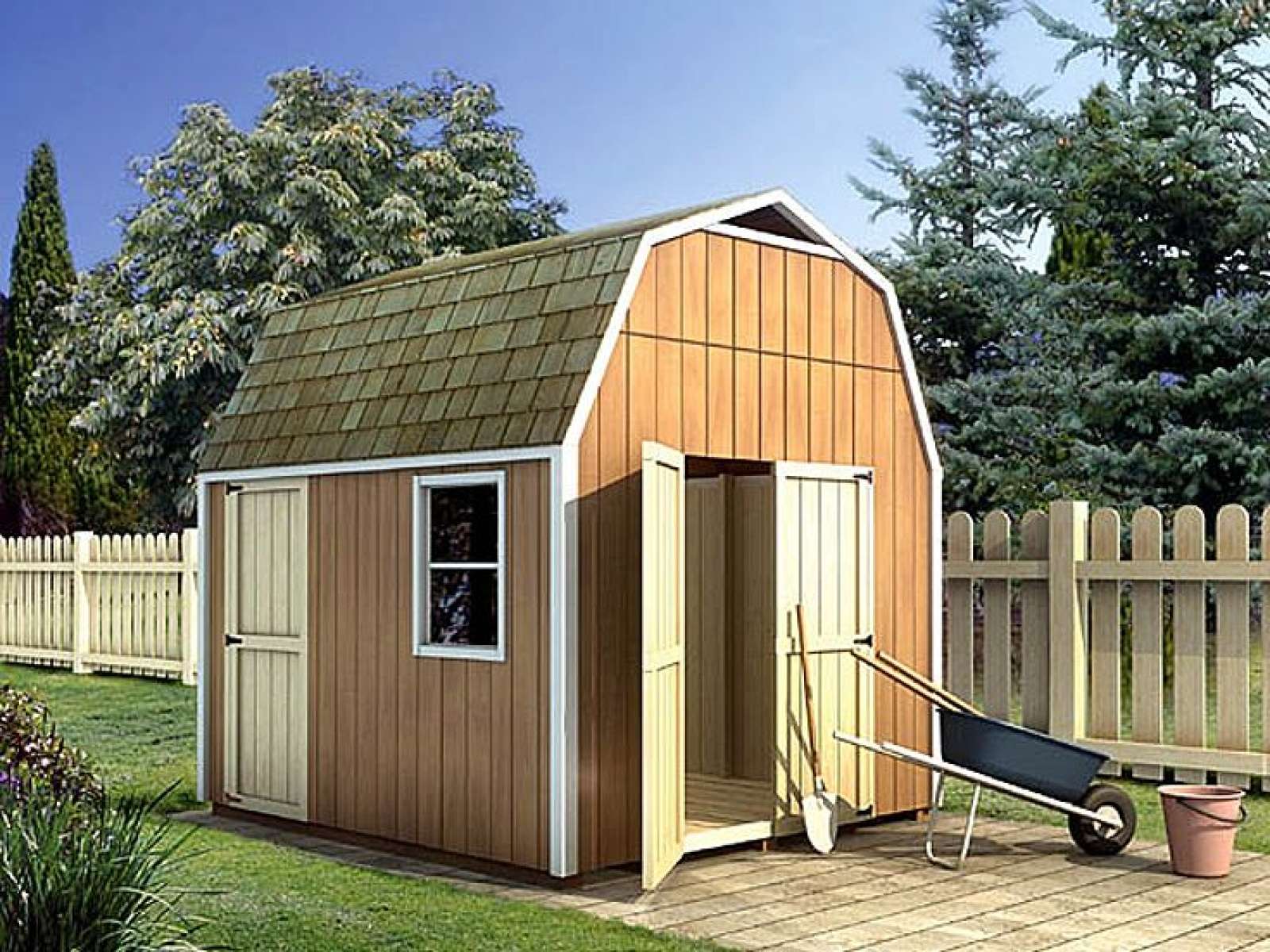

Gambrel roof adds a touch of country flavor to this barn-style storage shed plan
Front and side entry doors lend easy access from the yard or driveway

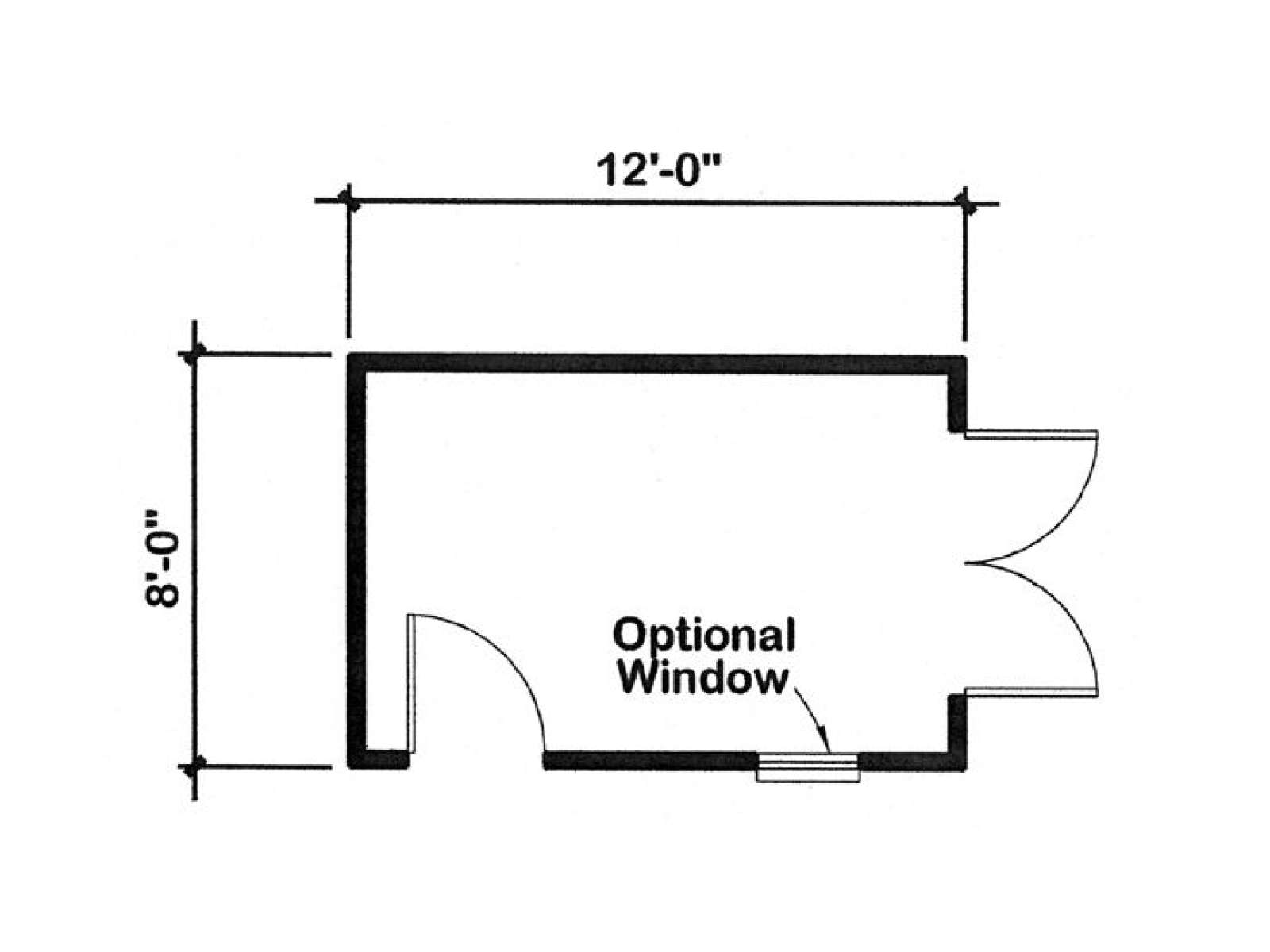

Plans feature a 6’ ceiling and optional window
Available in multiple sizes to accommodate a broad range of needs
Available in five sizes: 12’x8’ (pictured), 12’x10’, 14’x10’, 16’x10’, 16’x12’
Plans include wall framing plans, trussed roof plans and cutting templates
Foundation is 4x4 wood frame
| Width | 12 ft. 0 in. |
| Depth | 8 ft. 0 in. |
| Ceiling Height | |
| First Floor | 6 ft. 1 in. |
| Roof Pitch | 4/12 Main |
| Roof Pitch | 24/12 Other |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Gambrel roof adds a touch of country flavor to this barn-style storage shed plan
Front and side entry doors lend easy access from the yard or driveway
Plans feature a 6’ ceiling and optional window
Available in multiple sizes to accommodate a broad range of needs
Available in five sizes: 12’x8’ (pictured), 12’x10’, 14’x10’, 16’x10’, 16’x12’
Plans include wall framing plans, trussed roof plans and cutting templates
Foundation is 4x4 wood frame
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | $60 | n/a |
| Priority 3 - 4 business days | $40 | n/a | n/a | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
