Attached Carport Plan, 047G-0023

Plan 047G-0023
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

One-car carport addition plan attached neatly to your home or garage
Structure supported by 4x4 posts
Two different roof options allow the carport to blend with different roof lines
Gable roof pitch options include: 4/12, 6/12 and 8/12
Shed roof pitch options include: 4/12 and 6/12

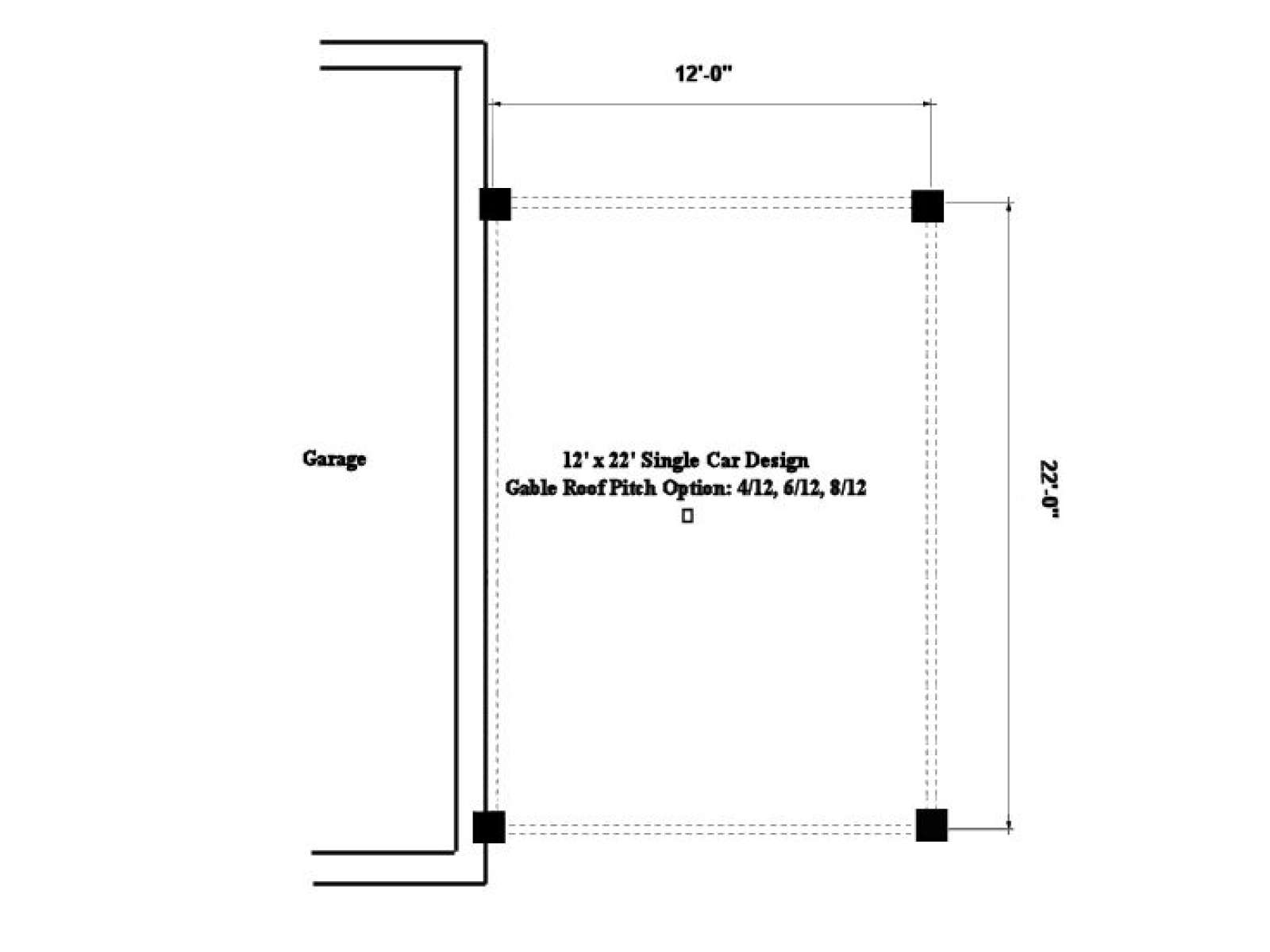

Width 12 ft. 0 in.
Depth 22 ft. 0 in.
Ceiling Height
First Floor 8 ft. 0 in.
Roof Framing
  • Stick
Foundation Options
  • Slab
Exterior Wall Options
  • Posts

One-car carport addition plan attached neatly to your home or garage
Structure supported by 4x4 posts
Two different roof options allow the carport to blend with different roof lines
Gable roof pitch options include: 4/12, 6/12 and 8/12
Shed roof pitch options include: 4/12 and 6/12



Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $25 n/a $60 n/a
Priority 3 - 4 business days $40 n/a n/a n/a
Express 1 - 2 business days $55 n/a n/a n/a
Info

There are no reviews

View more
Add your review
Carport Addition Plan

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$250.00

Additional Options

Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are available for purchase within 90 days of the original purchase. [less] [more]

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] [more]
