Unique Garage Loft Plan, 047G-0018

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

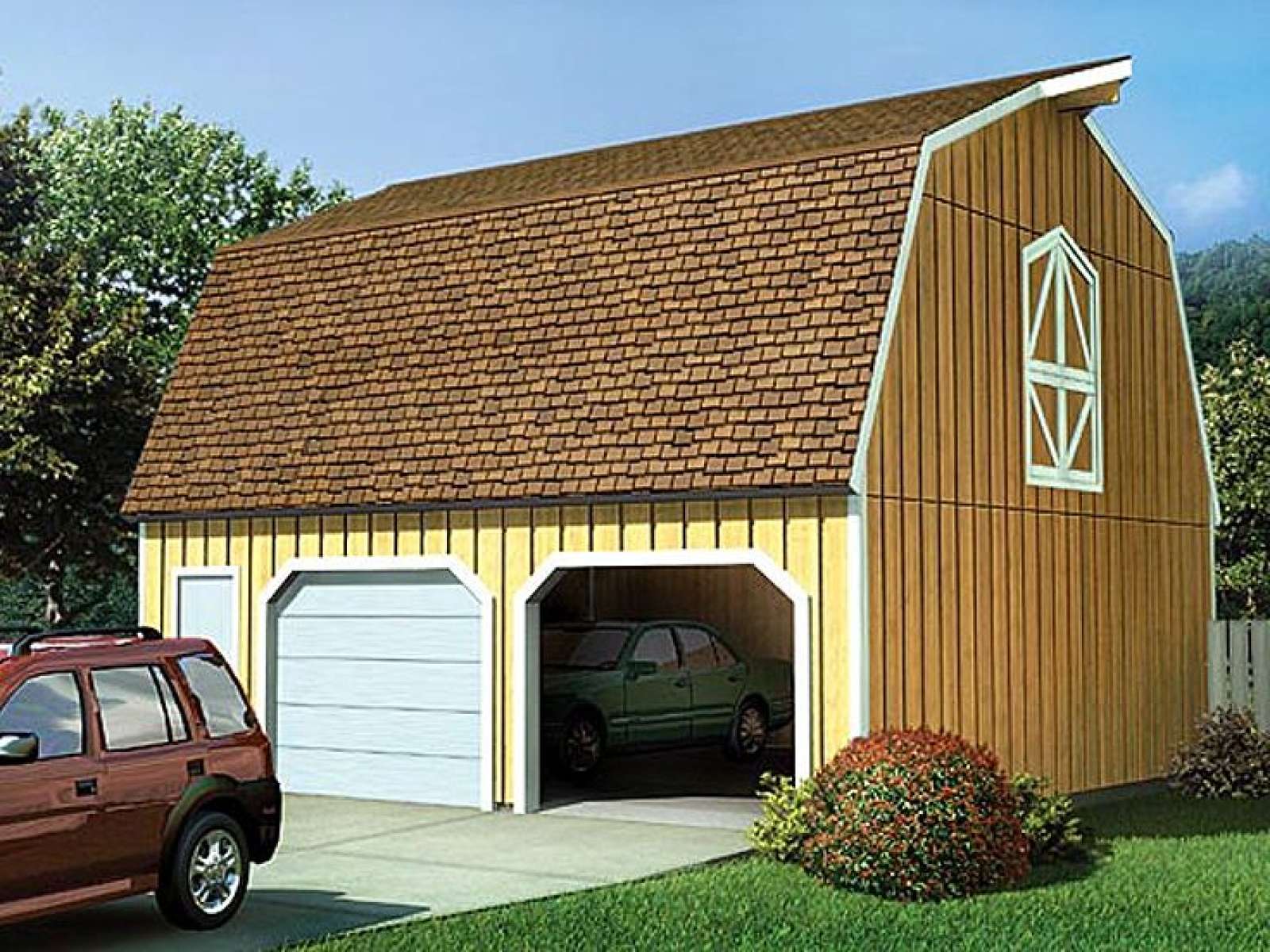

Multi-size two-car garage plan features gambrel roof and loft
Easily accommodates two vehicles or works well as an outbuilding or workshop

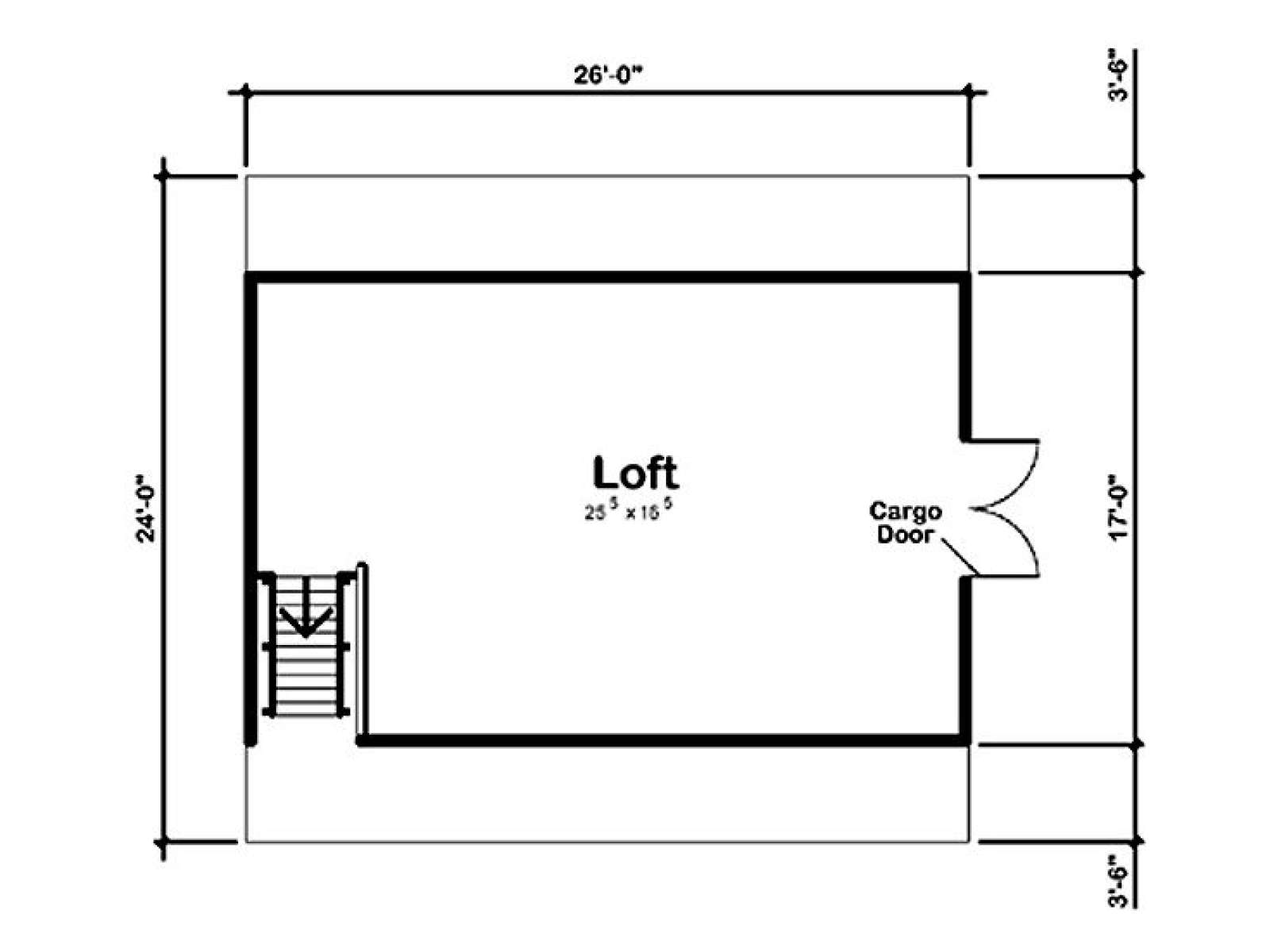

Loft offers a cargo door

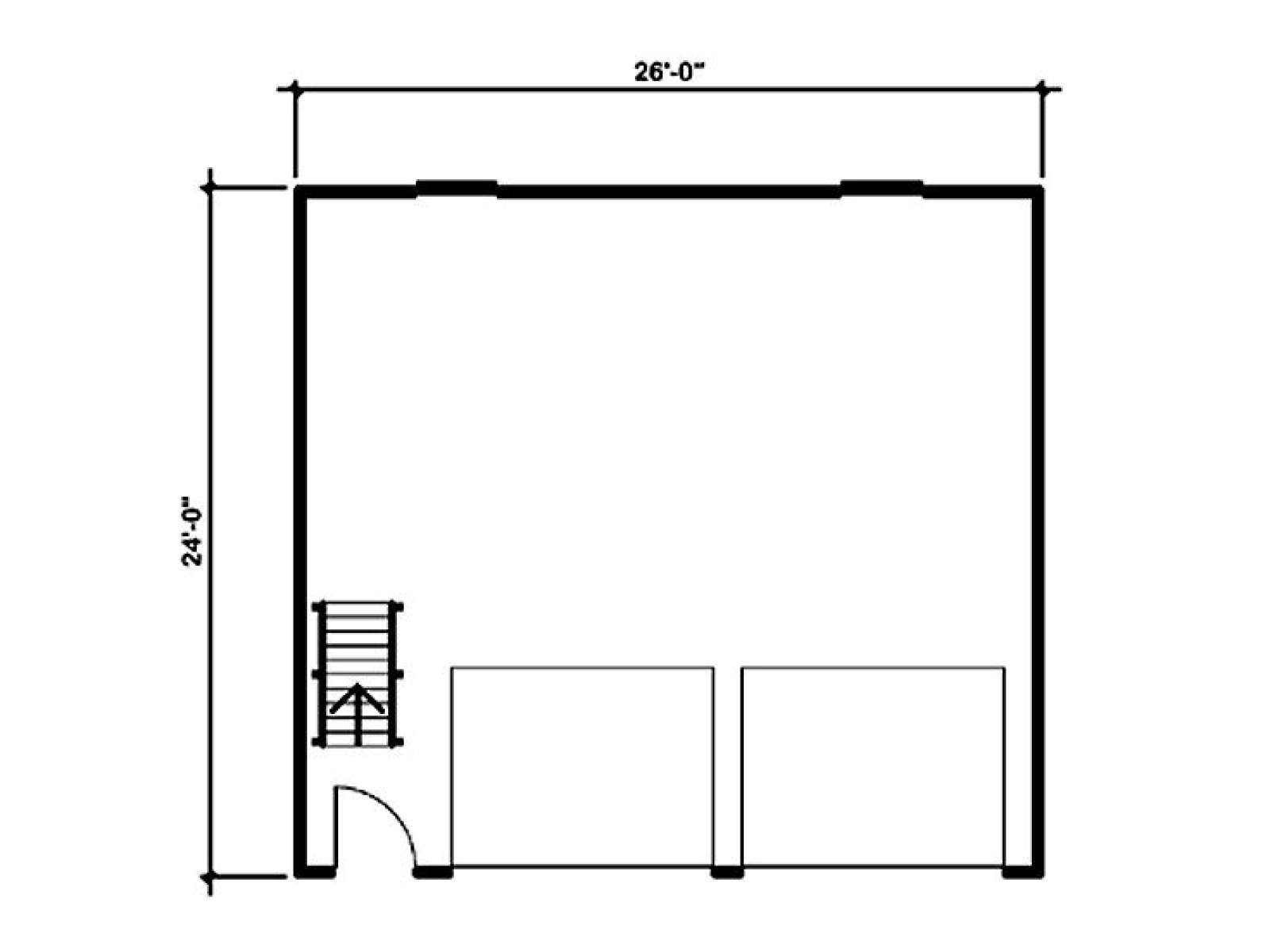

Construction drawings include 5 different sizes: 26’x24’ (pictured, 624 sf garage, 442 sf loft), 28’x24’, 30’x24’, 32’x24’, 36’x24’

Width	26 ft. 0 in.
Depth	24 ft. 0 in.
Approximate Height	21 ft. 11 in.
Ceiling Height
First Floor	8 ft. 0 in.
Roof Framing	Stick
Foundation Options	Slab
Exterior Wall Options	2x4

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	$25	n/a	$60	n/a
Priority 3 - 4 business days	$40	n/a	n/a	n/a
Express 1 - 2 business days	$55	n/a	n/a	n/a

There are no reviews

Add your review

Multi-Sized Garage Plan with Loft

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Additional Set for Plan 047G-0018: $25.00 ea.

Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are available for purchase within 90 days of the original purchase. [less] …[more]

Material List for Plan 047G-0018: $75.00

A general listing of the quantities and sizes of materials needed for construction of your project. A general listing of the quantities and sizes of materials needed for construction of your project. This tool aids your builder in the estimating process. A material list cannot be sold without the simultaneous or prior purchase of a plan package of the same plan number. NOTE: Material lists only include materials for the base plan offered with the no charge foundation and wall framing options. The materials for alternate wall framing and foundation options available for an extra charge will not be included in the material list. [less] …[more]
