Pole Barn Plan, 047B-0001
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

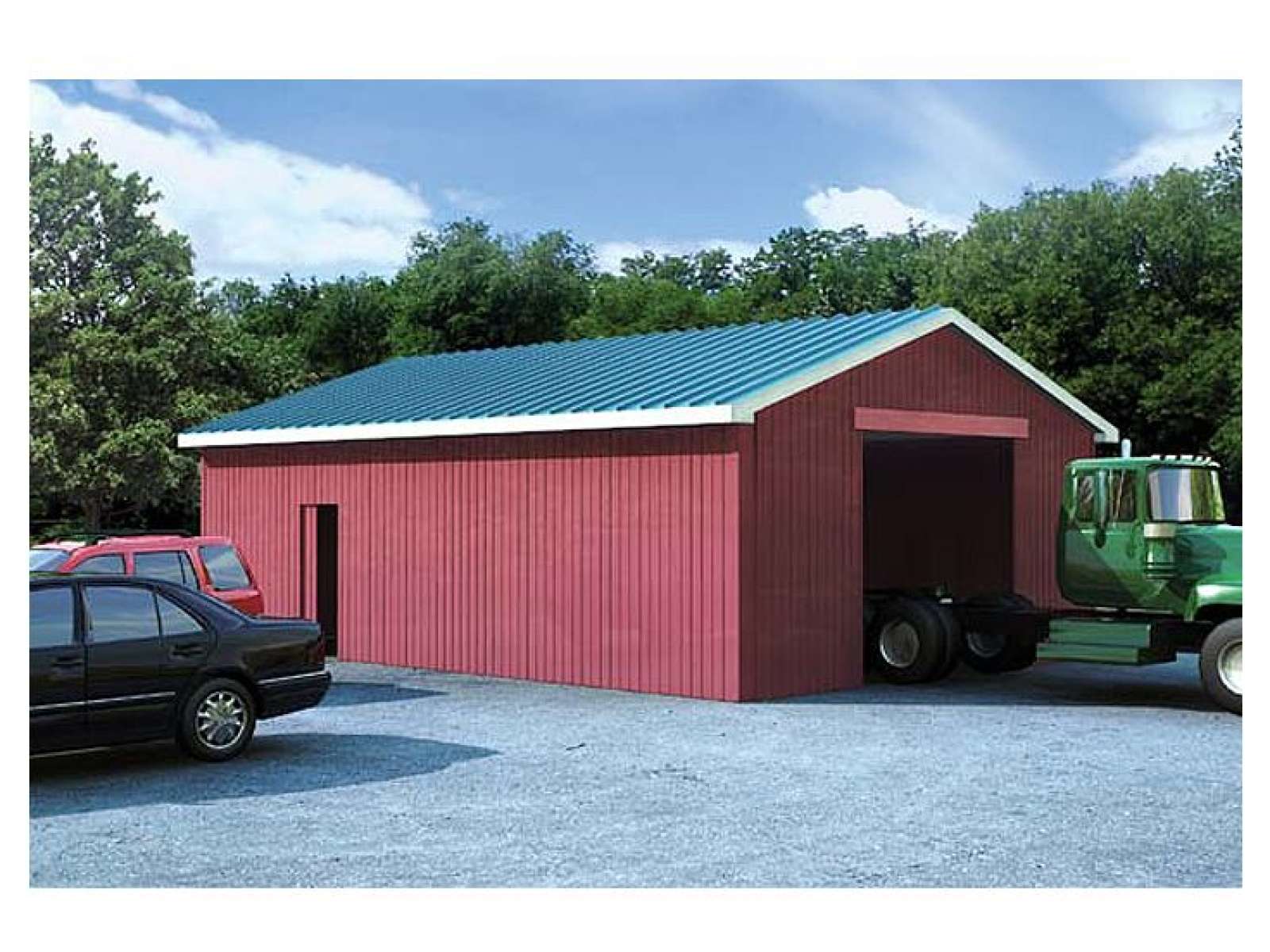

Multi-purpose pole-barn plan satisfies a wide range of needs
Features a sliding door
Multiple sizes accommodate everything from tractors and farm machinery to boats and trailers
Plans include designs for optional 8’, 10’ and 12’ walls
Wall framing consists of 6”x6” posts and 2”x6” side girts

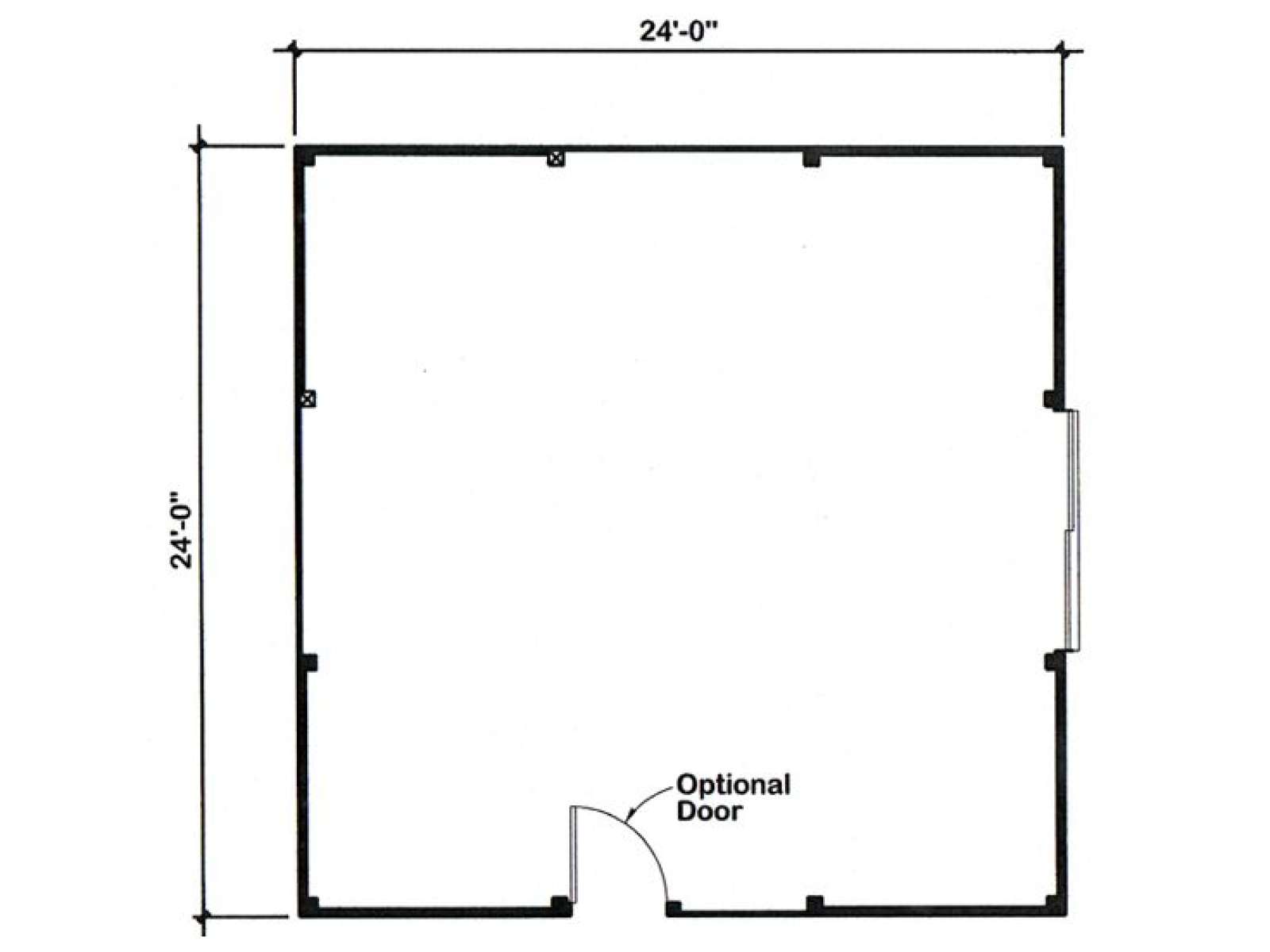

Construction drawings include the following sizes: 24’x24’, 24’x32’, 24’x40’, 30’x40’, 40’x64’
| Width | 24 ft. 0 in. |
| Depth | 24 ft. 0 in. |
| Roof Pitch | 4/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Multi-purpose pole-barn plan satisfies a wide range of needs
Features a sliding door
Multiple sizes accommodate everything from tractors and farm machinery to boats and trailers
Plans include designs for optional 8’, 10’ and 12’ walls
Wall framing consists of 6”x6” posts and 2”x6” side girts
Construction drawings include the following sizes: 24’x24’, 24’x32’, 24’x40’, 30’x40’, 40’x64’
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | $60 | n/a |
| Priority 3 - 4 business days | $40 | n/a | n/a | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
