1-Car Garage Plan with Storage, 028G-0073

Plan 028G-0073
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

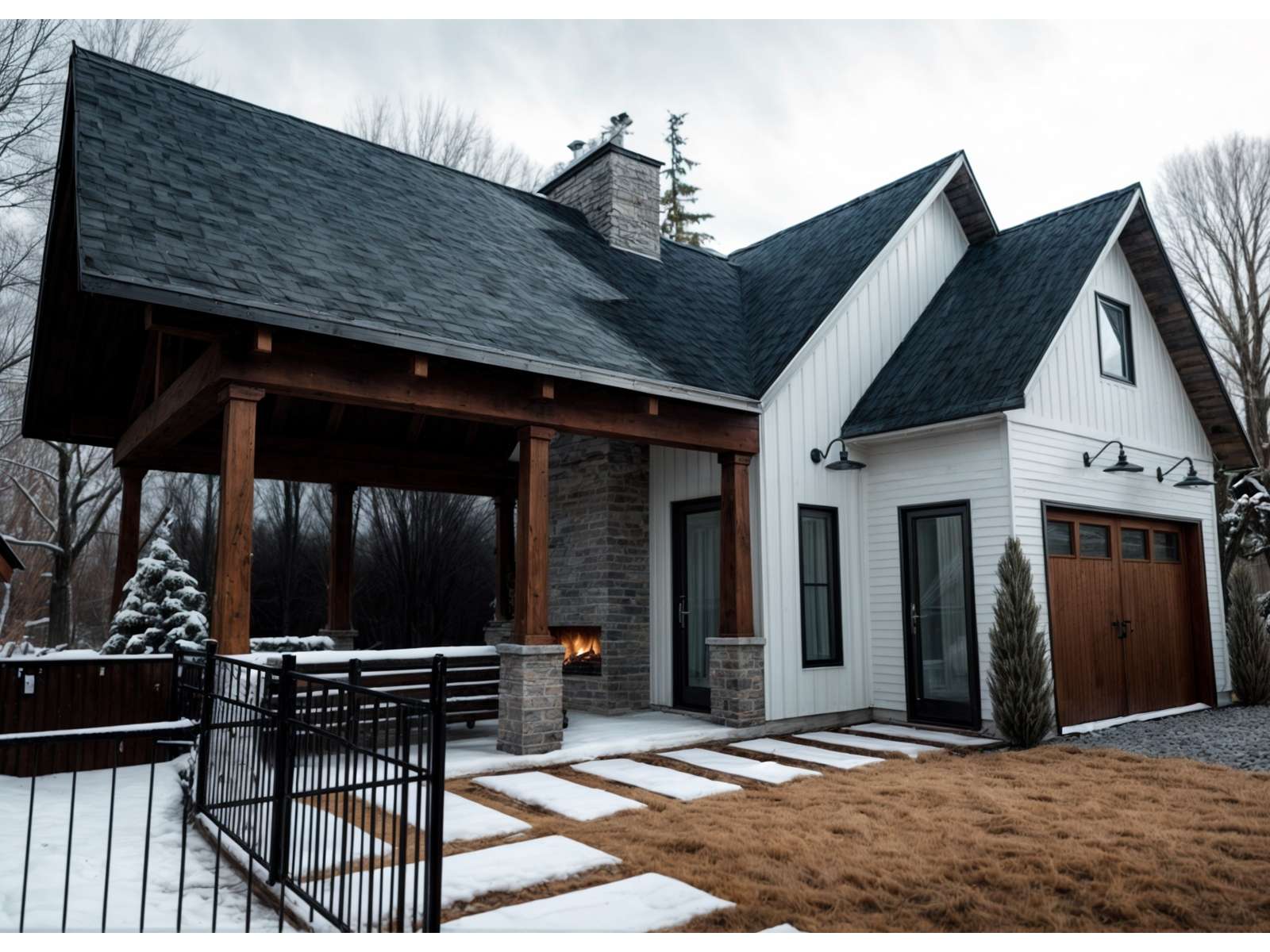

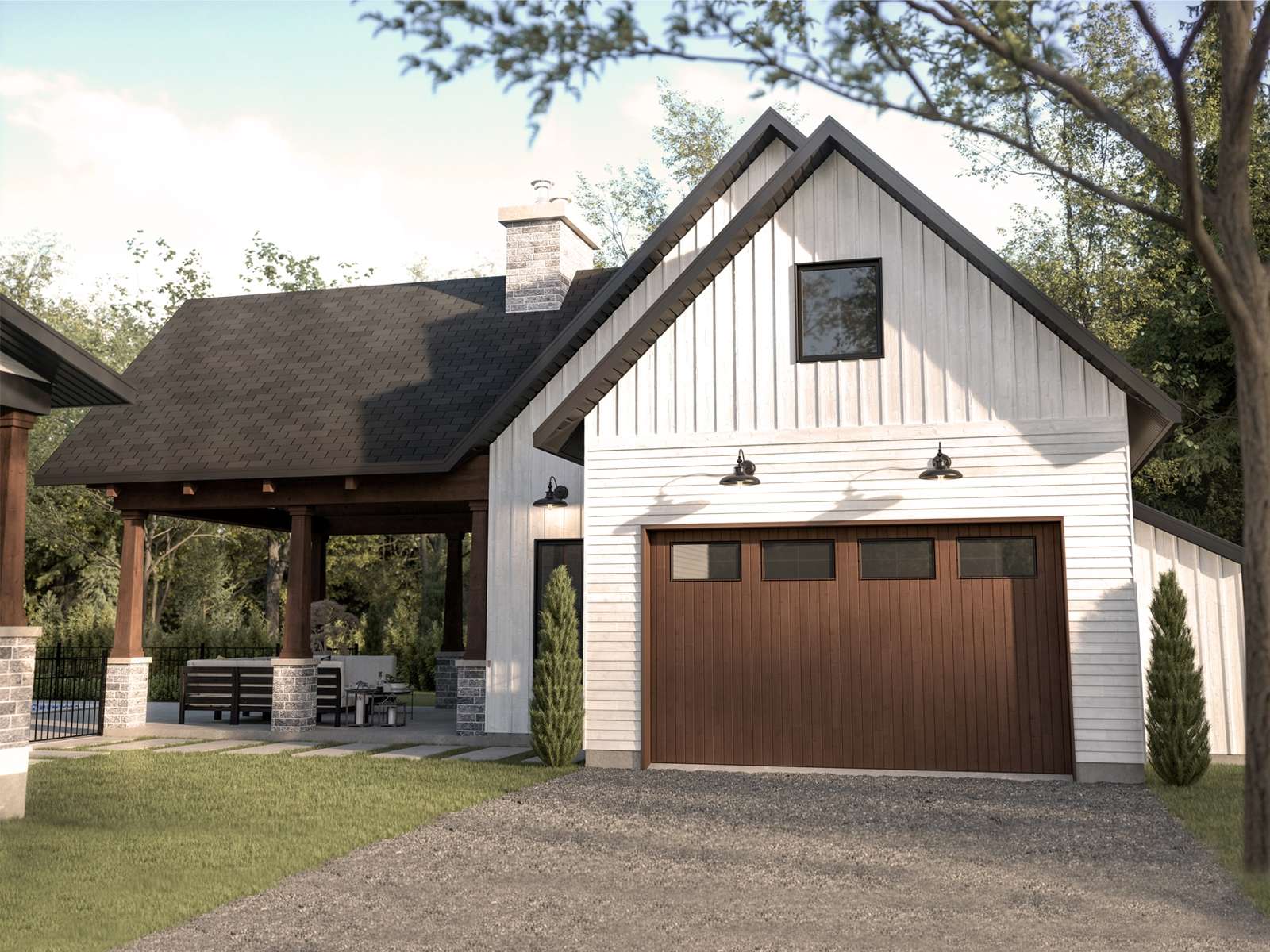

This one-car garage plan is the perfect addition to any backyard

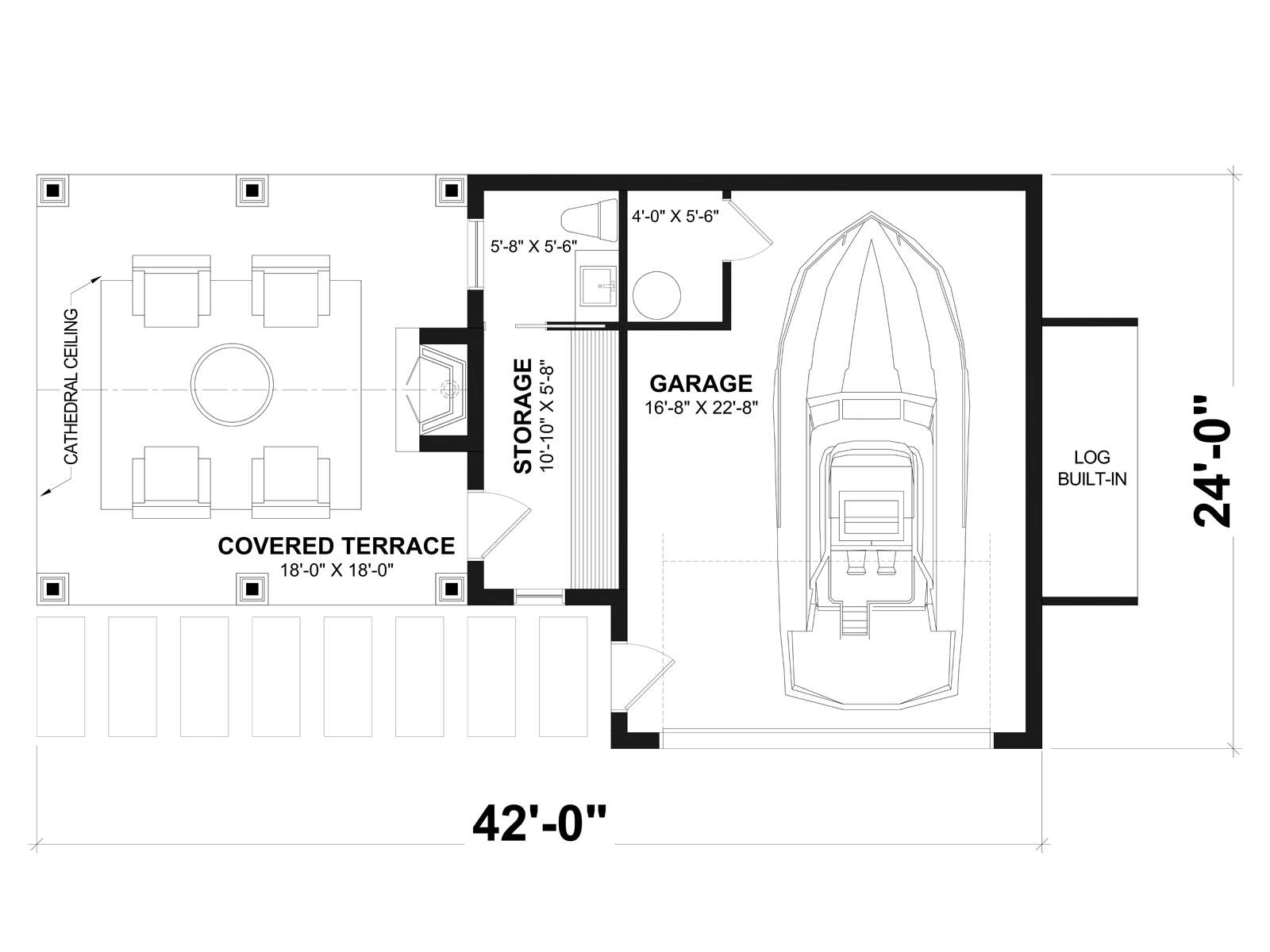

The floor plan features one garage bay with a storage area and a handy half bath
Enjoy dining outdoors on the covered terrace and warm yourself beside the fireplace on cool fall evenings
Don’t miss the built-in fire log storage
Garage ceiling height is 10’-8”

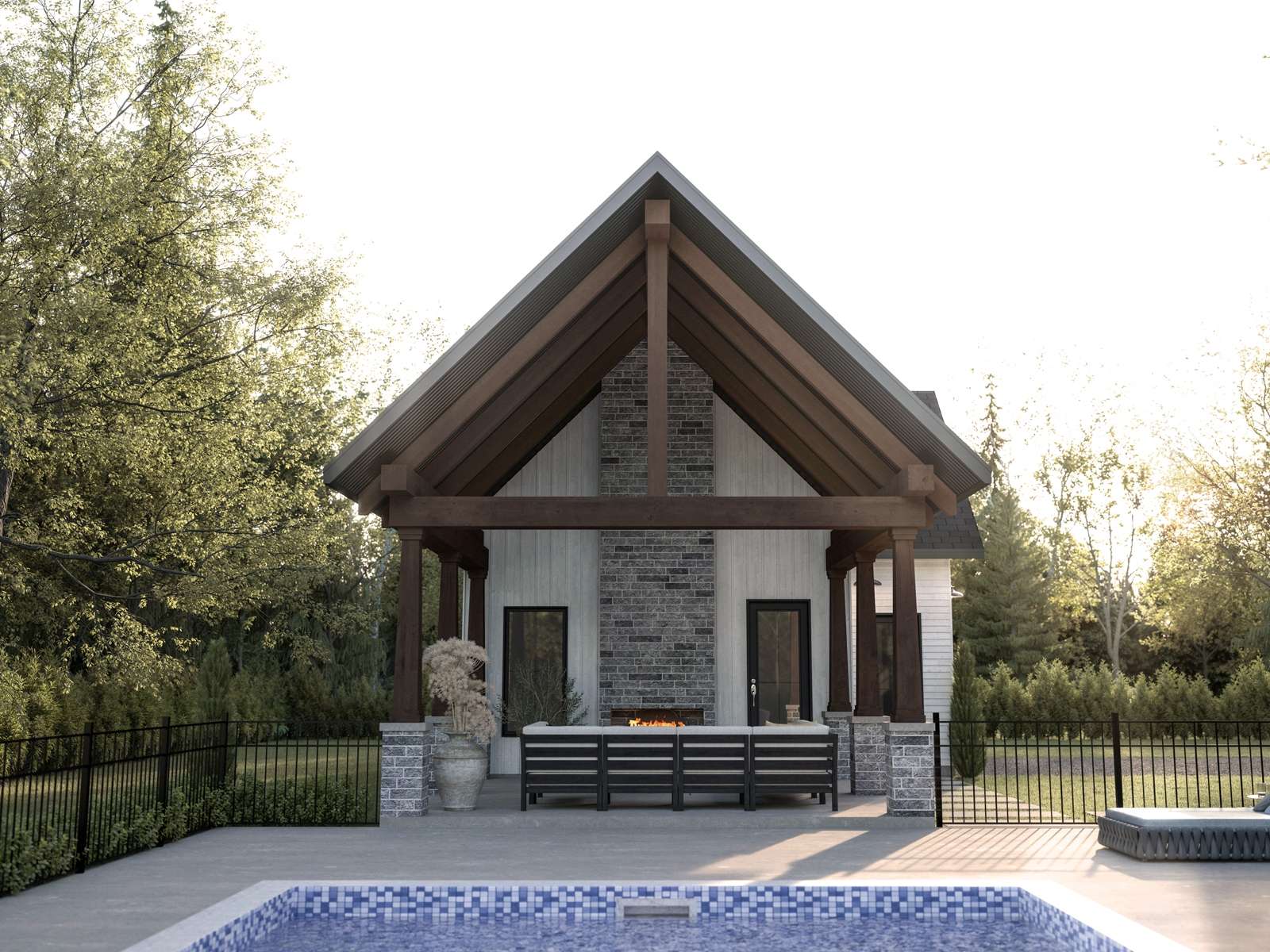

Covered terrace has a cathedral ceiling that peaks at 19’-6”
Other square footage (includes garage, half bath, and storage): 540 sf

Unheated Square Feet
Patio/Terrace/Lanai 324
Other 540
Half Bathrooms 1
Width 42 ft. 0 in.
Depth 24 ft. 0 in.

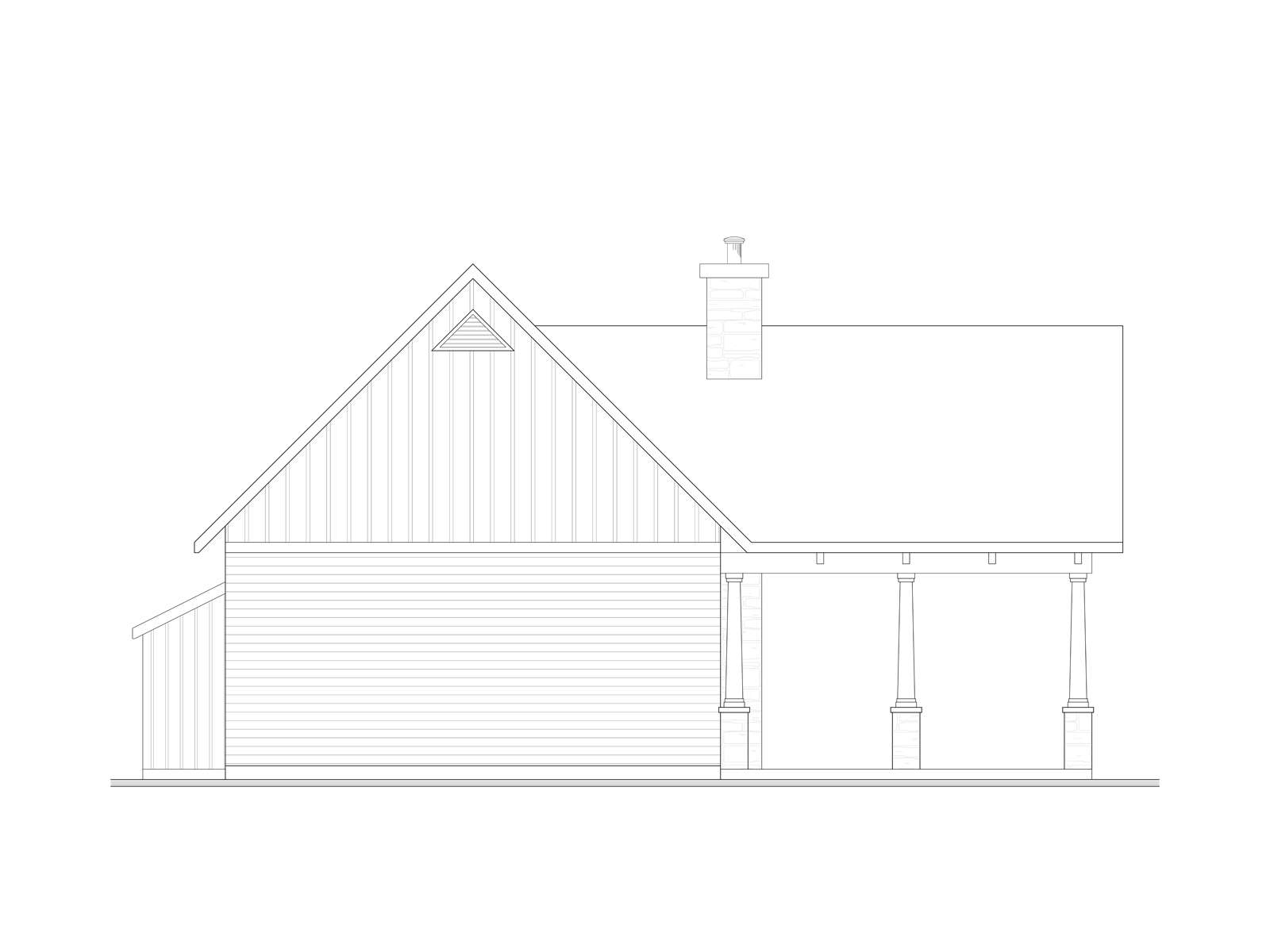

Approximate Height 24 ft. 4 in.
Garage Door Size(s) 14x8
Foundation Options
  • Floating/Stem Wall Slab
  • Monolithic Slab
Exterior Wall Options
  • 2x6
Interior Features
  • Full/Half Bath
Exterior Features
  • Patio/Terrace/Lanai
Garage Features
  • Storage Space/Storage Closet/Attic

This one-car garage plan is the perfect addition to any backyard
The floor plan features one garage bay with a storage area and a handy half bath
Enjoy dining outdoors on the covered terrace and warm yourself beside the fireplace on cool fall evenings
Don’t miss the built-in fire log storage
Garage ceiling height is 10’-8”
Covered terrace has a cathedral ceiling that peaks at 19’-6”
Other square footage (includes garage, half bath, and storage): 540 sf

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days n/a n/a n/a n/a
Priority 3 - 4 business days $15 $15 $75 n/a
Express 1 - 2 business days n/a n/a n/a n/a
Info

There are no reviews

View more
Add your review
1-Car Garage with Storage

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

$705.00

Additional Options

Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets are available for purchase within 90 days of the original house plan purchase. [less] [more]

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]
