One-Car Garage Plan, 028G-0072

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

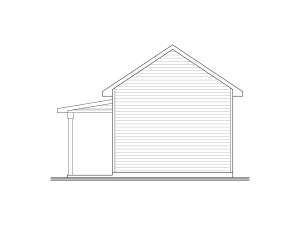

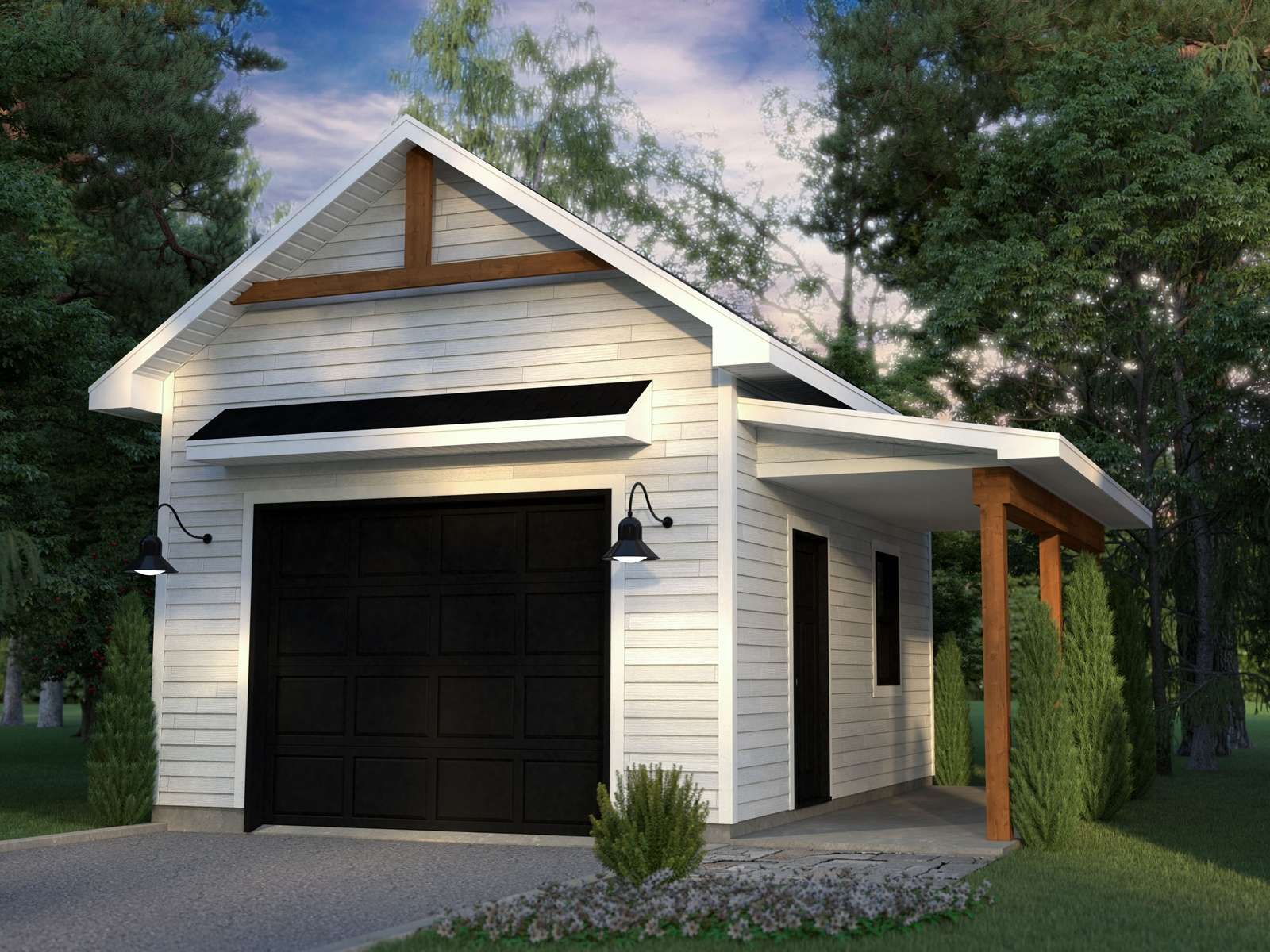

Country styling highlights the exterior of this detached one-car garage plan
Suitable for parking one car or for use as storage space or a workshop
Covered stoop provides a shady place to relax
The listed overall width of the structure represents the garage and covered stoop
The width of the garage only is 16’

Unheated Square Feet
Garage	320
Porch(es)	120
Width	16 ft. 0 in.
Depth	20 ft. 0 in.
Approximate Height	17 ft. 0 in.
Ceiling Height
First Floor	10 ft. 6 in.
Roof Pitch	8/12 Main
Garage Door Size(s)	10x8
Foundation Options	Floating/Stem Wall Slab Monolithic Slab
Exterior Wall Options	2x6

Exterior Features

Covered side porch

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	n/a	n/a	n/a	n/a
Priority 3 - 4 business days	$15	$15	$75	n/a
Express 1 - 2 business days	n/a	n/a	n/a	n/a

There are no reviews

Add your review

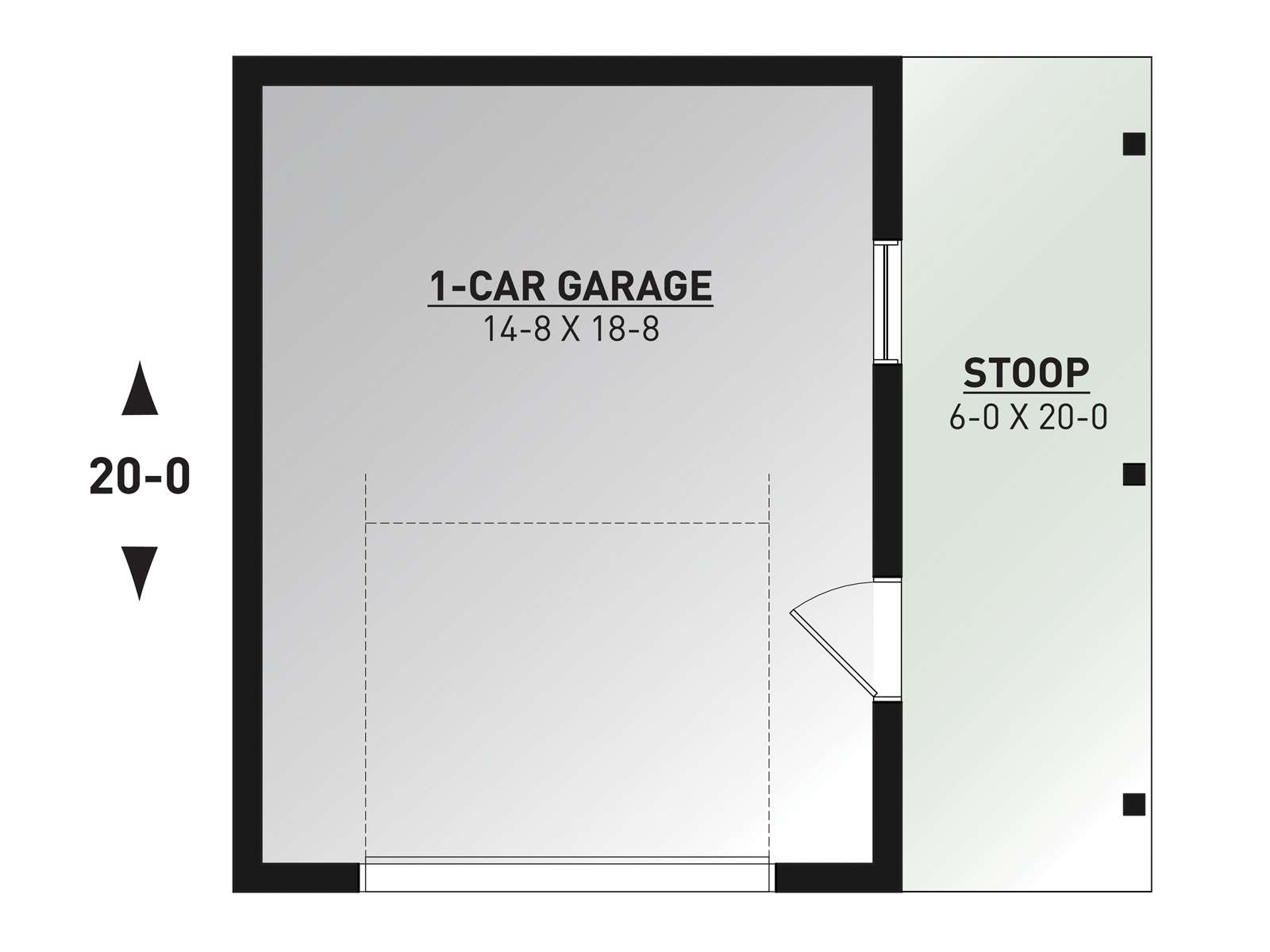

1-Car Garage; 16'x20'

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

* See notes and purchase restrictions below

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Additional Set for Plan 028G-0072: $65.00 ea.

Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets are available for purchase within 90 days of the original house plan purchase. [less] …[more]

Right Reading Reverse for Plan 028G-0072: $150.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]

Attention:

Please expect a delay for all orders, modification requests, and questions for this plan between Wednesday, May 28th – Friday, May 30th, 2025. The designer’s office will be closed during this time and will resume normal business hours on Monday, June 2, 2025.
