Garage Workshop Plan, 028G-0069

Reverse All Images

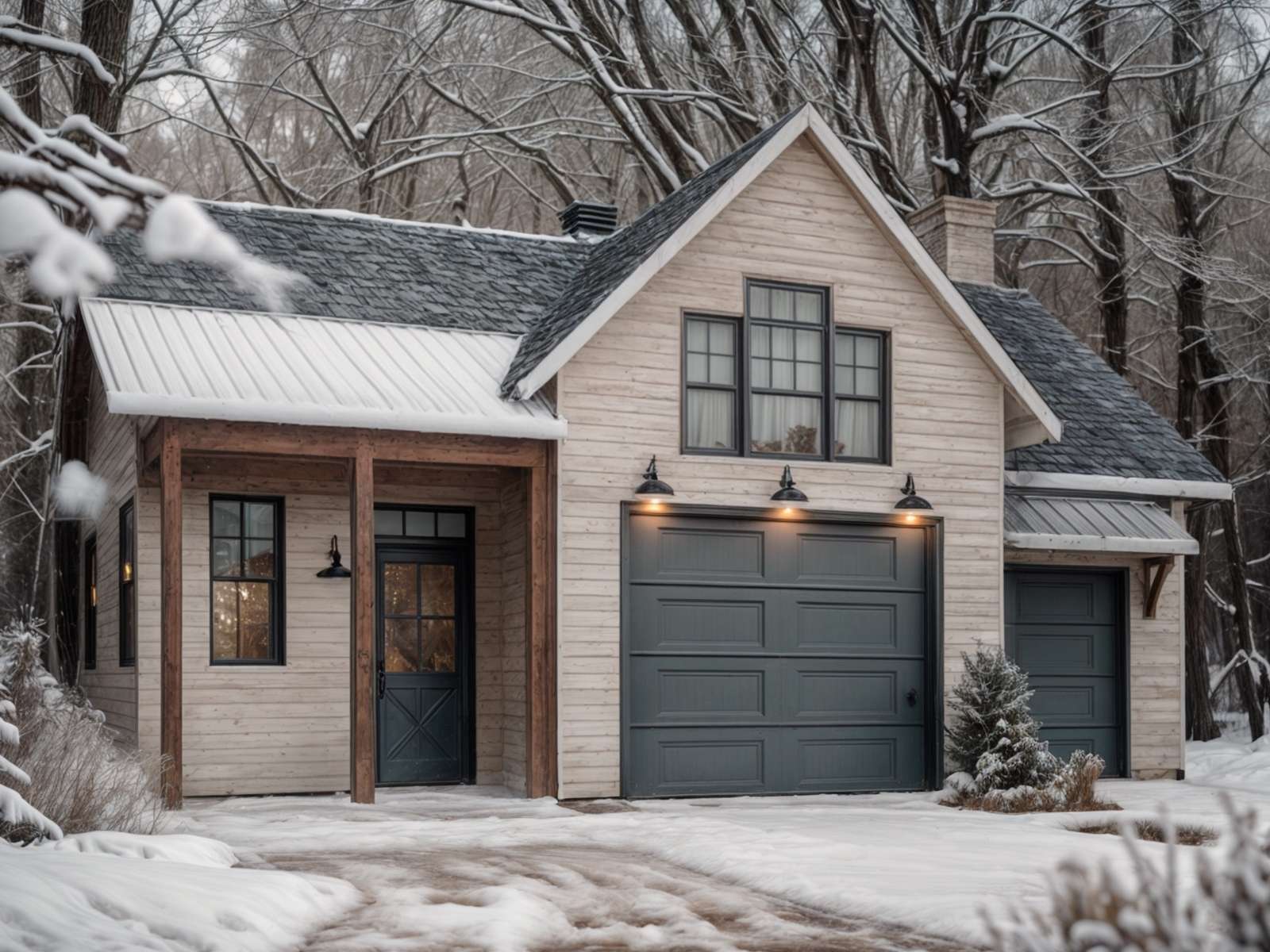

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

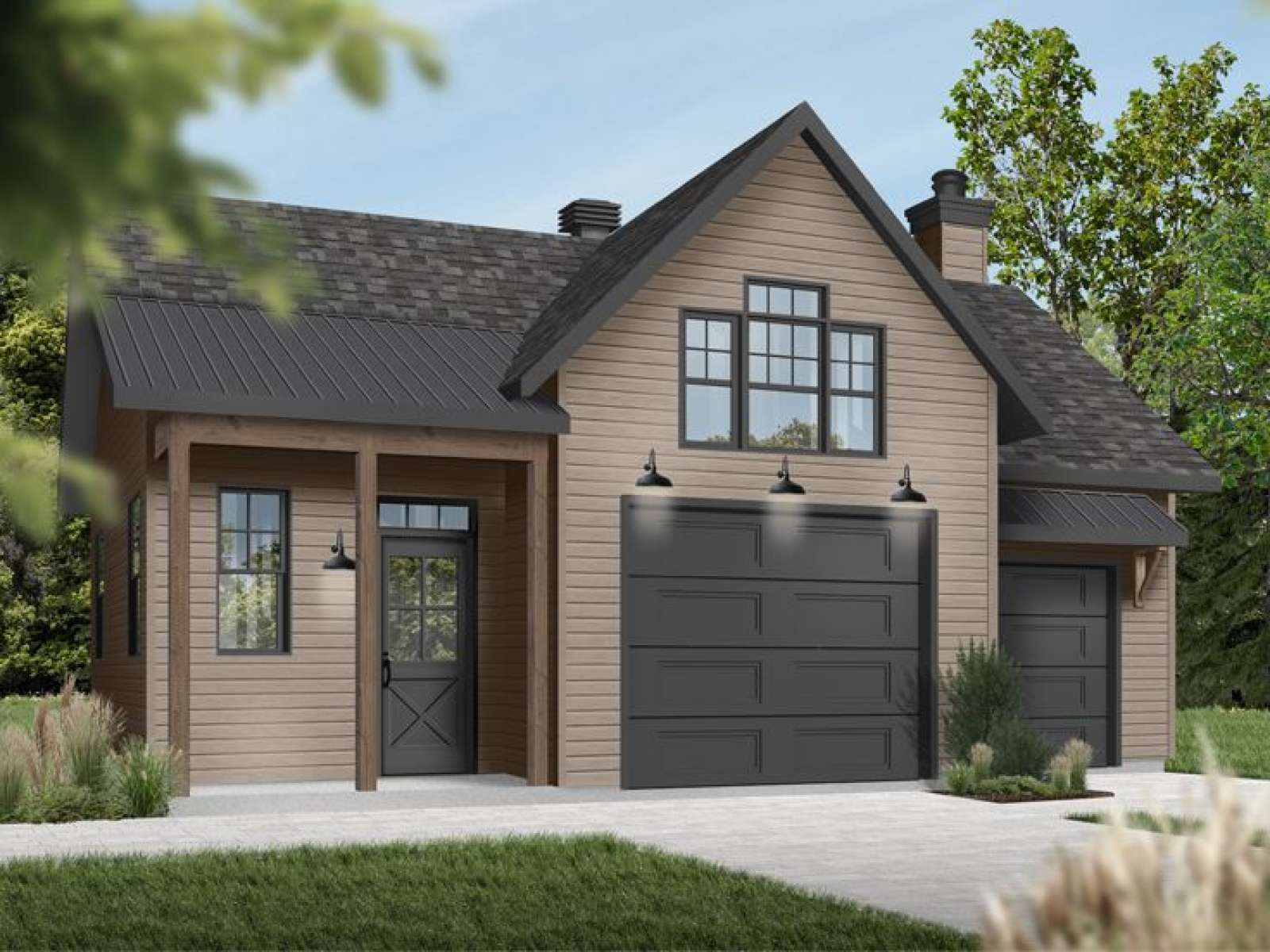

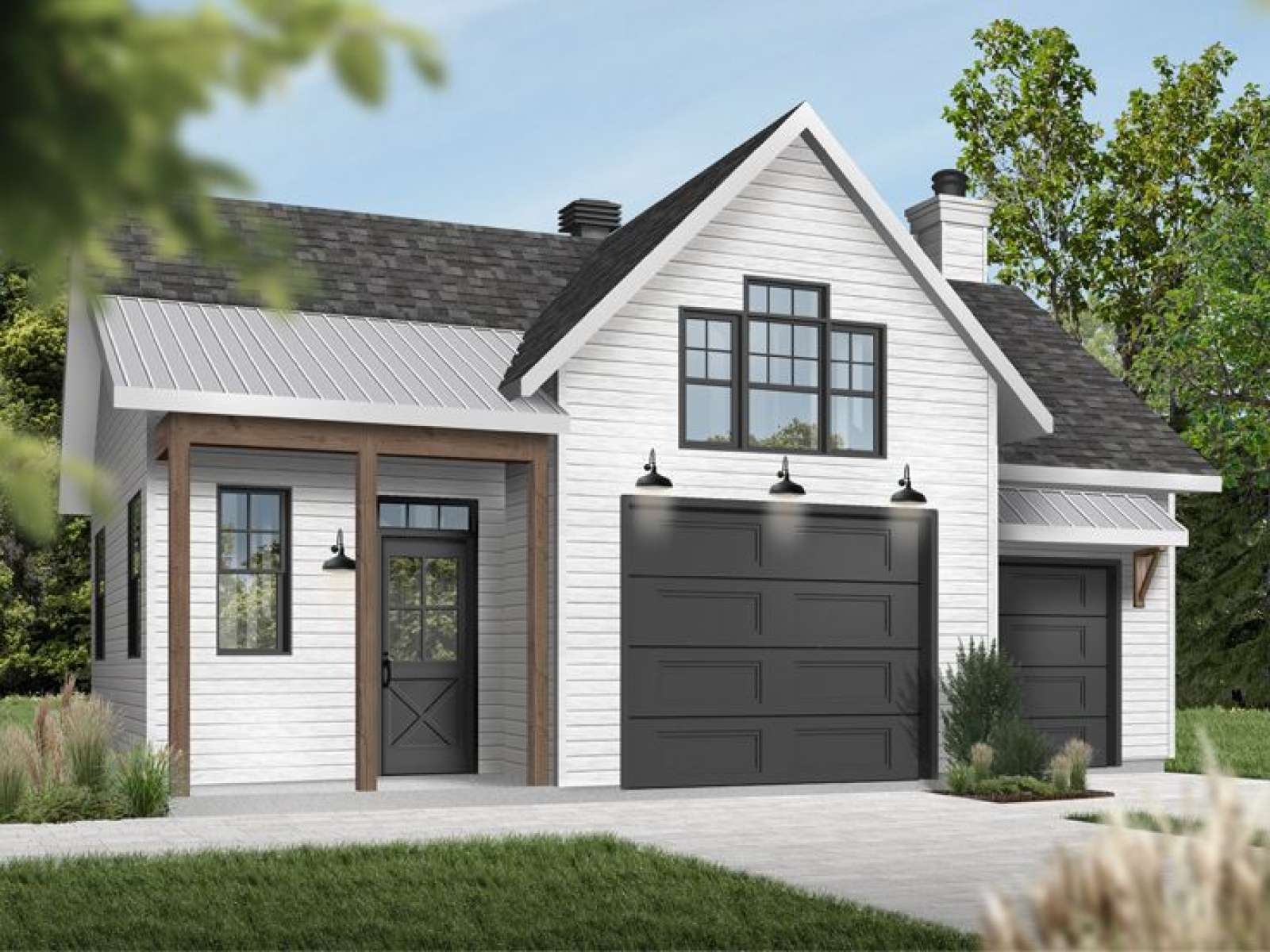

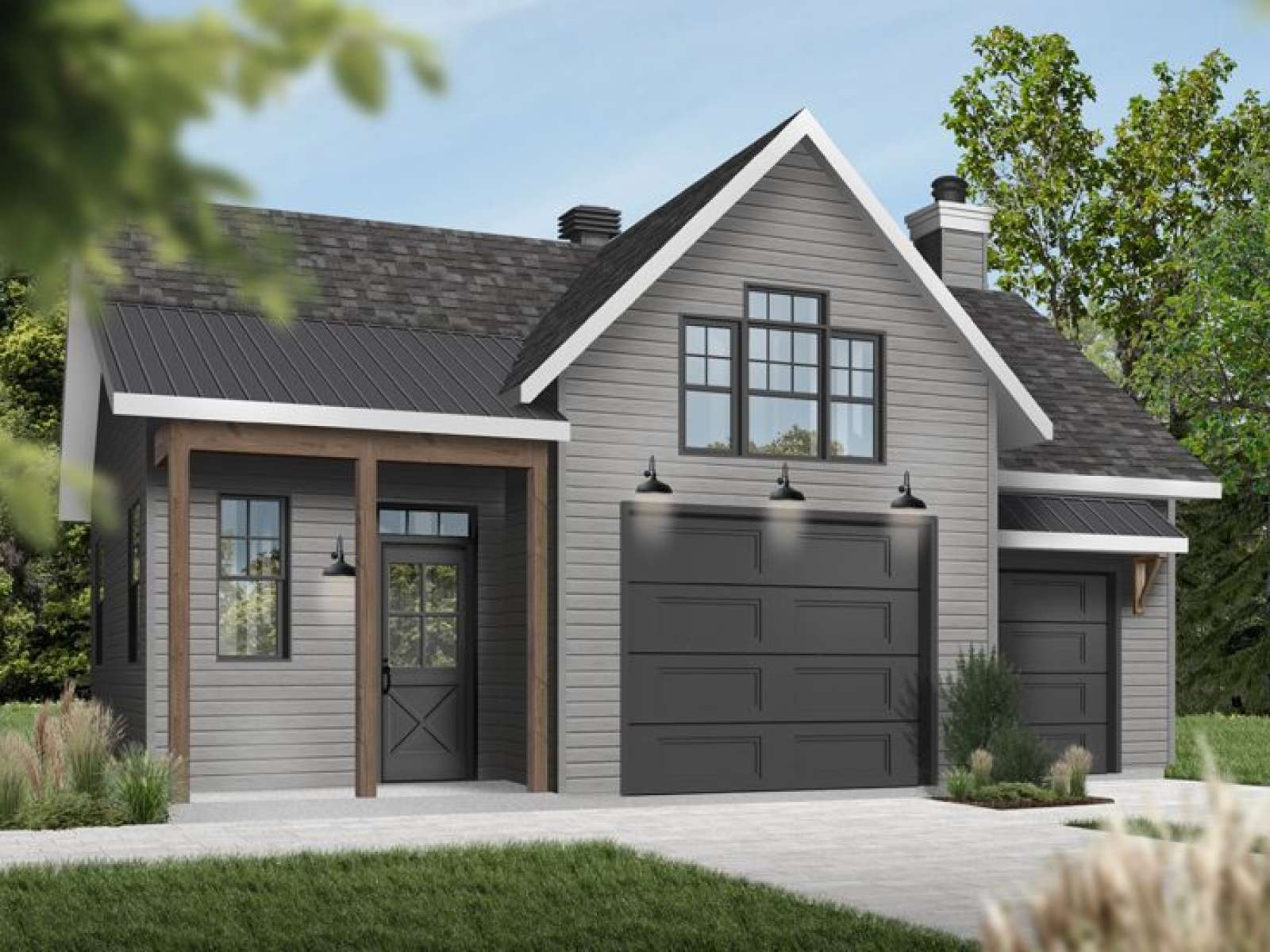

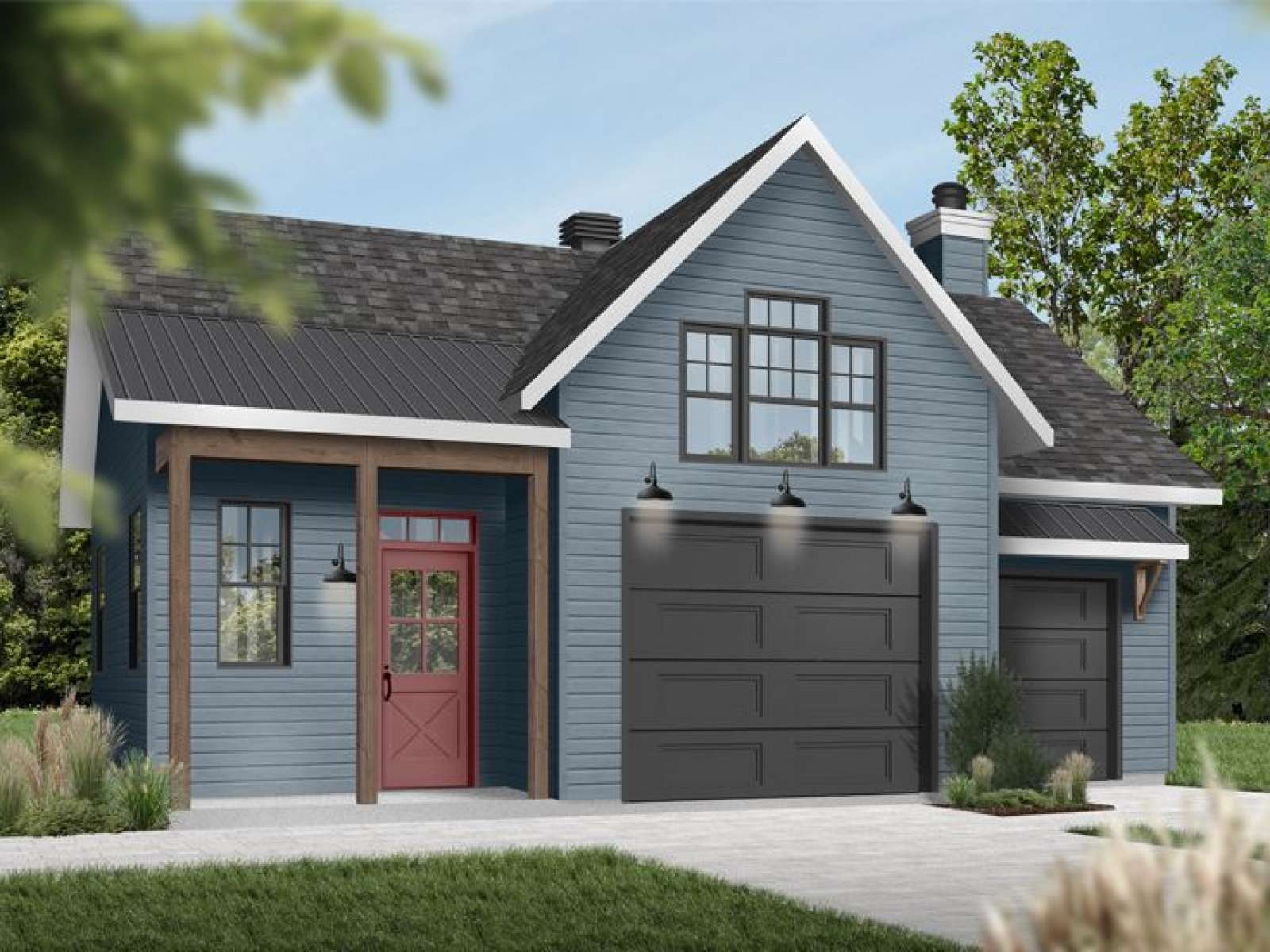

DIYers will love this one-car garage plan with workshop

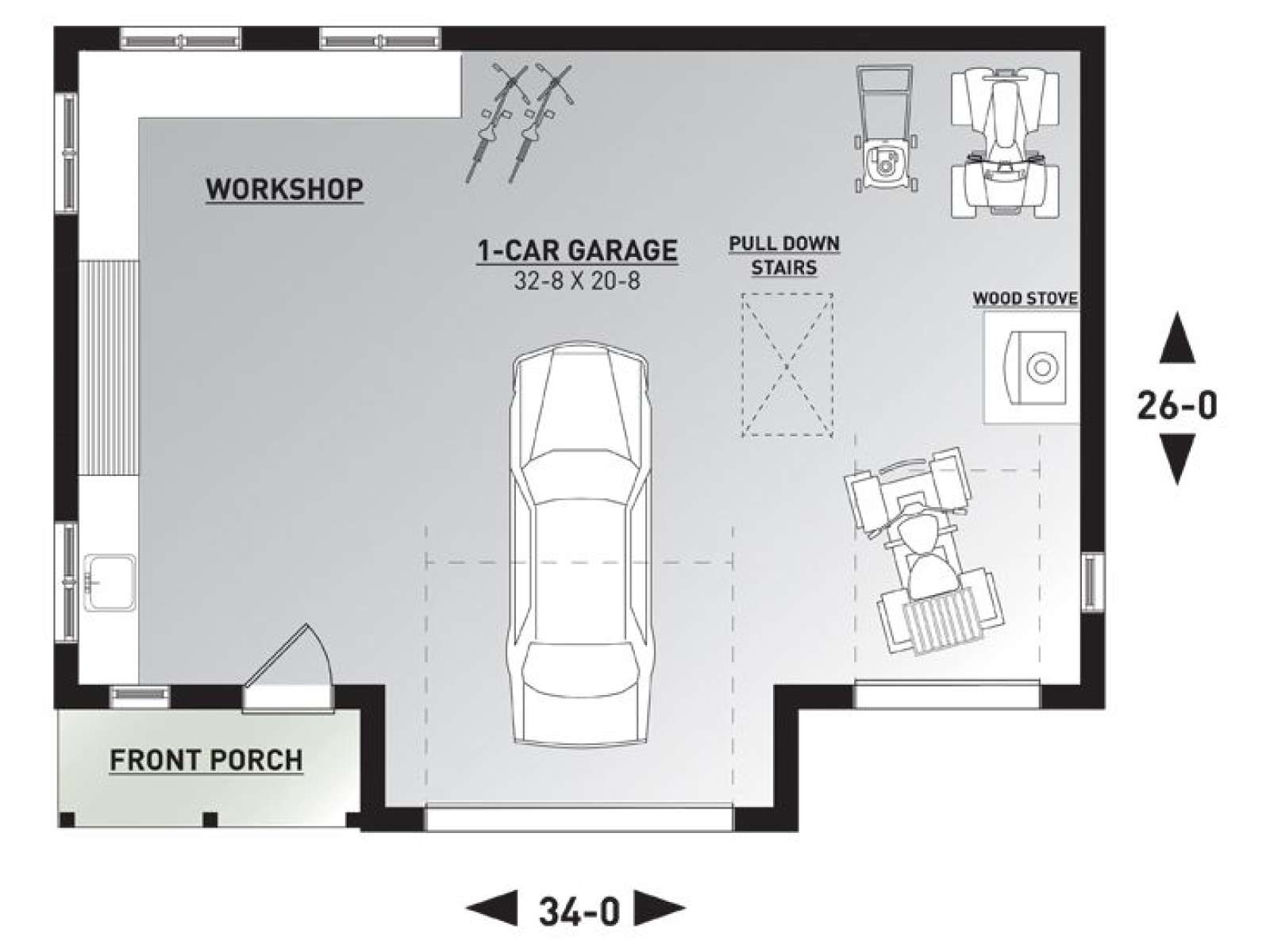

Designated workshop space is perfect for working on home repair projects and hobbies or crafts
Center garage bay protects your car from the elements
Small, right bay is just right for a jet ski, golf cart or riding mower

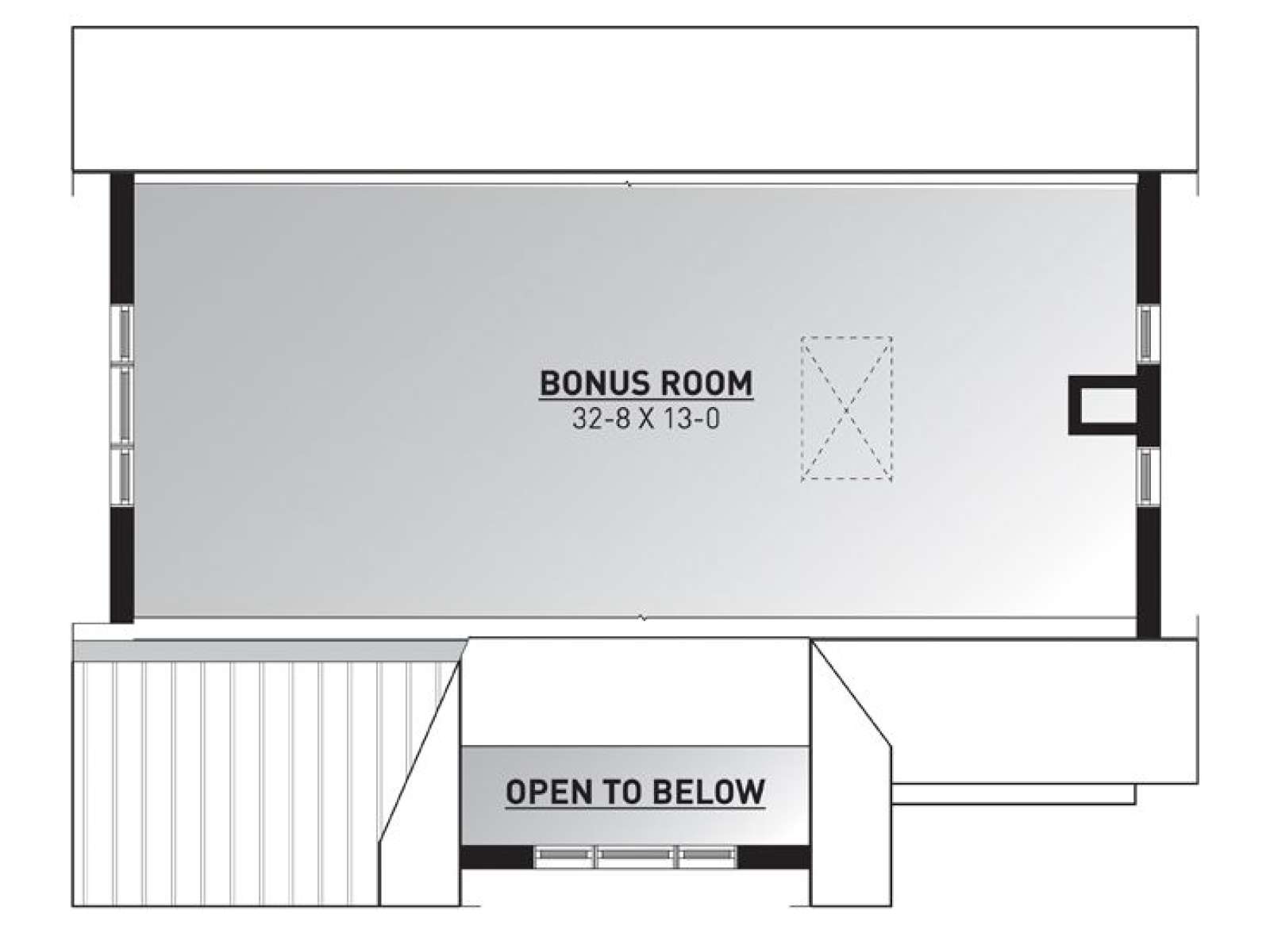

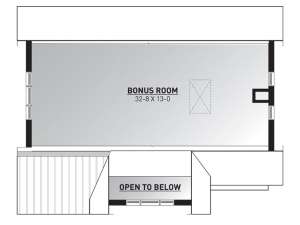

Bonus room above is suitable for stashing boxes and storing seasonal item

Unheated Square Feet
Garage	804
Loft	442
Width	34 ft. 0 in.
Depth	26 ft. 0 in.
Approximate Height	19 ft. 7 in.
Ceiling Height
First Floor	9 ft. 2 in.
Second Floor	5 ft. 0 in.
Roof Pitch	9/12 Main
Roof Pitch	12/12 Other
Roof Framing	Truss
Garage Door Size(s)	10x8
Garage Door Size(s)	6x7
Foundation Options	Floating/Stem Wall Slab Monolithic Slab
Exterior Wall Options	2x6

Exterior Features	Covered front porch
Special Features	Fireplace/Woodstove

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	n/a	n/a	n/a	n/a
Priority 3 - 4 business days	$15	$15	$75	n/a
Express 1 - 2 business days	n/a	n/a	n/a	n/a

There are no reviews

Add your review

Garage Workshop Plan

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

* See notes and purchase restrictions below

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Additional Set for Plan 028G-0069: $65.00 ea.

Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets are available for purchase within 90 days of the original house plan purchase. [less] …[more]

Right Reading Reverse for Plan 028G-0069: $150.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]
