One-Car Garage Plan, 028G-0042

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

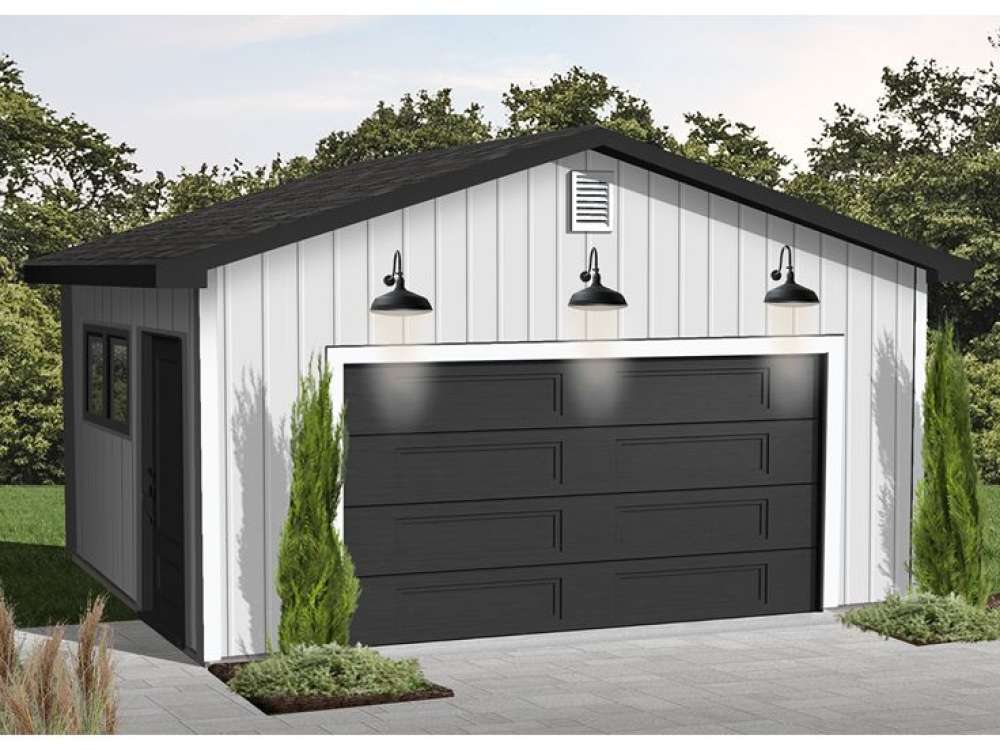

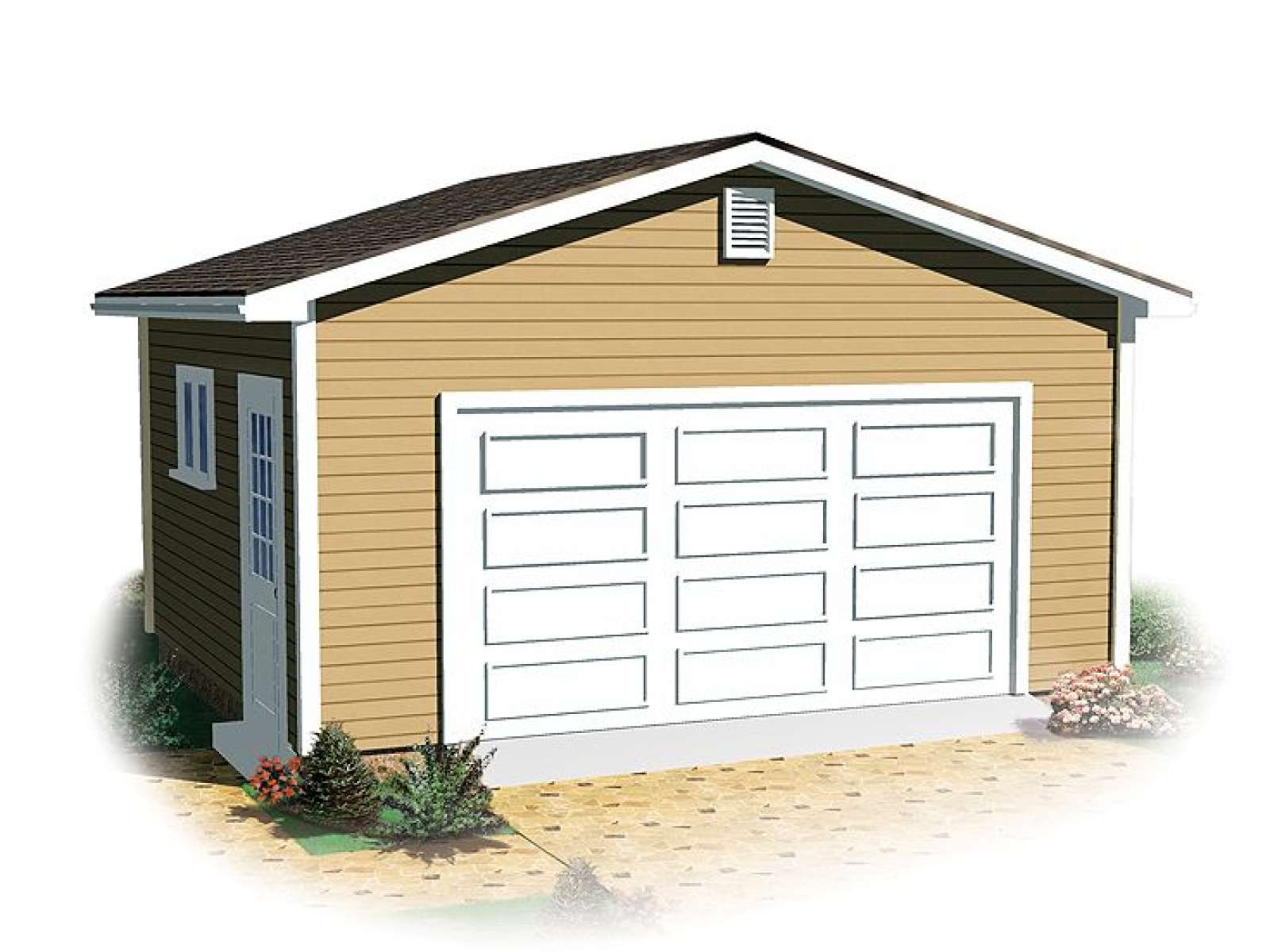

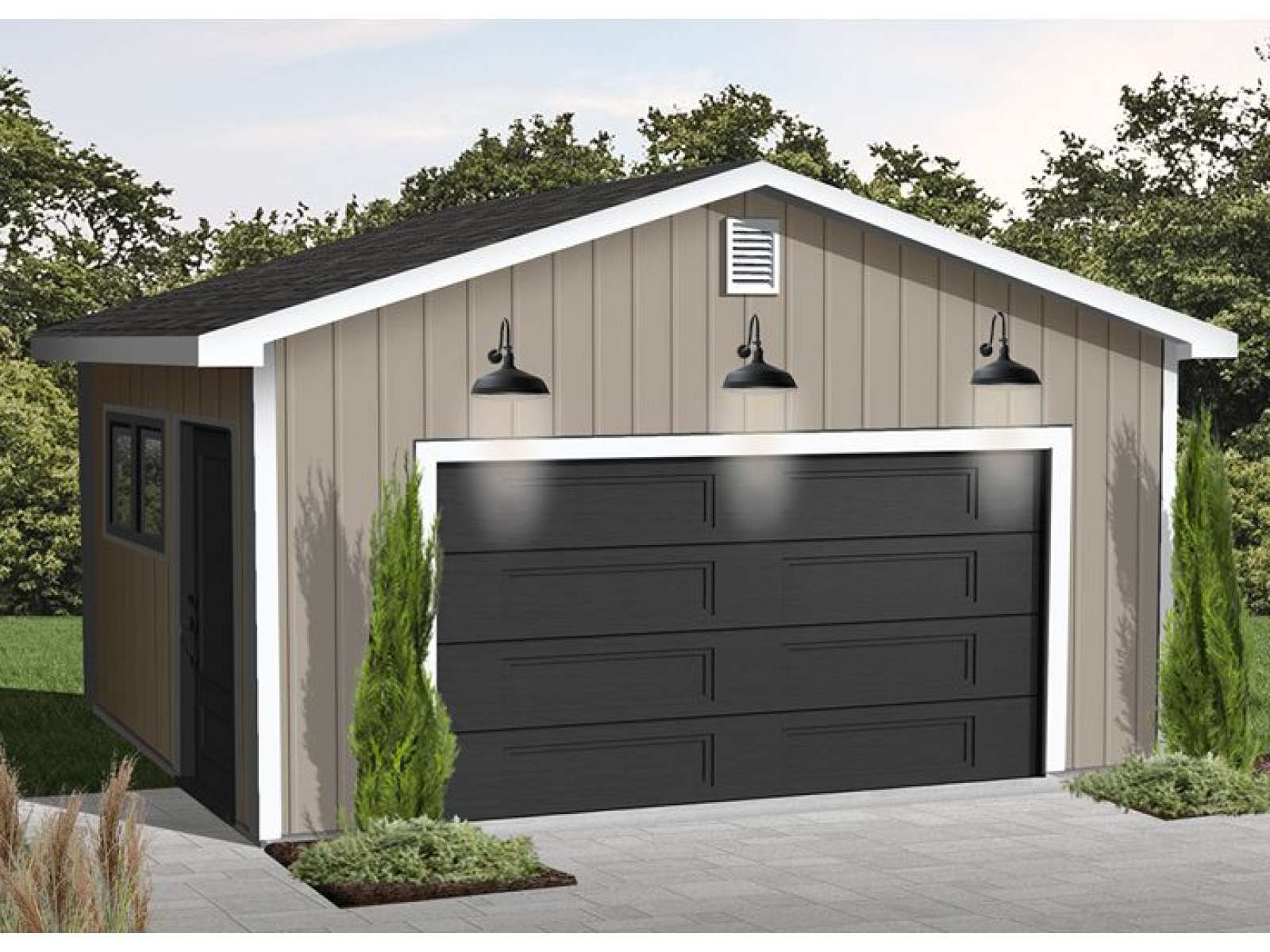

Simple, detached one-car garage plan works well for parking one car or it could be used as a shed or workshop
Front-facing gable and siding exterior lend traditional curb appeal
Side-entry service door offers convenience

Unheated Square Feet
Garage	384

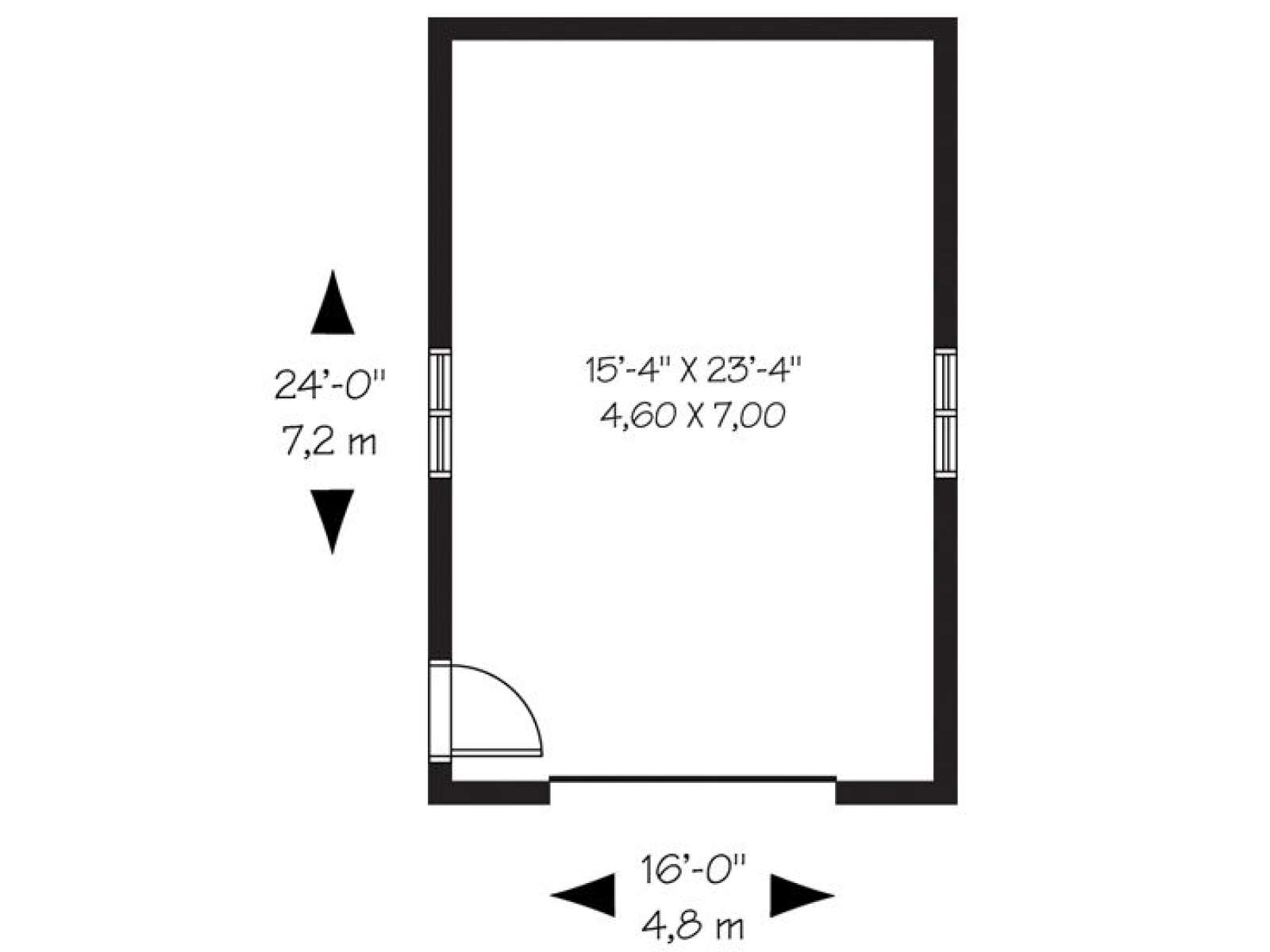

Width	16 ft. 0 in.
Depth	24 ft. 0 in.
Approximate Height	11 ft. 8 in.
Ceiling Height
First Floor	8 ft. 6 in.
Roof Pitch	4/12 Main
Roof Framing	Truss
Garage Door Size(s)	9x7
Foundation Options	Floating/Stem Wall Slab Monolithic Slab
Exterior Wall Options	2x6

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	n/a	n/a	n/a	n/a
Priority 3 - 4 business days	$15	$15	$75	n/a
Express 1 - 2 business days	n/a	n/a	n/a	n/a

There are no reviews

Add your review

16'x24' 1-Car Garage

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Additional Set for Plan 028G-0042: $65.00 ea.

Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets are available for purchase within 90 days of the original house plan purchase. [less] …[more]

Right Reading Reverse for Plan 028G-0042: $150.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]
