Workshop Plan with Apartment, 012B-0015
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Front garage door sizes left to right: 10’x8’, 14’x14’, 10’x8’

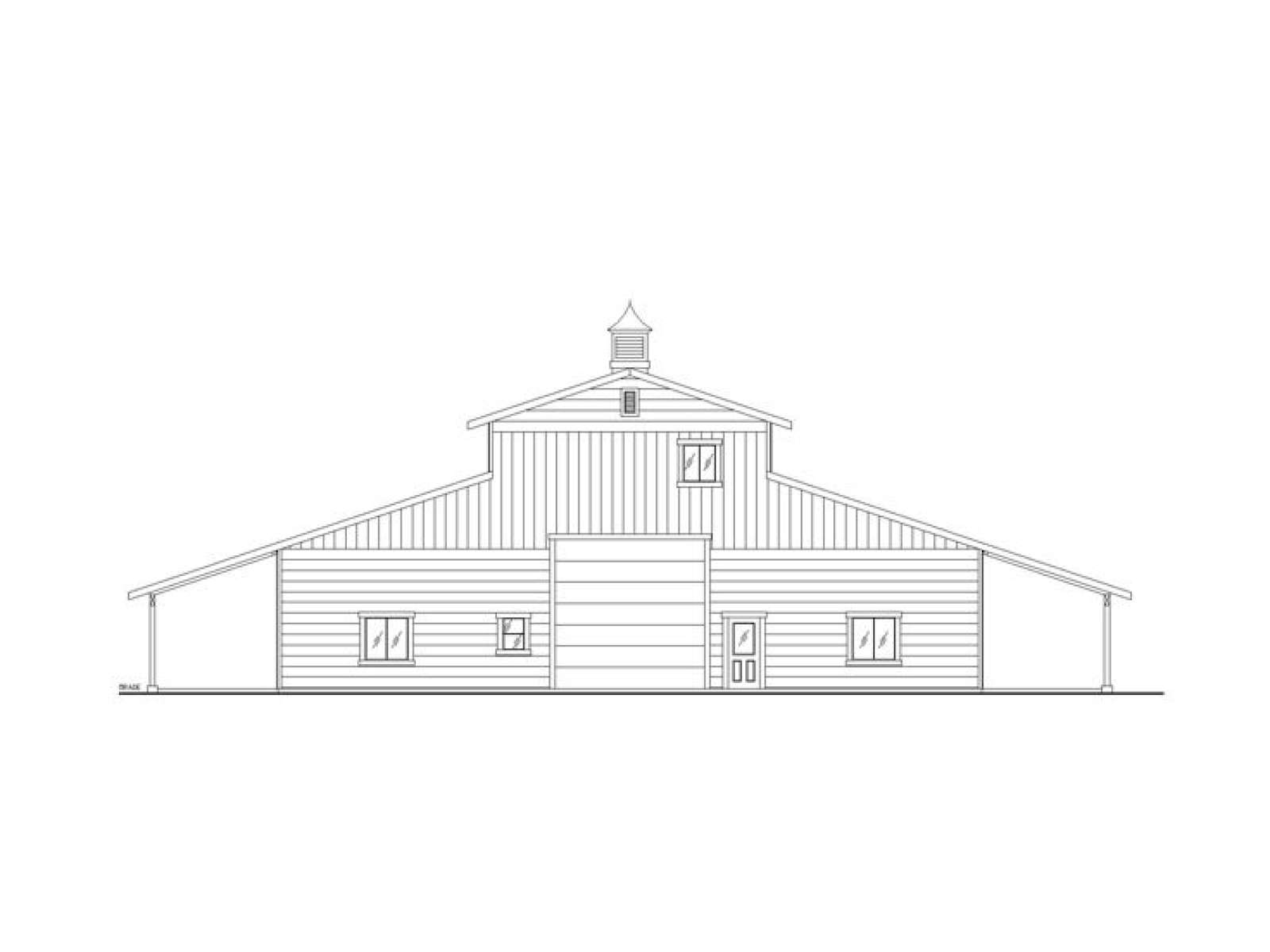

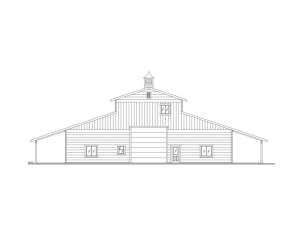

Rear garage door size: 14’x14’
Interior garage door size: 10’x8’
The side workshops have a 13’ ceiling height
The center workshop has a 15’ ceiling height
The clearance height for the lean-to’s is 8’-9” on the sides with the posts and slopes up to 12’-8” at the garage walls
Listed overall width includes the lean-to’s/covered storage
Each lean-to/covered storage area is 480 sf (960 sf for both)
Overall width without the lean-to’s (workshops only) is 66’
| Heated Square Feet | |

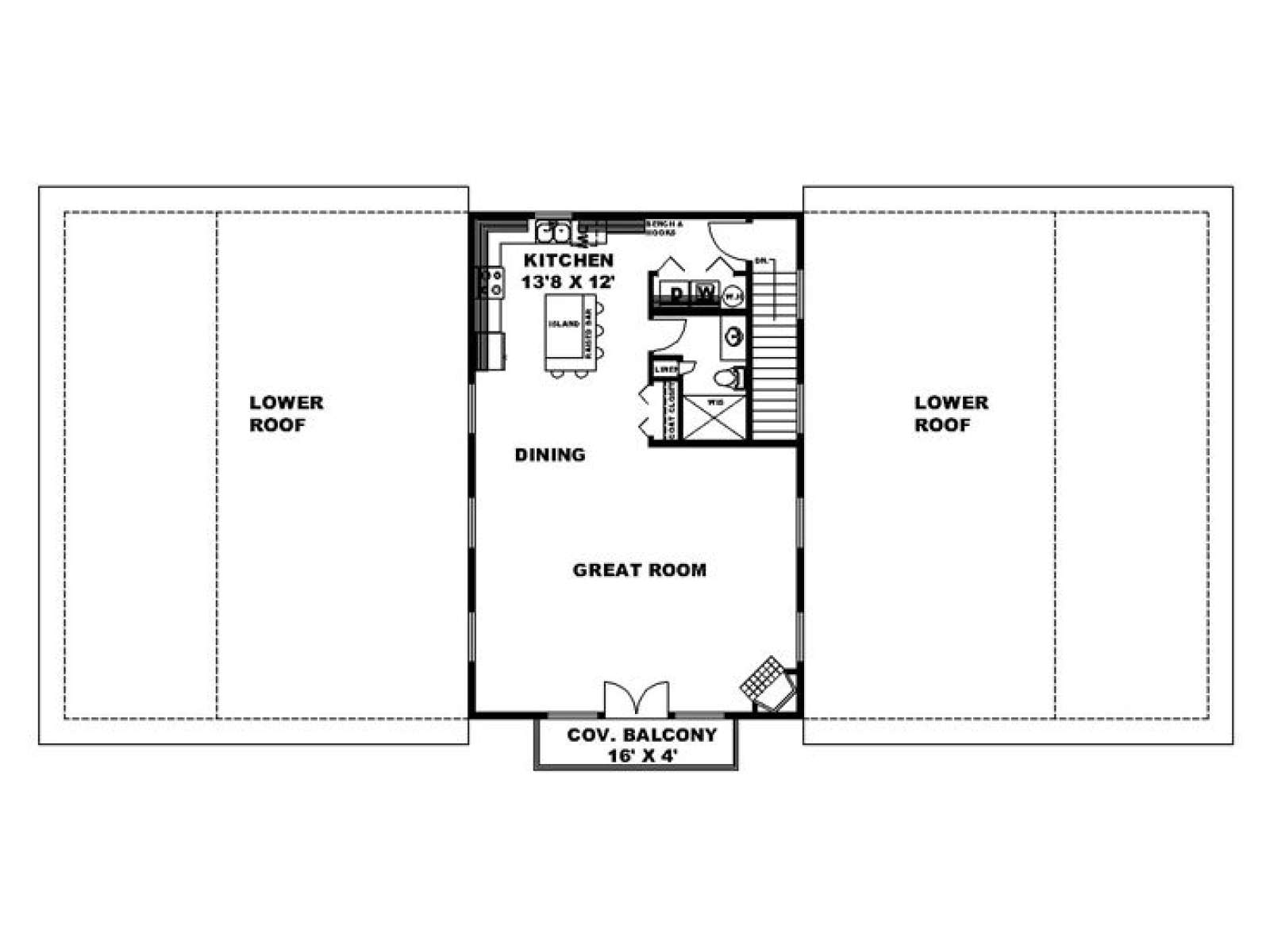

| Second Floor | 1053 |
| Total | 1053 |
| Unheated Square Feet | |

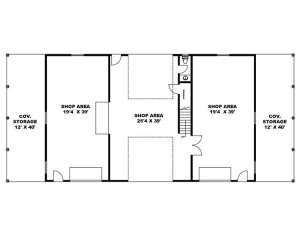

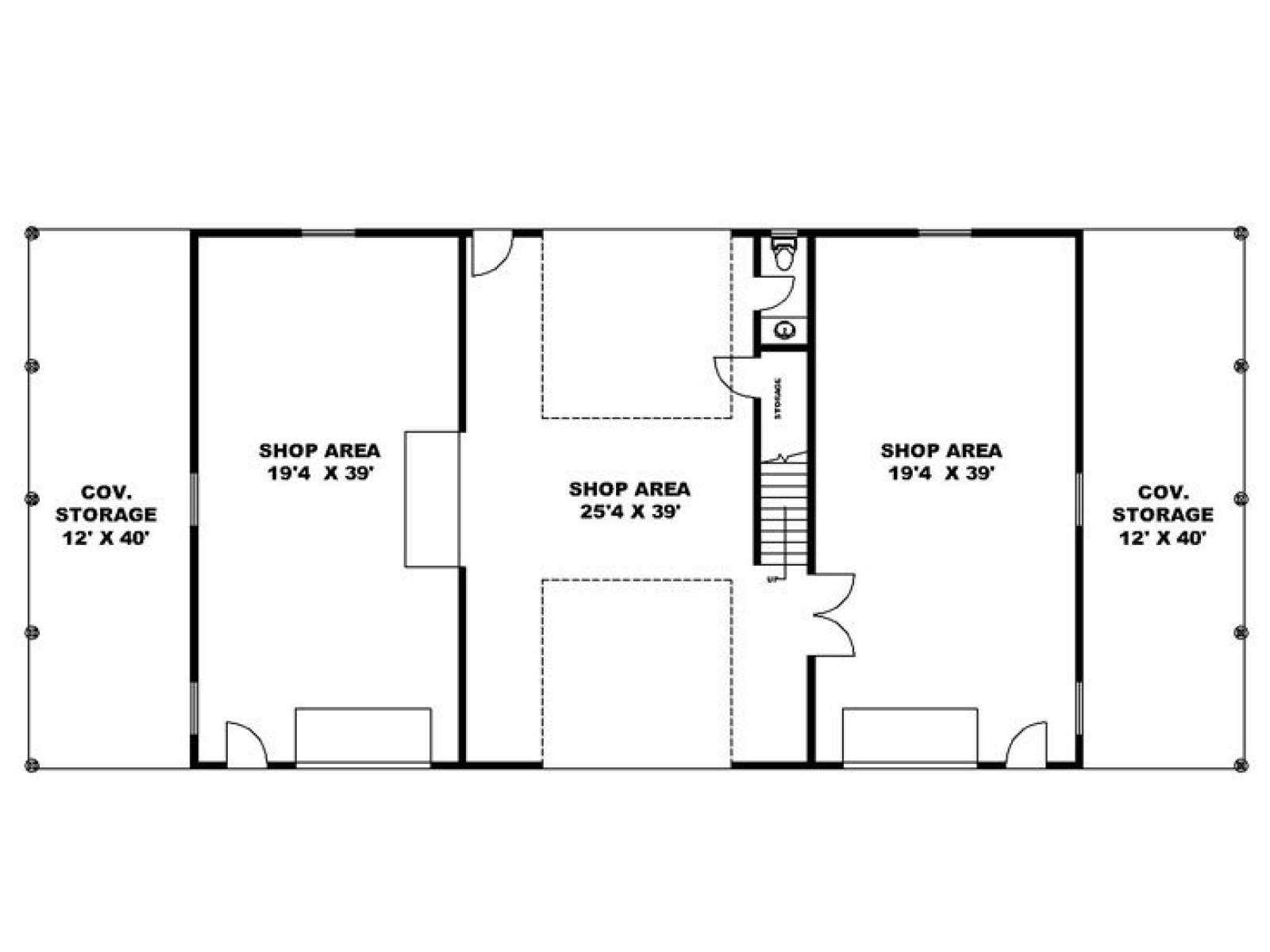

| Workshop | 2640 |
| Other | 960 |
| Full Bathrooms | 1 |
| Half Bathrooms | 1 |
| Width | 90 ft. 0 in. |
| Depth | 40 ft. 0 in. |
| Approximate Height | 30 ft. 6 in. |
| Ceiling Height | |
| Second Floor | 9 ft. 1 in. |
| Roof Pitch | 4/12 Main |
| Roof Framing |
|
| Garage Door Size(s) | 14x14 (2) |
| Garage Door Size(s) | 10x8 (3) |
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Interior Features |
|
| Exterior Features |
|
| Special Features |
|
| Garage Features |
|
Front garage door sizes left to right: 10’x8’, 14’x14’, 10’x8’
Rear garage door size: 14’x14’
Interior garage door size: 10’x8’
The side workshops have a 13’ ceiling height
The center workshop has a 15’ ceiling height
The clearance height for the lean-to’s is 8’-9” on the sides with the posts and slopes up to 12’-8” at the garage walls
Listed overall width includes the lean-to’s/covered storage
Each lean-to/covered storage area is 480 sf (960 sf for both)
Overall width without the lean-to’s (workshops only) is 66’
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $30 | n/a | n/a | n/a |
| Priority 3 - 4 business days | n/a | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
