Barn Plan, 012B-0010

Reverse All Images

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

Outbuilding plan well suited for the needs of a farm, ranch or other rural properties
Both levels offer 2400 square feet of usable/storage space

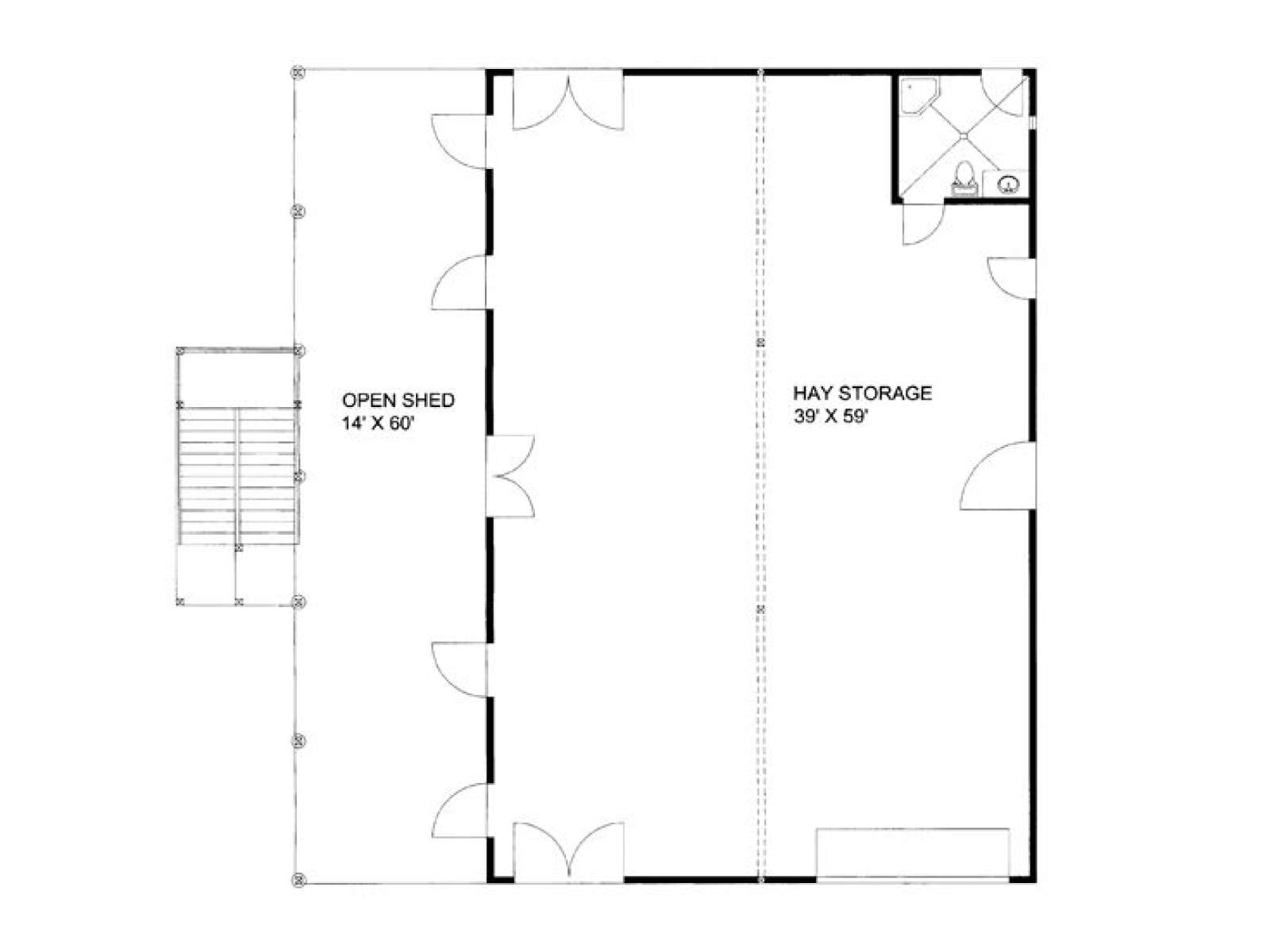

Main floor features an overhead door and other doors for easy access to the hay storage
Open shed provides storage space for machinery

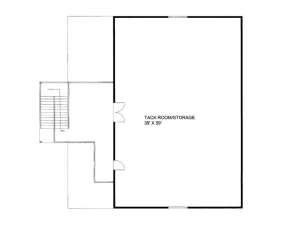

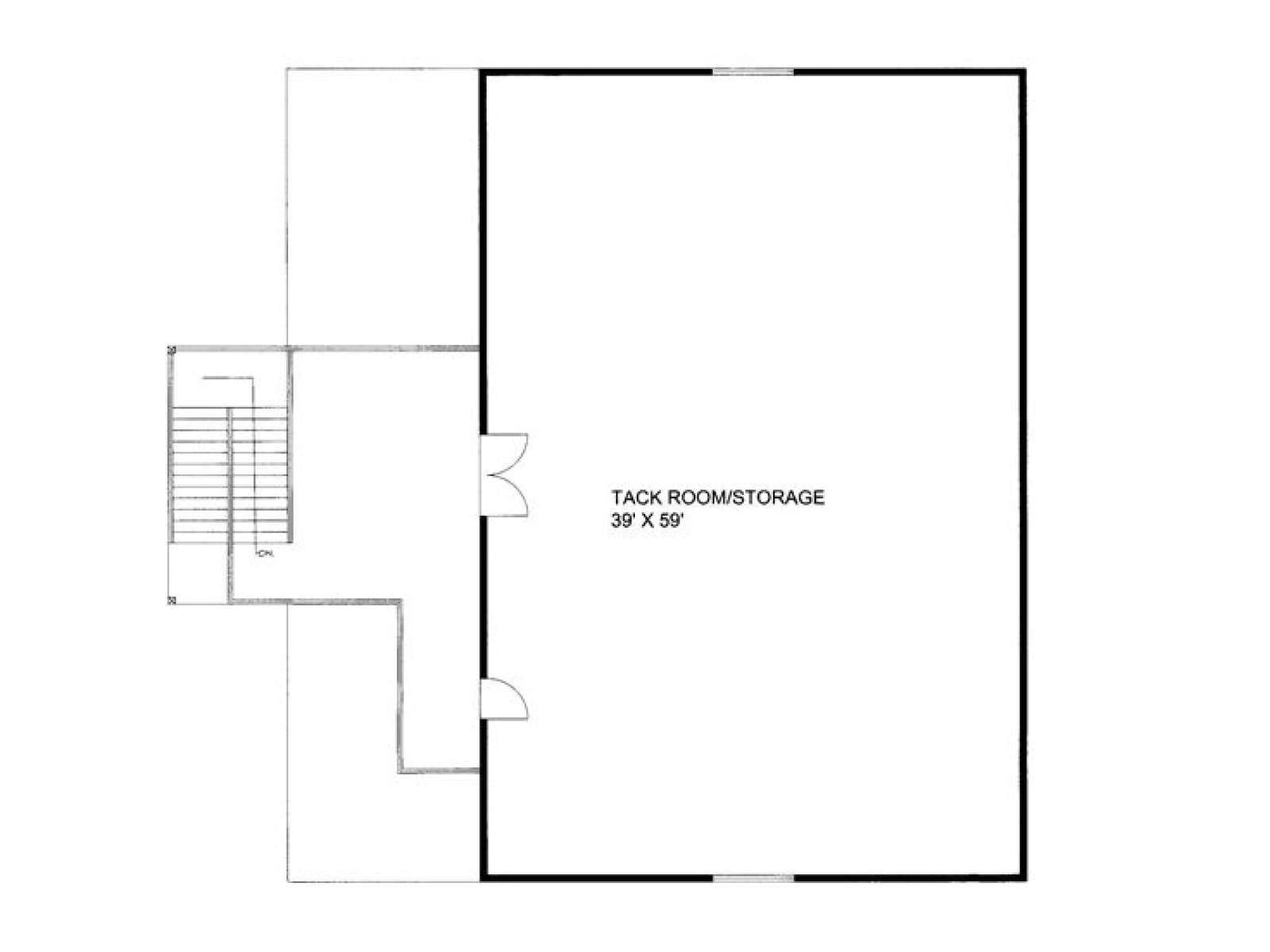

Upper level offers tack room and storage space
Full bath provides a place to clean up after a long hard day on the ranch

Unheated Square Feet
Loft	2400
Outbuilding/Barn	2400
Full Bathrooms	1
Width	40 ft. 0 in.
Depth	60 ft. 0 in.
Approximate Height	34 ft. 7 in.
Ceiling Height
First Floor	14 ft. 0 in.
Second Floor	8 ft. 1 in.
Roof Pitch	6/12 Main
Roof Framing	Truss
Garage Door Size(s)	14x13
Foundation Options	Slab
Exterior Wall Options	2x6

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	$30	n/a	n/a	n/a
Priority 3 - 4 business days	n/a	n/a	n/a	n/a
Express 1 - 2 business days	n/a	n/a	n/a	n/a

There are no reviews

Add your review

Outbuilding with Tack Room

Want to modify this plan?

Please submit your requested changes, and our team will email a free modification quote to you within 1 to 3 business days.

Modify this Plan

Starting at

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Additional Set for Plan 012B-0010: $50.00 ea.

Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are Complete copy of the construction drawings. Since our plans cannot be photocopied, extra sets are available for purchase within 90 days of the original purchase. [less] …[more]

Right Reading Reverse for Plan 012B-0010: $195.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]
