Outbuilding Plan, 012B-0003
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

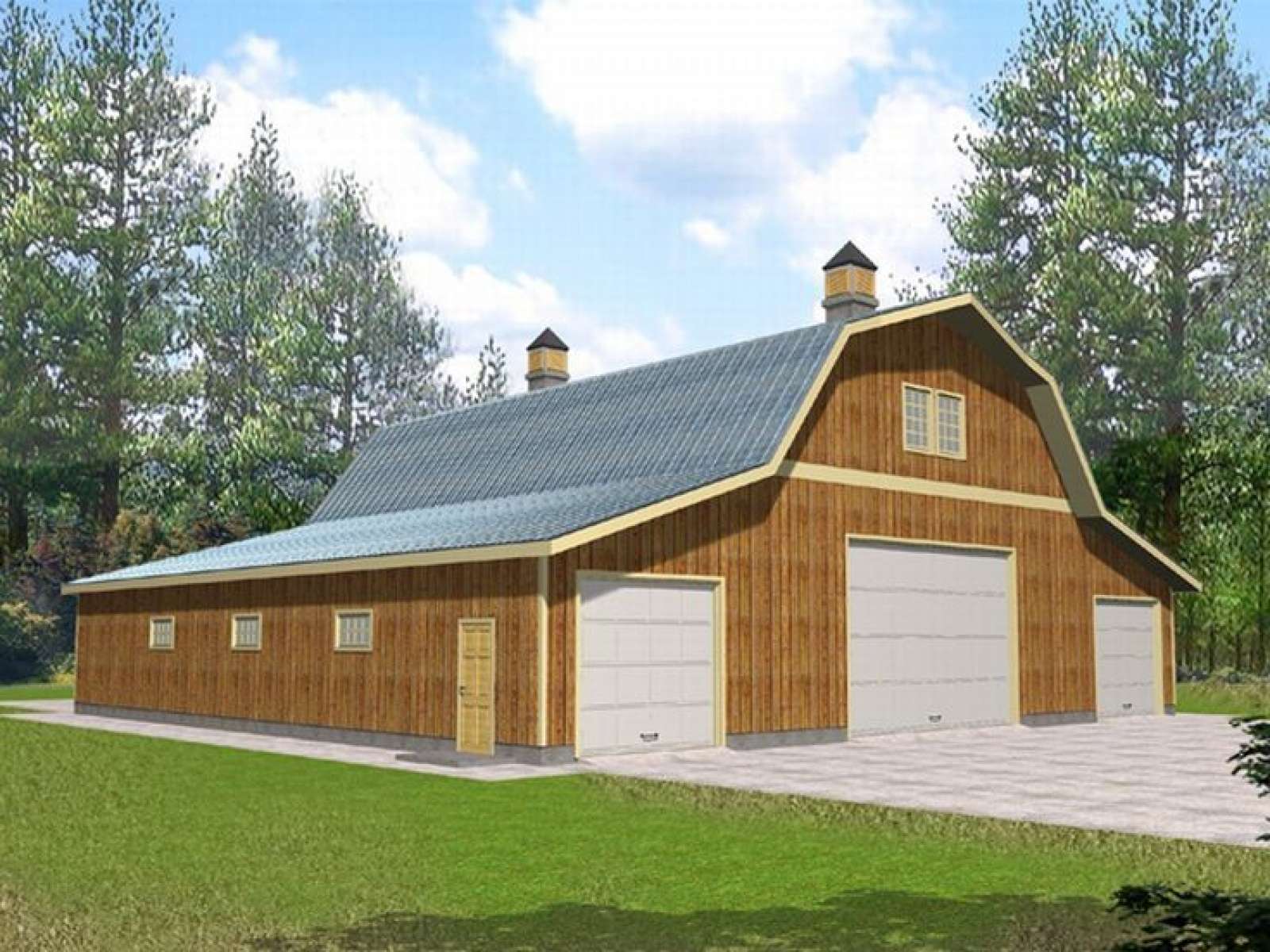

Outbuilding plan with workshop will accommodate a variety of needs

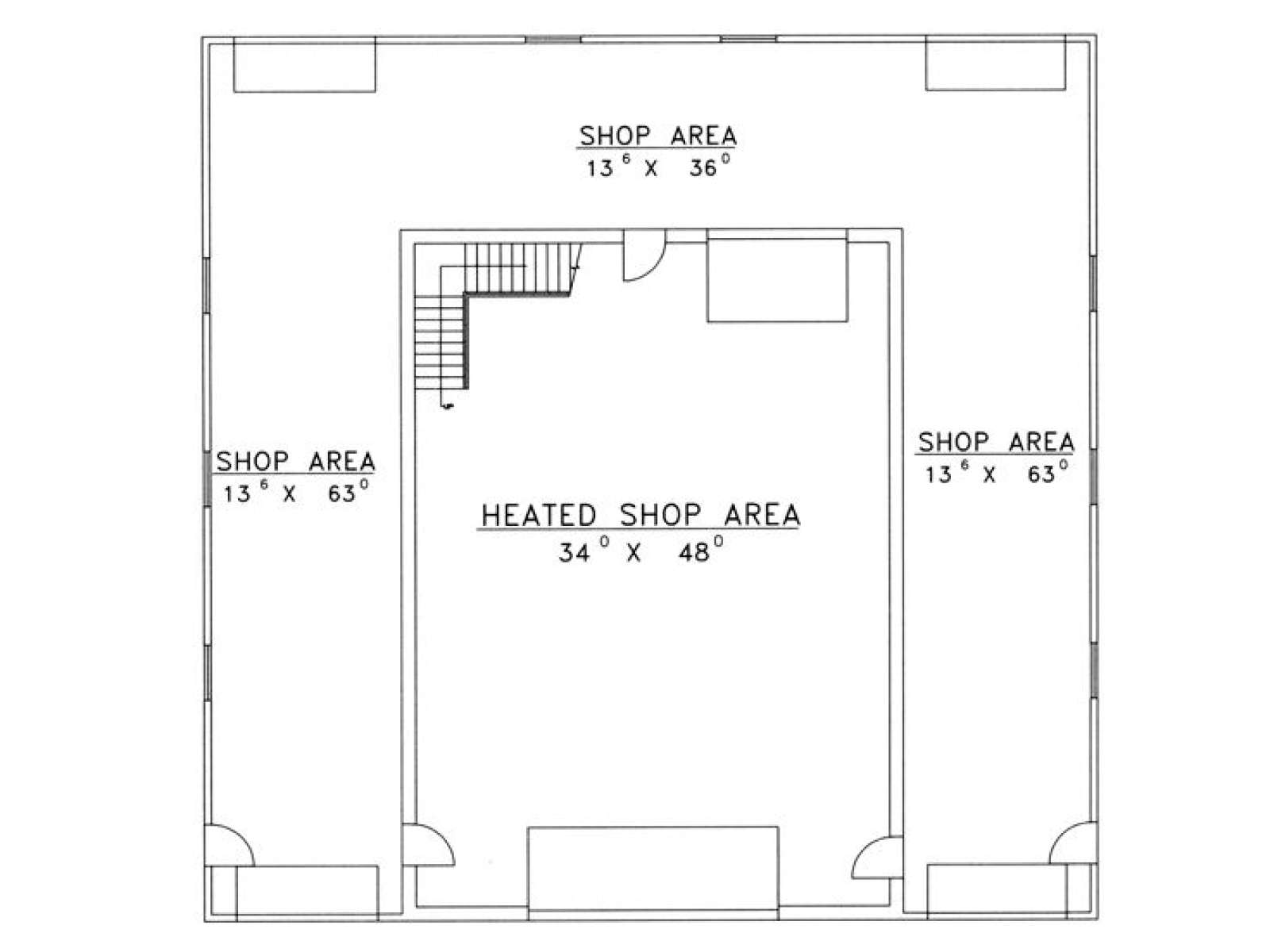

Center workshop area is heated and has a 14’ ceiling
Heated workshop provides plenty of room for DIY projects, hobbies and tool storage
Overhead doors make it easy to move projects and supplies in and out of the workshop
U-shaped workshop area is unheated and provides additional work space, storage space or parking
Side garage bays have a 10’ ceiling

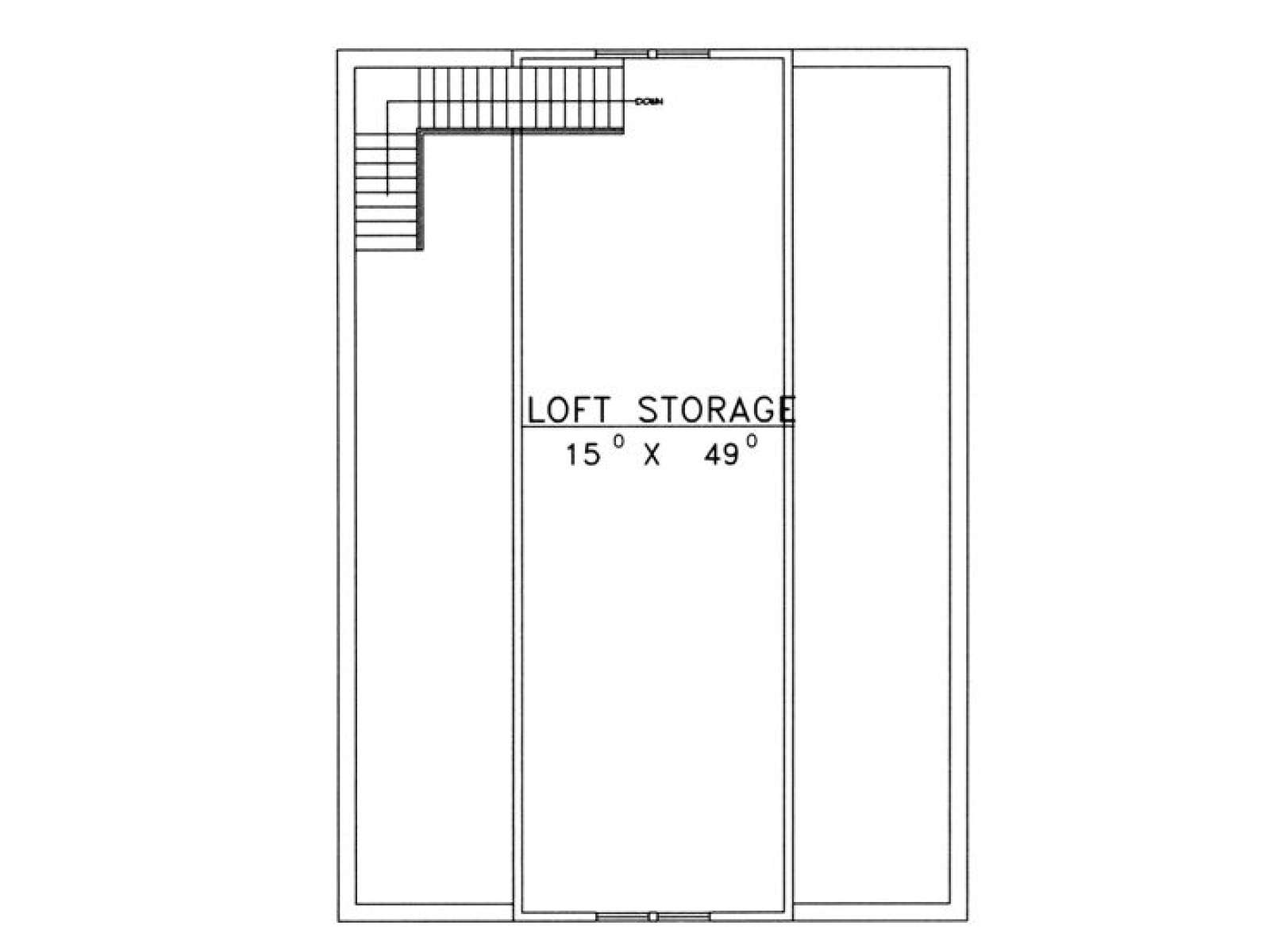

Loft provides additional storage space for seasonal items
NOTE: The exterior wall framing surrounding the unheated shop area is 2x6. The wall framing surrounding the heated interior shop area is ICF.
| Unheated Square Feet | |
| Garage | 4096 |
| Loft | 800 |
| Width | 64 ft. 0 in. |
| Depth | 64 ft. 0 in. |
| Approximate Height | 31 ft. 8 in. |
| Ceiling Height | |
| Second Floor | 8 ft. 8 in. |
| Roof Pitch | 4/12 Main |
| Roof Pitch | 16/12 Secondary |
| Roof Pitch | 3.5/12 Secondary |
| Roof Framing |
|
| Garage Door Size(s) | 18x12 |
| Garage Door Size(s) | 10x9 (4) |
| Garage Door Size(s) | 10x10 |
| Foundation Options |
|
| Exterior Wall Options |
|
Outbuilding plan with workshop will accommodate a variety of needs
Center workshop area is heated and has a 14’ ceiling
Heated workshop provides plenty of room for DIY projects, hobbies and tool storage
Overhead doors make it easy to move projects and supplies in and out of the workshop
U-shaped workshop area is unheated and provides additional work space, storage space or parking
Side garage bays have a 10’ ceiling
Loft provides additional storage space for seasonal items
NOTE: The exterior wall framing surrounding the unheated shop area is 2x6. The wall framing surrounding the heated interior shop area is ICF.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $30 | n/a | n/a | n/a |
| Priority 3 - 4 business days | n/a | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
