Outbuilding Plan, 012B-0002
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

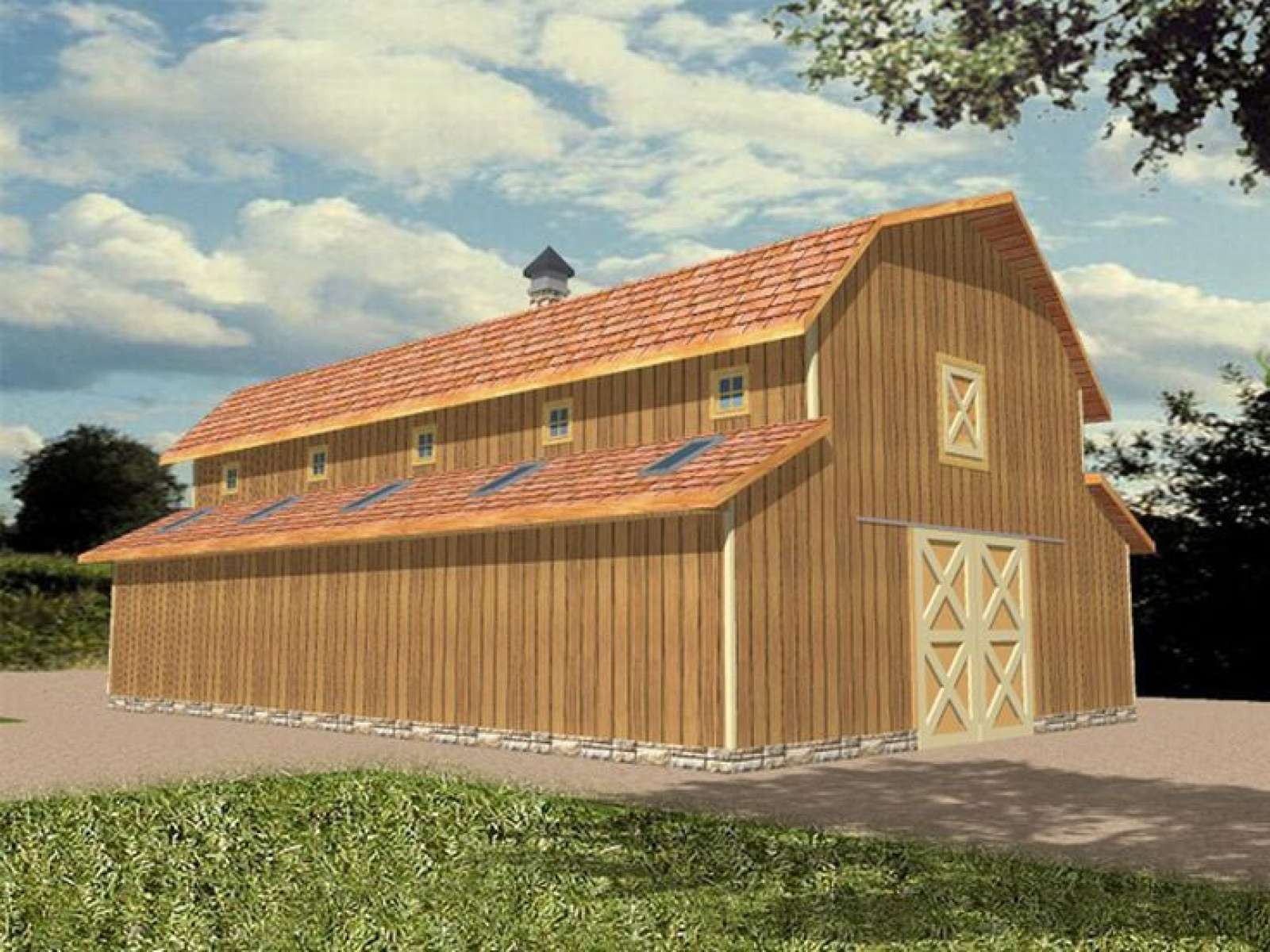

Horse barn plan is the ideal addition to any farm or ranch

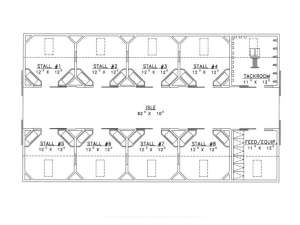

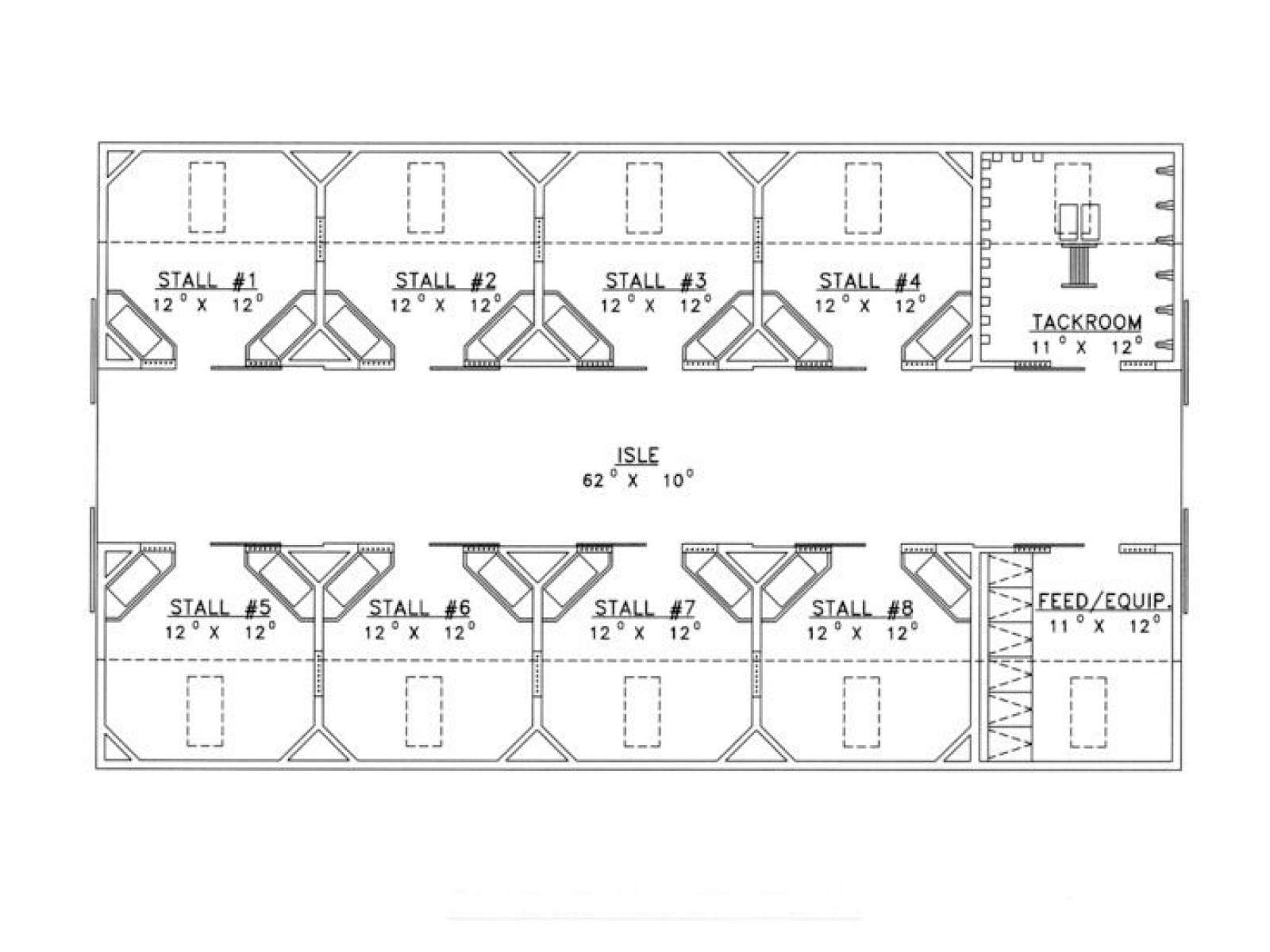

Outbuilding features a stable on the main level with eight animal stalls, center aisle, feed room, and tack room

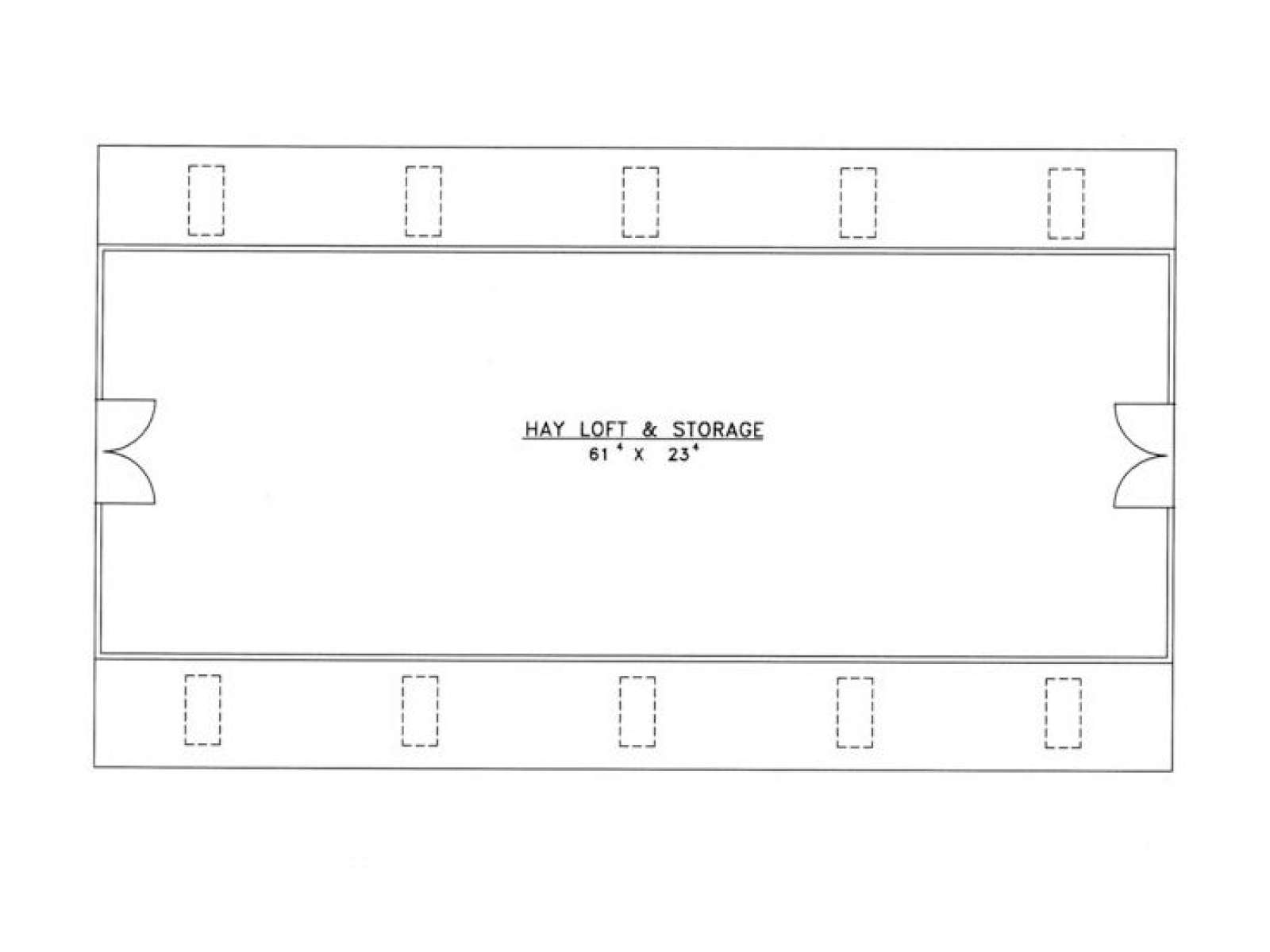

Upper level provides a hay loft and storage
| Unheated Square Feet | |
| Loft | 1488 |
| Outbuilding/Barn | 2232 |
| Width | 62 ft. 0 in. |
| Depth | 36 ft. 0 in. |
| Approximate Height | 28 ft. 7 in. |
| Ceiling Height | |
| First Floor | 11 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Horse barn plan is the ideal addition to any farm or ranch
Outbuilding features a stable on the main level with eight animal stalls, center aisle, feed room, and tack room
Upper level provides a hay loft and storage
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $30 | n/a | n/a | n/a |
| Priority 3 - 4 business days | n/a | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
