Outbuilding Plan, 012B-0001
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Unique horse barn plan with living quarters will add value to your property

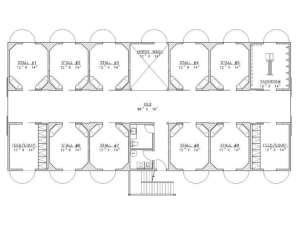

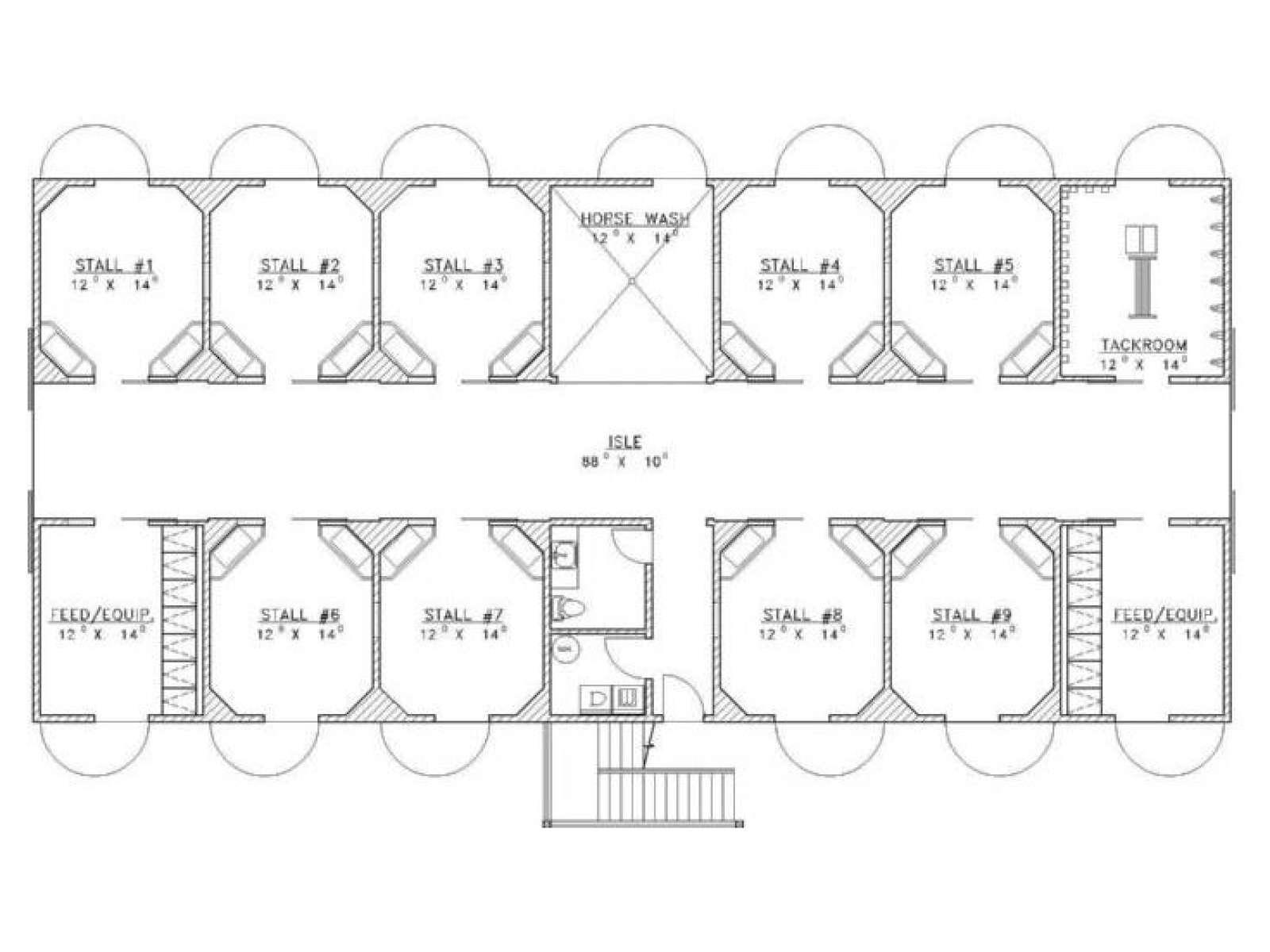

Main level offers nine horse stalls, a center aisle, two feed/equipment rooms, a tack room and a horse wash area
Half bath and laundry room provide convenience

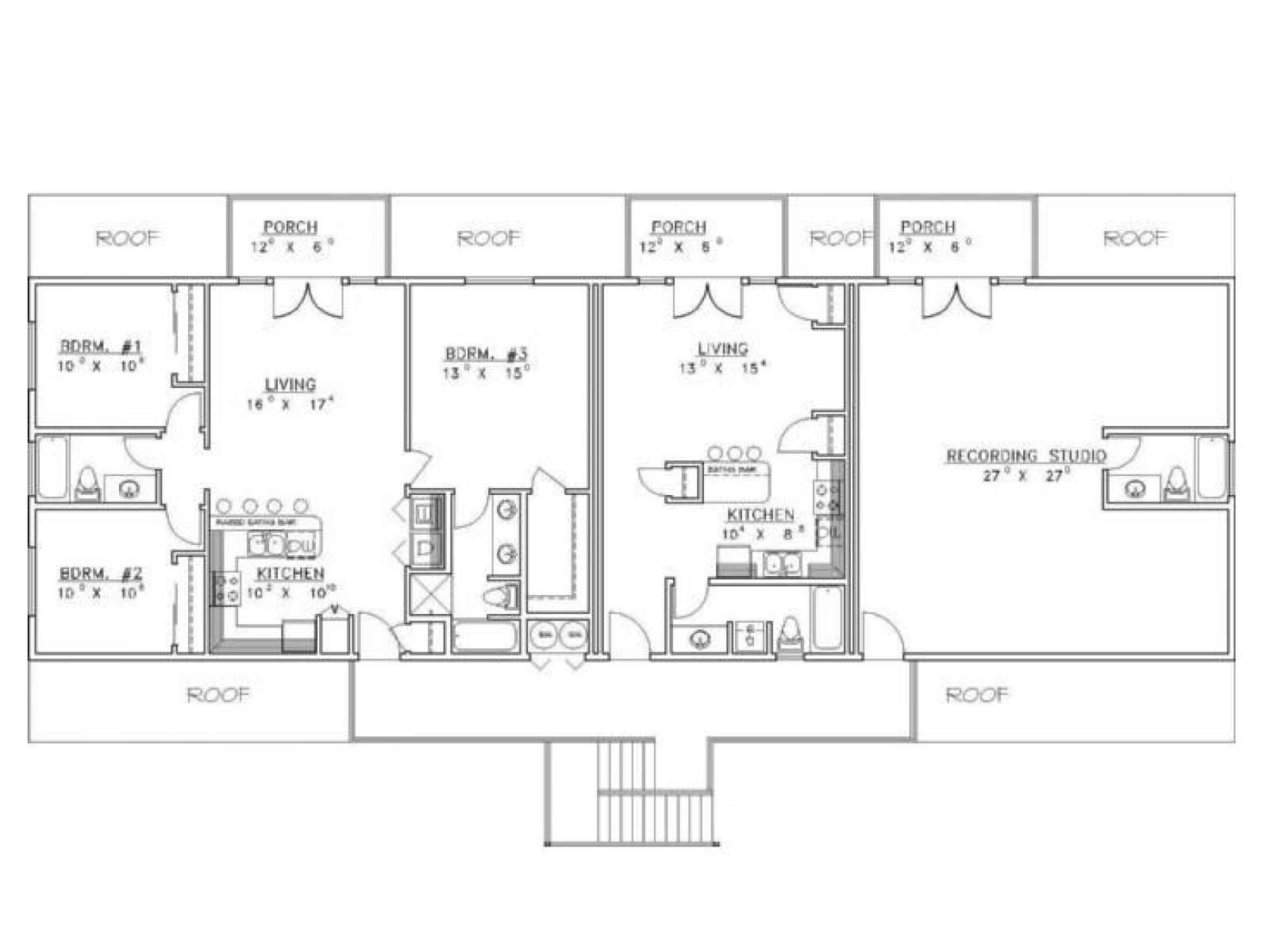

Exterior stairs lead to the second floor living quarters and rec room
A 3-bedroom, 2-bath apartment provides comfortable accommodates for ranch hands
Center living area with full bath and kitchen is ideal for guests or just offers a place to relax at the end of the day
Recording studio features a full bath and can also serve as a hobby room, game room or recreation area
| Heated Square Feet | |
| Second Floor | 2464 |
| Total | 2464 |
| Unheated Square Feet | |
| Outbuilding/Barn | 3520 |
| Bedrooms | 3 |
| Full Bathrooms | 4 |
| Half Bathrooms | 1 |
| Width | 88 ft. 0 in. |
| Depth | 40 ft. 0 in. |
| Approximate Height | 30 ft. 8 in. |
| Ceiling Height | |
| First Floor | 10 ft. 8 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Interior Features |
|
Unique horse barn plan with living quarters will add value to your property
Main level offers nine horse stalls, a center aisle, two feed/equipment rooms, a tack room and a horse wash area
Half bath and laundry room provide convenience
Exterior stairs lead to the second floor living quarters and rec room
A 3-bedroom, 2-bath apartment provides comfortable accommodates for ranch hands
Center living area with full bath and kitchen is ideal for guests or just offers a place to relax at the end of the day
Recording studio features a full bath and can also serve as a hobby room, game room or recreation area
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $30 | n/a | n/a | n/a |
| Priority 3 - 4 business days | n/a | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
